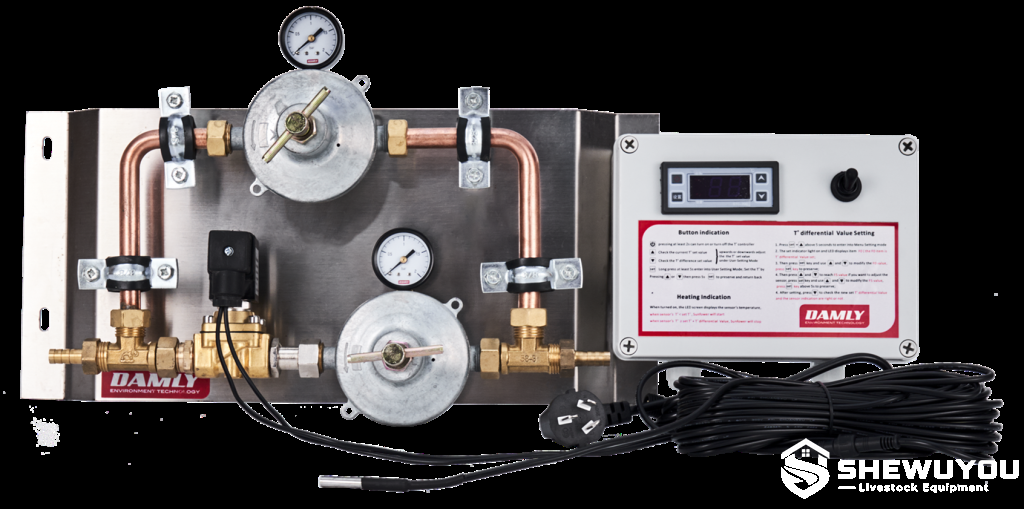

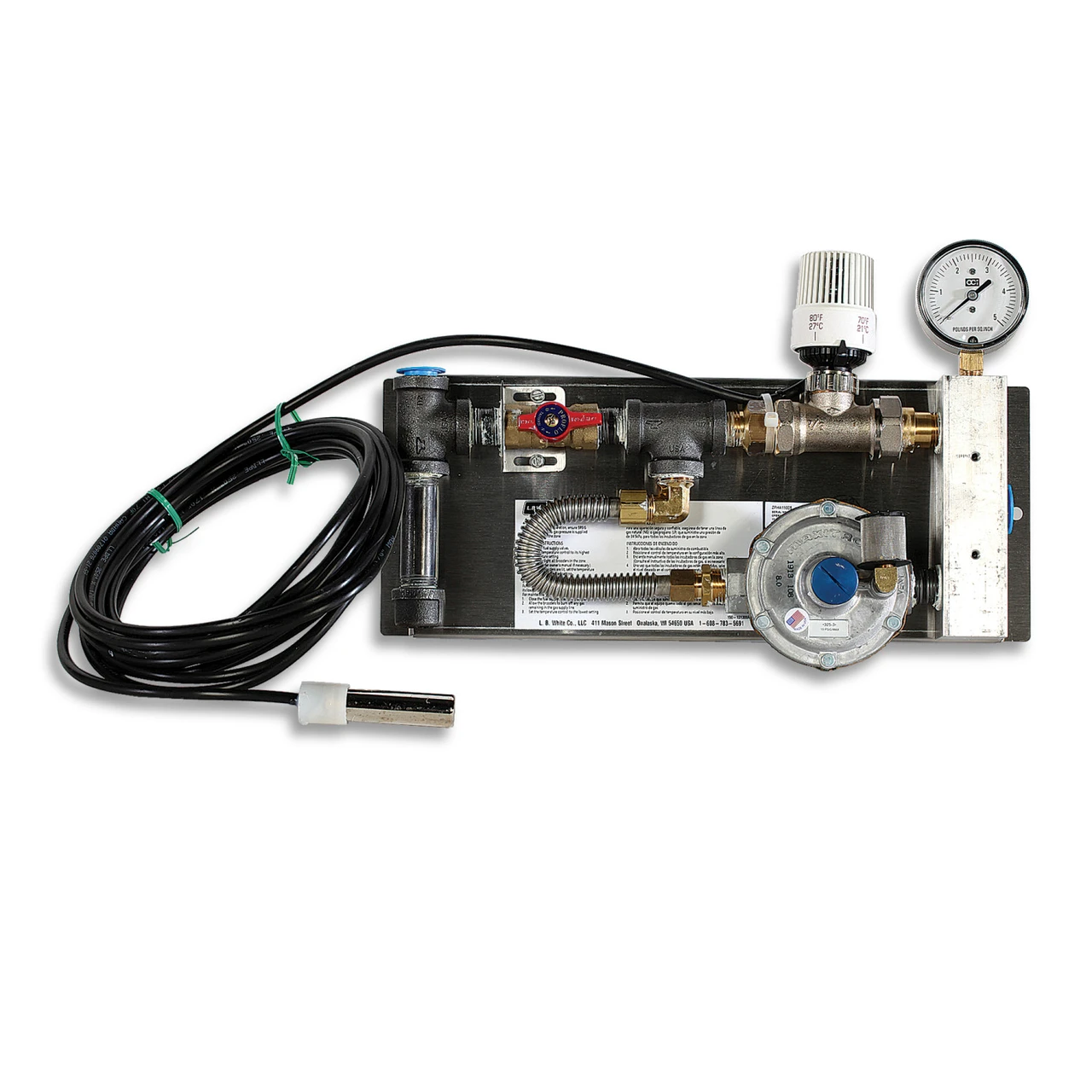

Dual-Stage Brooder Heater Controller

The Dual-Stage Brooder Heater Controller is designed to manage poultry brooder heating systems through two-stage temperature control. It adjusts heating output between low and high stages according to actual temperature demand.

This control method improves temperature stability, reduces unnecessary energy consumption and provides more accurate environmental management for commercial poultry houses using gas brooders or radiant heating equipment.

• Two-Stage Heating Control: Controls low and high heating output according to temperature demand.
• Stable Brooding Temperature: Helps maintain consistent conditions during chick growth.
• Energy Efficient Operation: Reduces unnecessary high-output heating.
• Gas Brooder Compatibility: Suitable for high/low fire heating systems.
• Automatic Temperature Regulation: Works with temperature sensors for automatic control.
• Multi-Zone Application: Suitable for different poultry-house heating layouts.
• Easy Operation: Simplifies daily brooder management.
• Climate System Integration: Compatible with modern livestock environmental control systems.

• Digital controller housing
• Temperature sensor input
• Low-stage output module
• High-stage output module
• Relay switching components
• Gas valve control interface
• Power terminals
• Status indicators
• Control adjustment interface

The temperature sensor monitors the brooding environment continuously. When temperature decreases below the set point, the controller activates the first heating stage.

If additional heat is required, the second heating stage is activated to increase heating capacity. When the desired temperature is reached, the controller reduces heating output step by step.

This staged operation improves heating response and helps maintain a more stable brooding environment.

• Commercial broiler houses
• Breeder poultry facilities
• Pullet rearing houses
• Gas-fired brooder systems
• Radiant poultry heating systems
• Multi-zone climate control projects
• Steel structure poultry buildings
• Livestock heating renovation projects

• Voltage specification
• Sensor type and cable length
• Heating stage configuration
• Relay capacity
• Gas valve interface
• Multi-zone control function
• Remote monitoring function
• Control cabinet design

Install the controller in a dry and accessible location away from direct radiant heat, moisture and dust. The temperature sensor should be positioned near bird level for accurate measurement.

Connect low-stage and high-stage outputs according to the brooder system wiring requirements. Ensure relays, gas valves and electrical components match the controller specifications.

Before operation, test the complete heating sequence. Confirm that the first heating stage activates normally and the second stage operates only when additional heat is required.

Regularly inspect temperature sensors, electrical terminals, output modules and connected brooder equipment. Disconnect power before maintenance.

Q: What is a dual-stage brooder heater controller?

A: It controls two heating levels to match brooder output with temperature demand.

Q: Why use two heating stages?

A: Two stages provide smoother temperature control compared with single-output heating.

Q: Can it control gas brooders?

A: Yes. It is suitable for compatible gas-fired brooder systems.

Q: Can several brooders be controlled?

A: Yes. Multi-zone systems can be configured according to project requirements.

Q: Can it integrate with climate controllers?

A: Yes. Compatible systems can connect with poultry environmental management systems.
