Product Name	Economy Manual Cattle Crush

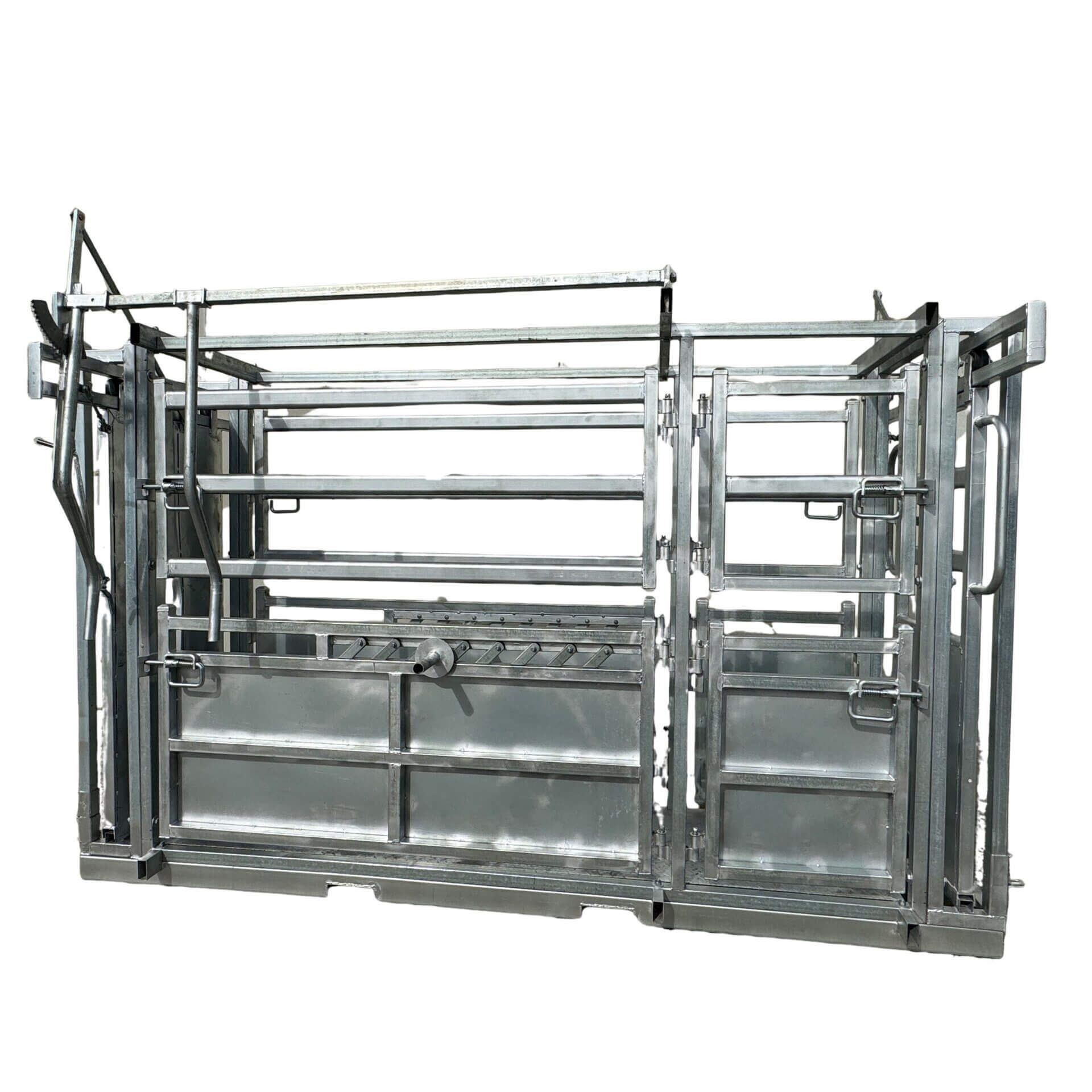

Product Image
Product Overview	The Economy Manual Cattle Crush is a practical entry-level restraint unit designed for routine handling of dairy and beef cattle in farms, breeding operations, veterinary facilities and cattle-yard projects. A traditional lever-operated headgate provides reliable mechanical restraint without requiring electricity, hydraulics or compressed air. The headgate opening can be adjusted to suit different cattle sizes, while veterinary access panels and removable side rails provide convenient access to the animal. Heavy-duty galvanized steel construction, a rear gate, anti-slip flooring and straightforward mechanical controls make this crush suitable for farms seeking a durable and cost-effective cattle handling solution.
Key Features	Economical Manual Design: Provides essential cattle restraint functions without powered systems. Lever-Operated Headgate: Traditional manual yoke provides simple and dependable cattle restraint. Adjustable Head Opening: Quick adjustment allows the headgate to accommodate different cattle sizes. Veterinary Access: Hinged access sections around the headgate improve access to the animal's neck and head area. Removable Side Rails: Provides convenient access to the animal's flanks for inspection and treatment. Removable Lower Panels: Sheeted lower sections improve containment while allowing additional access when required. Rear Gate Included: Controls animal entry from the cattle race into the crush. Rump Restraint: Helps maintain the animal's forward position during handling procedures. Anti-Slip Flooring: Treadplate or rubber-faced floor options provide secure footing. Simple Maintenance: Mechanical construction reduces service complexity and operating costs.
Structural Components	Heavy-duty galvanized steel main frame Manual lever-operated headgate Headgate adjustment mechanism Hinged veterinary access panels Removable upper side rails Sheeted lower side panels Rear cattle-entry gate Rump restraint bar Anti-slip cattle floor Base frame and anchoring points
Working Principle	Animal Entry: The rear gate opens and the animal moves from the handling race into the crush. Head Positioning: The operator selects an appropriate headgate opening according to animal size. Manual Restraint: The operating lever closes the headgate around the neck area and secures the animal for routine handling. Body Access: Removable side rails and veterinary access panels allow operators to reach different areas of the animal while it remains restrained. Forward Positioning: The rump restraint helps prevent excessive backward movement during treatment or examination. Release: After the procedure is complete, the operator releases the headgate and allows the animal to move forward out of the crush.
Technical Specifications	Product Type Economy manual cattle crush / restraint chute Reference Overall Length Approx. 2620 mm Reference Base Length Approx. 2438 mm Reference Height Approx. 1900 mm Reference Base Width Approx. 838 mm Reference Internal Width Approx. 738 mm Headgate Type Manual lever-operated yoke Reference Headgate Adjustment 4 preset positions, approximately 100–260 mm Side Access Removable rails according to configuration Lower Side Panels Sheeted / removable according to configuration Rear Gate Manual gate Rump Restraint Manual restraint bar Floor Anti-slip treadplate or rubber-faced floor according to configuration Frame Material Heavy-duty steel Surface Treatment Hot-dip galvanized / according to project requirements Power Requirement None
Applications	Dairy cattle farms Beef cattle farms and ranches Small and medium commercial cattle operations Veterinary examination and treatment Vaccination and medication procedures Routine herd-health work Artificial insemination and reproductive management Animal identification and tagging Basic foot-care procedures with suitable accessories Fixed cattle-yard and handling-race systems
Customization Options	Headgate dimensions and adjustment range Rear swing gate or sliding gate Veterinary access configuration Removable side rails and panels Foot-trimming accessory package Cattle crush extension Calf restraint insert available upon request Weighing platform and livestock scale preparation Treadplate or rubber anti-slip floor Hot-dip galvanized finish Cattle race and yard connection panels Customizable according to project requirements
Installation & Maintenance	Install the cattle crush on a firm, level working surface and align the rear gate directly with the cattle race. The front exit should lead into a secure handling or release area. Secure the base according to site conditions and confirm that all gates, rails and the manual headgate operate freely before introducing cattle. Select the appropriate headgate opening before restraint and adjust the setting when handling substantially different cattle sizes. Regularly inspect the lever mechanism, yoke pivots, rump restraint, gate hinges, removable rails and structural fasteners. Remove manure and feed residue from all moving parts. Inspect galvanized surfaces periodically and repair damaged areas where required. Anti-slip flooring should be kept clean to maintain reliable animal footing.
Product FAQ	Q: Is this cattle crush suitable for both dairy and beef cattle? A: Yes. It is designed for routine handling of both dairy and beef cattle. Q: Does the crush require electricity or hydraulics? A: No. The standard configuration uses a completely manual headgate and mechanical restraint system. Q: Can the headgate opening be adjusted? A: Yes. The reference design provides multiple preset opening positions for different cattle sizes. Q: Can operators access the animal from the sides? A: Yes. Removable upper rails and configurable lower panels provide access to the animal's flanks. Q: Is veterinary access provided? A: Yes. Veterinary access can be integrated around the headgate and side sections. Q: Can a sliding rear gate be supplied? A: Yes. Sliding rear-gate configurations are available according to project requirements. Q: Can foot-trimming equipment be added? A: Yes. Compatible foot-trimming accessories can be supplied as an optional configuration. Q: Can this crush be integrated into a complete cattle handling system? A: Yes. It can be combined with cattle races, holding pens, drafting gates and other livestock handling components.

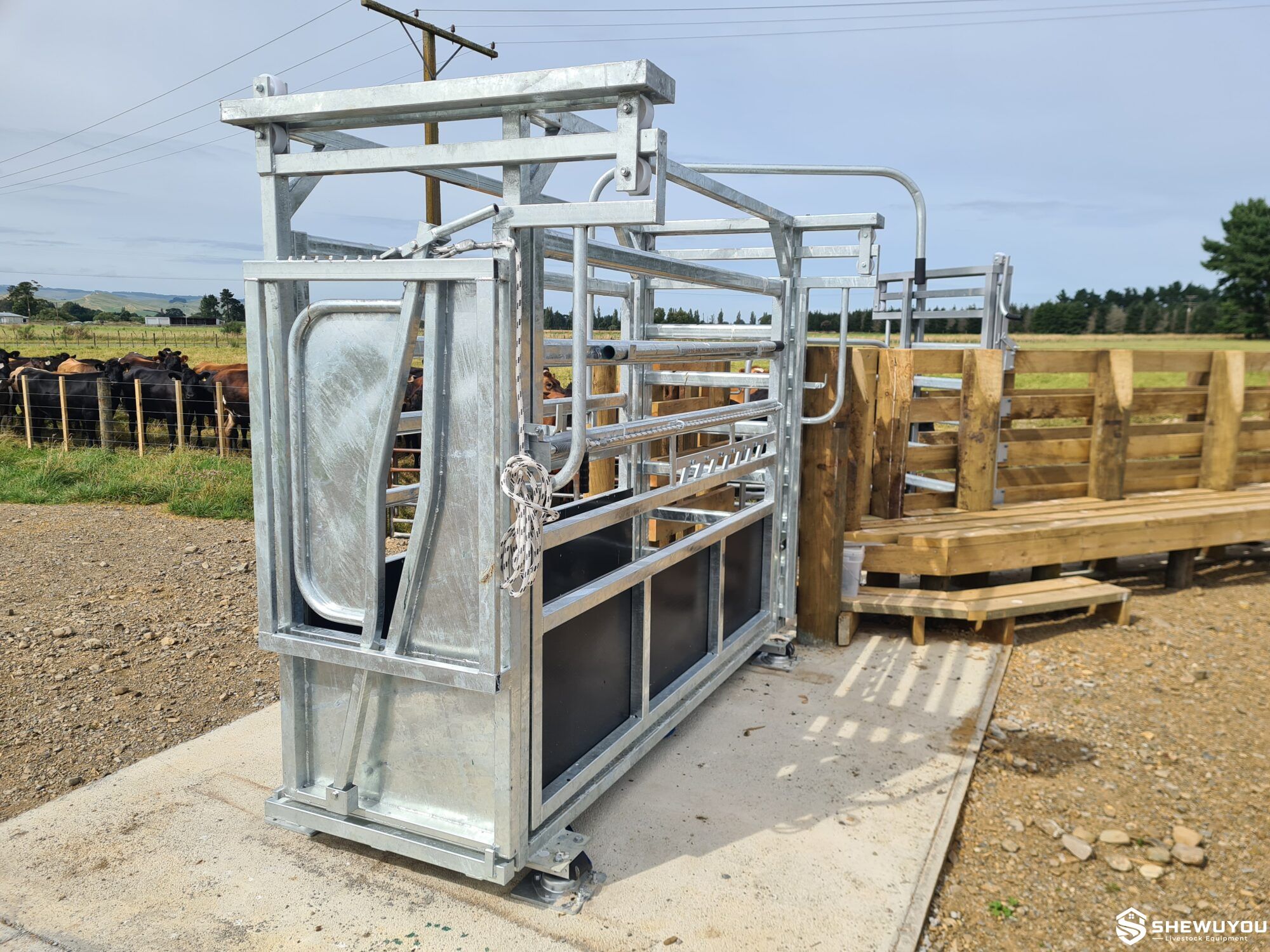

Product Gallery
