Product Name	Basic Manual Cattle Crush

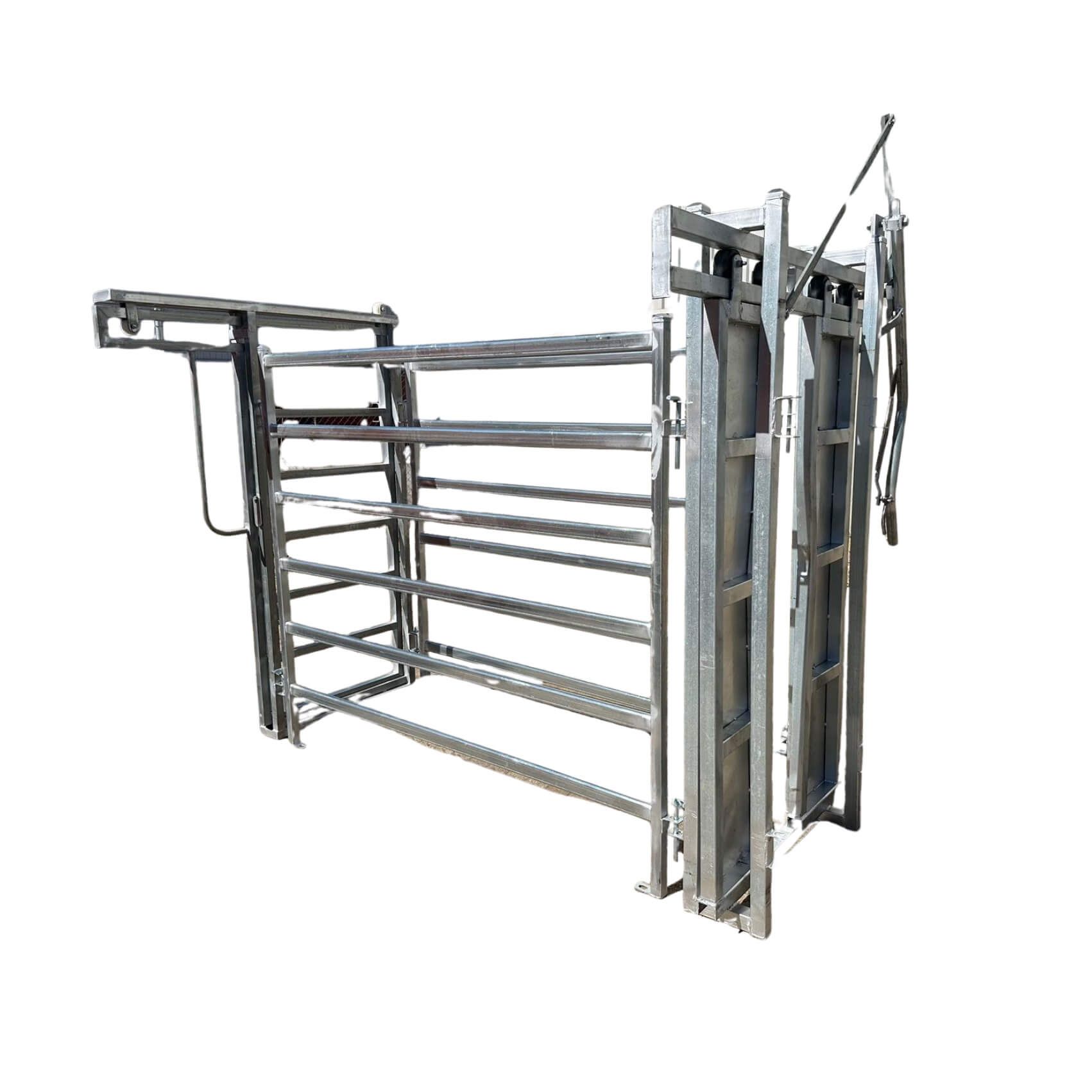

Product Image
Product Overview	The Basic Manual Cattle Crush is a robust livestock restraint unit designed for everyday cattle handling in dairy farms, beef operations, breeding farms, veterinary facilities and cattle-yard projects. The reference configuration combines a manually operated ratchet headbail, walk-through veterinary section, multiple side-access gates and hot-dip galvanized steel construction. The simple mechanical design requires no electricity, hydraulics or compressed air, making it practical for both fixed cattle facilities and remote farm handling systems. Fully sheeted lower gate sections help reduce the risk of legs passing through the side structure, while self-locking slam latches improve operator efficiency during routine restraint and release.
Key Features	Manual Ratchet Headbail: Reliable mechanical head restraint without hydraulic or electrical power. Hardened Ratchet Quadrant: Reinforced steel locking plate supports repeated commercial livestock handling. Walk-Through Vet Section: Provides convenient rear access for veterinary and reproductive procedures. Multiple Side Access Gates: Improves access to different areas of the restrained animal. Sheeted Lower Panels: Helps reduce the possibility of cattle legs extending through the lower gate structure. Self-Locking Slam Latches: Gates close quickly and securely during animal handling. Hot-Dip Galvanized Finish: Provides corrosion protection for outdoor yards and humid livestock buildings. Weighing Ready: Reference frame includes mounting plates compatible with commonly used cattle load-bar systems. No External Power Required: Suitable for remote cattle yards and farms with limited infrastructure. Modular Integration: Can be incorporated into cattle races, holding pens and complete livestock handling systems.
Structural Components	Heavy-duty galvanized steel main frame Manual headbail assembly Ratchet operating lever Hardened steel quadrant ratchet plate Walk-through veterinary section Side-access gates Sheeted lower side panels Self-locking slam latches Rear cattle-entry gate Weigh-bar mounting plates Base mounting points
Working Principle	Animal Entry: Cattle move from the handling race into the crush through the rear entry section. Head Restraint: The operator manually adjusts the headbail around the animal's neck and secures the mechanism using the ratchet system. Body Access: Side gates provide access for identification, vaccination, examination and other routine cattle-management procedures. Veterinary Access: The walk-through rear section provides additional access for pregnancy diagnosis, artificial insemination and reproductive work. Release: Once work is complete, the headbail is manually released and the animal exits into the designated cattle lane.
Technical Specifications	Product Type Basic manual cattle crush / restraint chute Reference Model CZ007 type Reference Overall Length 3000 mm Reference Overall Width 1850 mm Reference Overall Height 2200 mm Reference Internal Width 720 mm Reference Weight Approx. 410 kg Frame Material Heavy-duty steel Surface Treatment Hot-dip galvanized Headgate Type Manual ratchet headbail Gate Latching Self-locking slam latch Veterinary Section Walk-through access Weighing Preparation Load-bar mounting plates on referenced configuration Power Requirement None
Applications	Routine cattle restraint and handling Veterinary examination and treatment Vaccination and medication procedures Ear tagging and identification Pregnancy diagnosis Artificial insemination and breeding management Live-weight monitoring with compatible load bars Dairy cattle farms Beef cattle farms and ranches Commercial cattle handling yards
Customization Options	Overall frame dimensions according to project requirements Headbail configuration Side-gate arrangement Rear gate configuration Sheeted or open-bar side sections Weighing-system preparation Load-bar mounting arrangement Cattle race and yard connection panels Floor and base mounting options Hot-dip galvanized finish Complete cattle-yard packages available upon request
Installation & Maintenance	Install the cattle crush on a stable, level working surface and align the rear entry with the cattle race. The front exit should lead into a secure release pen or cattle alley. Where weighing is required, install compatible load bars and indicator equipment according to the weighing-system manufacturer's instructions. The crush and load bars must remain level and free from structural interference. Before operation, check the manual headbail, ratchet plate, gate latches, hinges and veterinary access section. All gates must open and latch freely without excessive play. Regularly remove manure and accumulated dirt from moving components. Inspect welds, mounting points and galvanized surfaces and replace damaged hardware promptly. The crush should be operated only by personnel familiar with safe cattle-handling practices. Animal flow, restraint pressure and operator position should be managed to minimize stress and reduce injury risk.
Product FAQ	Q: Does this cattle crush require electricity or hydraulics? A: No. The basic configuration uses a manually operated headbail and mechanical gate latches. Q: What is the reference internal cattle width? A: The referenced CZ007-type model has an internal width of approximately 720mm. Q: Is there access for veterinary procedures? A: Yes. The reference design includes a walk-through veterinary section and side-access gates. Q: Can the crush be used with cattle weighing equipment? A: Yes. The reference frame includes mounting plates designed for compatible livestock load-bar systems. Q: Is the structure suitable for outdoor cattle yards? A: The reference model is hot-dip galvanized for corrosion resistance. Installation conditions and maintenance frequency should still reflect the local climate and farm environment. Q: Can the crush connect directly to cattle panels and races? A: Yes. Connection arrangements can be configured to suit complete cattle-yard and handling-race projects. Q: Can dimensions or gate arrangements be customized? A: Yes. Frame dimensions, access gates, weighing preparation and connection hardware can be specified according to project requirements.

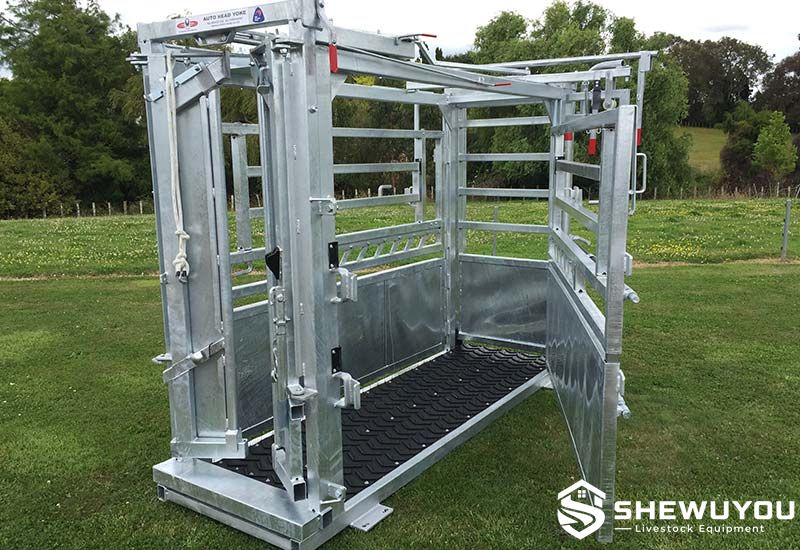

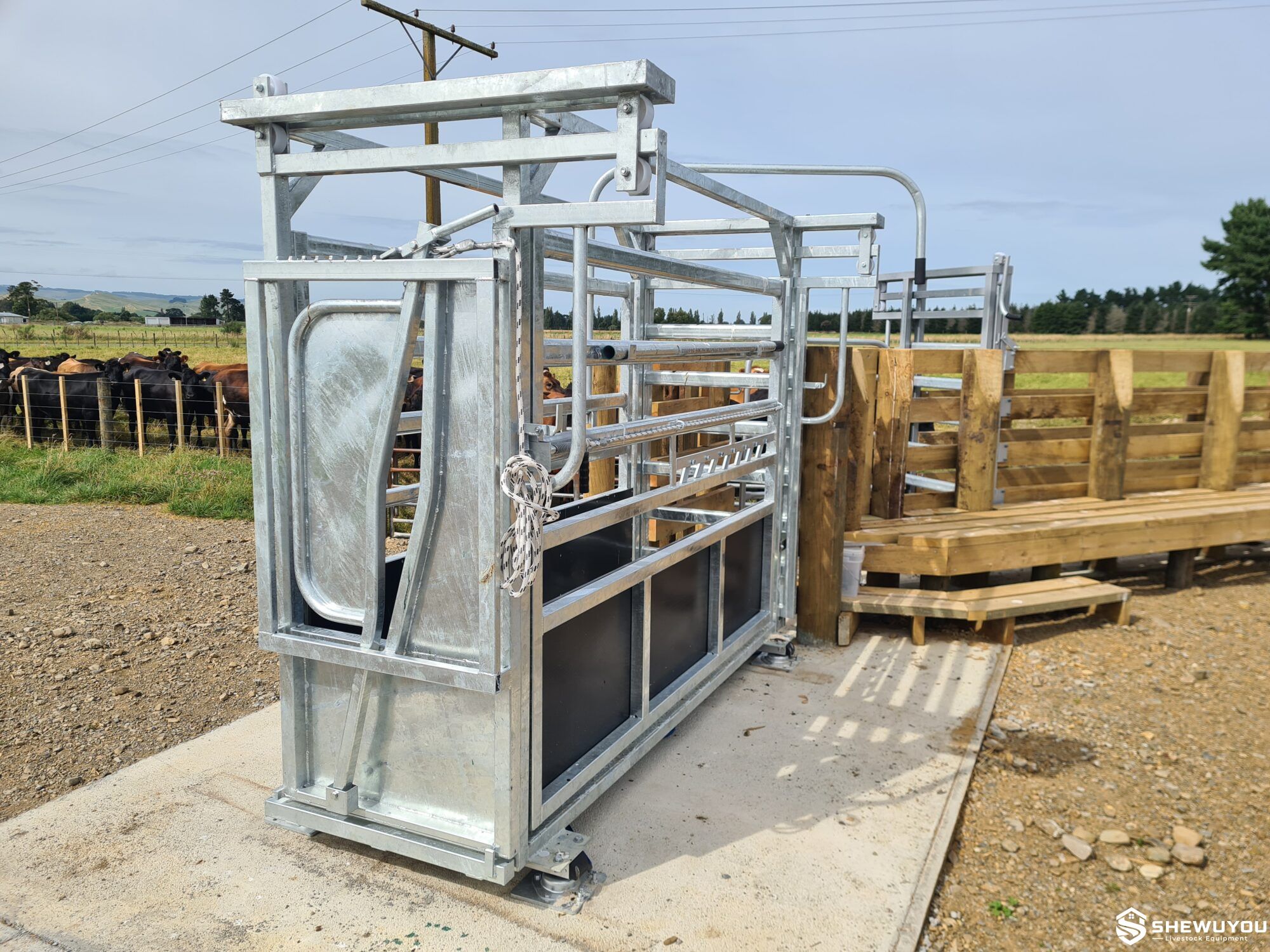

Product Gallery
