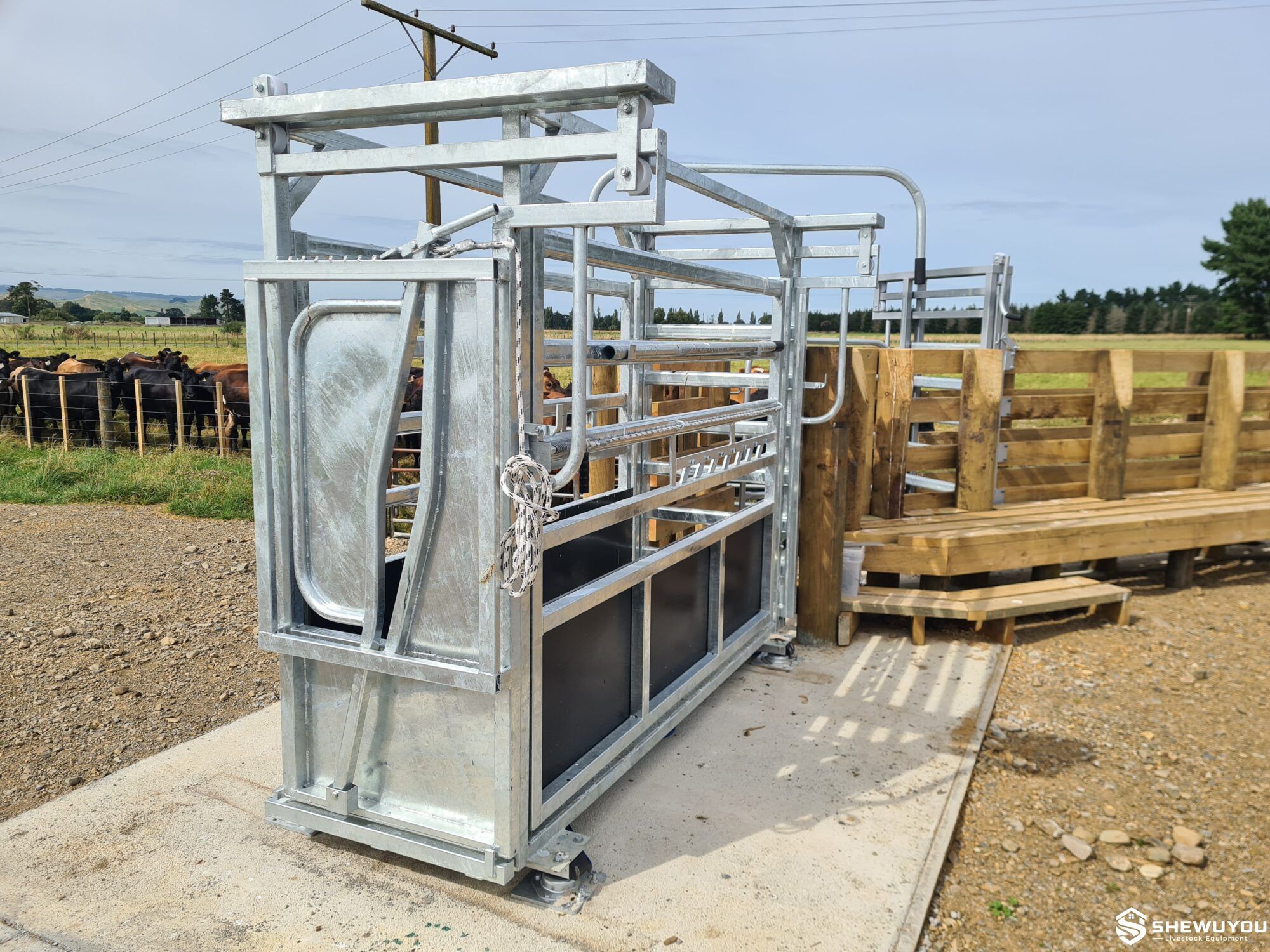

Yearling & Small-Breed Cattle Crush

• Compact cattle crush designed for yearlings, youngstock and smaller cattle breeds.
• 580 mm reference internal width provides closer animal control than a standard full-size crush.
• Manual lever-operated yoke can be operated from either side.
• Spring-loaded quick adjustment provides four preset yoke openings.
• Reference yoke adjustment range of approximately 90–120 mm.
• Rubber floor improves grip and helps reduce slipping during handling.
• Front cage provides access to the animal's head from the front and one side.
• Lift-off lower panels on both sides improve access to the lower body area.
• Traditional backing-up bar helps maintain forward animal position.
• Rear gate is supplied as part of the reference configuration.
• Compact overall dimensions suit farms with limited cattle-handling space.

• Main Steel Frame: Compact structural frame designed around the body dimensions of young and smaller cattle.
• Manual Head Yoke: Lever-operated restraint controls the animal's head and neck at the front of the crush.
• Spring-Loaded Yoke Adjuster: Allows rapid selection between four preset neck widths.

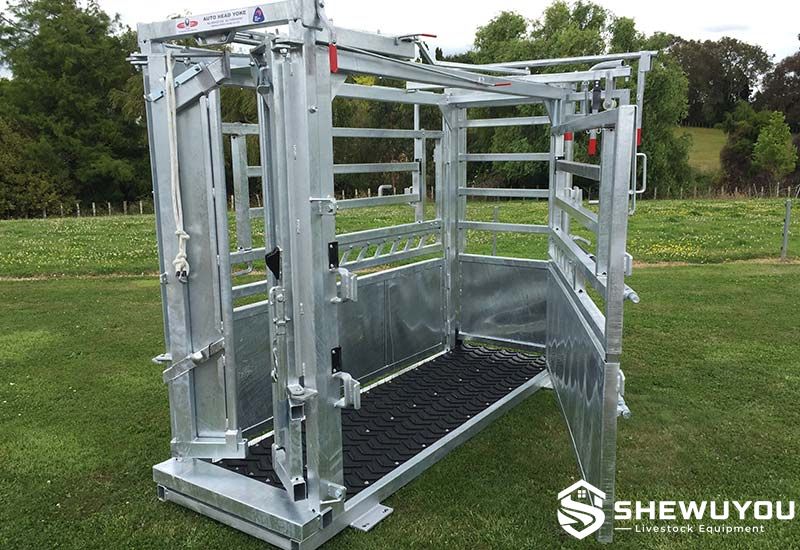

• Front Access Cage: Includes a fully opening side gate, front gate and fixed side section.
• Lower Lift-Off Panels: Removable panels on both sides improve access for inspection and treatment.
• Backing-Up Bar: Helps prevent the restrained animal from moving backward.
• Rear Gate: Controls animal entry and cattle flow from the handling race.
• Rubber Floor: Provides improved traction and a quieter standing surface.

• Yearling cattle handling.
• Dexter and other small cattle breeds.
• Replacement heifers and youngstock.
• Routine veterinary examination.
• Vaccination and medication procedures.
• Ear tagging and animal identification.
• Health inspection and body-condition assessment.
• Small beef and dairy breeding farms.
• Youngstock handling areas in commercial cattle facilities.
• Compact cattle yards and livestock handling centers.

• Internal Width: Alternative widths available according to animal size and project requirements.
• Yoke Configuration: Adjustable according to youngstock or small-breed neck dimensions.
• Side Access: Gate and removable-panel layout available according to management requirements.
• Floor: Rubber or alternative anti-slip configuration available upon request.
• Rear Gate: Gate configuration can be matched to the cattle race layout.
• Surface Treatment: Available according to livestock-building and environmental requirements.
• Handling-System Integration: Compatible races, gates and holding pens can be designed according to project requirements.

• Install the crush on a level, stable and structurally suitable surface.
• Align the rear gate with the cattle race to support smooth youngstock movement.
• Confirm sufficient front and side clearance for access gates and operator movement.
• Select the appropriate yoke setting before handling each size group.
• Check that the manual yoke lever moves freely from the selected operating side.
• Inspect the rear gate and backing-up bar before each handling session.
• Keep the rubber floor clean to maintain effective grip.
• Inspect hinges, latches, removable panels and locking components regularly.
• Check the steel frame and mounting points for deformation or excessive wear.
• Replace damaged restraint or safety components before continued operation.

Q: What animals is this cattle crush designed for?
A: It is designed primarily for yearlings, youngstock and smaller cattle breeds such as Dexter cattle.

Q: What is the internal width?
A: The reference Yearling Cattle Crush has an internal width of approximately 580 mm.

Q: Is the head yoke adjustable?
A: Yes. The spring-loaded adjustment provides four preset neck widths from approximately 90 mm to 120 mm.

Q: Can the yoke be operated from either side?
A: Yes. The traditional manual lever can be operated from either side of the reference crush.

Q: Does it include a rear gate?
A: Yes. A rear gate is supplied as standard with the referenced configuration.

Q: Is lower-body access available?
A: Yes. A lift-off lower panel is provided on each side to improve access during inspection and treatment.

Q: Why use a dedicated yearling crush instead of a full-size cattle crush?
A: The narrower body and smaller yoke dimensions provide more appropriate restraint for young and small-framed cattle, reducing excessive free space around the animal.

Q: Can the crush be customized?
A: Yes. Internal width, yoke arrangement, side access, floor, surface treatment and integration with cattle-handling races can be configured according to project requirements.
