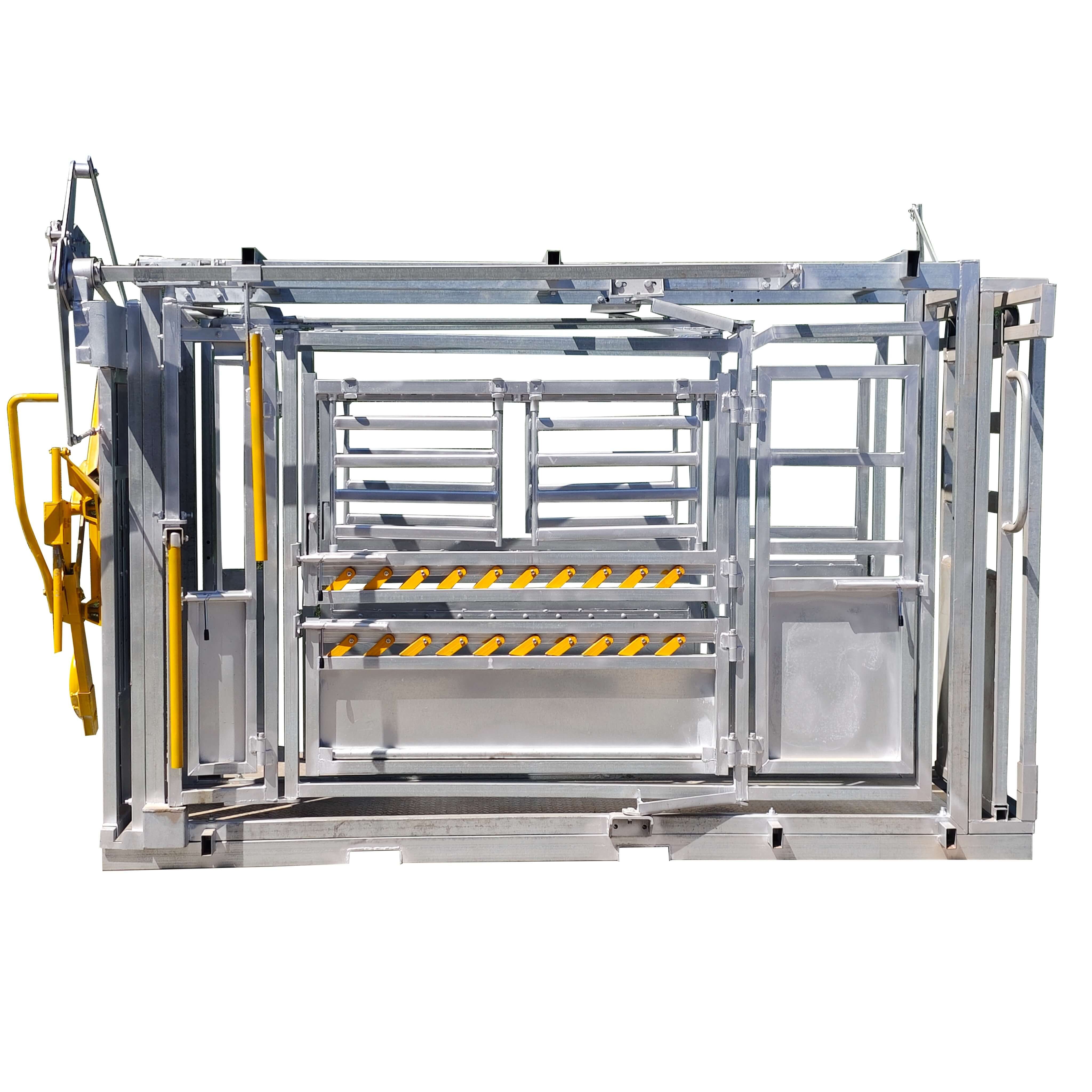

Automatic-Yoke Squeeze Cattle Crush

• Automatic self-locking yoke reduces manual intervention during animal capture.
• One-touch yoke reset simplifies preparation for the next animal.
• Gear-synchronized yoke doors provide reliable closing even when cattle enter unevenly.
• Seven preset yoke openings from approximately 100 mm to 240 mm.
• Manual squeeze body adjusts from approximately 760 mm to 285 mm internal width.
• Friction-lock squeeze mechanism holds immediately when the control lever is released.
• Acoustic dampening components reduce vibration and metal impact noise.
• Full-length baffled yoke helps limit peripheral vision in the working zone.
• Four fully opening quarter doors provide access to the animal's flanks.
• TB access doors are fitted on both sides of the working body.
• Deep-profile rubber flooring improves grip in wet handling conditions.
• Integrated lifting and load-bar mounting points simplify transport and weighing integration.

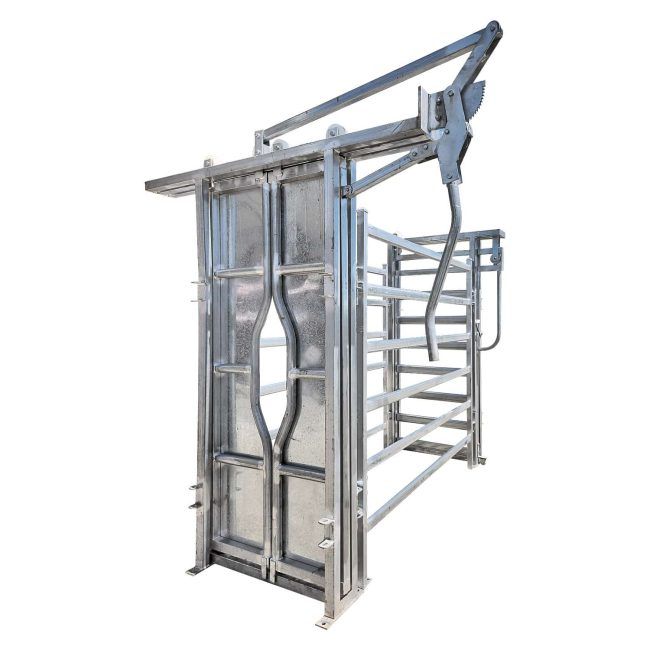

• Automatic Head Yoke: Self-locking front restraint with synchronized closing doors.
• Yoke Width Selector: Provides seven preset neck-opening positions for different cattle sizes.
• One-Touch Reset Mechanism: Returns the automatic yoke to the selected ready position.

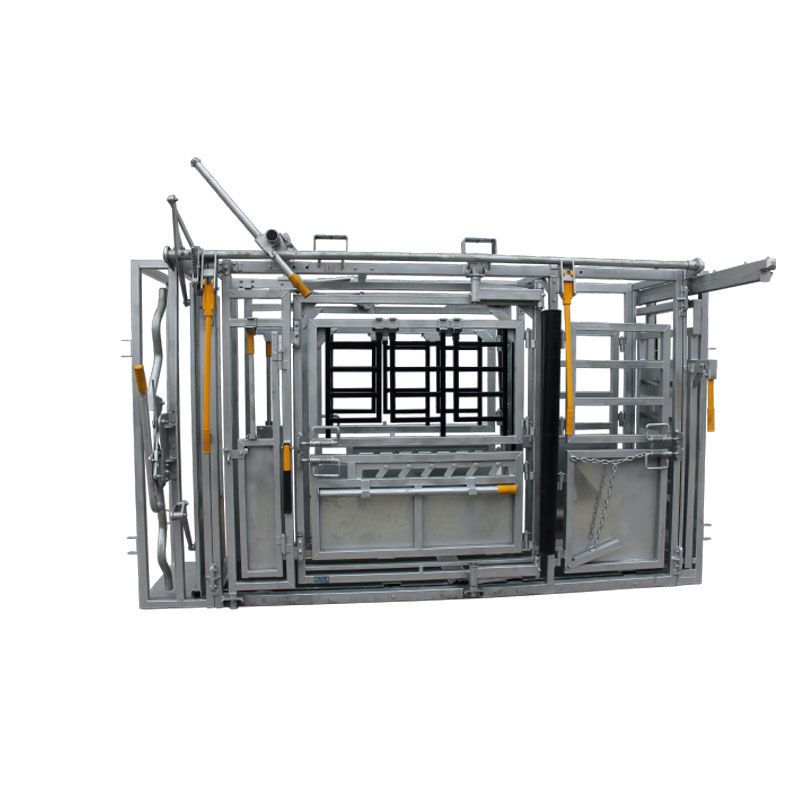

• Squeeze Side Panels: Move inward or outward to match the body width of the restrained animal.
• Squeeze Operating Lever: Provides ergonomic manual control of body width.
• Friction Lock: Automatically maintains the selected squeeze position when the lever is released.

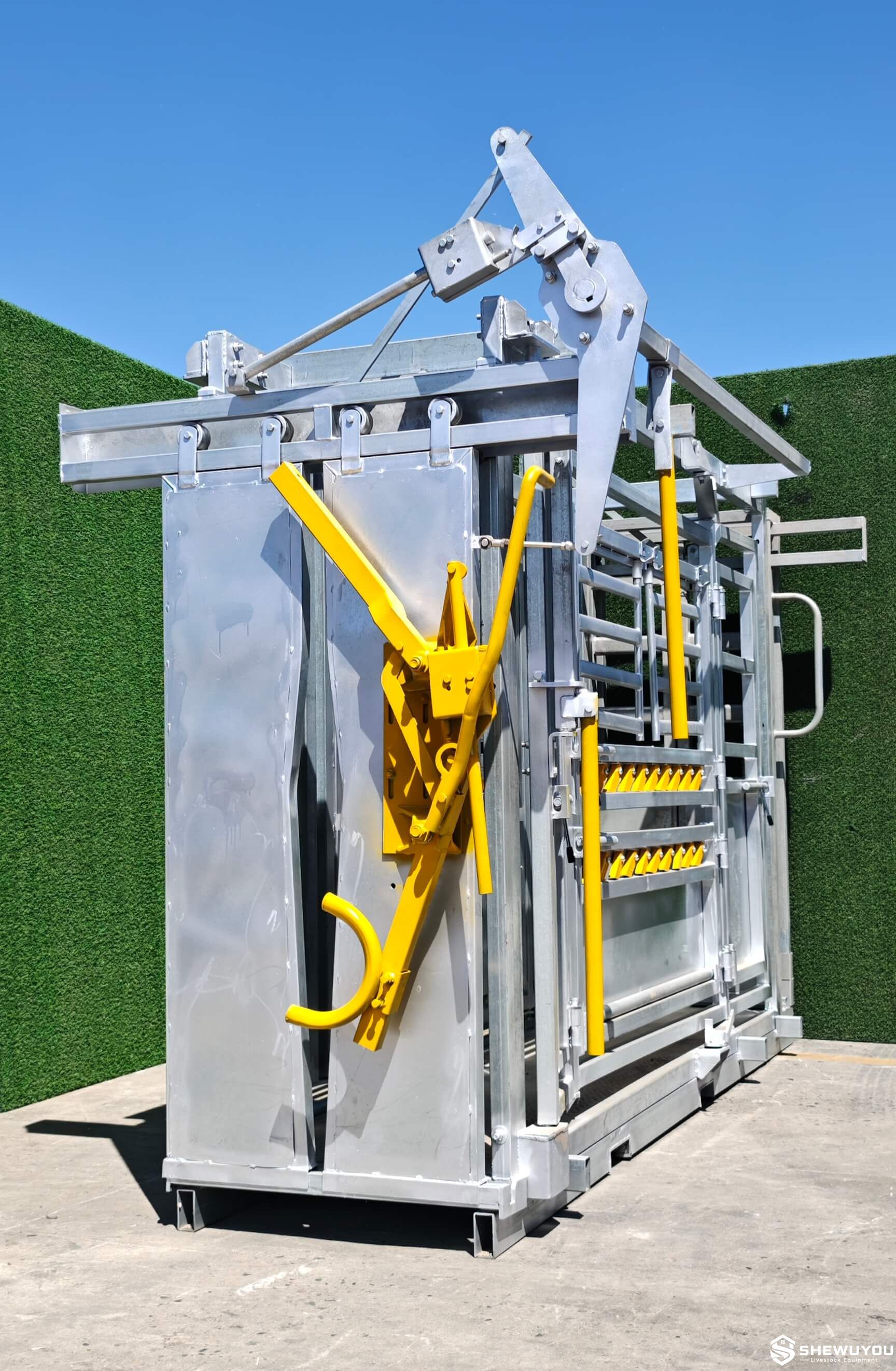

• Quarter Access Doors: Provide extensive access to the animal's sides.
• TB Access Doors: Provide targeted access for testing and veterinary procedures.
• Quick-Release Cross Bar: Can be removed when increased side access is required.
• Rubber Floor: Deep-profile surface improves animal footing and reduces operating noise.
• Load-Bar Mounting Points: Allow integration with compatible livestock weighing equipment.

• Commercial beef cattle handling facilities.
• Dairy cattle herd-management areas.
• Veterinary examination and treatment.
• Vaccination and medication procedures.
• TB testing and routine health inspection.
• Artificial insemination and reproductive management.
• Pregnancy diagnosis.
• Ear tagging and animal identification.
• Livestock weighing and performance monitoring.
• Foot-trimming applications with compatible accessories.
• Cattle yards, feedlots and breeding farms.
• New cattle-handling centers and steel-structure livestock projects.

• Crush Dimensions: Customizable according to cattle size and project requirements.
• Operating Side: Left-hand or right-hand configuration available according to handling-yard layout.
• Rear Gate: Sliding gate configuration available upon request.
• Crush Extension: Available for increased rear working space.
• Head Restraint Accessories: Compatible head-support accessories available upon request.
• Foot Trimming: Compatible trimming equipment can be integrated according to project requirements.
• Weighing System: Load bars and indicators available according to required farm-management system.
• EID Integration: Electronic identification mounting solutions available upon request.
• Complete Handling System: Can be supplied with cattle races, gates, forcing pens and yard equipment.

• Install the cattle crush on a level and structurally suitable handling-yard base.
• Align the rear entrance with the cattle race to maintain smooth animal flow.
• Provide sufficient side clearance for all veterinary and quarter access doors.
• Test automatic-yoke closing, reset and release functions before cattle enter.
• Confirm that the selected yoke width is suitable for the cattle being handled.
• Check the squeeze lever and friction-lock mechanism for smooth operation.
• Keep pivot points, catches and access-door mechanisms free from manure and debris.
• Inspect rubber flooring regularly for excessive wear or damage.
• Check load-bar mounting points and lifting points during routine maintenance.
• Inspect structural welds, fasteners and galvanized surfaces periodically.
• Replace worn locking or safety components before returning the crush to service.

Q: What is the advantage of an automatic-yoke cattle crush?
A: The self-locking yoke captures the animal as it enters the working position, reducing manual head-gate operation and potentially lowering labor requirements during routine handling.

Q: How many yoke width settings are available?
A: The reference automatic yoke provides seven preset positions from approximately 100 mm to 240 mm.

Q: What is the squeeze range?
A: The reference squeeze body adjusts from approximately 760 mm down to 285 mm internal width.

Q: Does the squeeze remain locked when the operating lever is released?
A: Yes. The friction-lock system immediately holds the squeeze at the selected position when the lever is released.

Q: Is there good veterinary access?
A: Yes. TB access doors, four fully opening quarter doors and a removable quick-release cross bar provide extensive access to the animal.

Q: Can the cattle crush be used with weighing equipment?
A: Yes. Integrated mounting points are provided for compatible livestock load bars and weighing systems.

Q: Can it be installed for left-hand or right-hand operation?
A: Yes. The automatic-yoke arrangement can be configured according to the required operating side and handling-yard layout.

Q: Can additional cattle-handling accessories be supplied?
A: Yes. Rear sliding gates, extensions, EID equipment, weighing systems, head-restraint accessories and compatible foot-trimming equipment are available according to project requirements.
