Horned Cattle Crush with Adjustable Scissor Yoke

The Horned Cattle Crush is a specialist livestock restraint system designed for safe handling of horned cattle while remaining suitable for conventional non-horned beef and dairy breeds.

Its manually operated scissor-style head yoke retracts into the sides of the crush to provide a clear approach for animals with wide horns. Adjustable neck restraint, full flank access, secure rear control and a high-grip floor make the system suitable for routine veterinary work, identification, treatment and herd management.

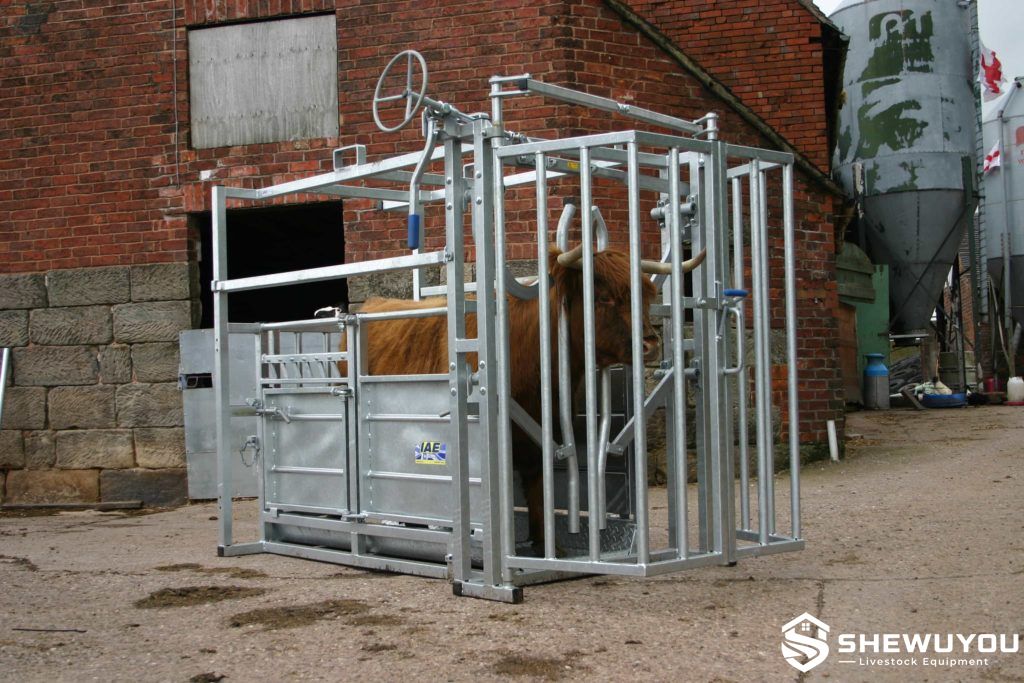

• Specially configured for Highland cattle and other horned breeds.
• Suitable for both horned and non-horned cattle.
• Manually operated scissor-style head yoke provides controlled animal restraint.
• Yoke arms retract into the crush sides to maximize animal visibility and horn clearance.
• Reference head-yoke opening adjustable from approximately 100 to 280 mm.
• Two side doors and removable side rails provide extensive access to the animal's flanks.
• Ratchet-style rump bar helps maintain the animal in a forward position.
• Tapered treadplate floor provides reliable footing during handling.

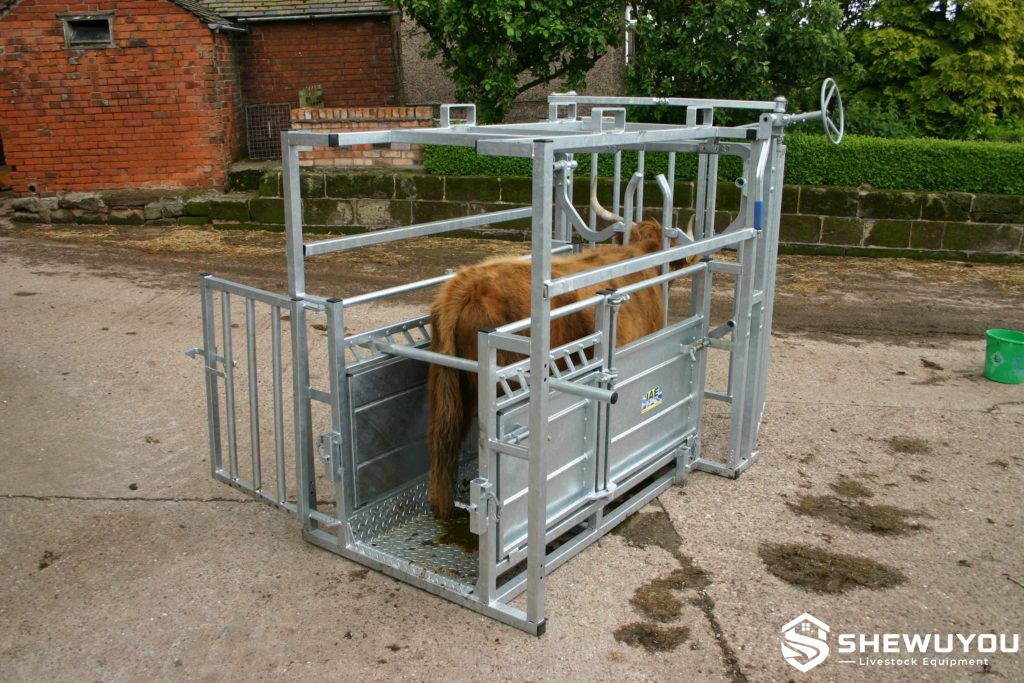

• Rear gate supplied on the reference configuration.
• Integrated pallet-fork lifting points simplify relocation around the farm.

• Main Structural Frame: Rigid steel framework designed for repetitive commercial cattle handling.

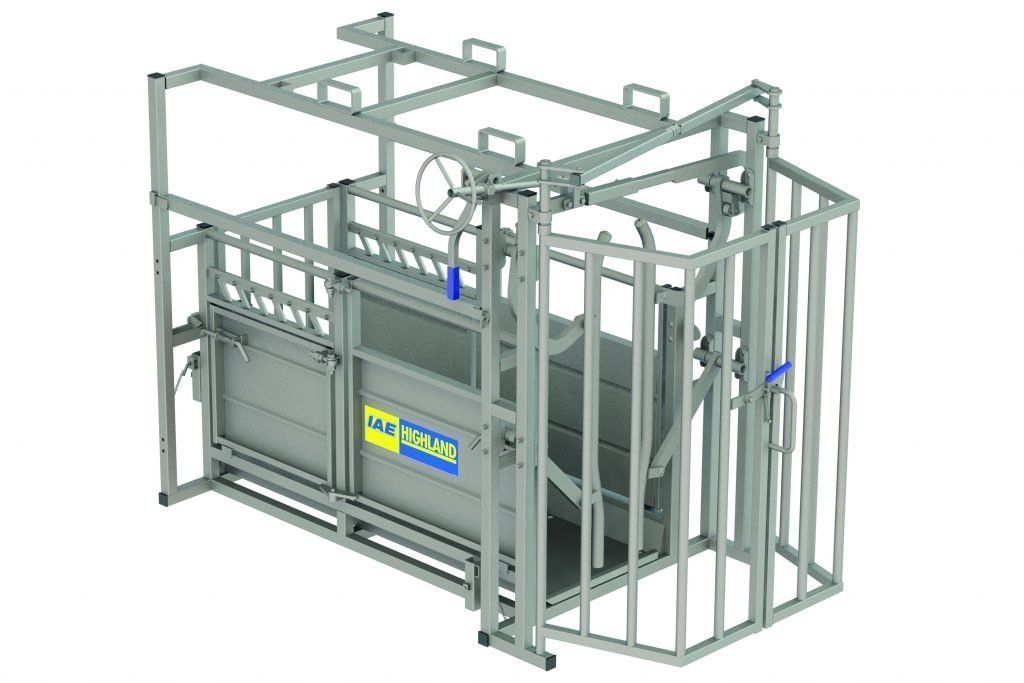

• Scissor-Style Head Yoke: Retractable front restraint mechanism suitable for cattle with large horns.
• Yoke Width Adjustment: Manual winding mechanism allows the neck opening to be matched to animal size.
• Lever Operating Handle: Allows quick manual operation of the yoke arms.

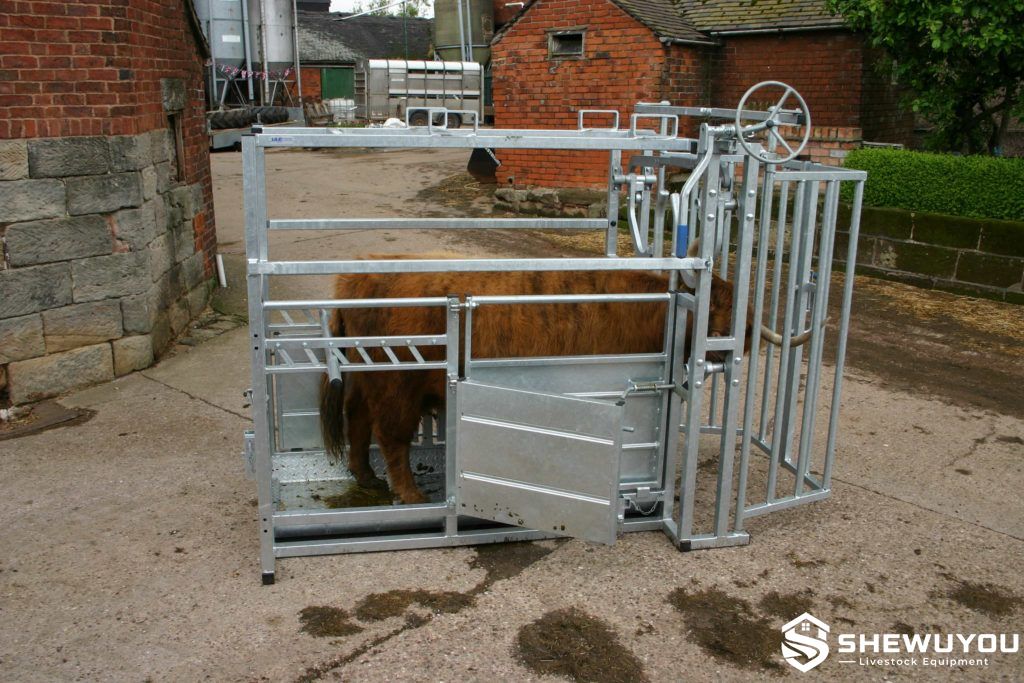

• Side Access Doors: Provide access to the flanks for veterinary and husbandry procedures.
• Removable Side Rails: Increase working access when required.
• Rump Bar: Ratchet mechanism helps restrict backward cattle movement.
• Rear Gate: Controls entry and prevents animals backing into the handling race.
• Treadplate Floor: Provides a stable, high-grip surface for cattle.
• Forklift Lifting Points: Integrated into the upper frame for convenient movement.

The animal enters the crush from the rear handling race and approaches the open scissor yoke. Because the yoke arms retract into the sides of the frame, horned cattle have a relatively unobstructed view and additional clearance when entering.

The operator uses the lever mechanism to close the yoke around the animal's neck. The adjustable rump bar reduces backward movement, while the side doors and removable rails can be opened as required for examination, treatment or other livestock-management procedures.

• Highland cattle and other long-horned cattle breeds.
• Commercial beef cattle farms and breeding operations.
• Dairy cattle handling where a wide-entry yoke is preferred.
• Veterinary examination and routine health checks.
• Vaccination, medication and identification procedures.
• Pregnancy diagnosis and reproductive management.
• Ear tagging and electronic identification procedures.
• Livestock handling yards and veterinary stations.
• New cattle-farm construction and handling-system renovation projects.

• Head Yoke Opening: Adjustable or customizable according to cattle size and horn configuration.
• Frame Dimensions: Customizable according to project requirements.
• Rear Gate: Manual or sliding configurations available upon request.
• Floor: Treadplate or rubber-floor configuration available according to requirements.
• Weighing System: Load bars and livestock weighing equipment available upon request.
• Hoof Care Accessories: Available according to project requirements.
• Surface Treatment: Designed according to local climate and farm conditions.
• Cattle Race Integration: Entry and exit arrangements can be configured for complete handling systems.
• OEM Supply: Custom specifications and packaging available for qualified projects.

• Install the crush on a level and structurally sound concrete base.
• Align the unit accurately with the cattle race, forcing pen and exit alley.
• Provide sufficient clearance around the front yoke for wide-horned cattle.
• Ensure side access doors can open fully without obstruction.
• Set the yoke opening according to the cattle group before operation.
• Test the scissor yoke, lever handle, rear gate and rump bar before cattle are introduced.
• Keep the yoke winding mechanism and moving joints clean and operating freely.
• Remove manure and debris from the treadplate or rubber floor regularly.
• Inspect hinges, locks, fasteners and structural welds periodically.
• Replace damaged or excessively worn restraint components promptly.

Q: Why is this crush suitable for horned cattle?
A: The scissor-style yoke retracts into the sides of the crush, creating a clearer entrance and additional space for animals with wide horns.

Q: Can the head-yoke width be adjusted?
A: Yes. The reference system allows adjustment from approximately 100 to 280 mm.

Q: Can non-horned cattle also use this crush?
A: Yes. Although specifically developed for horned cattle, the restraint system is also suitable for conventional cattle breeds.

Q: Can operators reach both sides of the animal?
A: Yes. Side access doors and removable rails provide extensive access to the animal's flanks.

Q: How is backward cattle movement controlled?
A: A ratchet-style rump bar helps keep the animal positioned forward within the crush.

Q: Can the crush be moved around the farm?
A: The reference structure includes pallet-fork lifting points on the upper frame to assist relocation.

Q: Can SHEWUYOU customize the crush for a complete cattle handling system?
A: Yes. Dimensions, yoke configuration, rear gates, weighing equipment, cattle races and related accessories can be configured according to project requirements.
