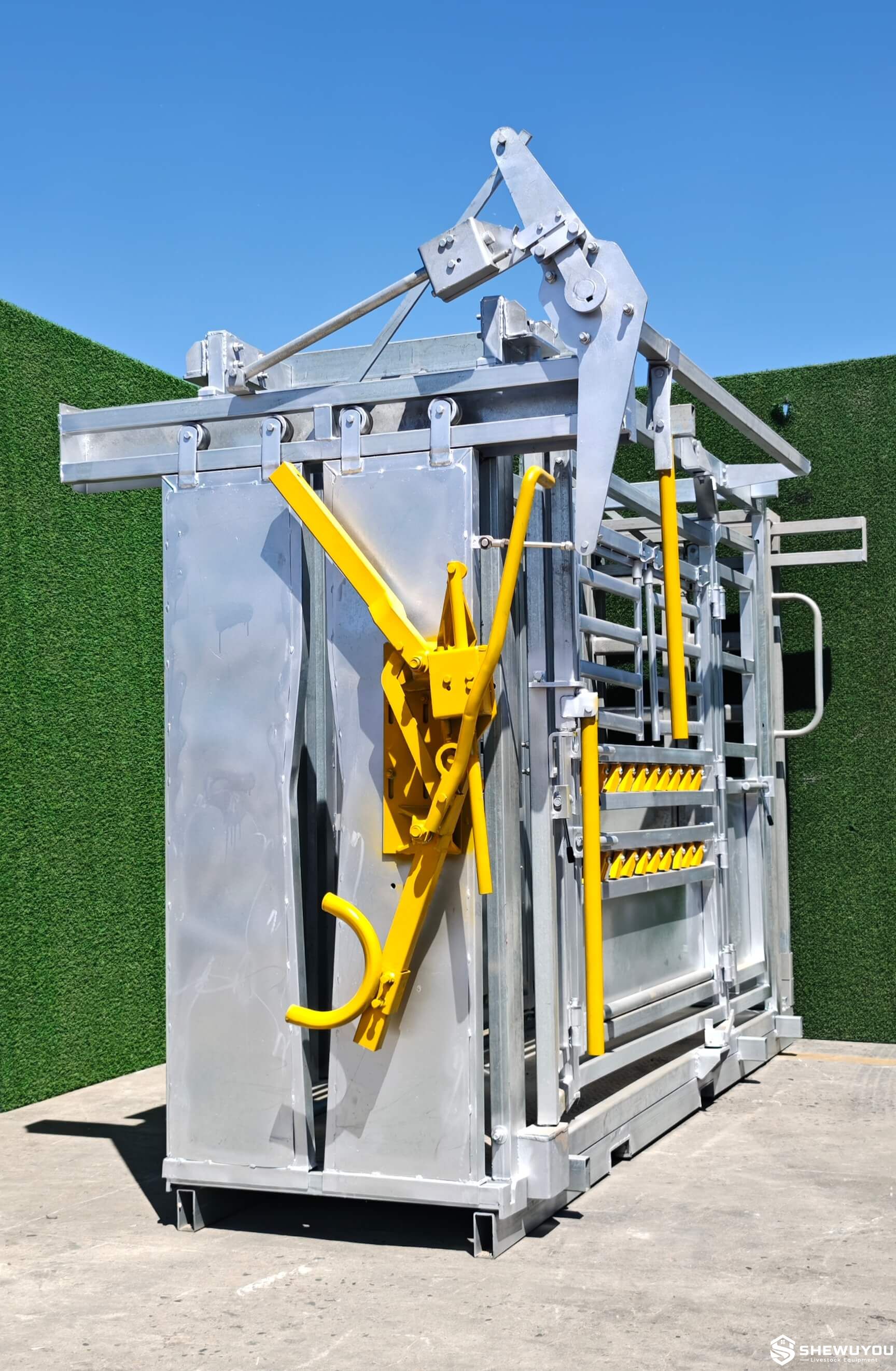

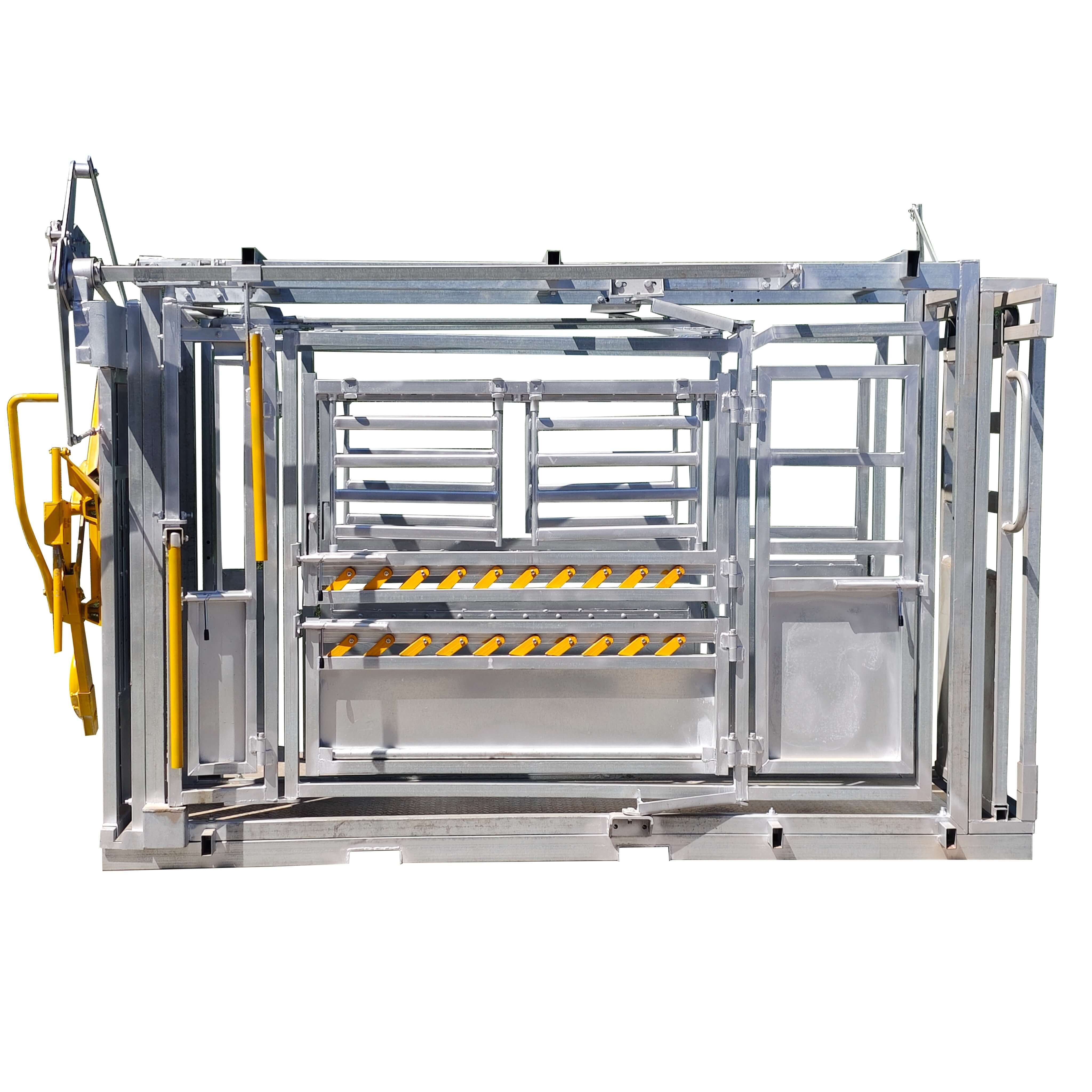

Pivot Squeeze Cattle Crush

• Heavy-duty pivot squeeze system for controlled cattle restraint.
• Robust mechanical headbail with reliable ratchet locking.
• Hardened steel ratchet quadrant improves locking durability.
• Sliding gate can be operated conveniently from both sides.
• Anti-backing bars help prevent cattle from reversing during handling.
• Walk-through veterinary section provides improved operator access.
• Sheeted lower side gates help reduce the risk of legs entering open gate areas.
• Self-locking slam latches secure access gates quickly.
• Integrated headbail locking system maintains controlled front restraint.
• Mounting provisions allow integration with compatible livestock weighing systems.
• Optional veterinary gate available according to project requirements.
• Hot-dip galvanized structure supports long-term use in demanding livestock environments.

• Heavy-Duty Main Frame: Galvanized steel structure designed to withstand repeated livestock handling loads.
• Headbail Assembly: Front restraint unit with mechanical ratchet locking for controlled head and neck positioning.
• Pivot Squeeze Sides: Movable side structures reduce the available internal space around cattle during restraint.
• Sliding Gate: Controls animal entry or exit and can be operated from convenient positions around the crush.
• Anti-Backing Bars: Reduce backward movement once the animal has entered the working area.
• Side Access Gates: Provide access to different areas of the animal for examination and routine procedures.
• Sheeted Lower Panels: Create a more protected lower side area around the animal's legs.
• Vet Section: Provides additional working space for veterinary and reproductive procedures.
• Weighing Mounting Plates: Allow compatible load bars to be incorporated beneath the crush.

• Dairy cattle handling and herd-management facilities.
• Beef cattle ranches and feedlots.
• Veterinary examination and treatment.
• Vaccination and medication procedures.
• Artificial insemination and pregnancy checking.
• Ear tagging, identification and routine inspection.
• Cattle weighing and performance monitoring.
• Breeding-farm cattle handling systems.
• Fixed cattle yards and handling alleys.
• Livestock markets and agricultural project facilities.
• New steel-structure cattle barns and handling-center projects.

• Overall Dimensions: Customizable according to cattle size and handling-yard requirements.
• Internal Working Width: Available according to project requirements.
• Headbail Configuration: Alternative mechanical restraint configurations available upon request.
• Veterinary Gate: Optional according to farm-management requirements.
• Side Access Layout: Customizable for veterinary, breeding and general handling applications.
• Weighing System Interface: Mounting arrangement available according to compatible load-bar dimensions.
• Surface Treatment: Hot-dip galvanized configuration available for demanding livestock environments.
• Handling-System Integration: Can be supplied with compatible cattle panels, gates, alleys and yard components.

• Install the cattle crush on a level, stable and structurally suitable base.
• Align the rear entrance with the cattle race to encourage smooth animal flow.
• Provide adequate clear working space around side gates and the veterinary section.
• Secure the crush according to the selected foundation and handling-yard design.
• Check headbail, pivot squeeze and sliding-gate operation before introducing cattle.
• Inspect ratchet teeth, locking plates, hinges and slam latches regularly.
• Keep sliding tracks and moving mechanisms free from manure, bedding and debris.
• Inspect anti-backing bars and side gates for deformation or excessive wear.
• Check structural welds, mounting points and galvanized surfaces during routine maintenance.
• Confirm weighing-system mounts and load bars remain correctly aligned when weighing equipment is installed.

Q: What is a pivot squeeze cattle crush?
A: It is a cattle restraint system in which movable side structures pivot inward to reduce excess space around the animal and improve body control during handling.

Q: What are the reference dimensions?
A: The referenced model measures approximately 3152 mm long, 1850 mm wide and 2200 mm high, with a reference internal width of 720 mm.

Q: How is the headbail secured?
A: The reference configuration uses a heavy-duty mechanical ratchet locking system with a hardened steel quadrant plate.

Q: Does the crush include anti-backing equipment?
A: Yes. Anti-backing bars are included in the referenced configuration to help prevent cattle from reversing during handling.

Q: Is veterinary access available?
A: Yes. The reference crush includes a walk-through veterinary section, and an additional veterinary gate is available according to configuration.

Q: Can a weighing system be installed?
A: Yes. The crush includes mounting provisions for compatible livestock load-bar weighing systems.

Q: Is the crush suitable for outdoor cattle yards?
A: Yes. Hot-dip galvanized construction provides corrosion protection for typical outdoor and livestock-building environments.

Q: Can the crush be customized for an engineering project?
A: Yes. Dimensions, access-gate arrangement, head restraint, weighing interface and integration with cattle-yard equipment can be configured according to project requirements.
