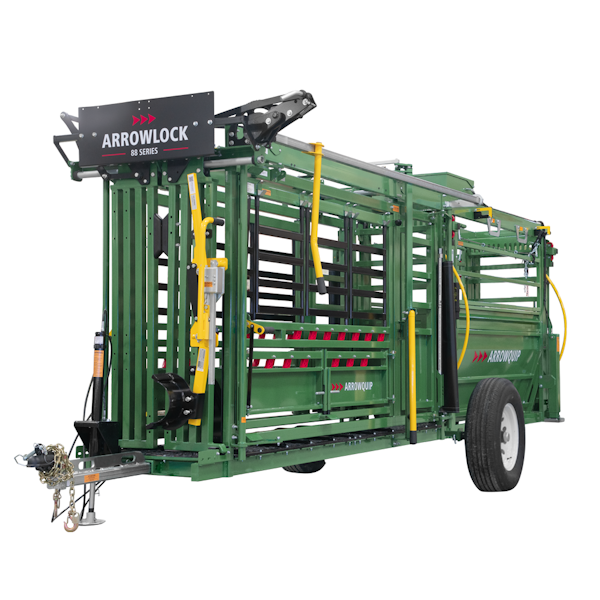

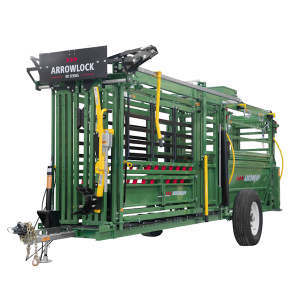

Portable Cattle Crush & Handling Alley System

The Portable Cattle Crush & Handling Alley combines a livestock squeeze crush, adjustable working alley and road-transport chassis into one mobile cattle handling system. It is designed for farms, ranches and veterinary teams that need to process cattle at multiple yards or remote pasture locations.

The integrated crush provides secure head and body restraint, while the adjustable alley controls cattle flow before animals enter the restraint area. An adjustable towing hitch and transport wheel system allow the complete unit to be relocated without constructing a permanent handling facility.

• Integrated portable cattle crush and adjustable handling alley.
• Heavy-duty steel construction for repeated livestock processing.
• Ratchet-style head gate provides secure cattle restraint with reduced operator effort.
• Adjustable alley width accommodates cattle of different body sizes.
• Reference alley adjusts from approximately 31.5 in to 21.3 in.
• Removable or adjustable side panels help control cattle sightlines and movement.
• Full side emergency access improves operator and animal safety.
• True rubber flooring provides traction and helps reduce cattle noise and slipping.
• Adjustable towing hitch and transport wheels simplify relocation between handling sites.
• Compatible with cattle weighing, EID and additional restraint accessories.

• Cattle Squeeze Crush: Provides front restraint and controlled body access during livestock procedures.
• Head Gate: Ratchet-locking mechanism secures cattle at the front of the crush.

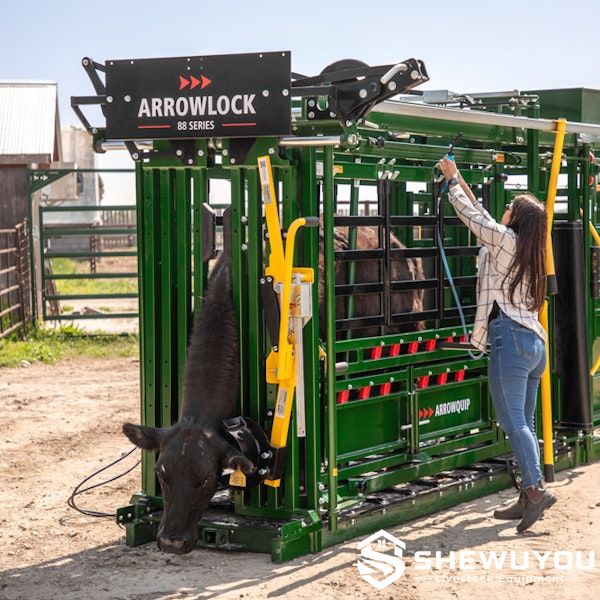

• Side Access Panels: Allow access for vaccination, treatment, identification and inspection.
• Adjustable Alley: Guides individual animals into the crush and reduces turning around.
• Blinder Panels: Manage animal sightlines to encourage smoother forward movement.

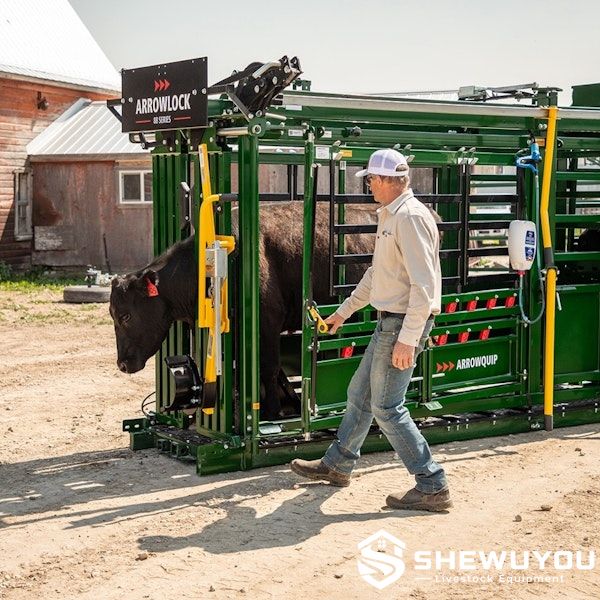

• Emergency Exit: Provides rapid access to the alley when required.
• Rubber Floor: Provides continuous traction through the working area.
• Transport Chassis: Supports the crush and alley during towing and setup.
• Adjustable Hitch: Connects the portable unit to a suitable towing vehicle.

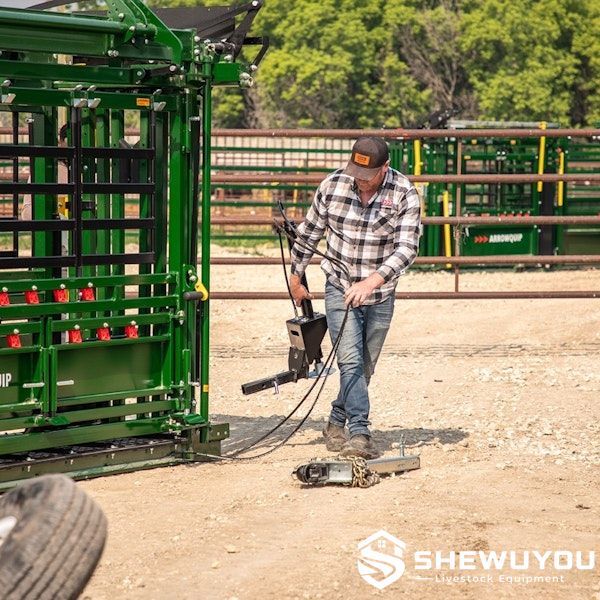

• Wheel Assembly: Converts the handling system between transport and working configurations.

For transport, the crush and alley remain integrated on the mobile chassis. At the working site, the system is positioned on firm level ground, stabilized and converted from towing mode to operating mode.

Cattle enter the adjustable alley one at a time and move toward the squeeze crush. Once an animal reaches the head gate, the operator secures the head and applies the required body restraint. After weighing, treatment or inspection is completed, the animal is released forward and the next animal enters the system.

• Remote beef cattle handling yards.
• Pasture-based cattle operations.
• Commercial ranches with multiple livestock sites.
• Temporary cattle processing facilities.
• Veterinary and mobile livestock service teams.
• Vaccination, medication and pregnancy-checking programs.
• Cattle identification and electronic ID management.
• Portable livestock weighing operations.
• Breeding farms and seasonal cattle handling projects.
• Farm contractors and livestock equipment rental fleets.

• Cattle Crush: Manual, squeeze or powered configurations available according to project requirements.
• Alley Length: Customizable according to cattle throughput and transport requirements.
• Alley Width: Adjustable configurations available for calves, cows and larger cattle.
• Side Panels: Open, partially blinded or full blinder configurations available.
• Head Control: Head holder and additional neck-restraint accessories available upon request.
• Calf Restraint: Adjustable calf restrainer bar available for young stock.
• Weighing System: Scale platform, load bars and electronic indicators available.
• EID Integration: Electronic livestock identification equipment available upon request.
• Towing Configuration: Designed according to local transport and farm requirements.
• OEM Supply: Custom dimensions and equipment combinations available for qualified projects.

• Position the portable system on firm, level ground before cattle handling begins.
• Convert the unit fully from towing mode to operating mode before livestock enters the alley.
• Stabilize the chassis and verify that transport wheels, hitch and support mechanisms are correctly positioned.
• Set alley width according to the cattle group being processed.
• Test the head gate, squeeze mechanism, side access and emergency exit before operation.
• Inspect the hitch, wheel assemblies, structural fasteners and chassis before transport.
• Remove manure and debris from the rubber floor after use to maintain traction.
• Keep locking mechanisms, hinges and adjustable alley components clean and operating freely.
• Inspect tires, wheel bearings and towing components at scheduled intervals.
• Follow applicable road-transport requirements when moving the system between locations.

Q: What is the main advantage of a portable cattle crush and alley?
A: It allows a complete cattle restraint and handling system to be moved between farms, yards or pasture locations without requiring a permanent facility at every site.

Q: Can the alley width be adjusted for different cattle sizes?
A: Yes. The reference adjustable alley ranges from approximately 21.3 to 31.5 inches.

Q: Can cattle be weighed in the portable system?
A: Yes. Compatible scale platforms, load bars and livestock weighing equipment can be integrated according to requirements.

Q: Is emergency access provided?
A: Yes. Compatible alley configurations include side emergency access for rapid animal or operator release when required.

Q: Can the system handle calves as well as adult cattle?
A: Adjustable alley width and optional calf-restraint accessories allow configurations to be adapted for different cattle sizes.

Q: Is permanent concrete installation required?
A: No. The portable system is intended for temporary setup on suitable firm and level working surfaces.

Q: Can SHEWUYOU customize a complete mobile cattle handling system?
A: Yes. Crush type, alley dimensions, weighing equipment, EID components, restraint accessories and transport configuration can be supplied according to project requirements.
