Product Name	Electronic Weighing Calf Cart
Product Image

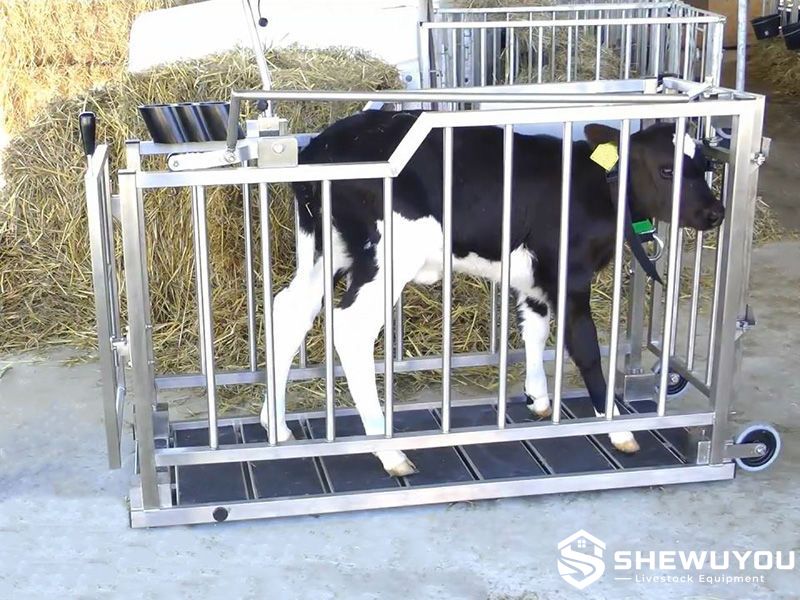

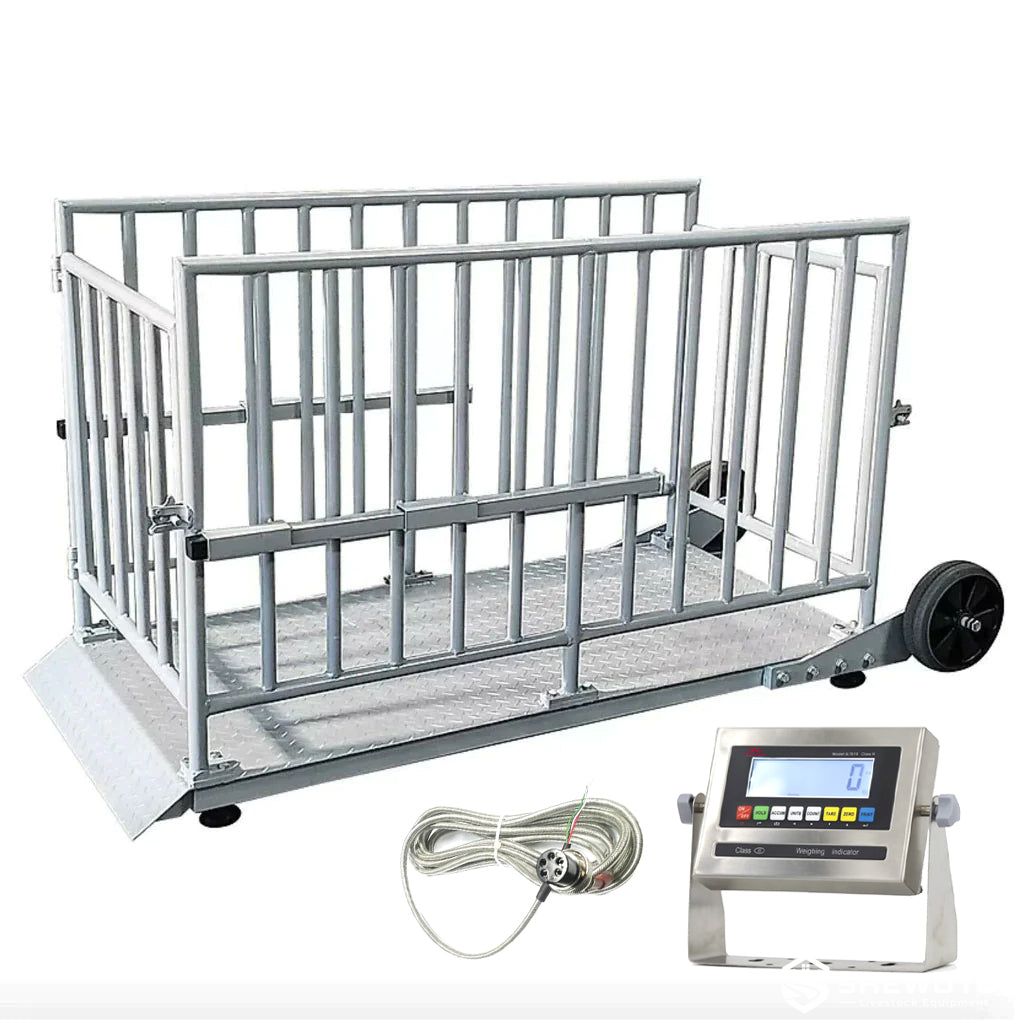

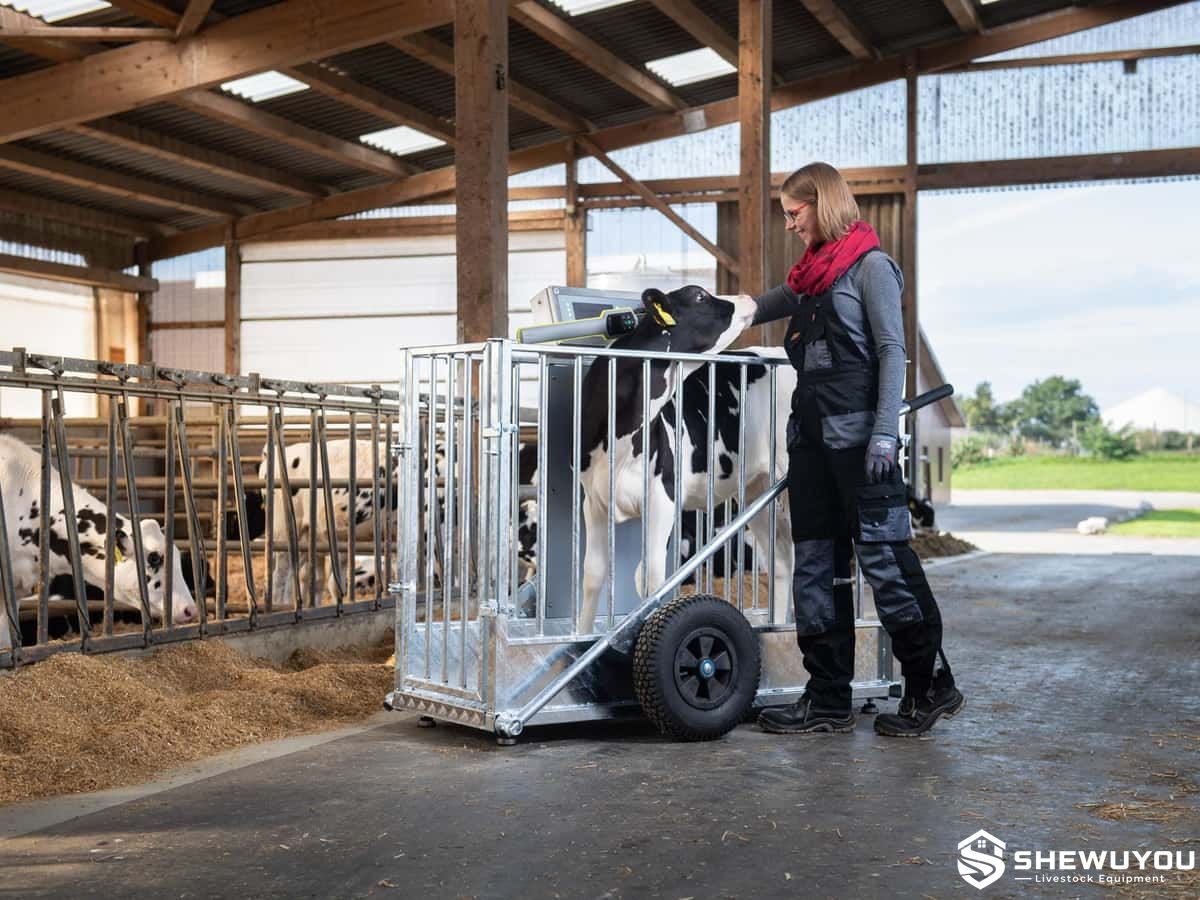

Product Overview	The Electronic Weighing Calf Cart combines calf transportation and digital livestock weighing in one mobile unit for commercial dairy farms, calf-rearing centers and replacement-heifer operations. The cart allows young calves to be moved between maternity areas, individual hutches, calf barns and treatment zones while providing a practical method for routine body-weight measurement. Integrated load cells transfer weight data to an electronic indicator, helping farm managers monitor growth performance and average daily gain. Large transport wheels, a low-loading configuration, durable side panels and optional calf-restraint components make the cart suitable for frequent use in modern dairy facilities and livestock management projects.
Key Features	Transport & Weighing Integration: One mobile unit can be used for calf transfer and routine body-weight measurement. Electronic Load-Cell System: Integrated weighing components provide fast digital weight readings during calf management. Stable Animal Weighing: Compatible animal-weighing indicators are designed to obtain usable readings even when livestock are moving. Swiveling Digital Indicator: The display can be positioned for convenient operator viewing. Removable Indicator: The electronic display can be removed for protected storage when the cart is not in use. Portable Power Supply: Battery-powered indicator operation supports weighing away from fixed electrical outlets. Large Transport Wheels: Large wheels improve maneuverability between calf barns, hutches and farm work areas. Low-Loading Position: The cart can be positioned close to ground level to simplify calf entry and exit. Optional Head Restraint: A head-lock can be supplied for examination, identification and routine veterinary procedures. Easy-Clean Floor Option: Diamond-plate metal flooring provides a durable surface for cleaning and biosecurity management.
Structural Components	Heavy-duty tubular metal frame Protective side panels Large transport wheels Manual operating handle Calf loading and unloading gate Electronic weighing indicator Indicator mounting and swivel bracket Electronic load cells or weigh beams Electrical connection cables Battery-powered indicator system Optional head-lock assembly Optional solid tyres Optional aluminum tread-plate floor
Working Principle	Position the Cart: Move the calf cart to the maternity area, calf pen or other weighing location and place it securely on a suitable surface. Lower for Loading: The handling mechanism allows the cart body to be positioned close to the ground, reducing the need to lift the calf. Load the Calf: Guide the animal calmly into the enclosed cart and secure the gate. An optional head-lock can be used when additional restraint is required. Electronic Measurement: Load cells detect the force applied by the calf and transmit the signal to the digital indicator, where the body weight is displayed. Record Growth Data: The measured weight can be entered into the farm's calf-management records for comparison with previous measurements and average daily gain targets. Transport or Unload: After weighing, the same cart can be used to move the calf to another farm location or lowered again for easy unloading.
Technical Specifications	Product Type Mobile electronic calf weighing and transport cart Reference Cart Length 42 in on the referenced weighing configuration Weighing Technology Electronic load-cell weighing system Digital Indicator Electronic livestock weighing indicator Indicator Mounting Swiveling and removable Reference Indicator Power 2 AA batteries or compatible AC/DC power converter Reference Power Converter 120 V AC/DC converter on referenced configuration Wheel Options Pneumatic or solid tyres according to configuration Floor Option Aluminum tread plate available upon request Head Restraint Optional head-lock Loading Configuration Cart can be lowered toward ground level for calf loading and unloading Data Functions According to selected weighing indicator Dimensions & Capacity According to project requirements
Applications	Commercial dairy farms Calf-rearing centers Maternity and calving areas Individual calf hutch systems Group calf barns Replacement-heifer facilities Routine calf growth monitoring Average daily gain tracking Calf health-check and treatment areas Newborn calf transportation
Customization Options	Electronic weighing indicator Load-cell configuration Digital data-recording functions Head-lock restraint system Pneumatic or solid wheel configuration Aluminum tread-plate floor Cart dimensions Power-supply specification Frame and side-panel material Customizable according to project requirements
Installation & Maintenance	The calf cart is mobile and normally requires no permanent installation. Before first use, assemble the cart according to the supplied configuration, connect the load cells and digital indicator, and verify the weighing system with an appropriate calibration procedure. Position the cart on a stable surface whenever possible and ensure that wheels, gates and restraint components are secured before weighing. Keep electrical cables protected from animal contact, moisture and mechanical damage. After each use, remove manure and bedding residue from the cart. Wash and disinfect animal-contact surfaces according to the farm's biosecurity program. Periodically inspect the load cells, indicator mounting bracket, electrical connections, wheel bearings, tyres, gates and optional head-lock. Store removable electronic components in a dry protected location when the equipment is not in service.
Product FAQ	Q: Can the cart weigh and transport the calf in the same unit? A: Yes. The equipment combines a mobile calf cart with an electronic weighing system, reducing the need to move calves between separate transport and weighing devices. Q: Can the scale work on uneven farm surfaces? A: Animal-weighing electronics are designed to provide stable readings under practical farm conditions, although a firm and reasonably level surface is recommended whenever possible. Q: Can the digital indicator be removed? A: Yes. The referenced configuration uses a removable indicator that can be stored safely when the cart is not in use. Q: Does the weighing indicator require mains electricity? A: No. Portable battery operation is available, while an external power converter can also be used according to configuration. Q: Can the calf be restrained during weighing? A: Yes. An optional head-lock can be installed for additional control during weighing, examination and routine calf-management procedures. Q: Can the system record individual calf growth data? A: Basic or advanced data functions can be supplied according to the selected digital weighing indicator and farm-management requirements.
