Product Showcase	Content
Product Name	Pistol-Grip Gas Calf Dehorner
Product Image

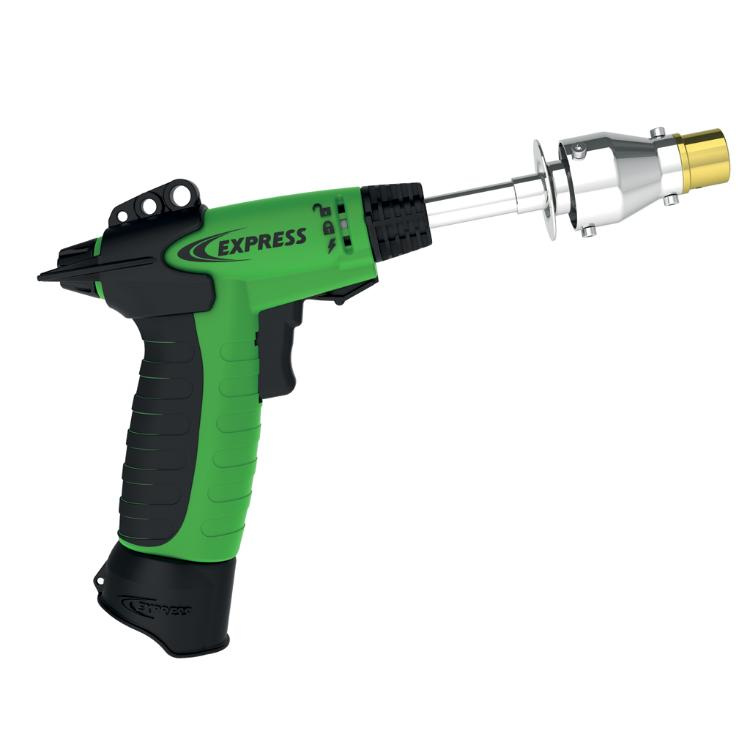

Product Overview	The Pistol-Grip Gas Calf Dehorner is a cordless thermal disbudding tool developed for professional calf-care programs on dairy farms, beef cattle operations and livestock breeding facilities. Powered by a replaceable butane, propane or compatible mixed-gas cartridge, the unit eliminates the need for an electrical cable and gives operators greater freedom of movement around calf pens, handling crates and remote livestock areas. A built-in piezo ignition system, ergonomic dual-material grip and reversible 17/19mm heating tip provide a practical combination of portability, rapid heating and adaptability for different calf breeds. The reference configuration reaches approximately 700°C in less than three minutes.
Key Features	Cordless Gas Operation: No mains electricity or extension cable is required during normal field operation. Pistol-Grip Design: Ergonomic shape provides stable one-handed handling and convenient trigger access. Built-In Piezo Ignition: Integrated ignition system enables convenient start-up without a separate lighter. Rapid Heating: Reference configuration reaches approximately 700°C in less than three minutes. Reversible 17/19mm Tip: Dual-diameter heating head helps accommodate different calf breeds and horn-bud sizes. Optional 15mm Tip: Smaller compatible heating tip is available for alternative livestock applications. Lightweight Construction: Approximately 470g reference tool weight supports comfortable repetitive handling. Non-Slip Dual-Material Handle: Improves grip stability in demanding livestock working environments. Safety Lock Position: Dedicated lock and operating positions help reduce unintended activation. Tool-Free Routine Servicing: Trigger, piezo-ignition assembly and gas nozzle can be serviced without specialized tools on the referenced configuration. Integrated Support Stand: Provides a stable resting position for the hot tool between operations.
Structural Components	Ergonomic pistol-grip body Non-slip dual-material handle Built-in piezo ignition assembly Trigger-operated gas control Safety locking mechanism Gas jet and burner assembly Metal heating shaft Heat shield around working head Reversible 17/19mm heating tip Integrated support stand Replaceable gas cartridge connection
Structural Principle	Fuel from the attached gas cartridge is regulated through the internal gas circuit and ignited by the built-in piezo system. The burner transfers heat through the metal head to the reversible heating tip. Concentrated thermal energy is maintained around the circular tip so the equipment can be used for controlled calf disbudding by appropriately trained personnel. Because the unit carries its own fuel supply, it can be operated independently of electrical infrastructure and is particularly convenient in calf hutches, open livestock sheds, cattle handling areas and large steel-structure farm buildings. Actual animal treatment procedures should always follow veterinary guidance, approved farm protocols and applicable requirements for restraint, analgesia, anesthesia and animal welfare.
Technical Specifications	Product Type Portable pistol-grip gas calf dehorner Reference Configuration 103015144 type Power Source Replaceable gas cartridge Compatible Fuel Butane / propane / compatible mixed gas according to cartridge specification Reference Cartridge 60g compatible cartridge on referenced configuration Ignition Built-in piezo ignition Reference Operating Temperature Approx. 700°C / 1292°F Reference Heat-Up Time Less than 3 minutes Standard Tip Reversible 17 / 19 mm internal diameter Optional Tip 15 mm available upon request Reference Tool Weight Approx. 470 g Handle Non-slip dual-material pistol grip Safety Control Lock position and operating position Serviceable Components Trigger, piezo ignition and gas nozzle on referenced configuration Electrical Connection Not required
Applications	Commercial dairy farms Beef cattle breeding farms Professional calf-rearing centers Replacement-heifer facilities Calf hutches and maternity areas Livestock handling and treatment facilities Veterinary cattle-management programs Remote cattle housing without convenient electrical access Steel-structure livestock buildings Large-scale cattle farm projects
Customization Options	17 / 19 mm reversible heating tip 15 mm optional heating tip Replacement burner assembly Replacement trigger and piezo ignition Replacement gas nozzle Compatible refillable or replaceable gas cartridge options Protective carrying case available upon request Spare-parts kits available upon request Distributor packaging according to project requirements
Installation & Maintenance	No electrical or permanent livestock-building installation is required. Install only a compatible gas cartridge specified for the selected dehorner configuration. Before use, inspect the cartridge connection, gas circuit, trigger, ignition system, heat shield and heating tip for damage or contamination. Gas equipment should be checked for leaks according to the manufacturer's instructions. Always use the integrated support stand when setting down a heated tool. Keep the operating area well ventilated and away from combustible materials, stored forage and other ignition hazards. Allow the unit to cool completely before changing the cartridge, replacing the heating tip or servicing the burner. Compatible trigger, piezo and nozzle components can be replaced as part of routine maintenance. Calf disbudding should be performed only by appropriately trained personnel in accordance with veterinary recommendations and applicable animal-welfare requirements for restraint, pain relief, anesthesia, analgesia and post-treatment care.
Product FAQ	Q: Does the gas calf dehorner require electricity? A: No. The unit is powered by a compatible gas cartridge and is completely cordless during normal operation. Q: What operating temperature does it reach? A: The referenced configuration reaches approximately 700°C or 1292°F. Q: How long does the unit take to heat up? A: Maximum working temperature is reached in less than three minutes under the referenced conditions. Q: Which heating-tip sizes are available? A: The standard configuration uses a reversible 17/19mm tip, with a 15mm tip available as an option. Q: Is an external lighter required? A: No. The reference configuration incorporates a built-in piezo ignition system. Q: Can common wear components be replaced? A: Yes. The trigger, piezo ignition, burner, gas nozzle and heating tip can be replaced with compatible spare parts. Q: Is it suitable for farms without convenient electrical outlets? A: Yes. Cordless gas operation is particularly useful for outdoor calf areas, remote barns and large livestock facilities where electrical access is limited. Q: Who should operate a calf dehorner? A: It should only be used by trained and authorized personnel following veterinary guidance and applicable animal-welfare regulations.
