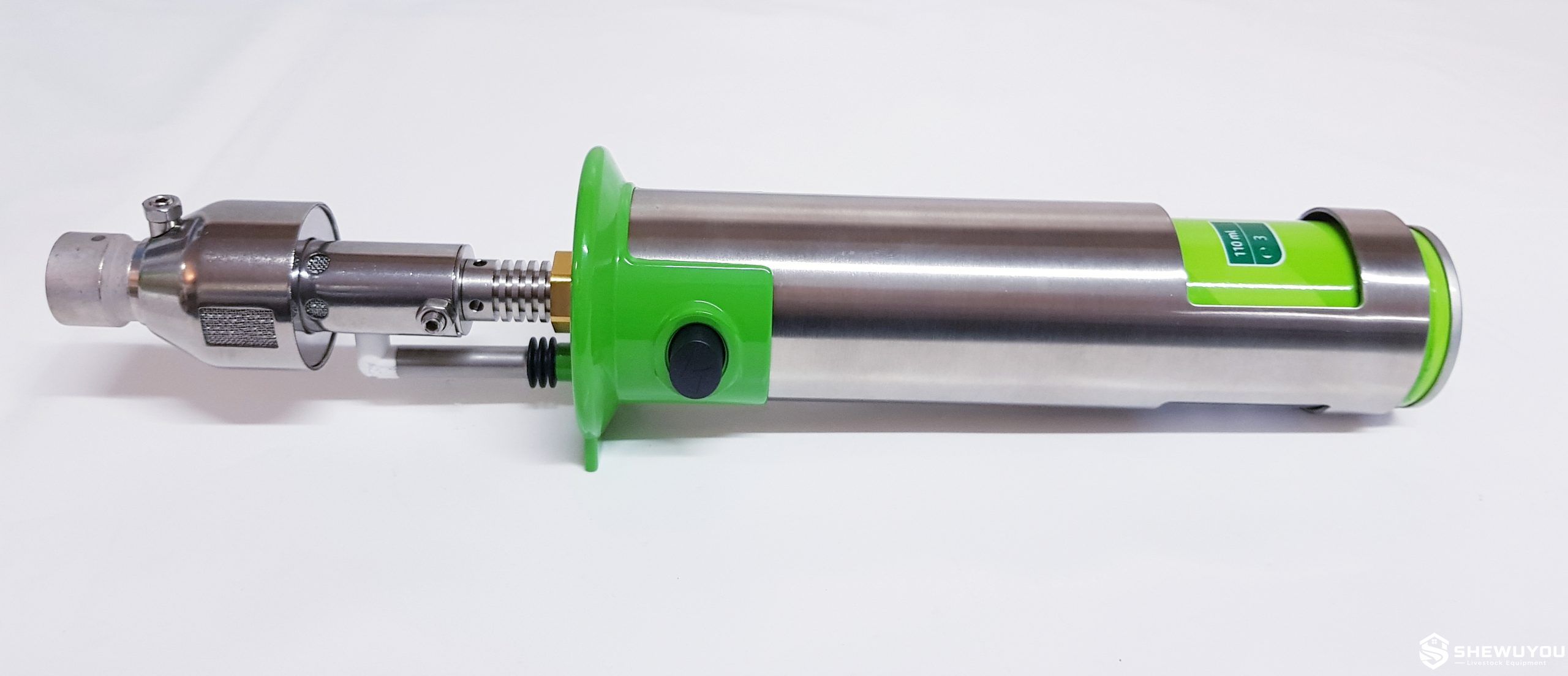

Portable Gas Calf Dehorner

• Portable gas-powered design requires no electrical cable during operation.
• Reference maximum burning-tip temperature of approximately 650°C.
• Operating temperature reached within approximately 3 minutes under reference conditions.
• Automatic piezo ignition provides convenient burner starting.
• Stainless steel construction supports durability in demanding livestock-farm environments.
• Non-slip gripping area improves operator control.
• Balanced center of gravity supports comfortable handheld operation.
• 15 mm and 20 mm standard burning-tip configurations are available.
• 25 mm replacement burning tip is available for compatible applications.
• Reference operating duration of approximately 120–180 minutes.
• Compact 31 cm overall length supports convenient storage and transport.
• Metal carrying case protects the tool during transport and farm storage.

• Stainless Steel Body: Cylindrical housing provides structural strength and protects the internal fuel system.
• Gas Cartridge Chamber: Holds the replaceable gas cartridge for cordless operation.
• Gas Control: Regulates gas supply to the burner assembly.
• Piezo Ignition: Generates the ignition spark without a separate electrical supply.

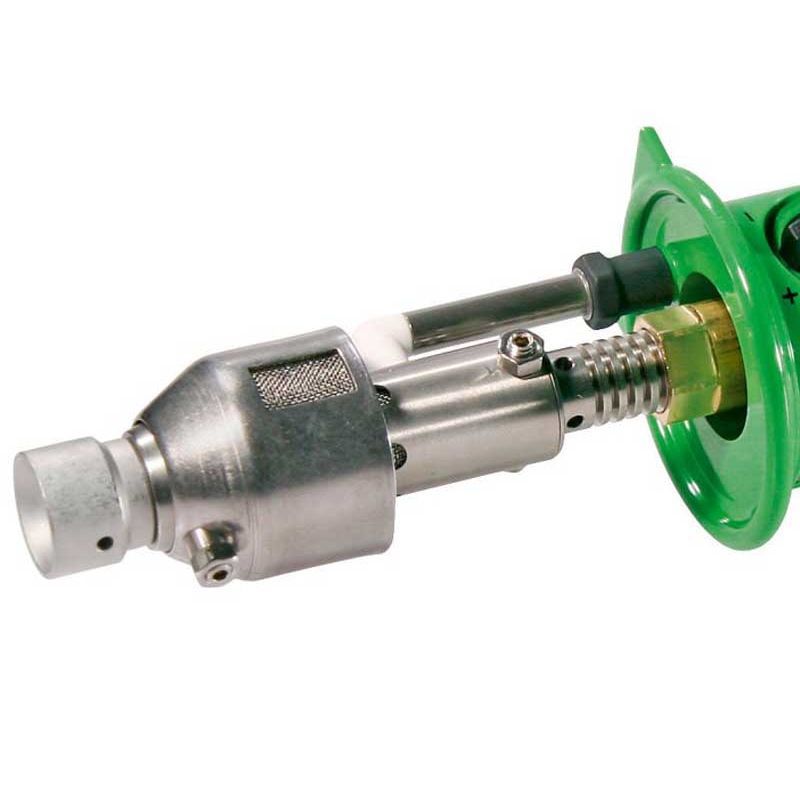

• Burner Assembly: Converts gas combustion into concentrated heat at the working end.

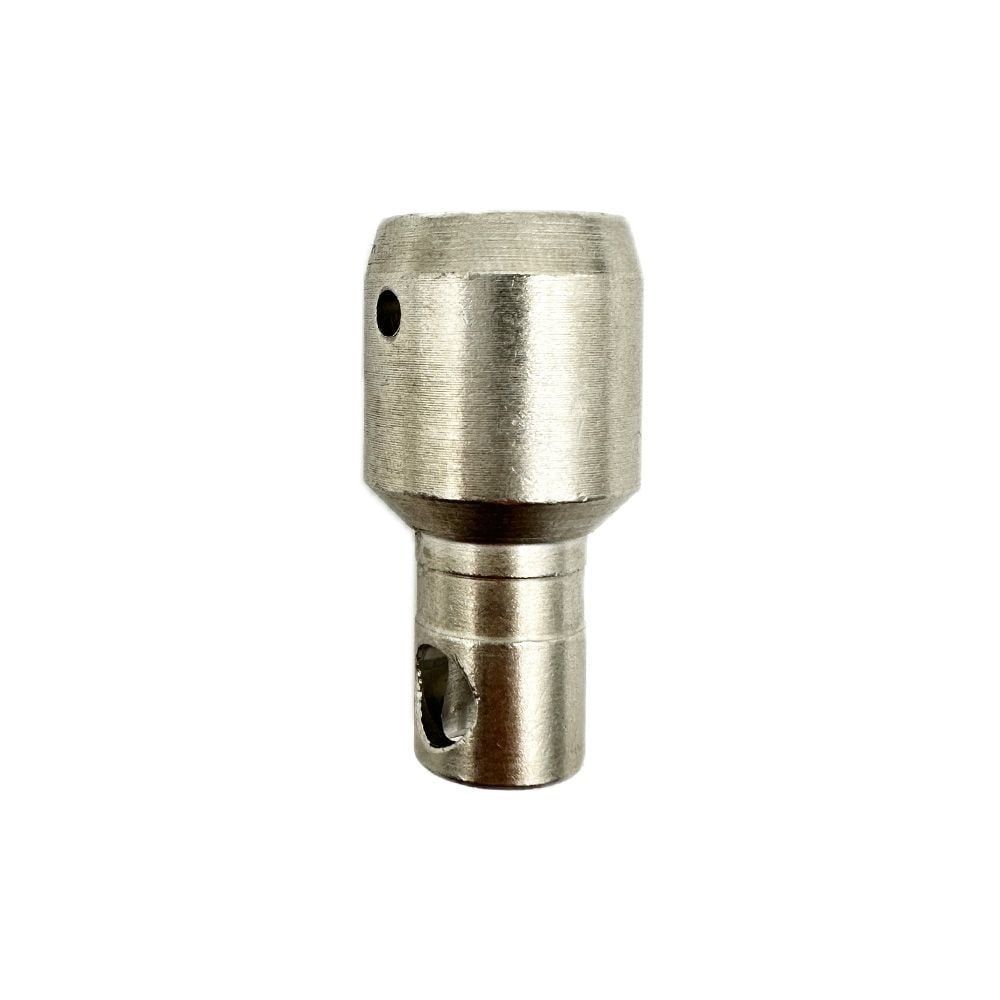

• Burning Tip: Replaceable circular tip transfers controlled thermal energy around the horn bud.
• Heat Shield: Helps separate the high-temperature working area from the operator's grip.
• Non-Slip Grip: Improves stability during livestock handling.
• Protective Metal Case: Provides organized transport and storage of the tool and accessories.

• Commercial dairy calf-rearing facilities.
• Beef cattle breeding farms.
• Maternity and calving barns.
• Individual calf hutches and nursery pens.
• Replacement-heifer operations.
• Veterinary livestock-management teams.
• Mobile cattle-management operations.
• Remote farm areas without convenient mains electricity.
• Livestock equipment distributors and agricultural supply projects.

• Burning Tip: 15 mm and 20 mm standard configurations.
• Alternative Tip: 25 mm compatible tip available upon request.
• Gas Cartridge: Supplied according to destination-market and transportation requirements.
• Spare Gas Nozzle: Available upon request.
• Ignition Components: Replacement service components available according to configuration.
• Carrying Case: Protective storage configuration available.
• Packaging: Available according to distributor and project requirements.

• No permanent electrical or structural installation is required.
• Use only a compatible gas cartridge specified for the selected equipment configuration.
• Fit or replace gas cartridges only in a well-ventilated area away from flames, sparks and other ignition sources.
• Inspect the gas connection, burner, ignition system and burning tip before use.
• Keep the burning tip free from carbon deposits and contamination.
• Allow the tool to cool completely before changing tips or performing maintenance.
• Do not clean or service the unit while the burner is hot.
• Check the piezo ignition and gas-control components periodically.
• Replace damaged tips, seals, nozzles or ignition components before further operation.
• Store gas cartridges according to local fire-safety regulations in a well-ventilated location.
• Store the cooled dehorner securely in its protective carrying case.

Q: Does the gas calf dehorner require electricity?
A: No. The portable gas-powered design operates independently of a mains electrical connection.

Q: What temperature does the burning tip reach?
A: The reference configuration reaches a maximum tip temperature of approximately 650°C.

Q: How long does the unit take to heat?
A: The reference manufacturer specifies a maximum heat-up time of approximately three minutes.

Q: Which burning-tip sizes are available?
A: Standard configurations include 15 mm and 20 mm tips, with a compatible 25 mm tip also available.

Q: How long can the dehorner operate?
A: Reference operating duration is approximately 120 to 180 minutes depending on operating conditions and gas supply.

Q: Is the ignition automatic?
A: The reference design uses an integrated automatic piezo ignition system.

Q: Is it suitable for mature cattle horns?
A: This type of equipment is intended for early-age calf disbudding and is not designed for removing fully developed mature horns.

Q: Can spare parts be supplied?
A: Yes. Replacement burning tips, gas nozzles and selected ignition components are available according to product configuration.
