Hot-Air Calf Dehorner

• Hot-air disbudding principle provides broad surface treatment around the horn bud.
• Approximate maximum hot-air temperature of 450°C.
• Short reference heat-up time of approximately 60 seconds.
• Reference treatment cycle of two short applications per horn bud.
• Cordless gas-powered design requires no mains electrical connection during operation.
• Automatic piezo ignition simplifies burner starting.
• Stainless steel construction supports durability and long-term farm use.
• Ergonomic design with balanced weight distribution improves operator handling.
• 22 mm reference working-tip diameter for calf disbudding applications.
• Approximately 120 minutes of reference operating time per compatible gas supply.
• Protective metal carrying case supports transport and organized storage.

• Stainless Steel Body: Provides a durable housing for the fuel and hot-air generation system.
• Gas Cartridge Chamber: Holds the compatible replaceable fuel cartridge for cordless operation.
• Piezo Ignition System: Produces the ignition spark without an external lighter or electrical supply.
• Gas Control Knob: Controls the burner operating condition according to the equipment instructions.

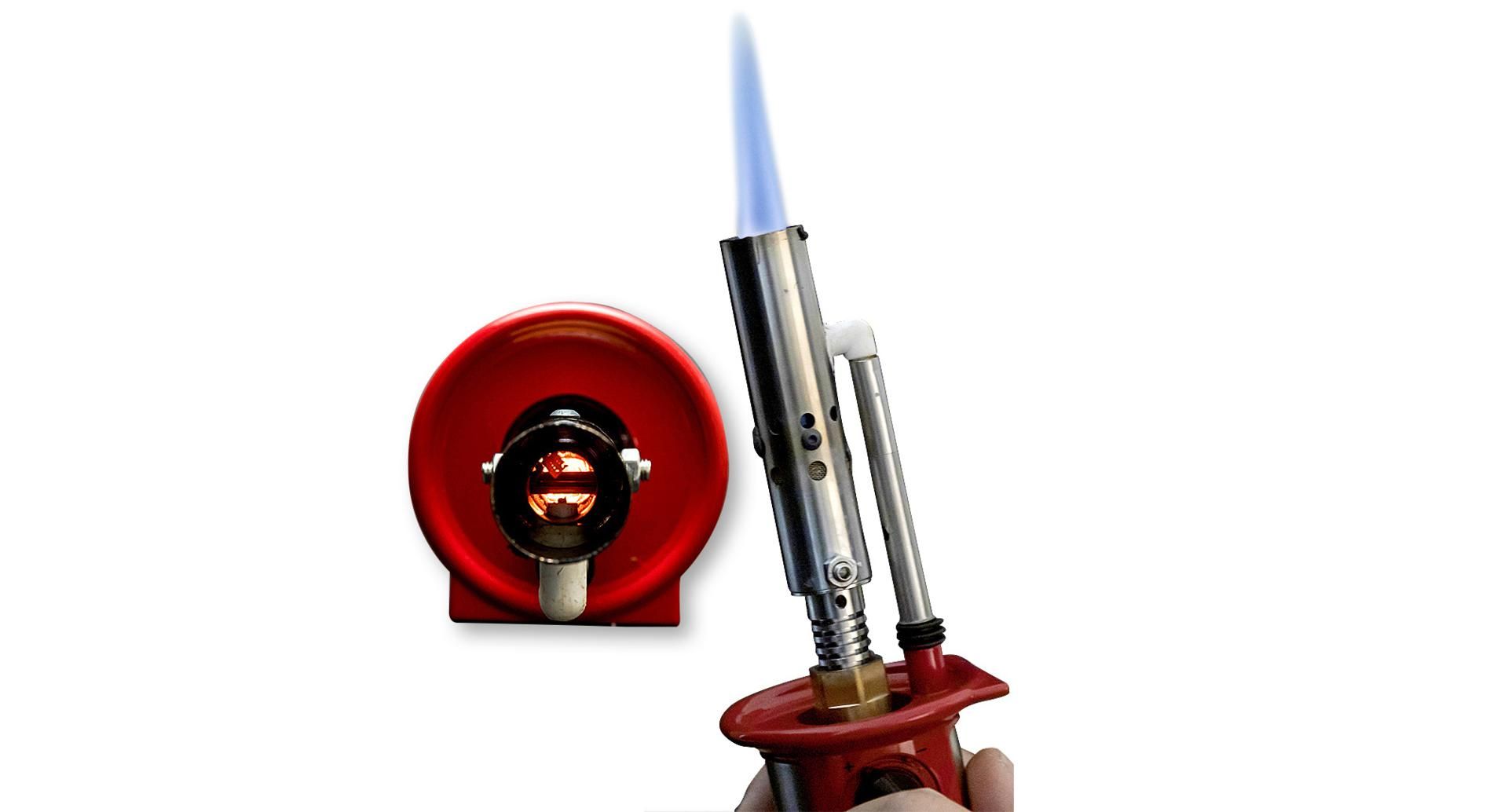

• Burner Assembly: Generates heat from the gas supply.
• Hot-Air Tube: Directs the heated airflow toward the horn-bud treatment area.
• 22 mm Working Head: Defines the treatment area around the calf horn bud.
• Protective Guard: Separates the operator's grip area from the high-temperature working section.
• Protective Case: Provides secure storage for the dehorner, tools and accessories.

• Commercial dairy calf-rearing facilities.
• Beef cattle breeding operations.
• Maternity and calving barns.
• Individual calf hutches.
• Calf nursery pens and youngstock facilities.
• Replacement-heifer operations.
• Veterinary livestock-management teams.
• Remote cattle facilities without convenient mains electricity.
• Livestock equipment distributors and cattle-farm projects.

• Supply Configuration: Available with or without gas cartridge according to destination-market requirements.
• Spare Gas Nozzle: Available upon request.
• Service Components: Replacement burner and sealing components available according to configuration.
• Accessory Kit: Configurable according to project requirements.
• Packaging: Distributor and project packaging available upon request.
• Gas Supply: Selected according to applicable transport and destination-country regulations.

• No mains electrical connection or permanent installation is required during operation.
• Use only a compatible gas cartridge specified for the equipment configuration.
• Inspect the gas connection, seals, ignition system and working head before use.
• Install or replace gas cartridges only in a well-ventilated area away from flames, sparks and hot surfaces.
• Keep the hot-air outlet and burner openings free from contamination.
• Allow the unit to cool completely before maintenance or storage.
• Inspect the gas nozzle and sealing components periodically for wear or leakage.
• Replace damaged burner, nozzle or sealing components before further operation.
• Store gas cartridges in accordance with local fire-safety requirements.
• Keep the cooled dehorner in its protective metal case when not in use.

Q: How is a hot-air calf dehorner different from a conventional dehorner?
A: Instead of relying mainly on direct contact with a glowing cauterizing ring, this design directs concentrated hot air over the horn-bud treatment area.

Q: What is the reference operating temperature?
A: The reference hot-air system reaches approximately 450°C.

Q: How quickly is the unit ready for use?
A: The reference heat-up time is approximately 60 seconds.

Q: What is the working-tip diameter?
A: The reference configuration uses a 22 mm working head.

Q: Does it require an electrical outlet?
A: No. The unit is gas powered and operates without a mains power cable.

Q: How long can it operate?
A: The reference operating duration is approximately 120 minutes with the specified fuel configuration.

Q: Is it intended for mature horns?
A: No. This equipment is intended for early calf disbudding rather than removal of fully developed mature horns.

Q: Can spare parts be supplied?
A: Yes. Compatible gas nozzles and selected burner and sealing components can be supplied according to the equipment configuration.
