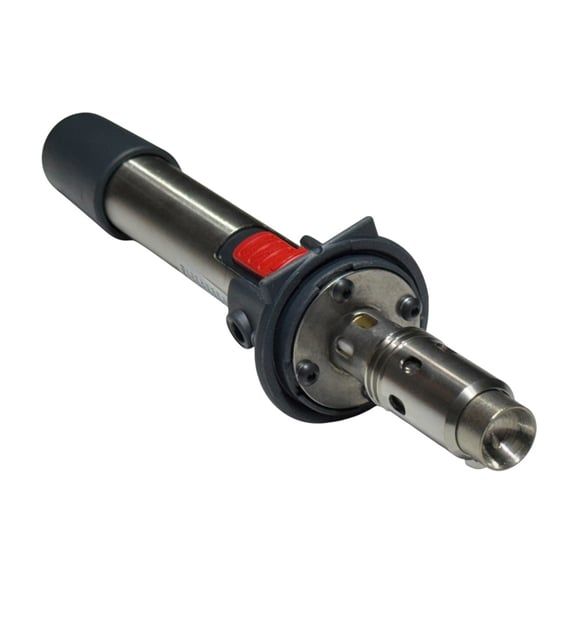

Cordless Butane Calf Dehorner with Dual Ignition

The Cordless Butane Calf Dehorner is a portable thermal disbudding tool designed for young calves where access to mains electricity is limited or inconvenient. An integrated refillable butane reservoir eliminates external cables, hoses and separate gas cylinders, allowing operators to work efficiently in calf hutches, livestock handling areas, barns and field locations.

The compact stainless-steel working head combines strong heat retention with a replaceable burning-tip system. A dual ignition arrangement provides both click-to-ignite and manual ignition capability, while the refillable fuel system supports repeated farm use without disposable fuel cartridges.

• Cordless butane-powered operation for unrestricted movement around livestock facilities.
• Maximum reference tip temperature up to approximately 650°C.
• Approximately 45 minutes of operating time from a full fuel reservoir under reference conditions.
• Fast butane refilling with a reference refill time of approximately 20 seconds.
• Click-to-ignite system with secondary manual ignition capability.
• 20 mm stainless-steel flame housing reinforces the working head.
• Mechanically retained ceramic component improves protection of the ignition system.
• Replaceable burning tips allow the tool to be adapted to different horn-bud sizes.
• Compact and lightweight configuration for repetitive commercial-farm use.
• No mains cable, external gas hose or battery charging system is required.

• Refillable Butane Reservoir: Integrated fuel tank provides completely cordless operation.
• Gas Control: Regulates fuel supply to the burner system during heating and operation.
• Ignition System: Supports click ignition with manual ignition available as a backup method.

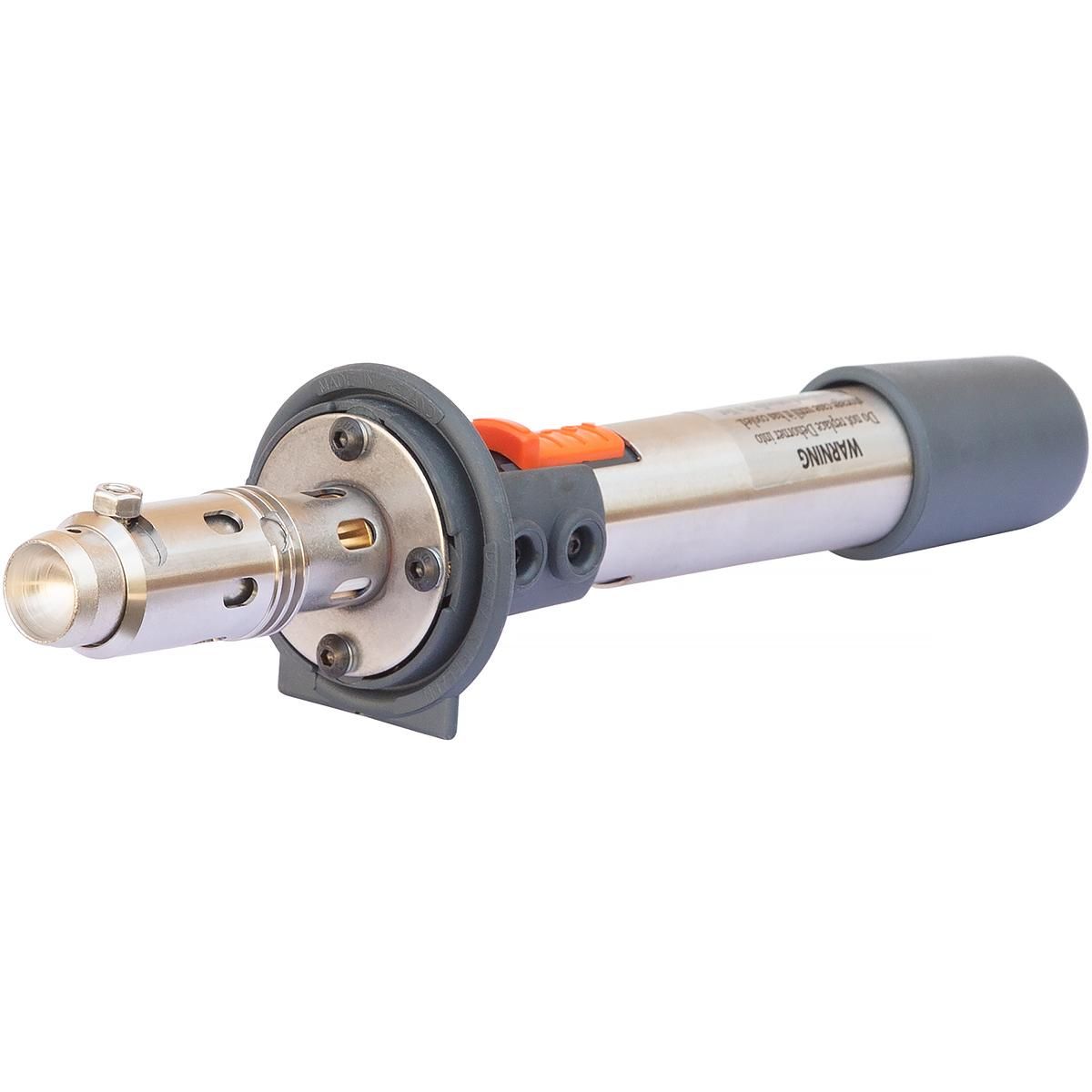

• Stainless-Steel Working Head: Robust front assembly designed to withstand repeated high-temperature operation.
• 20 mm Flame Housing: Reinforces and protects the burner area.
• Ceramic Ignition Component: Mechanically supported for improved protection and serviceability.
• Replaceable Burning Tip: Transfers concentrated heat around the calf horn bud.
• Heat Shield: Helps separate the hot working area from the operator's grip.

Filtered butane fuel stored inside the handle is released into the burner assembly and ignited. The combustion system transfers heat to the replaceable circular burning tip until the required operating temperature is reached.

During thermal disbudding, trained personnel position the heated ring around the horn bud to cauterize the horn-producing tissue. Correct animal restraint, appropriate pain management and compliance with applicable veterinary and animal-welfare regulations are essential parts of the operating procedure.

• Thermal disbudding of young dairy calves.
• Beef-calf horn-bud management programs.
• Individual calf hutches and outdoor calf housing.
• Commercial dairy farms and cattle breeding facilities.
• Livestock handling areas without convenient mains electricity.
• Veterinary and professional farm-service operations.
• Mobile livestock management and field applications.
• Livestock equipment distributors and agricultural project procurement.

• Burning Tip Diameter: Multiple compatible sizes available according to livestock requirements.
• Tool Configuration: Available upon request.
• Repair and Maintenance Kit: Available according to project requirements.
• Spare Burner Components: Available upon request.
• Carrying Case: Available according to selected configuration.
• Packaging: Distributor, bulk or project packaging available upon request.
• Private Label: OEM configurations available for qualified orders.

• No electrical installation or external gas hose is required.
• Use clean, highly refined butane fuel suitable for refillable gas tools.
• Refill the reservoir according to the tool instructions and keep the unit away from ignition sources during filling.
• Inspect the working head, burner tip, ignition components and fuel system before each operating session.
• Remove excess hair around the horn bud before operation to reduce soot contamination of the burner assembly.
• Keep ventilation openings and the internal Venturi system free from dirt and combustion residue.
• Allow the tool to cool completely before tip replacement, servicing, transport or storage.
• Replace worn burner tips, ignition ceramics or fuel-system components when required.
• Store the dehorner in a clean, dry and well-ventilated location away from excessive heat.
• Thermal disbudding should only be performed by trained personnel following applicable animal-welfare, restraint, analgesia and veterinary requirements.

Q: Does this calf dehorner require electricity?
A: No. The tool has an integrated refillable butane reservoir and operates without mains electricity, external gas hoses or battery charging.

Q: What maximum temperature can the tip reach?
A: The reference model has a maximum tip temperature of approximately 650°C.

Q: How long can the dehorner operate after refilling?
A: Reference operating time is approximately 45 minutes from a full fuel reservoir, depending on operating conditions and heat settings.

Q: How long does refilling take?
A: The reference refill time is approximately 20 seconds when the correct filling procedure and compatible butane fuel are used.

Q: What tip sizes are available?
A: Common calf configurations include 15 mm and 18.5 mm burning tips. Other compatible sizes are available for selected young-livestock applications.

Q: What happens if the click ignition does not operate?
A: The reference design also supports manual ignition. Ignition and gas-system servicing should follow the manufacturer's operating instructions.

Q: Can the unit be serviced on the farm?
A: Selected components such as burning tips, ceramic ignition parts and Venturi components are replaceable, with repair kits available according to configuration.

Q: Is this suitable for distributors and OEM programs?
A: Selected tip configurations, replacement components, packaging and private-label options are available upon request.
