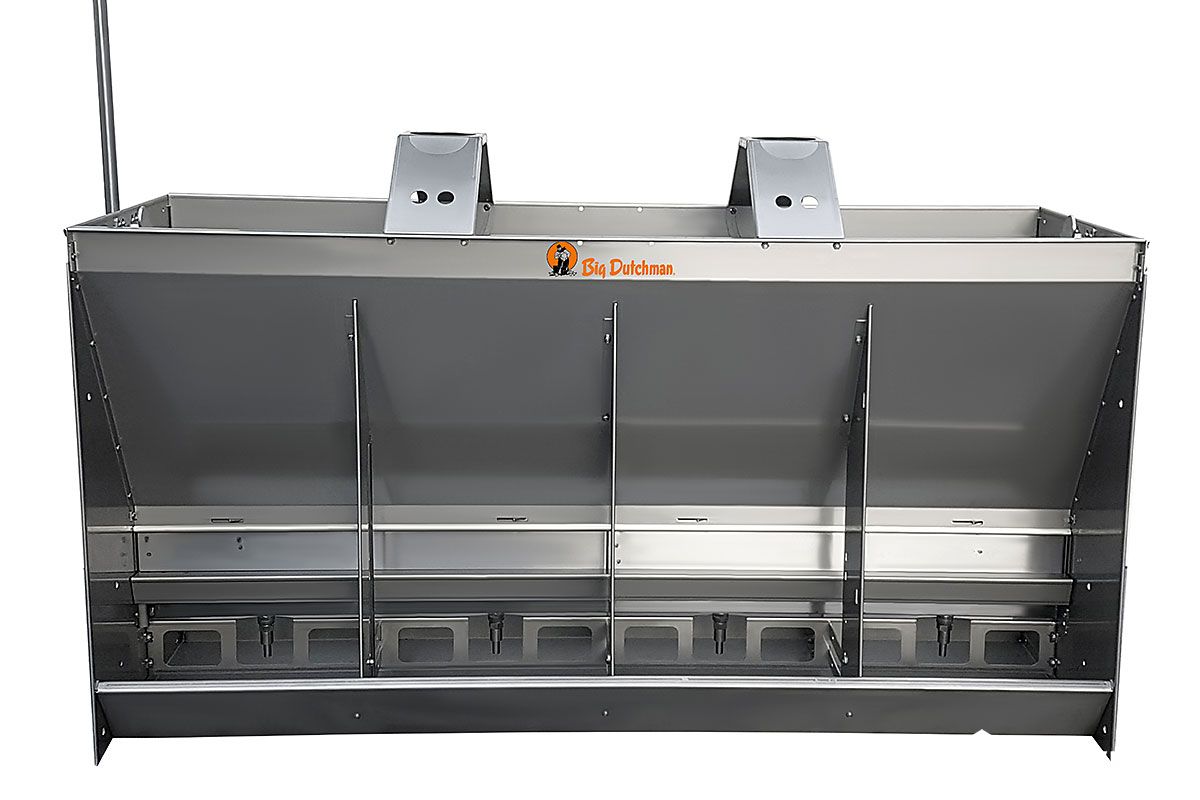

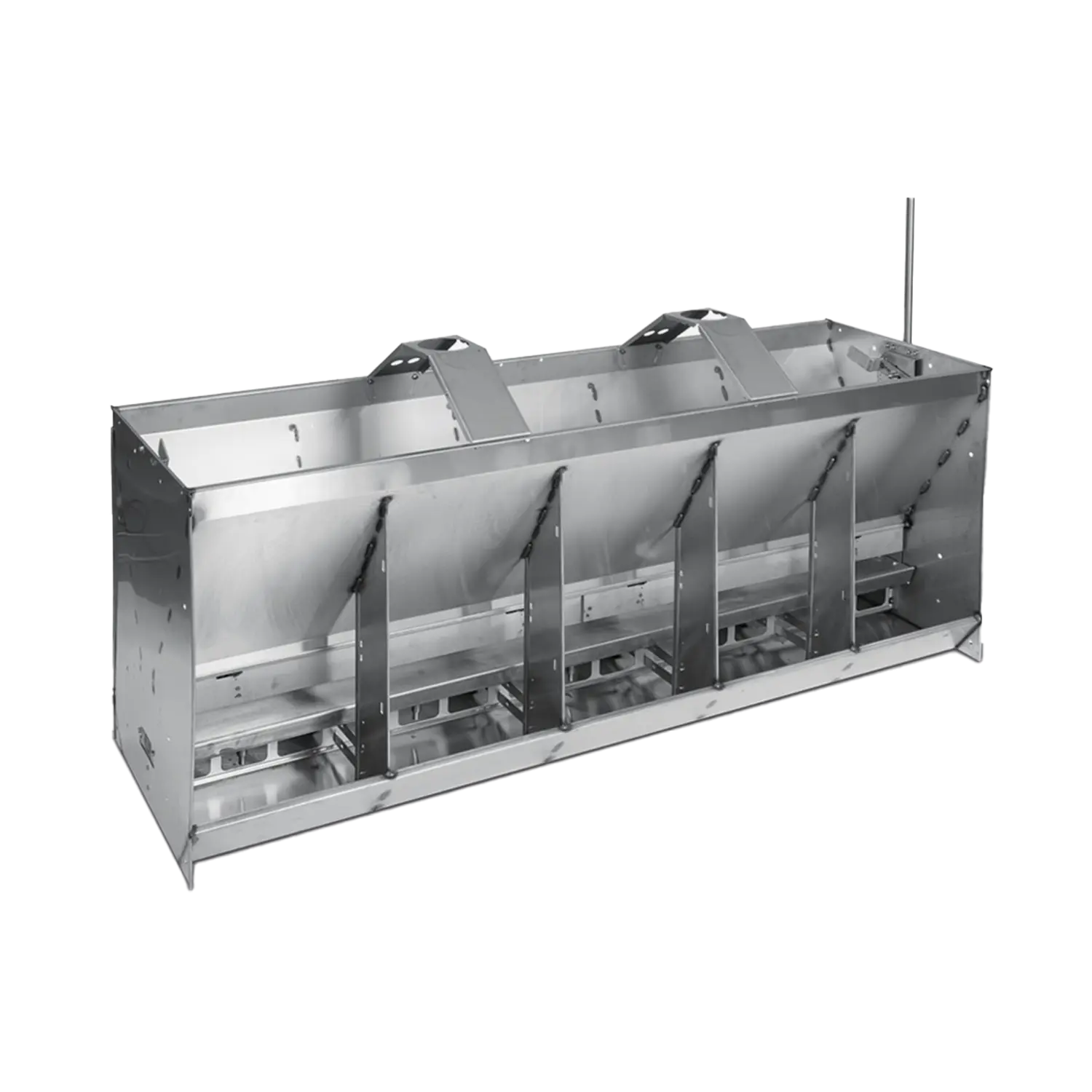

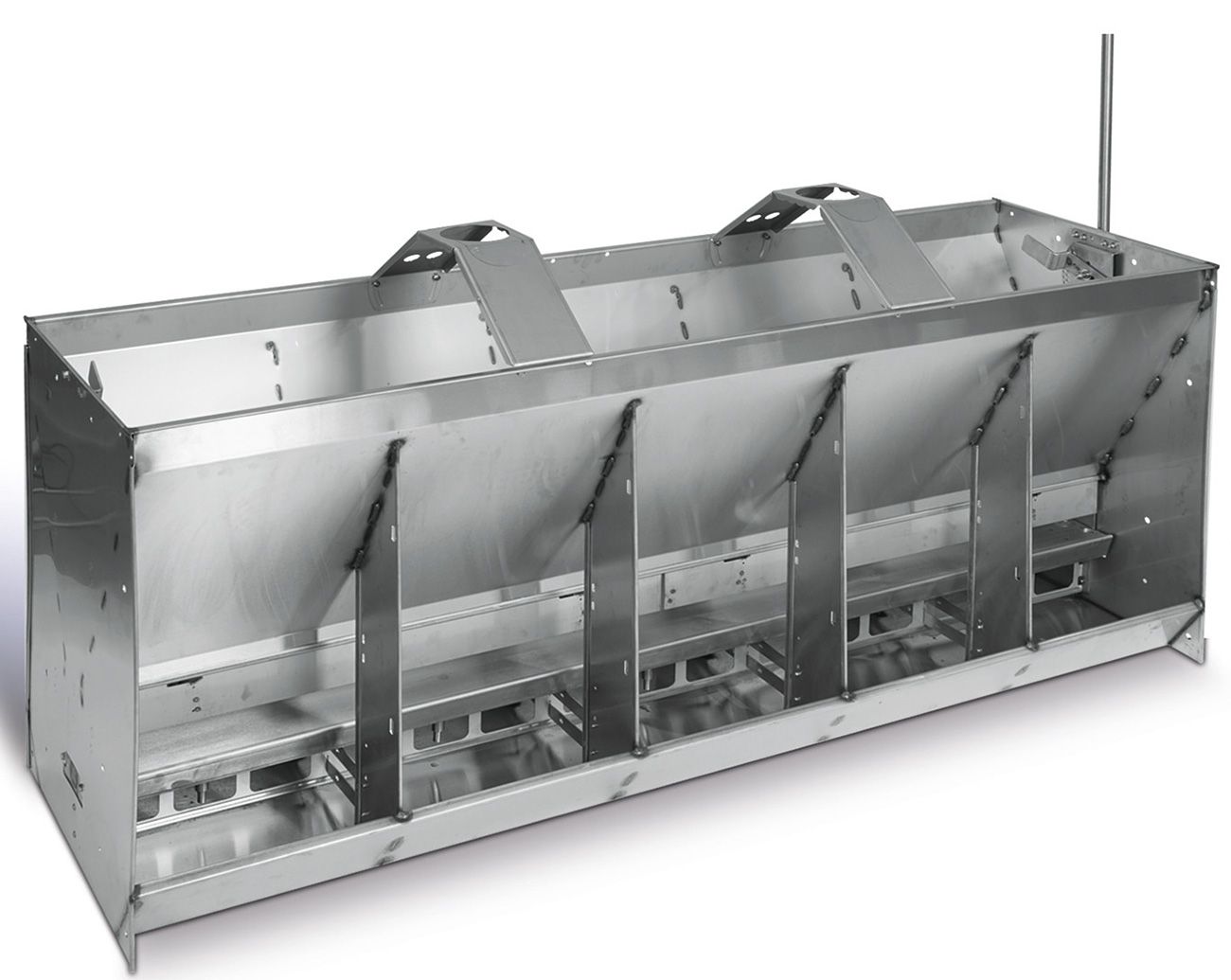

Multi-Space Double-Sided DryWet Pig Feeder

The Multi-Space Double-Sided DryWet Pig Feeder is a commercial swine feeding system designed for wean-to-finish and finishing production. It combines dry-feed access and integrated drinking nipples within one stainless steel feeder, allowing pigs to consume feed dry or add water according to individual feeding behavior.

Multiple feeding spaces are arranged on both sides of the feeder, making efficient use of pen area and allowing pigs from adjacent groups to access the same centrally positioned feeding unit where the barn layout permits.

The robust structure, adjustable feed table and optional hopper extension make the system suitable for intensive commercial pig houses, automated feeding projects and new or renovated steel structure livestock buildings.

• Double-Sided Feeding: Feeding positions on both sides allow high feeder utilization in commercial pen layouts.
• Multiple Feeding Spaces: Configurations with several individual feeding places help distribute pigs along the feeder and reduce congestion.
• Dry or Wet Feed Intake: Pigs can consume feed dry or use the integrated drinker to combine feed and water.
• Integrated Drinking Nipples: Each feeding position can be equipped with water access from both sides.
• Adjustable Feed Table: Feed-table height can be adapted to different production stages and pig sizes.
• Stainless Steel Construction: Provides good corrosion resistance and durability in humid pig-house environments.
• Reduced Feed Waste: Controlled feed presentation and defined feeding spaces help keep excessive feed from accumulating in the trough.
• Optional Hopper Extension: Additional storage volume can be added where longer refill intervals are required.
• Flexible Production Use: Suitable for wean-to-finish systems and dedicated finishing barns.

• Feed Hopper: Stainless steel storage section for pellets, crumbles or meal feed.
• Double-Sided Feed Table: Adjustable feed-delivery area serving pigs from both sides.
• Feeding Space Dividers: Vertical partitions define individual eating positions and help reduce competition.
• Wet-Dry Trough: Lower feeding area allows dry feed to be combined with drinking water.
• Drinking Nipples: Integrated water outlets positioned at the feeding spaces.
• Feed Adjustment System: Mechanical mechanism regulates feed presentation and feed-table position.
• Structural End Panels: Reinforce the feeder body and provide mounting locations.
• Optional Hopper Extension: Increases feed storage capacity according to project requirements.

Dry feed is supplied to the hopper manually or through a compatible automatic dry-feed delivery system. Feed moves downward to the adjustable feed table, where pigs can access it from individual feeding positions.

Integrated drinking nipples allow pigs to add water directly at the feeding area. This provides the choice between dry and wet feed intake without requiring separate wet-feed preparation equipment.

The double-sided arrangement allows pigs to feed simultaneously from both sides, while vertical dividers help organize access and reduce interference between neighboring animals.

• Commercial finishing pig houses
• Wean-to-finish production barns
• Grower and finishing pig units
• Large-group pig housing
• Adjacent-pen shared feeder layouts
• Automatic dry-feed delivery projects
• Slatted-floor commercial pig houses
• Prefabricated steel structure pig houses
• Pig farm renovation and feeding-system upgrade projects

• Number of feeding spaces
• Wean-to-finish or finishing configuration
• Welded or mechanically assembled structure
• Hopper extension and feed storage capacity
• Feed-table adjustment range
• Drinking nipple and waterline configuration
• Automatic feed-line connection
• Floor-mounted or pen-partition installation
• Mounting brackets according to floor and pen structure
• Complete configuration according to project requirements

Installation:

• Confirm feeder size, feeding-space quantity, pen layout and access from both sides.
• Position the feeder on a stable floor or within the pen partition according to the approved barn layout.
• Secure all mounting points using suitable corrosion-resistant brackets and fasteners.
• Connect the drinking line and verify appropriate water pressure and nipple operation.
• Connect the hopper to the automatic dry-feed system where required.
• Adjust the feed table and initial feed delivery according to pig size and ration characteristics.
• Check feeder stability, feed flow and water delivery before introducing pigs.

Maintenance:

• Remove accumulated wet or stale feed from feeding areas regularly.
• Inspect drinking nipples and waterlines for leakage or blockage.
• Adjust the feed table as pigs grow or ration characteristics change.
• Inspect dividers, adjustment components, mounting points and structural joints.
• Wash and disinfect the feeder between production cycles.
• Check hopper extensions and automatic feed connections during scheduled maintenance.

Q1: What is a double-sided DryWet pig feeder?

It is a feeder that provides multiple feeding positions on both sides and combines dry-feed delivery with integrated drinking nipples, allowing pigs to consume feed dry or wet.

Q2: How many feeding spaces are available?

Reference configurations provide 2 to 6 feeding positions on each side, giving a total of 4 to 12 feeding places.

Q3: Is the feeder suitable for wean-to-finish production?

Yes. Compatible configurations can be used from approximately 6 kg through the final finishing stage.

Q4: Can the feeder be used only for finishing pigs?

Yes. Dedicated finishing configurations are also available according to farm requirements.

Q5: Can the feed table be adjusted?

Yes. The feed table can be adjusted to match pig size and feeding requirements.

Q6: Can additional feed storage be added?

Yes. An additional hopper extension can increase storage capacity where required.

Q7: Can the feeder connect to an automatic feeding system?

Yes. Dry feed can be supplied manually or through a compatible automatic feed-delivery system.

Q8: What information is required for a quotation?

Please provide the pig weight range, pigs per pen, pen dimensions, required feeding-space quantity, floor type, automatic feed-line requirements, water supply conditions and project location.
