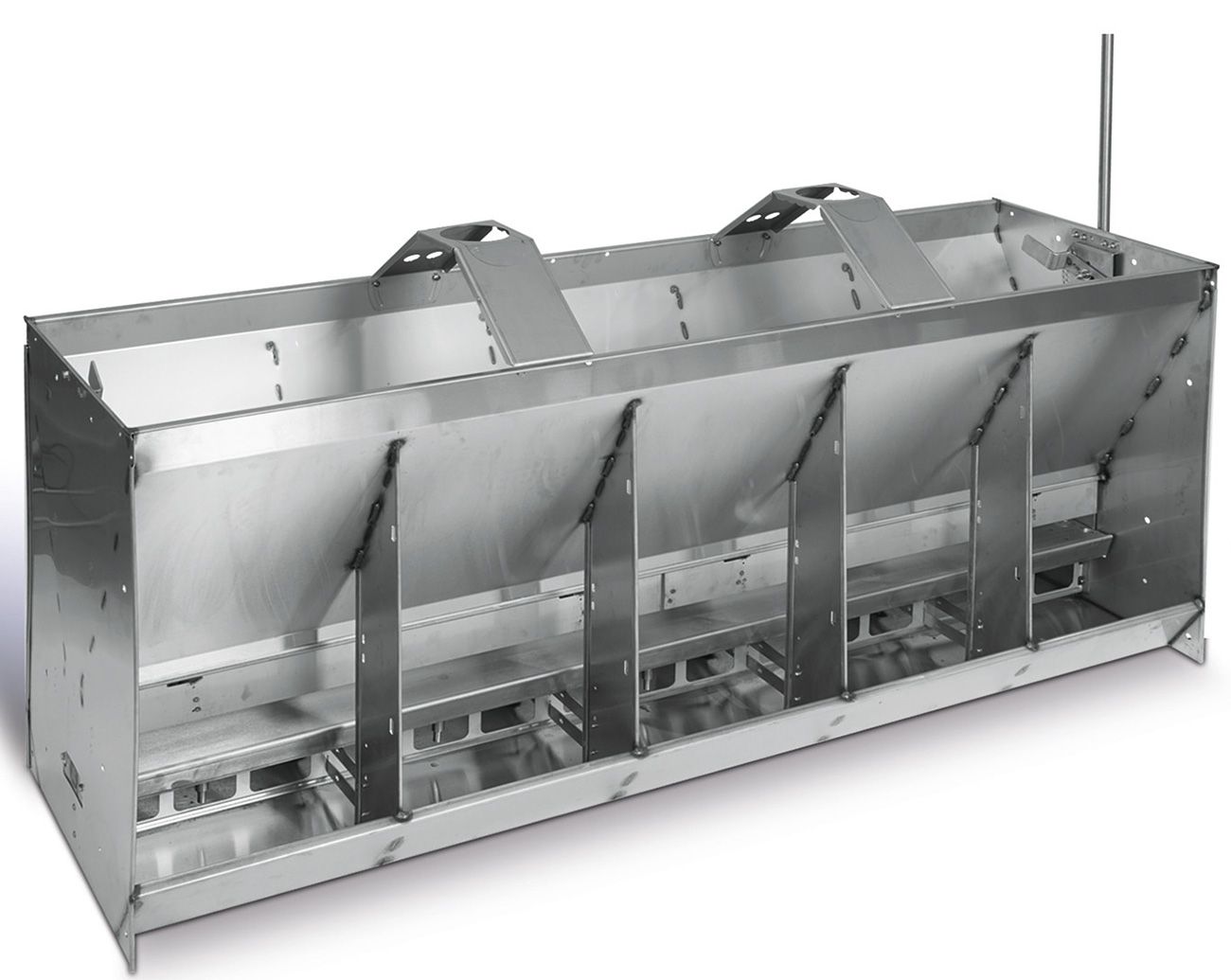

Stainless Steel Wet-Dry Pig Feeder

• 304 Stainless Steel: Corrosion-resistant construction for demanding pig-house environments.
• Wet-Dry Feeding: Feed and water are available from the same trough for flexible intake.
• Adjustable Feed Flow: Feed-gate settings help control delivery and reduce unnecessary feed waste.
• Integrated Drinking Valves: Water nipples or pressure valves supply water directly into the trough.
• Multiple Feeding Spaces: Dividers organize pig access and reduce interference during feeding.
• Hygienic Trough Design: Smooth stainless surfaces and closed edges simplify cleaning.
• Reinforced Trough Edge: Improves durability in high-contact areas.
• Automatic Feeding Compatible: Can be connected to feed drop pipes, augers or chain feeding systems.
• Commercial Farm Application: Suitable for weaners, growers and finishing pigs.

• Stainless Steel Hopper: Stores dry feed before controlled discharge into the trough.
• Feed Adjustment Mechanism: Regulates the feed-gate opening according to management requirements.
• Feed Shelf or Outlet: Distributes feed along the accessible feeding area.
• Wet-Dry Trough: Allows pigs to consume dry feed or combine feed and water.
• Feeding Space Dividers: Separate individual eating positions.
• Water Line: Supplies clean drinking water to the integrated valves.
• Pressure or Nipple Valves: Allow pigs to activate water supply as required.
• Mounting Brackets: Secure the feeder to pen partitions, walls or floor structures.
• Feed Drop Pipe Holder: Connects the feeder to automatic dry-feed delivery systems.

• Nursery pig houses
• Weaner pig pens
• Wean-to-finish barns
• Grower pig housing
• Finishing pig barns
• Commercial integrated pig farms
• Automatic dry-feeding systems
• New steel-structure pig houses
• Existing feeding-system renovation projects

• Number of feeding spaces
• Feeder width and hopper height
• Weaner or finisher configuration
• Single-sided or double-sided installation
• Hopper capacity
• Feed-flow adjustment system
• Water nipple or pressure-valve configuration
• Water-line arrangement
• Feed drop-pipe diameter
• Automatic feeding-line connection
• Pen-partition mounting
• Floor-mounted installation
• Optional hopper lid and accessories

• Confirm feeder position, pen layout and feeding spaces before installation.
• Secure the feeder to the pen partition, wall or floor using suitable mounting brackets.
• Connect the feed drop pipe or automatic feed-delivery line.
• Connect the water supply and check all nipples, pressure valves and pipe fittings for leakage.
• Set the initial feed-gate opening according to pig size and feed characteristics.
• Check feeder stability, trough access and water flow before introducing pigs.

• Remove stale or compacted feed from the trough and hopper regularly.
• Wash and disinfect stainless steel surfaces between production batches.
• Inspect feed-adjustment mechanisms for free movement.
• Check nipples and water valves for blockage or leakage.
• Inspect feeding-space dividers, mounting brackets and welds for damage.
• Adjust feed flow as pigs grow to maintain efficient feed availability.

Q: What is a wet-dry pig feeder?
A: A wet-dry feeder supplies dry feed and drinking water in the same feeding station, allowing pigs to consume dry feed or mix it with water directly in the trough.

Q: Which pigs can use this feeder?
A: Different models are suitable for weaners, growers, wean-to-finish production and finishing pigs.

Q: What material is used for the feeder?
A: The main feeding structure can be manufactured from corrosion-resistant 304 stainless steel.

Q: Can the feed amount be adjusted?
A: Yes. The feed-gate opening can be adjusted according to pig size, feed form and required feed-flow rate.

Q: How is water supplied?
A: Drinking water is supplied through integrated nipple or pressure valves positioned in the trough area.

Q: Can the feeder connect to an automatic feeding line?
A: Yes. It can be integrated with compatible feed drop pipes, auger systems or chain feeding systems.

Q: Are different feeder sizes available?
A: Yes. Multiple feeding-space, hopper and dimensional configurations are available according to project requirements.

Q: What information is required for quotation?
A: Recommended information includes pig weight range, pigs per pen, number of pens, feeding system, required feeding spaces, installation method, water pressure and project quantity.
