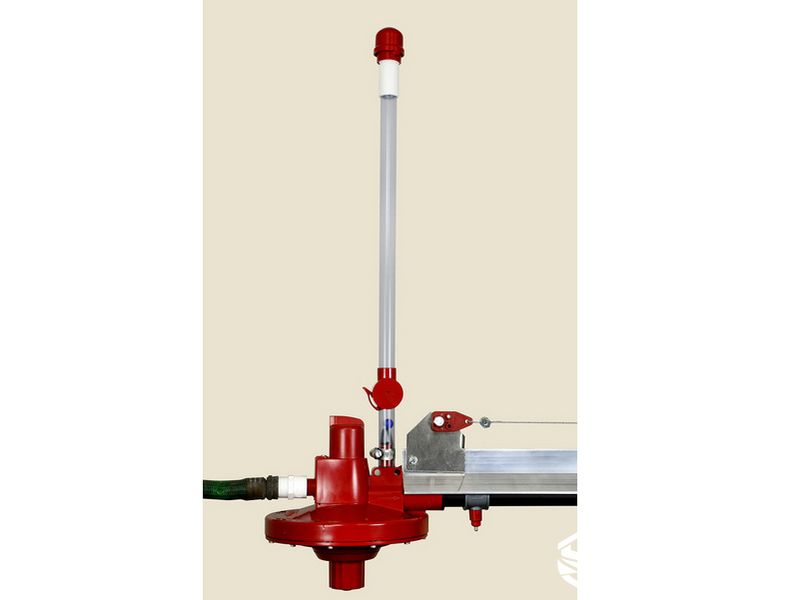

Water Pressure Indicator for Poultry Drinking Lines

The Water Pressure Indicator for Drinking Lines is a visual monitoring component used with poultry nipple drinking systems. It displays the internal drinking-line pressure as a visible water column, allowing farm personnel to check operating conditions quickly without electronic measuring equipment.

Installed at the line head, line end or as part of a compatible pressure regulator assembly, the transparent tube and internal float provide an immediate visual reference for water pressure. This helps operators maintain suitable drinking conditions for chicks, broilers, breeders, pullets and other poultry throughout the production cycle.

• Clear Visual Pressure Reading: transparent standpipe provides an immediate indication of the water column inside the poultry drinking line.
• Colored Float Indicator: compatible configurations use a visible float to make pressure monitoring easier from normal working distance.
• No Electrical Power Required: mechanical water-column indication operates without sensors, batteries or electrical wiring.
• Supports Correct Nipple Pressure: helps operators verify that water pressure is appropriate for bird age, body size and drinking demand.
• Fast Troubleshooting: abnormal water-column height can help identify pressure-setting, supply, blockage or flushing issues.
• Compatible with Pressure Regulators: suitable for integration with manual and automatic poultry drinking-line regulator systems.
• Simple Maintenance: transparent tubing and accessible fittings simplify visual inspection and cleaning.
• Commercial Poultry Application: suitable for large-scale livestock buildings and steel structure poultry houses.

• Transparent pressure indicator tube
• Colored float or indicator ball
• Upper breather cap
• Lower tube connector
• Water pressure connection fitting
• Mounting support or retaining clip
• Flexible connection tube, depending on configuration
• Seals and connection accessories

The pressure indicator is hydraulically connected to the nipple drinking line. Internal line pressure pushes water upward inside the transparent standpipe, creating a water column proportional to the operating pressure.

A colored float inside the tube rises with the water column and provides a clear visual reference. When the drinking-line pressure increases, the indicated water level rises; when pressure decreases, the water column falls.

This simple principle allows operators to check pressure conditions directly while adjusting the drinking-line regulator or inspecting the system during normal operation and flushing.

• Commercial broiler houses
• Broiler breeder houses
• Pullet rearing houses
• Layer rearing systems
• Turkey drinking systems
• Duck and waterfowl nipple drinking lines
• Environmentally controlled poultry buildings
• Steel structure livestock houses
• New poultry farm drinking-system projects
• Existing nipple-line inspection and retrofit projects

• Indicator tube length
• Float color and visibility
• Tube connection diameter
• Mounting bracket configuration
• Line-head or line-end installation
• Pressure regulator compatibility
• Breather-cap configuration
• Replacement tube and float kits available upon request
• Designed according to local climate and farm conditions

Install the pressure indicator vertically at the designated pressure-monitoring point on the nipple drinking line or pressure regulator assembly. A vertical orientation is important for accurate and easily readable water-column indication.

Connect the lower fitting securely to the drinking-line pressure outlet and ensure that the breather cap remains unobstructed. After filling the system, confirm that the float moves freely and responds to changes in pressure.

During commissioning, adjust the drinking-line pressure regulator while observing the indicator. The required water-column height should be selected according to bird age, drinking-system design and farm management requirements.

Routine maintenance should include cleaning the transparent tube, inspecting the float, checking fittings for leakage and removing mineral or biofilm deposits. Damaged or cloudy tubes should be replaced when they no longer provide a clear visual reading.

Q: What does a poultry water pressure indicator measure?

A: It provides a visual indication of the internal pressure in the nipple drinking line by displaying the height of the water column.

Q: Why is a float used inside the transparent tube?

A: The colored float makes the water level easier to see and allows farm staff to monitor pressure quickly.

Q: Does the pressure indicator require electricity?

A: No. Standard water-column indicators operate mechanically and require no electrical power.

Q: Can the indicator be installed at the end of a drinking line?

A: Yes. Depending on the system design, sight tubes and water-column indicators can be used at the line head, line end or as part of a regulator or breather assembly.

Q: Can it be used with automatic flushing systems?

A: Yes. Compatible indicators can be integrated with drinking systems using manual or automatic flushing regulators and line-end assemblies.

Q: What should be checked if the float does not move?

A: Check for blocked tubing, mineral deposits, trapped contamination, incorrect connections or insufficient drinking-line pressure.

Q: Can different indicator sizes be supplied?

A: Yes. Tube length, connections and mounting arrangement can be configured according to drinking-system and project requirements.
