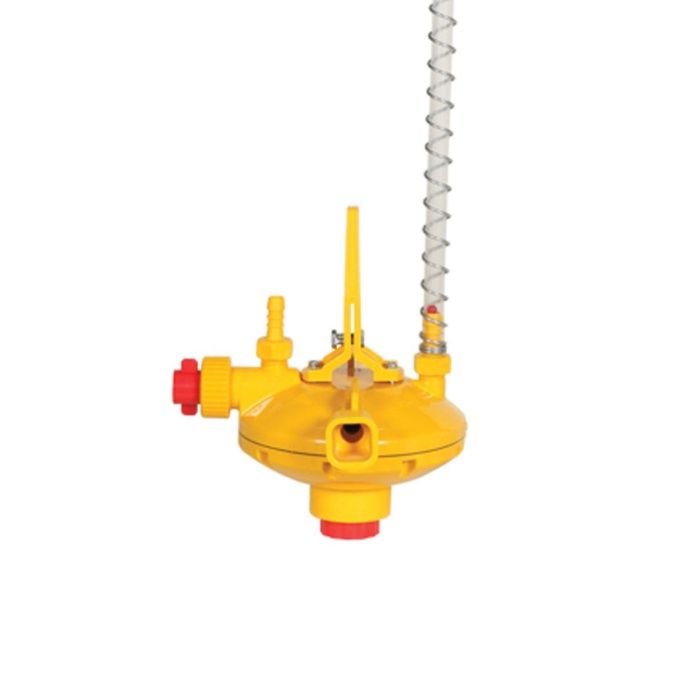

Pressure Regulator with Water Level Indicator

The Pressure Regulator with Water Level Indicator is a key control component for automatic poultry nipple drinking systems. Installed at the beginning or center of a drinking line, it reduces incoming water pressure to the low and stable operating pressure required by poultry nipple drinkers.

The integrated transparent indicator tube provides a direct visual reference of the water column inside the drinking line. Farm operators can therefore monitor and adjust line pressure according to bird age, water consumption, climate and management conditions without relying solely on external measuring equipment.

The regulator can be integrated into broiler, layer, pullet, breeder and turkey drinking systems in commercial poultry houses and steel structure farm buildings. Manual flushing and other line-control configurations are available according to project requirements.

• Stable Pressure Regulation: Reduces incoming supply pressure to the controlled low-pressure level required by poultry nipple drinking lines.
• Visible Water Column: Transparent indicator tube allows operators to observe the relative water-column height directly.
• Convenient Adjustment: Water pressure can be adjusted according to bird age, drinking behavior and water demand.
• Uniform Water Delivery: Proper pressure management supports more consistent nipple performance along the drinking line.
• Reduced Leakage Risk: Correct line pressure helps limit excessive nipple dripping and wet litter.
• Flushing Function: Compatible configurations allow the regulator to switch from normal operation to high-flow line flushing.
• Clear Indicator Tube: Durable transparent tubing provides quick visual inspection during routine poultry-house management.
• Corrosion-Resistant Housing: Engineering plastic construction is suitable for humid and demanding livestock-house environments.
• Easy System Integration: Designed for connection with poultry nipple pipes, flexible water supply hoses and line-end assemblies.
• Multiple Installation Configurations: Start-line, side-supply and center-supply arrangements can be selected according to system design.
• Commercial Farm Application: Suitable for large broiler, layer, breeder, pullet and turkey production facilities.

• Pressure regulator housing
• Internal diaphragm or pressure-control assembly
• Water inlet connection
• Drinking-line outlet connection
• Pressure adjustment mechanism
• Transparent water-level indicator tube
• Indicator tube connector
• Protective spring support for indicator tube
• Operating / flushing selector
• Sealing rings and gaskets
• Mounting and pipe connection fittings
• Optional shut-off valve
• Optional automatic flushing actuator

Water from the farm supply system enters the pressure regulator before reaching the nipple drinking line. The internal regulating mechanism reduces and stabilizes the incoming pressure so that the nipple pipe operates at the required low-pressure condition.

The transparent indicator tube is hydraulically connected to the drinking line. The height of the water column inside the tube provides a simple visual indication of the pressure condition in the line. Raising or lowering the regulator setting changes the water-column height and consequently changes the pressure available at the nipples.

During normal production, lower settings can be used for young birds while pressure can be progressively adjusted as bird size and water demand increase. Exact settings depend on nipple type, line length, house conditions and the drinking-management program.

On regulators equipped with a flushing function, the normal pressure-control mode can be bypassed or changed to provide increased flow through the drinking pipe during line cleaning.

Line-length values refer to the referenced professional pressure-regulator configuration. Final pressure range, connection size, flow capacity and line length should be confirmed according to nipple type, water demand and poultry-house design.

• Broiler nipple drinking lines
• Layer drinking systems
• Pullet rearing drinking lines
• Broiler breeder houses
• Turkey drinking systems
• Floor-reared poultry houses
• Aviary poultry systems
• Environmentally controlled chicken houses
• Steel structure poultry buildings
• Commercial poultry farm construction projects
• Existing drinking-system modernization projects

SHEWUYOU can configure poultry waterline pressure-control equipment according to drinking-line length, nipple specification, poultry type and farm water conditions.

• Start-line or center-line regulator configuration
• Water inlet and outlet connection size
• Pressure adjustment range
• Indicator tube length
• Manual flushing configuration
• Automatic flushing configuration
• Flexible inlet hose
• Water filter
• Water meter
• Medication dosing equipment
• Drinking-line end set
• Gradient regulator
• Complete poultry waterline package
• OEM / ODM supply available upon request

Install the pressure regulator at the designated supply point of the nipple drinking line and keep the indicator tube in a clearly visible, upright position. The regulator should be securely supported and protected from unnecessary mechanical stress.

• Flush the incoming water supply before connecting the regulator.
• Install suitable water filtration upstream of the drinking line.
• Confirm the direction of water flow before installation.
• Connect the inlet and drinking-line outlet securely to prevent leakage.
• Keep the transparent indicator tube vertical for accurate visual monitoring.
• Begin with the pressure setting recommended for the selected nipple and bird age.
• Increase water-column height progressively as bird water demand increases.
• Inspect the indicator tube regularly for contamination or mineral deposits.
• Check regulator seals and connections for leakage.
• Operate the flushing function according to the farm water-hygiene program.
• Clean the regulator and indicator components between production cycles.

Q1: What does the water level indicator show?

The transparent tube shows the water-column height, providing a convenient visual indication of pressure inside the poultry drinking line.

Q2: Why is pressure regulation important for nipple drinkers?

Correct pressure helps nipples deliver sufficient water while reducing excessive dripping, water waste and wet litter.

Q3: Should water pressure change as birds grow?

Yes. Water demand generally increases with bird age and body weight, so pressure settings should be adjusted according to the nipple specification and flock management program.

Q4: Can the regulator be used for line flushing?

Yes. Compatible regulators include a manual flushing mode, while automatic flushing configurations are also available.

Q5: Can it be installed in the middle of a long drinking line?

Yes. Center-supply configurations are available for longer poultry drinking lines when required by the system design.

Q6: Can it be used for broilers and layers?

Yes. The regulator can be configured for nipple drinking systems used for broilers, layers, pullets, breeders and other poultry.

Q7: Is a water filter recommended?

Yes. Upstream filtration helps prevent sediment and foreign particles from entering regulators and nipple valves.

Q8: Can SHEWUYOU supply the complete drinking-line control system?

Yes. Pressure regulators, nipple pipes, filters, end sets, flushing components, suspension equipment and water connection units can be configured according to project requirements.
