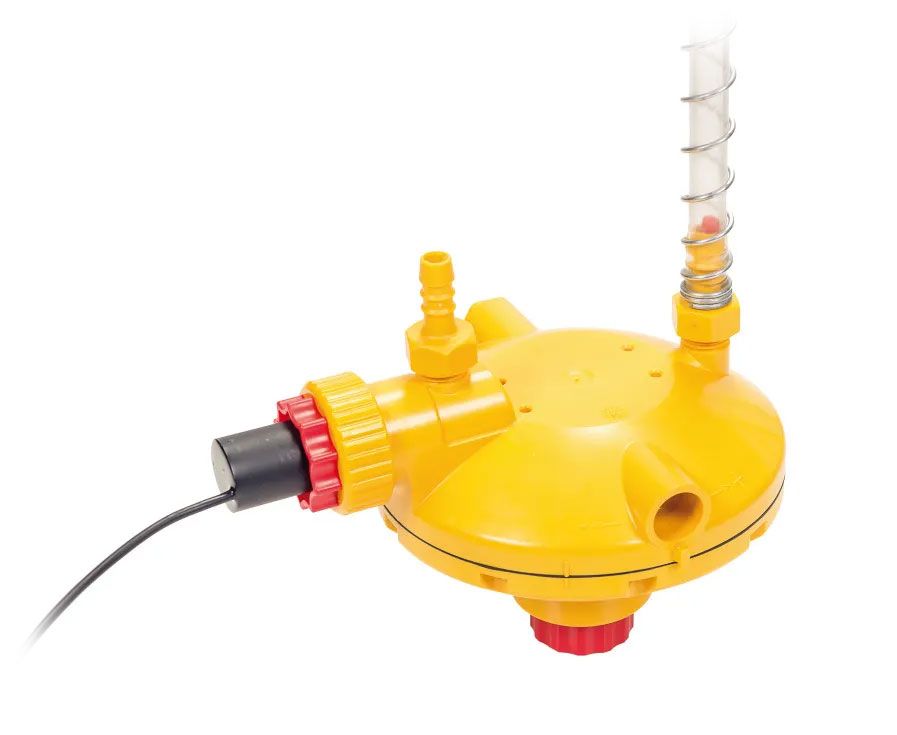

Automatic Drinking Line Flushing Unit

The Automatic Drinking Line Flushing Unit is designed for commercial poultry nipple drinking systems requiring reliable water hygiene, stable pressure control and efficient routine flushing. It helps automate the cleaning of drinking lines and reduces repetitive manual operation.

During a flushing cycle, the unit allows a higher water flow through the drinking pipe to help remove stagnant water, loose deposits and accumulated residues. It can be integrated with pressure regulators, drinking-line controllers, filters, medicators and end-of-line flushing outlets according to project requirements.

• Automatic flushing operation: Supports programmed drinking-line flushing with reduced manual intervention.
• Improved water hygiene: Helps replace stagnant water and remove loose deposits from drinking pipes.
• Biofilm management: High-flow flushing helps remove deposits from the inner surfaces of nipple drinking lines.
• Medication residue reduction: Suitable for flushing drinking systems after water medication or supplementation according to farm procedures.
• Pressure regulator bypass: Compatible configurations can temporarily bypass the pressure regulator during flushing.
• Automatic control: Flushing cycles can be scheduled through a dedicated controller or farm-management system.
• Line-end discharge: Designed to work with flushing outlets or drain connections at the end of the drinking line.
• Project customization: Control voltage, connection size, line quantity and system configuration can be adapted to project requirements.

During normal operation, the pressure regulator reduces the incoming water pressure to the level required by the poultry nipple drinking line.

When a flushing cycle is activated, the solenoid valve or actuator opens the bypass path. Water can then flow through the drinking line at a higher pressure and velocity, helping remove biofilm, loose deposits and residues from the inner pipe surfaces.

The flushed water leaves through an outlet installed at the end of the nipple line. Automatic controllers can operate the drinking lines sequentially so that sufficient system pressure is maintained during the flushing process.

• Commercial broiler houses
• Layer production houses
• Breeder poultry farms
• Pullet-rearing houses
• Turkey production houses
• Cage and aviary drinking systems
• Floor-rearing nipple drinking systems
• Steel structure poultry houses
• Large commercial livestock water-management projects

• Line quantity: Customizable according to poultry house layout.
• Control system: Stand-alone or centralized automatic control available upon request.
• Valve configuration: Selected according to project requirements.
• Connection size: Customizable to match the drinking-line system.
• Drain configuration: Individual or centralized flushing discharge available.
• Water-treatment integration: Can be combined with filters, water meters, medicators and pressure-control equipment.
• Farm environment: Designed according to local climate and farm conditions.

Installation

1. Confirm the incoming water pressure, drinking-line length, pipe diameter and number of lines.
2. Install the flushing regulator or bypass unit at the inlet of the drinking line.
3. Install a suitable flushing outlet at the downstream end of each nipple drinking line.
4. Connect the flushing outlet to the farm drainage system.
5. Connect the solenoid valve or actuator to the automatic controller.
6. Set flushing intervals and duration according to drinking-line length and farm management requirements.

Maintenance

• Inspect regulators, solenoid valves and fittings regularly.
• Keep upstream water filters clean.
• Check the flushing outlet for blockage.
• Verify that the automatic valve opens and closes correctly.
• Flush drinking lines after medication according to farm procedures.
• Protect exposed water equipment from freezing where required.

Automatic flushing systems are suitable for commercial poultry projects with multiple nipple drinking lines. SHEWUYOU can configure flushing zones, control points, water connections and drainage arrangements according to poultry-house drawings, farm water supply conditions and project requirements.

Q1: What is the purpose of an automatic drinking line flushing unit?

It automates the flushing of poultry nipple drinking lines to help replace stagnant water and remove deposits from the system.

Q2: Can the system flush drinking lines automatically?

Yes. A compatible controller can schedule flushing cycles automatically according to farm requirements.

Q3: Can it be used after medication?

Yes. Drinking-line flushing is commonly used after medication or supplementation to help remove residual treated water.

Q4: Does the system require a line-end drain?

Yes. A suitable flushing outlet or drainage arrangement is normally required at the downstream end of the drinking line.

Q5: Can multiple drinking lines be controlled?

Yes. Multi-line and sequential flushing configurations can be supplied according to project requirements.

Q6: Can it be installed in an existing poultry house?

Yes, provided that the existing drinking lines, pressure regulators, water supply and drainage arrangement are compatible.
