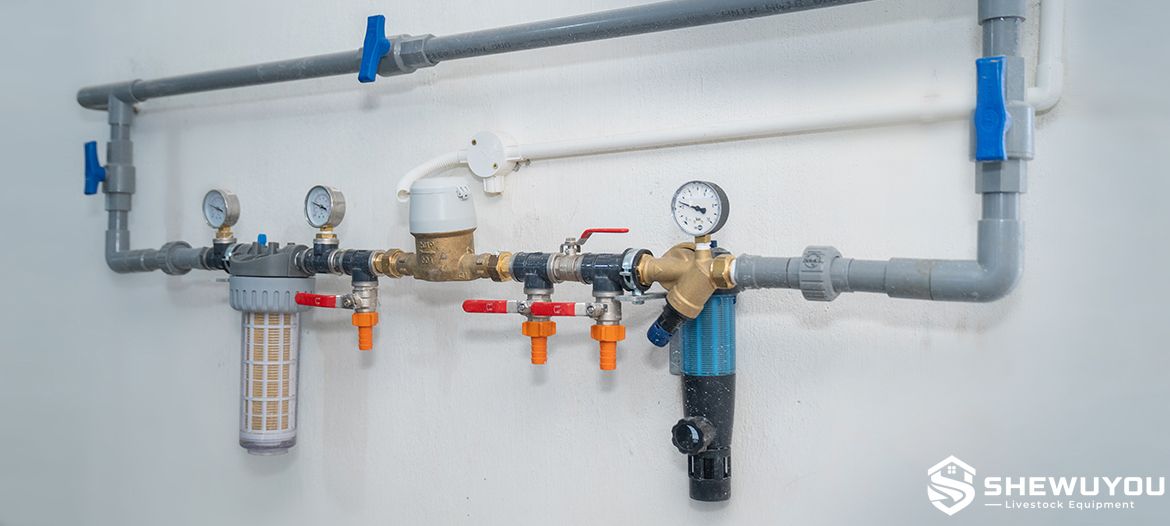

Poultry Main Water Connection Unit

The Poultry Main Water Connection Unit is the central water-management assembly installed between the primary farm water supply and the poultry-house drinking line. It provides a controlled interface for filtration, water consumption monitoring, pressure reduction and optional medication dosing before water enters the nipple drinking system.

A modular configuration allows individual components to be selected according to water quality, house size, drinking-line design and farm-management requirements. Typical modules include a filter with pressure gauge, shut-off valves, water meter, medication bypass and pressure reducer.

The compact assembly is suitable for broiler, layer, breeder and pullet houses as well as integrated steel structure poultry projects. Screw-connected components simplify installation, maintenance and future system expansion.

• Central Water Management: Integrates the main treatment and control functions required before water enters poultry drinking lines.
• Modular Configuration: Filter, water meter, medicator bypass, pressure reducer and valve modules can be combined according to project requirements.
• Compact Design: Suitable for installation in poultry-house service rooms with limited available space.
• Pressure Control: Pressure reducer protects downstream drinking equipment from excessive supply pressure.
• Water Filtration: Upstream filtration helps reduce particles that may block nipple drinkers or regulators.
• Water Consumption Monitoring: Mechanical or electronic water meters can be incorporated for daily consumption tracking.
• Medication Bypass: A three-valve bypass can be integrated for connection of a proportional medicator.
• Service Isolation: Ball valves allow individual sections to be isolated during maintenance.
• Corrosion-Resistant Connections: PVC connecting elements are suitable for humid livestock-house environments.
• Easy Extension: Screw-connected modules simplify future modification or system expansion.
• Commercial Farm Integration: Suitable for automatic nipple drinkers, flushing systems and centralized poultry-house water management.

• Main water inlet connection
• Water filter housing
• Filter cartridge or screen
• Pressure gauge
• Ball shut-off valves
• Water meter
• Optional electronic water meter
• Medication bypass line
• Three-way valve arrangement for medicator connection
• Optional proportional medicator
• Pressure reducer
• Secondary filter
• Drain or separate water draw-off valve
• PVC pipe and threaded connectors
• Mounting bracket or support frame
• House water-line outlet

Water from the farm's primary supply enters the connection unit and first passes through the filtration section. Suspended particles and other contaminants are reduced before water continues toward the drinking system.

The water meter records consumption and can provide valuable operating data for flock management. Where an electronic meter is selected, the consumption signal can be integrated with a compatible farm controller.

When medication, vitamins or water-treatment products are required, water can be routed through the bypass and proportional dosing device. The bypass valves allow the dosing section to be isolated when it is not required.

Before entering the house drinking lines, water passes through the pressure-reduction section. This lowers the incoming supply pressure to a controlled level suitable for downstream poultry drinking equipment.

Final nominal diameter, filter capacity, meter range, dosing configuration and pressure setting should be selected according to farm water quality, daily water demand, drinking-line design and project requirements.

• Commercial broiler houses
• Layer poultry farms
• Pullet rearing houses
• Broiler breeder facilities
• Layer breeder houses
• Nipple drinking systems
• Automatic flushing systems
• Environmentally controlled poultry houses
• Steel structure poultry buildings
• Poultry farm expansion projects
• Integrated livestock water-management systems

SHEWUYOU can configure the main water connection unit according to poultry-house capacity, water quality, water pressure and drinking-system requirements.

• Nominal pipe diameter
• Filter type and capacity
• Pressure gauge range
• Mechanical or electronic water meter
• Pressure reducer specification
• Medication bypass arrangement
• Proportional medicator
• Back-flush filter option
• Ball-valve configuration
• Drain and water draw-off points
• Mounting frame or wall bracket
• Controller connection
• Complete poultry water-supply package

Install the water connection unit in an accessible service area between the main water source and the poultry-house distribution line. The assembly should be mounted securely and arranged so filters, valves and meters remain easy to inspect and service.

• Confirm the required flow direction before installation.
• Flush the incoming water pipe before connecting the unit.
• Install the assembly on a stable wall bracket or support frame.
• Keep pressure gauges and water meters clearly visible.
• Check filter cartridges or screens regularly and clean them according to water quality.
• Verify pressure-reducer settings before commissioning the drinking lines.
• Inspect ball valves and threaded joints for leakage.
• Calibrate or verify electronic water-meter signals where connected to a controller.
• Flush medication bypass lines after dosing programs.
• Inspect medicator hoses, seals and injection fittings periodically.
• Protect the assembly from freezing conditions where applicable.

Q1: What is the purpose of a poultry main water connection unit?

It conditions and controls water before it enters the poultry-house drinking system by combining functions such as filtration, pressure regulation, water metering and optional medication dosing.

Q2: Why is filtration important?

Filtration helps reduce suspended particles that can restrict nipple drinkers, regulators and other drinking-system components.

Q3: Can water consumption be monitored electronically?

Yes. A compatible electronic water meter can transmit consumption data to a poultry-house controller.

Q4: Can medication be added through the unit?

Yes. A bypass with three ball valves can be incorporated for connection of a proportional medicator.

Q5: Is the unit suitable for high incoming water pressure?

A pressure reducer can be included to protect downstream drinking equipment from excessive supply pressure.

Q6: Can the unit be installed in a small service room?

Yes. Modular professional water connection units are designed for compact installation and can be arranged according to available space.

Q7: Can individual modules be replaced or expanded later?

Yes. Screw-connected modular construction simplifies servicing and future extension.

Q8: Can SHEWUYOU supply the complete downstream drinking system?

Yes. Main water units, pressure regulators, nipple drinking lines, flushing equipment, filters, meters and related accessories can be configured as a complete poultry water-management package.
