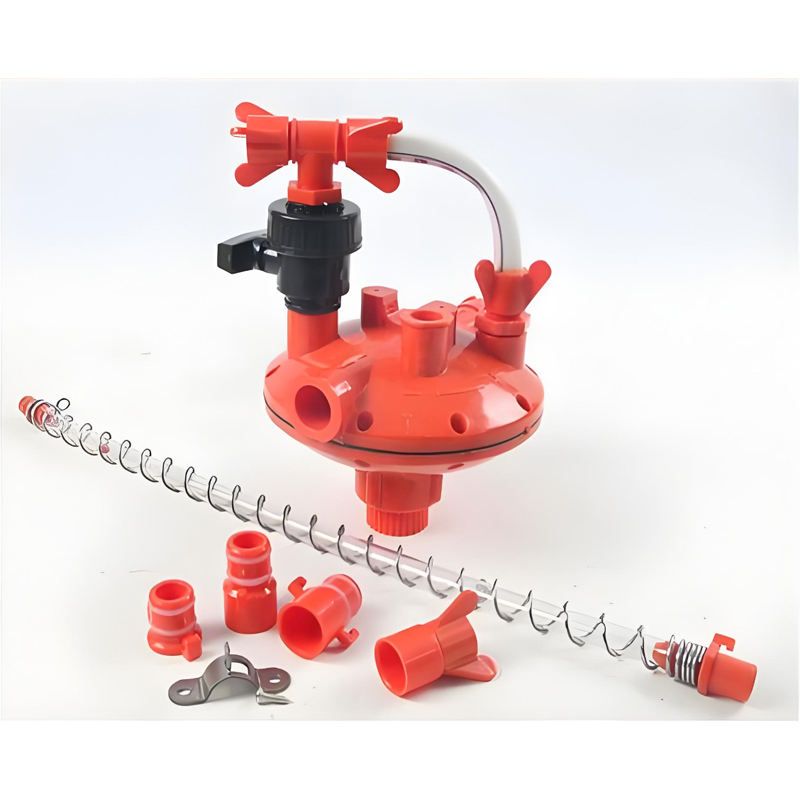

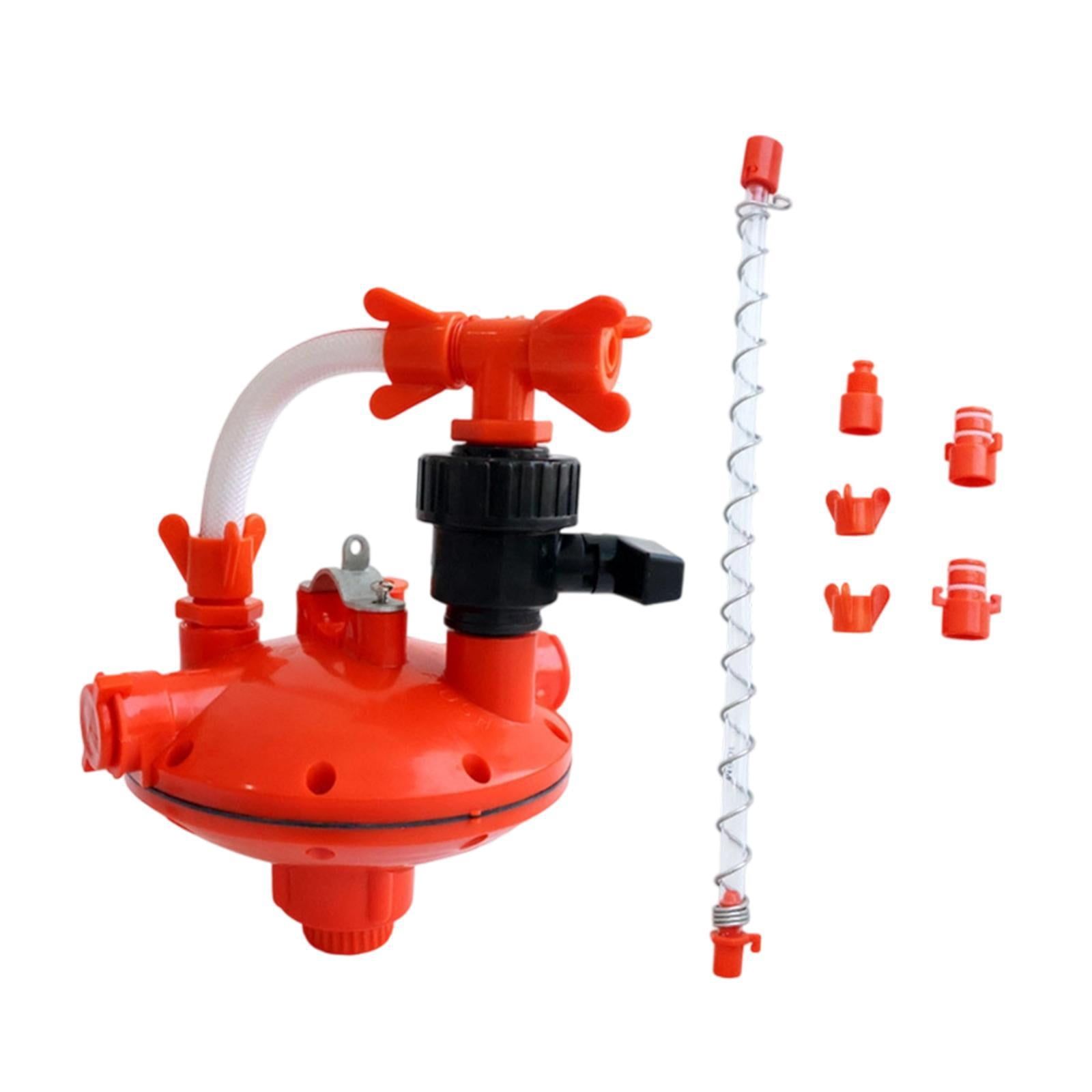

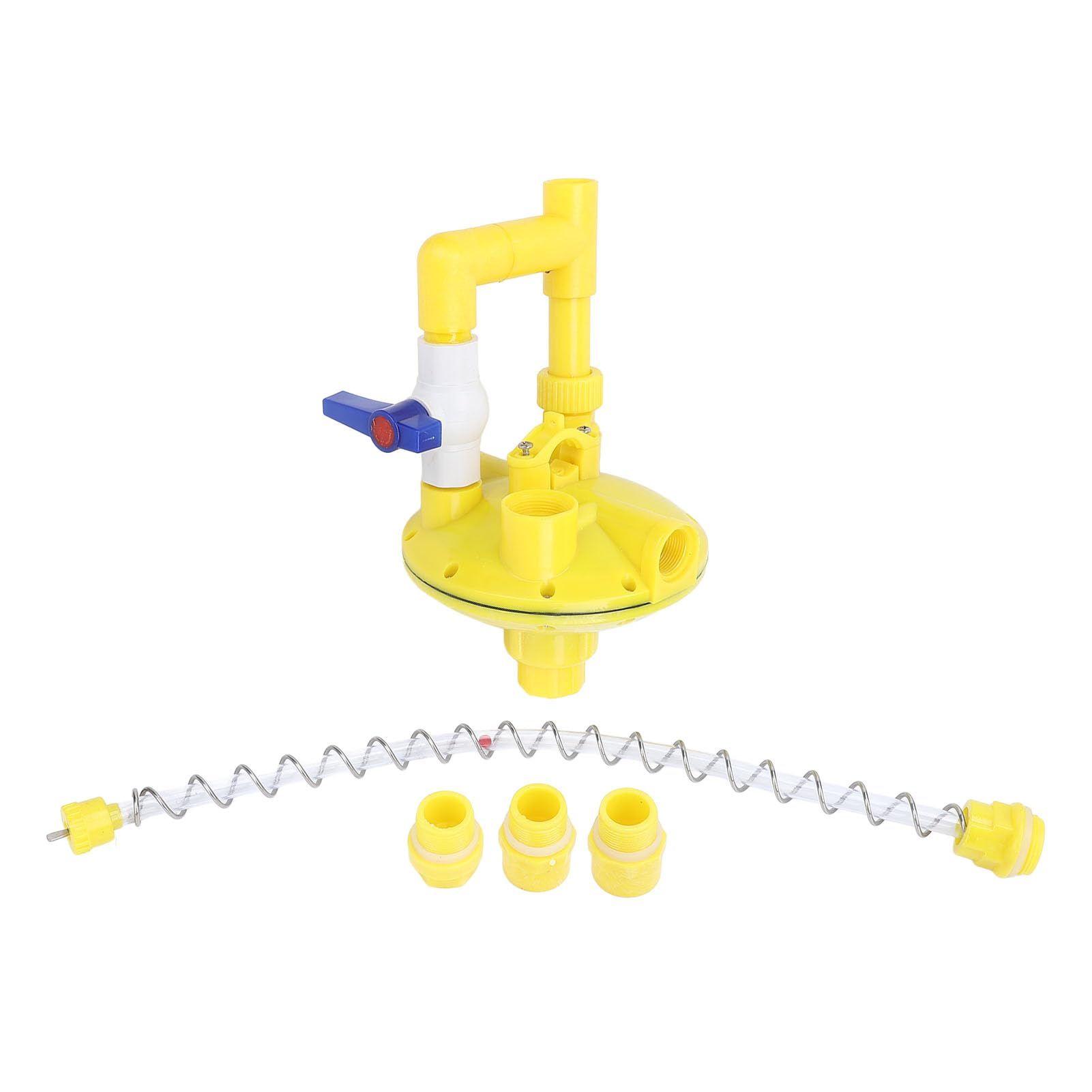

Pressure Regulator Adapter Kit

The Pressure Regulator Adapter Kit is a connection accessory package designed to integrate poultry drinking-water pressure regulators with different nipple drinking pipe profiles and diameters. It provides a practical solution for new poultry-house installations, regulator replacement projects and drinking-line retrofit work.

Because commercial poultry drinking systems use different round and square water pipes, a regulator cannot always be connected directly to the existing line. Adapter sleeves, reducing bushings, couplers and mounting components provide the dimensional transition required between the regulator outlet and the drinking pipe.

The kit is suitable for broiler, layer, pullet and breeder drinking systems and can be configured for different pipe dimensions, regulator outlets and support profiles according to project requirements.

• Multi-Line Compatibility: Allows one regulator platform to connect to several common poultry drinking pipe dimensions.
• Round and Square Pipe Options: Adapter configurations are available for both round and square nipple drinking lines.
• Retrofit Friendly: Useful when replacing existing regulators without replacing the complete poultry waterline.
• Secure Connection: Properly sized sleeves, bushings and clamps help maintain stable mechanical alignment.
• Leak-Control Design: Compatible sealing surfaces and fittings help reduce leakage at regulator-to-pipe joints.
• Easy Installation: Simple push-fit, slip-fit or clamped connections reduce installation time.
• Replaceable Components: Individual adapters can be replaced separately if the drinking-line specification changes.
• Support Bracket Options: Mounting kits can be supplied for aluminum or non-round waterline support profiles.
• Corrosion-Resistant Materials: Engineering plastic and compatible metal hardware are suitable for humid poultry-house conditions.
• Project Customization: Adapter dimensions can be selected according to regulator outlet size and drinking-pipe profile.

• Regulator outlet adapter
• Round pipe adapter sleeve
• Square pipe adapter fitting
• PVC reducing bushing
• Transition coupling
• Sealing rings or gaskets
• Hose or pipe clamps
• Support bracket
• Fasteners
• Optional flexible standpipe connection
• Optional aluminum profile mounting kit

The adapter kit creates a mechanical and hydraulic transition between the outlet of the poultry pressure regulator and the existing nipple drinking pipe. The regulator outlet is connected to an adapter whose internal or external dimensions match the downstream waterline.

For square drinking pipes, a shaped adapter provides the correct transition while maintaining proper pipe orientation. For round pipes, reducing bushings or sleeves convert the regulator outlet diameter to the required drinking-line diameter.

Once assembled, the adapter maintains an open water passage so regulated low-pressure water can flow from the regulator into the nipple line with minimal restriction.

Reference pipe dimensions are based on commonly available regulator adapter configurations. Final adapter size should be confirmed against the actual regulator outlet, waterline profile and pipe dimensions before ordering.

• Broiler nipple drinking lines
• Layer drinking systems
• Pullet rearing waterlines
• Broiler breeder houses
• Turkey drinking systems
• Pressure regulator replacement projects
• Poultry waterline retrofit projects
• New poultry farm construction
• Steel structure poultry buildings
• Commercial poultry equipment maintenance
• Drinking-system spare-parts inventories

SHEWUYOU can configure adapter kits according to the existing pressure regulator, drinking-pipe profile, pipe diameter and support structure.

• Round pipe adapter diameter
• Square pipe adapter dimensions
• Regulator outlet diameter
• PVC reducing bushing size
• Transition coupling type
• O-ring and gasket specification
• Pipe clamp specification
• Support bracket type
• Aluminum profile mounting kit
• Flexible standpipe connection
• Complete regulator installation kit
• Bulk spare-parts packaging

Adapter selection should be confirmed before installation by measuring the pressure regulator outlet and the actual drinking-pipe dimensions. Using an incorrect adapter can result in leakage, poor alignment or restricted water flow.

• Shut off and drain the poultry waterline before installation.
• Confirm regulator outlet dimensions and drinking-pipe profile.
• Select the correct round or square adapter.
• Inspect all O-rings, gaskets and sealing surfaces before assembly.
• Insert or connect the adapter fully according to its design.
• Install clamps or locking components securely without over-tightening plastic parts.
• Align the drinking pipe to avoid unnecessary stress on the regulator housing.
• Install the support bracket where required.
• Restore water pressure gradually and check all joints for leakage.
• Flush the drinking line after installation.
• Inspect adapters and seals during routine flock-turnaround maintenance.

Q1: What is a pressure regulator adapter kit used for?

It connects a poultry drinking-water pressure regulator to a nipple drinking line when the regulator outlet and water pipe have different dimensions or profiles.

Q2: Can one regulator be adapted to different waterline systems?

Yes. Different adapter fittings can allow the same regulator platform to connect to several commonly used round and square poultry drinking pipes.

Q3: Are adapters available for 22 mm square pipes?

Yes. Adapter fittings for 22 mm square poultry drinking pipes are commonly available in professional regulator systems.

Q4: Can the kit be used for regulator replacement projects?

Yes. Adapter kits are particularly useful when installing a new regulator onto an existing poultry drinking line.

Q5: Does the adapter affect water pressure?

A correctly sized adapter provides an open hydraulic connection and should not create significant restriction under normal poultry drinking-line conditions.

Q6: Are mounting brackets available?

Yes. Support bracket kits can be supplied for drinking systems using aluminum or other non-round support profiles.

Q7: How do I select the correct adapter?

Confirm the regulator outlet diameter, drinking-pipe outside dimensions and pipe profile before selecting the adapter.

Q8: Can SHEWUYOU customize adapter dimensions?

Yes. Adapter dimensions and installation hardware can be configured according to project requirements and the existing poultry drinking system.
