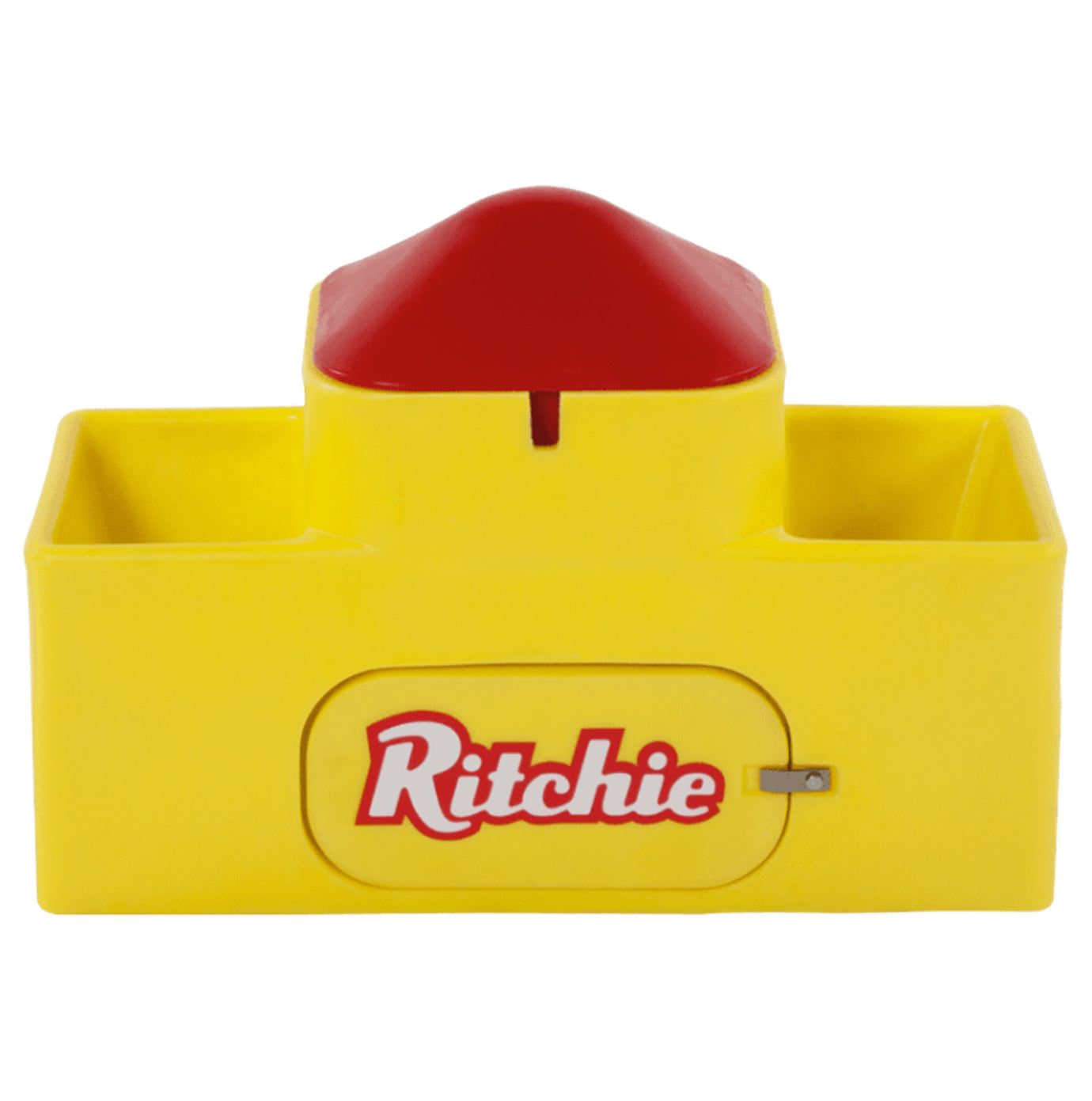

Fence-Line Double-Sided Sheep Water Trough

The Fence-Line Double-Sided Sheep Water Trough is an automatic livestock drinking system developed for goat-farming-equipment/" target="_blank" class="keylink">sheep, goats and other small ruminants. Its compact two-trough configuration allows animals to drink from opposite sides, making it particularly suitable for installation along a fence line or between adjacent livestock pens.

The low drinking height provides convenient access for sheep, while the insulated polyethylene body helps moderate water temperature during changing seasonal conditions. A float-controlled quick-refill valve automatically replenishes the trough as animals drink, reducing manual watering labor and maintaining a readily available fresh water supply.

For commercial sheep farms, steel structure livestock buildings and integrated farm construction projects, the waterer can be incorporated into pen partitions so that one centralized water supply serves animals on both sides. This arrangement can simplify water-line planning, improve space utilization and reduce the number of separate watering points required.

• Double-Sided Drinking Access: Two trough sections provide convenient access from opposite sides and are well suited to fence-line or shared-pen installations.
• Automatic Water Refill: A float-controlled valve replenishes water as livestock drink, reducing routine manual filling.
• Low Drinking Height: Designed specifically for convenient access by sheep, goats and other smaller livestock.
• Insulated Body: Polyurethane insulation enclosed within polyethylene components helps maintain a more stable water temperature during hot and cold weather.
• Rugged One-Piece Construction: Molded polyethylene body provides durability, corrosion resistance and long service life in demanding livestock environments.
• Domed Central Cover: The raised cover configuration helps discourage sheep and goats from standing or climbing on the waterer.
• Sloped Trough Surfaces: Drinking surfaces slope toward drain points to facilitate removal of sediment and debris during cleaning.
• Accessible Service Chamber: Side access and removable cover arrangements simplify inspection of the valve, water line and optional electrical components.
• Low Water Volume, Fast Refill: The compact reservoir combined with rapid replenishment helps maintain fresh water while limiting unnecessary standing water.
• Cold-Climate Options: Optional heating and water-line freeze protection can be specified according to local climate and project requirements.

The waterer is connected to a pressurized farm water supply. A mechanical float system monitors the water level inside the trough. When sheep drink and the water level falls, the float actuates the inlet valve, allowing fresh water to enter automatically. When the predetermined level is restored, the valve closes.

The two-sided structure allows one watering station to serve livestock from opposite sides of a fence or pen partition. This is especially useful in commercial livestock buildings where adjacent groups require independent pen separation but can share a centrally positioned drinking system.

The insulated body reduces heat transfer through the fountain walls. In freezing climates, an appropriate optional heating system and protected supply-line arrangement should be installed according to local minimum temperatures and farm conditions.

Reference dimensions, capacity and weight are based on the comparable WaterMatic 150S configuration. SHEWUYOU production specifications can be customized and should be confirmed according to the final project and purchase order.

• Commercial sheep farms and breeding facilities
• Sheep barns and steel structure livestock buildings
• Fence-line watering between adjacent livestock pens
• Lambing barns and ewe housing areas
• Goat farms and kidding facilities
• Small-ruminant feeding and holding areas
• Indoor livestock pens and outdoor paddocks
• Farm modernization and livestock housing projects
• Agricultural research and breeding facilities
• Livestock equipment distributor and dealer projects

For commercial livestock projects, product configuration can be coordinated with the overall sheep-house layout and farm water-supply system. Available customization may include:

• Overall dimensions according to project requirements
• Drinking height according to livestock size
• Water capacity and refill configuration
• Water inlet and plumbing arrangement
• Float valve specification
• Insulation configuration
• Cold-weather heating package
• Water-line freeze protection
• Body color available upon request
• Fence-line and pen-partition installation configuration
• OEM branding and identification
• Export packaging according to project requirements

The final watering system can be designed according to local climate, flock size, water pressure, livestock building layout and farm conditions.

Foundation: Install the water trough on a level and structurally adequate concrete base. Secure anchoring helps prevent livestock movement from shifting the unit.

Fence-Line Positioning: For shared-pen applications, align the center section with the fence or pen partition so animals can access the drinking troughs from opposite sides without compromising livestock separation.

Water Supply: Connect the inlet to a clean pressurized water supply using plumbing components appropriate for the local system. Confirm operating pressure and valve requirements before commissioning.

Freeze Protection: In cold climates, protect the vertical supply line and install the appropriate heating package according to expected minimum temperatures and local installation conditions.

Cleaning: Shut off or temporarily isolate the water supply, remove the drain plugs and flush sediment and feed debris toward the drain openings. Sloped trough surfaces simplify wash-down and drainage.

Valve Inspection: Periodically inspect the float, valve seal and inlet components to ensure reliable shutoff and refill performance.

Seasonal Maintenance: Inspect insulation, covers, electrical heating components and exposed plumbing before winter operation. Electrical work should comply with applicable local codes and be completed by qualified personnel.

Fence-line double-sided sheep water troughs can be incorporated into complete sheep-house construction projects together with galvanized livestock pens, sheep gates, lambing pens, feed barriers, creep feeders, handling systems and steel structure farm buildings. During project planning, the number and location of watering points can be coordinated with pen capacity, animal flow, water pressure, cleaning routes and manure-management systems.

Q1: Why use a double-sided sheep water trough?

A double-sided configuration allows livestock to drink from opposite sides of the unit. When positioned along a fence line, one waterer can conveniently serve adjacent pens while maintaining physical separation between animal groups.

Q2: Does the waterer refill automatically?

Yes. A float-operated inlet valve opens as the water level falls and closes automatically after the required level is restored.

Q3: Is it specifically suitable for sheep?

Yes. The low drinking height and compact trough arrangement are particularly suitable for sheep and goats.

Q4: Can it be used outdoors?

Yes. The rugged polyethylene and insulated construction are suitable for barns, paddocks and outdoor livestock areas when the unit is correctly installed for local environmental conditions.

Q5: Can the waterer operate in freezing weather?

Cold-weather operation requires an appropriate heating package and protection for the incoming water line. The required configuration should be selected according to local minimum temperatures and project conditions.

Q6: How is the trough cleaned?

The drinking surfaces are designed to slope toward drain points, allowing water, sediment and debris to be flushed out during routine cleaning.

Q7: Can SHEWUYOU customize the waterer for a sheep farm project?

Yes. Dimensions, water-supply arrangement, insulation, heating configuration, installation details and other specifications can be supplied according to project requirements.
