Large Capacity Sheep Water Trough

The Large Capacity Sheep Water Trough is a heavy-duty livestock watering solution developed for commercial goat-farming-equipment/" target="_blank" class="keylink">sheep farms, cattle operations, mixed livestock units and agricultural construction projects requiring substantial on-site water storage. Its wide rectangular design provides a large accessible drinking area and helps maintain an adequate water reserve for groups of animals.

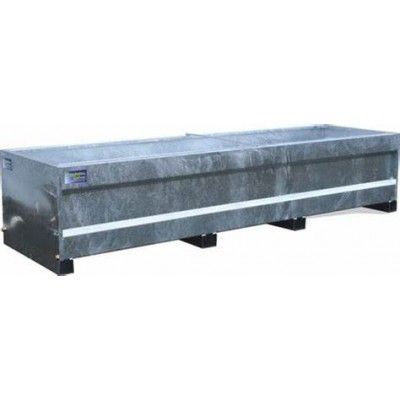

The referenced configuration measures approximately 3050 mm long, 1200 mm wide and 610 mm deep, providing a nominal capacity of approximately 2270 litres. An integral service box protects the water-control area, while a drain plug and bung facilitate routine emptying and cleaning.

Manufactured from welded steel with hot-dip galvanized corrosion protection, this type of trough is suitable for demanding agricultural environments, including outdoor paddocks, livestock yards, sheep housing and steel structure farm buildings. Dimensions, capacity and connection arrangements can also be configured according to project requirements.

• Large Water Capacity: Designed for livestock units requiring a substantial reserve of drinking water and reduced dependence on small-volume troughs.
• Heavy-Duty Steel Body: Welded steel construction provides the structural rigidity required to support a large volume of water.
• Hot-Dip Galvanized Finish: Galvanized protection improves resistance to weather exposure, moisture and demanding livestock environments.

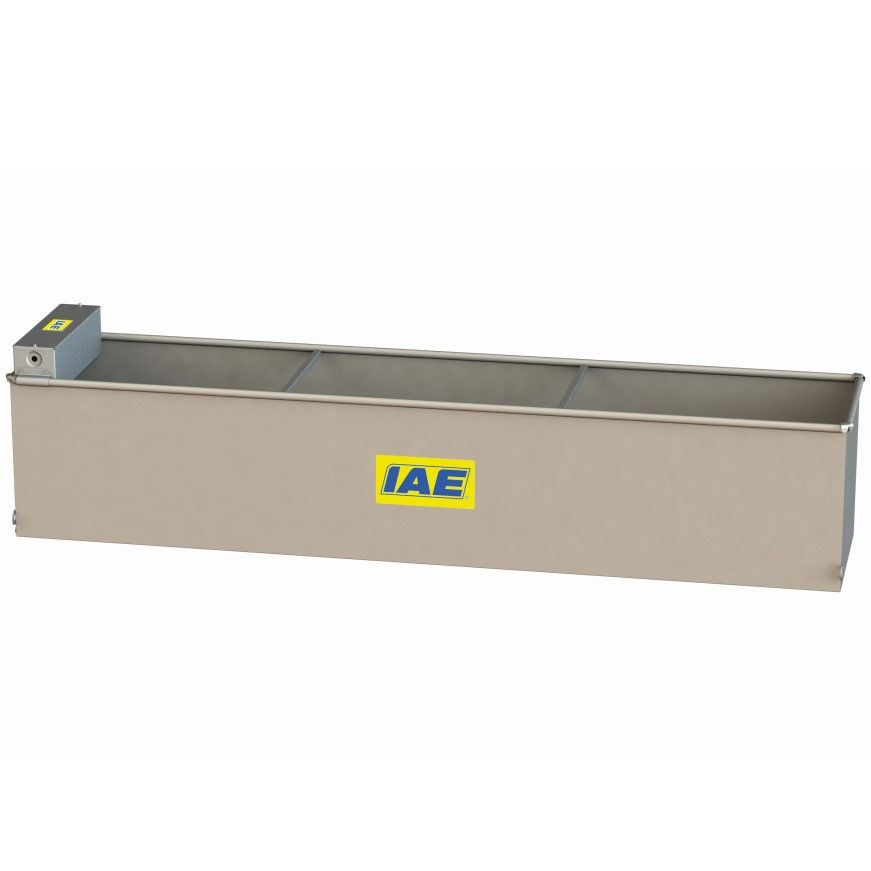

• Integral Service Box: The built-in service compartment provides a protected location for compatible water-control components.
• Drain Plug and Bung: Facilitates controlled emptying of the trough during routine cleaning and maintenance.
• Wide Drinking Area: The large rectangular layout provides accessible drinking edges suitable for group livestock management.
• Reinforced Structure: Internal cross-bracing helps maintain rigidity when the trough is filled with water.
• Outdoor and Indoor Use: Suitable for pasture watering points, sheep yards, cattle facilities and livestock buildings.
• Project Customization: Dimensions, water connections and related specifications can be adapted according to project requirements.

The trough functions as a large-volume reservoir connected to the livestock farm water supply. When fitted with a compatible float-controlled inlet valve, the valve opens as the water level falls and allows fresh water to enter the trough. As the required level is restored, the float mechanism closes the inlet.

The wide reservoir provides substantial buffer capacity during periods of intensive animal drinking, while the integral service box helps isolate the valve area from direct livestock interference.

For cleaning, the water supply is isolated and the drain plug or bung is opened to discharge the stored water. The trough can then be washed and inspected before being returned to service.

Dimensions and capacity shown above are based on the referenced 2270 L configuration. SHEWUYOU production specifications can be customized and should be confirmed before ordering.

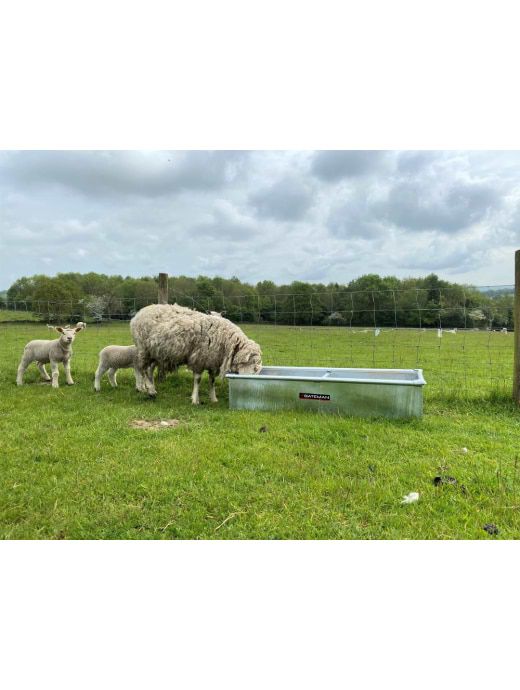

• Commercial sheep farms and large flock watering points
• Sheep breeding and lamb production facilities
• Beef cattle and dairy cattle operations
• Mixed cattle and sheep farms
• Pasture and rotational grazing systems
• Outdoor paddocks and livestock holding areas
• Feedlots and livestock yards
• Steel structure livestock buildings
• Farm expansion and modernization projects
• Agricultural contractors, distributors and livestock equipment dealers

For commercial farms, agricultural contractors and livestock construction projects, SHEWUYOU can configure water troughs according to the required farm layout and water supply system. Customization options may include:

• Trough length, width and depth
• Water storage capacity
• Steel thickness according to structural requirements
• Hot-dip galvanized surface treatment
• Integral or alternative service box arrangement
• Water inlet location and connection size
• Float valve compatibility
• Drain outlet configuration
• Additional structural reinforcement
• OEM identification and export packaging

Final configuration can be designed according to local climate, livestock type, herd size, water pressure, farm layout and project requirements.

Foundation: Position the trough on a firm, level and adequately drained base capable of supporting the trough and the substantial weight of the stored water.

Water Connection: Connect the inlet to a suitable farm water supply and install the specified float valve or water-control assembly according to system pressure and flow requirements.

Valve Protection: Ensure that the service box is correctly positioned and closed so that livestock cannot easily interfere with the valve and inlet components.

Drainage: Provide adequate ground drainage around the trough so that cleaning water and overflow do not create excessive mud or standing water.

Routine Cleaning: Isolate the water supply, remove the drain plug and empty the trough periodically. Remove sediment, algae, feed contamination and other deposits before refilling.

Corrosion Protection: Where galvanized equipment is exposed for prolonged periods to aggressive mineral-rich water, feed or silage-related contaminants, an appropriate food-safe or non-toxic protective coating may be considered according to local requirements and operating conditions.

Seasonal Inspection: Check welds, galvanized surfaces, drain components, water connections and valve operation regularly, particularly before periods of high water demand or freezing weather.

Large capacity water troughs can be incorporated into complete livestock farm projects together with sheep pens, cattle panels, livestock gates, feed barriers, drinking pipelines, automatic water-control systems and steel structure farm buildings. For large commercial operations, trough quantity, capacity and positioning can be planned according to livestock numbers, water consumption, available flow rate, paddock arrangement and drinking-point distribution.

Q1: What is the capacity of this large livestock water trough?

The referenced configuration provides approximately 2270 litres of water capacity. Alternative capacities can be designed according to project requirements.

Q2: Is this trough suitable for sheep as well as cattle?

Yes. Large-capacity troughs can be used in sheep, cattle and mixed livestock systems where the trough dimensions and drinking height are appropriate for the animals and farm layout.

Q3: Can an automatic float valve be installed?

Yes. The service box can accommodate a compatible water-control arrangement. Valve type and inlet connection should be selected according to water pressure, required flow rate and project specifications.

Q4: How is the trough emptied for cleaning?

A drain plug and bung allow the reservoir to be emptied after the incoming water supply has been isolated.

Q5: Is galvanized steel suitable for outdoor livestock farms?

Hot-dip galvanized steel provides durable corrosion protection for normal agricultural environments. Water chemistry and exposure to aggressive minerals or feed residues should nevertheless be considered when planning long-term use.

Q6: Can SHEWUYOU customize the trough for a livestock construction project?

Yes. Dimensions, capacity, steel specification, inlet arrangement, drainage configuration and other details can be customized according to project requirements.
