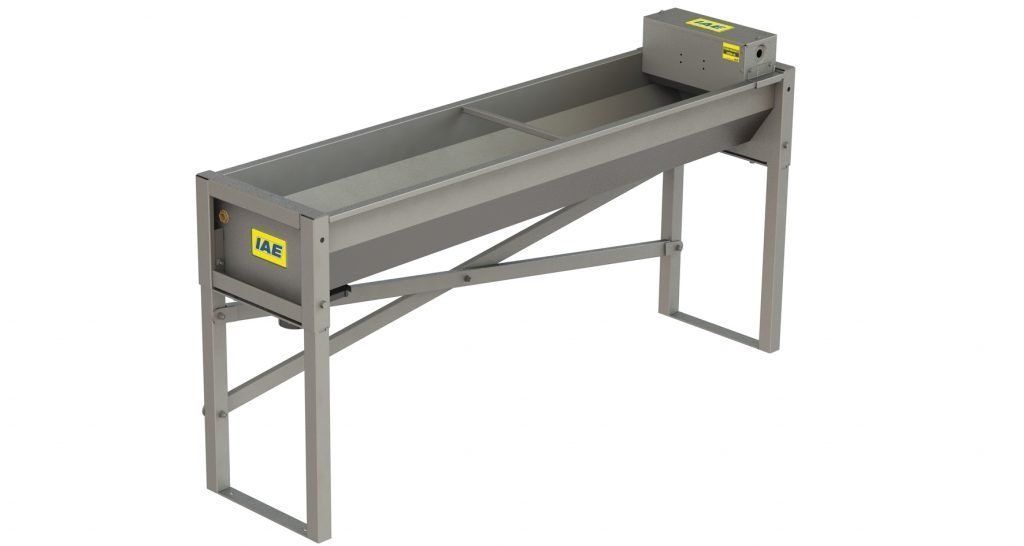

Quick Empty Freestanding Sheep Water Trough

The Quick Empty Freestanding Sheep Water Trough is a heavy-duty livestock watering solution developed for efficient water supply and simplified cleaning in commercial goat-farming-equipment/" target="_blank" class="keylink">sheep farms, livestock housing and agricultural projects.

Unlike conventional troughs that can require time-consuming manual emptying, the quick-empty design combines a tapered trough body with a large-diameter drainage outlet. When the drain is opened, water can be discharged rapidly, allowing sediment, feed residue and other contamination to be removed more efficiently during routine cleaning.

The self-supporting steel framework allows the trough to be positioned independently within livestock buildings or designated drinking areas. The design is suitable for integration with steel structure livestock houses, sheep pens and other commercial farm layouts where durability, accessibility and efficient maintenance are priorities.

• Quick-Empty Design: Large drainage opening allows substantially faster water discharge during routine cleaning.
• Tapered Trough Body: The shaped basin helps direct water and accumulated residue toward the drainage point.
• Freestanding Structure: Independent support frame eliminates the need for wall mounting and provides flexible positioning within livestock buildings.
• Heavy-Duty Steel Construction: Designed to withstand demanding conditions in intensive livestock environments.
• Corrosion Protection: Hot-dip galvanized construction can be specified for long-term agricultural use.
• High-Flow Water Supply: Can be configured with an appropriate high-flow float valve where rapid water replenishment is required.
• Easy Routine Cleaning: Quick drainage helps reduce the time and labor required to empty and wash the trough.
• Protected Valve Area: A service-box configuration can help protect water-control components from livestock contact.
• Multiple Length Options: Trough dimensions and drinking capacity can be selected according to flock size and farm layout.
• Project-Based Manufacturing: Dimensions, material thickness, drainage arrangement and valve configuration can be customized.

• Trough Basin: Long steel drinking basin providing accessible water along the livestock drinking edge.
• Tapered Bottom: Sloped internal geometry directs water and sediment toward the drain.

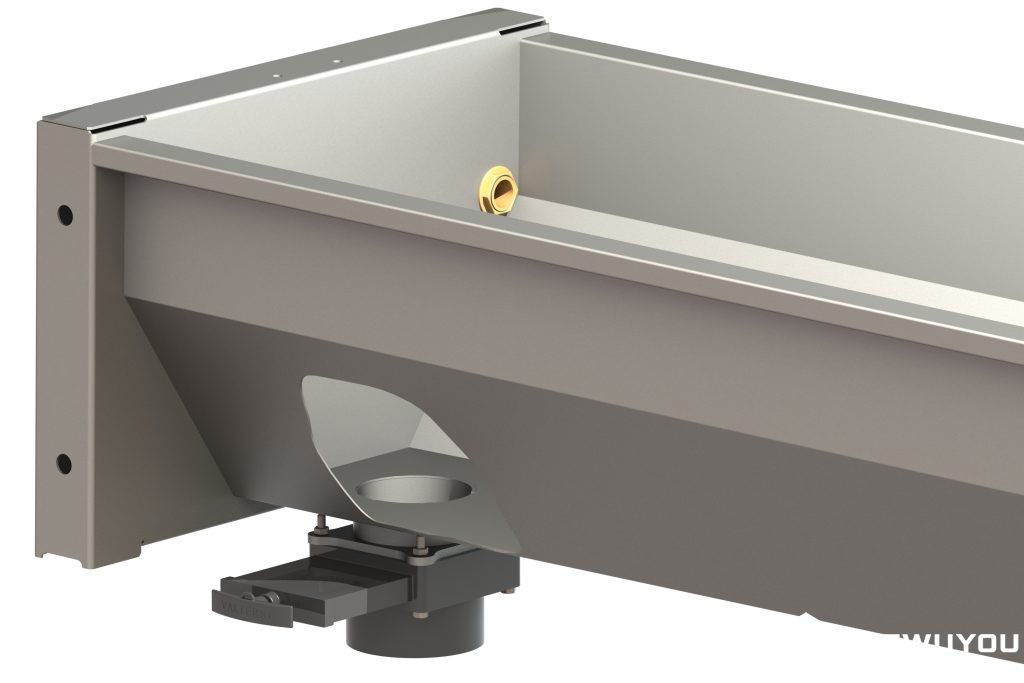

• Large Drain Outlet: Provides rapid discharge when the trough requires cleaning or maintenance.
• Gate Valve / Drain Control: Controls opening and closing of the quick-empty drainage system.
• Float Valve System: Automatically regulates incoming water according to trough water level.
• Valve Service Box: Protects selected plumbing and float-valve components while maintaining maintenance access.
• Freestanding Support Frame: Structural steel legs and cross members support the trough without requiring wall mounting.
• Reinforcement Members: Bracing improves structural rigidity under livestock and water loads.
• Water Inlet Connection: Connection arrangement can be selected according to the farm water-supply system.

Water enters the trough through the farm supply line and is controlled by a float-valve assembly. As livestock consume water and the water level falls, the valve opens to replenish the trough. When the preset level is reached, the valve closes or reduces the incoming flow.

For cleaning, the large drain valve is opened. The tapered trough geometry guides water toward the discharge point, enabling rapid emptying and helping carry loose sediment toward the outlet.

After cleaning, the drain is closed and the automatic water-control system refills the trough. Where high livestock demand is expected, an appropriately sized high-flow valve and water-supply line can be specified to improve recovery rate.

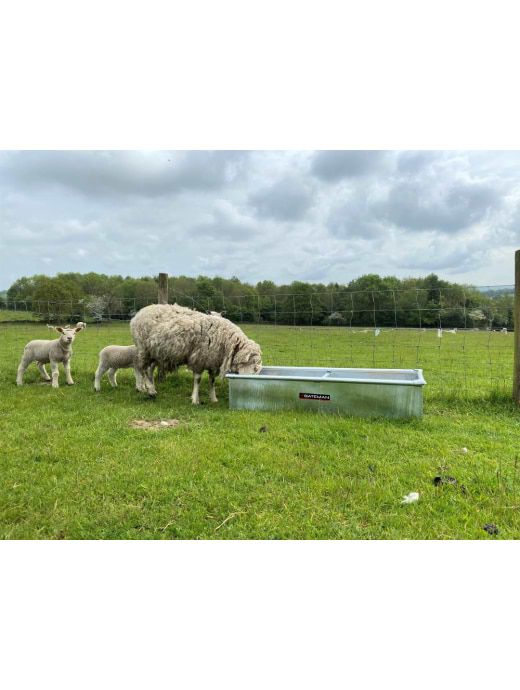

• Commercial sheep farms and breeding farms
• Indoor sheep housing and group pens
• Lamb rearing and finishing facilities
• Steel structure livestock buildings
• Covered livestock feeding and drinking areas
• Farm holding and handling areas
• High-traffic livestock drinking points
• Livestock farm construction and renovation projects
• Agricultural engineering projects
• Dealer, distributor and OEM livestock equipment programs

SHEWUYOU can configure the trough according to livestock type, building layout, flock size, water pressure and project requirements. Available options may include:

• Trough length, width and drinking height
• Water holding capacity
• Steel plate and frame specifications
• Hot-dip galvanized surface treatment
• Stainless steel configurations available upon request
• Drain diameter and drainage arrangement
• Float valve and high-flow valve configuration
• Water inlet position and connection size
• Valve protection box
• Support-frame dimensions
• Mounting and anchoring arrangements
• OEM identification and farm project labeling

Final configuration can be designed according to local climate, water quality, farm conditions and livestock management requirements.

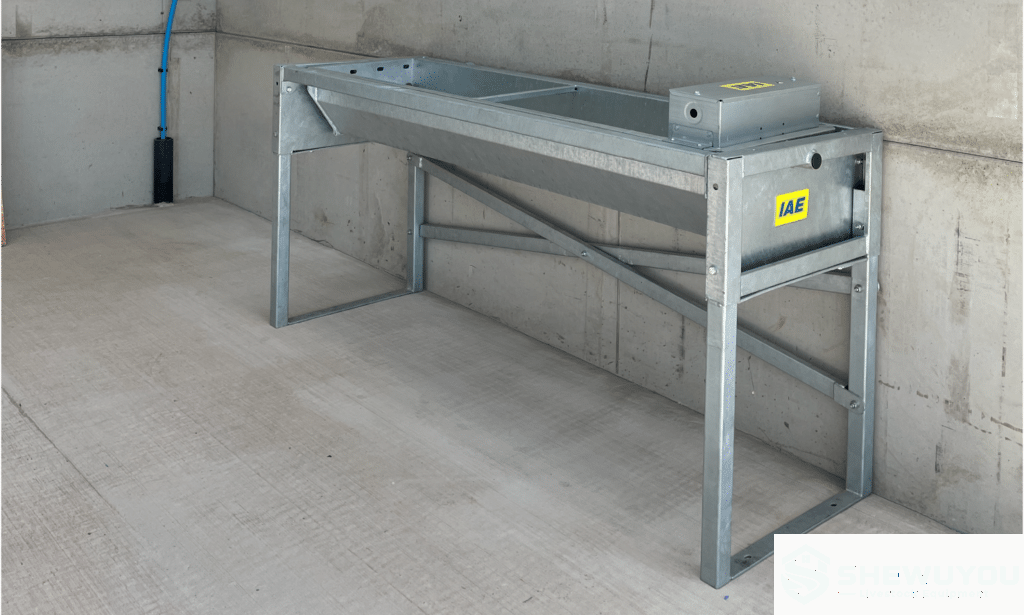

Positioning: Install the trough on a firm, level and well-drained concrete floor or other suitable structural base. Allow sufficient drinking access and maintenance clearance around the unit.

Water Connection: Connect the inlet to a suitable farm water supply and verify that pressure and flow rate are compatible with the selected float valve.

Drainage: The drain outlet should discharge into an appropriate farm drainage system or cleaning-water collection area.

Cleaning: Isolate the incoming water where necessary, open the large drain valve and allow the trough to empty. Wash the internal surfaces and remove sediment before closing the drain and refilling.

Routine Inspection: Regularly inspect the float valve, water connections, drain valve, fasteners, frame and galvanized surfaces.

Corrosion Management: In installations involving aggressive water chemistry, mineral-rich water or prolonged contact with corrosive materials, additional food-safe or non-toxic protective coating may be considered for appropriate contact areas.

Q: What makes this trough easier to clean than a conventional livestock trough?
A: The combination of a tapered basin and large-diameter drain allows water to leave the trough rapidly, reducing the time required for emptying before washing.

Q: Does the trough require wall mounting?
A: No. The freestanding structural frame supports the trough independently, making it suitable for flexible placement within livestock buildings and drinking areas.

Q: Can it refill automatically?
A: Yes. The trough can be equipped with an automatic float valve that controls water entry according to the water level.

Q: Is a high-flow valve available?
A: Yes. A high-flow configuration can be specified where water pressure, supply capacity and livestock drinking demand require faster replenishment.

Q: Can the drinking height be adapted for sheep?
A: Yes. Frame and trough height can be designed according to the target livestock, housing arrangement and project requirements.

Q: Can SHEWUYOU manufacture different trough lengths?
A: Yes. Length, capacity, support structure and other dimensions can be customized according to flock size and farm layout.

Q: Is the trough suitable for livestock building projects?
A: Yes. It can be incorporated into new or existing steel structure livestock buildings, sheep housing, drinking alleys and other agricultural engineering projects.
