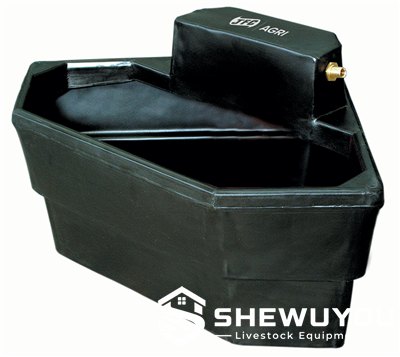

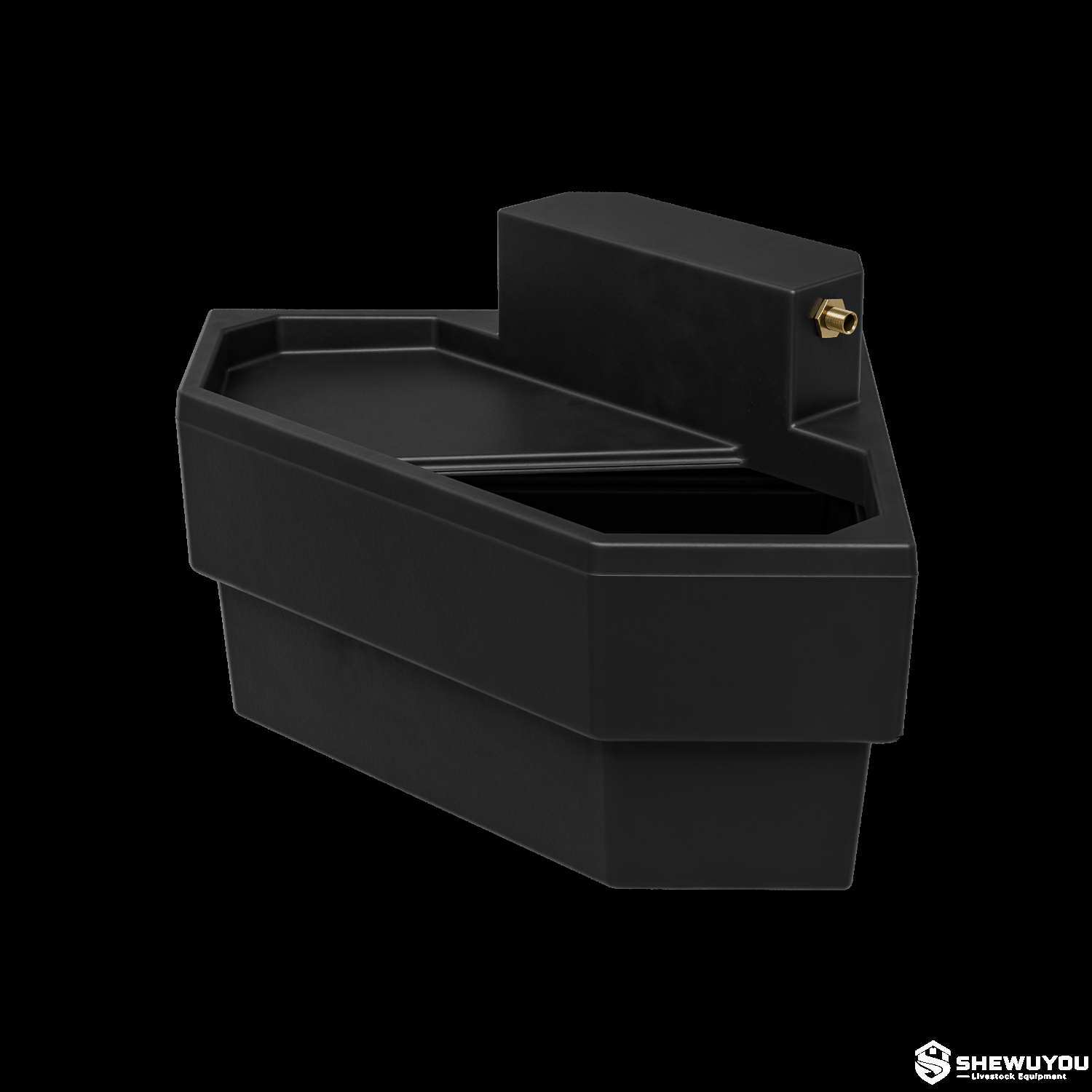

100L Corner Sheep Water Trough

The 100L Corner Sheep Water Trough is a compact automatic livestock drinking solution designed for installation in corners of goat-farming-equipment/" target="_blank" class="keylink">sheep barns, livestock sheds, handling pens and pasture watering areas. Its angled single-reservoir body makes efficient use of otherwise unused corner space while maintaining convenient access to drinking water.

The reference configuration is manufactured from tough, impact-resistant, UV-protected polyethylene with smooth edges and non-porous surfaces. This construction combines livestock safety, corrosion resistance and convenient cleaning for demanding agricultural environments.

A protected float-valve compartment separates the water-control components from direct animal contact. When connected to a suitable pressurized water supply, the float valve automatically controls refilling as livestock consume water, reducing the need for manual filling.

• 100L Nominal Capacity: Compact reservoir suitable for sheep housing and other livestock watering applications.
• Space-Saving Corner Design: Angled body allows installation in corners and restricted livestock housing areas.
• Automatic Water Refill: Float-valve operation maintains the drinking water level when connected to a suitable water supply.
• Protected Valve Compartment: Helps isolate the float mechanism from animal interference and accidental impact.
• Impact-Resistant Polyethylene: Tough molded construction is suitable for regular agricultural use.
• UV-Protected Material: Suitable for indoor livestock buildings and outdoor farm applications.
• Frost-Resistant Construction: Polyethylene construction provides good resistance to demanding seasonal farm conditions.
• Smooth Animal-Safe Edges: Rounded and smooth molded surfaces help reduce sharp contact points around the drinking area.
• Easy-Clean Surface: Smooth, non-porous material facilitates routine washing and livestock biosecurity management.
• Low-Profile Design: Provides convenient drinking access for sheep, calves and other appropriately sized livestock.

The trough operates through a mechanical float-valve water-level control system. The water inlet is connected to the farm water supply, and the float mechanism responds automatically to changes in reservoir level.

As sheep drink and the water level falls, the float moves downward and opens the inlet valve. Fresh water enters the reservoir until the preset level is restored. The rising float then closes the valve, helping prevent unnecessary continuous filling.

The valve assembly is positioned inside a protected compartment to reduce animal interference and accidental damage while maintaining access for inspection and servicing.

Capacity, dimensions, valve configuration and flow performance should be confirmed before ordering. Customized specifications are available according to project requirements.

• Commercial sheep farms and breeding farms
• Ewe and lamb housing areas
• Sheep barns and livestock sheds
• Indoor livestock pens and group housing
• Pasture and paddock watering systems
• Calf housing and compatible cattle applications
• Goat farms and mixed livestock operations
• Steel structure livestock buildings
• Farm renovation and livestock equipment projects
• Agricultural distributors and livestock equipment dealers

For livestock construction projects, distributor orders and farm equipment packages, configuration options can be supplied according to project requirements, including:

• Reservoir capacity and overall dimensions
• Polyethylene color
• Float-valve specification
• Water inlet arrangement
• Valve flow capacity according to farm water pressure
• Mounting and fixing provisions
• OEM logo and identification
• Bulk packaging for distributors
• Export packaging according to transportation requirements

Final configuration can be designed according to local climate, livestock type, water pressure, housing layout and farm conditions.

Positioning: Install the trough on a stable and reasonably level surface in a suitable corner of the livestock pen, barn or watering area. Maintain sufficient clearance for animals to drink safely.

Water Connection: Connect the inlet to a clean farm water supply using compatible fittings. Confirm operating pressure and valve requirements before commissioning.

Float Adjustment: Check the float position and adjust the shut-off water level when required. The reservoir should refill reliably without unnecessary overflow.

Valve Protection: Keep the protective valve compartment correctly positioned to reduce livestock interference with the inlet and float mechanism.

Routine Cleaning: Remove sediment, feed particles and organic contamination regularly. Smooth non-porous polyethylene surfaces simplify washing and livestock hygiene management.

Periodic Inspection: Inspect the valve, float, inlet fittings and trough body for leakage, wear or damage. Maintenance frequency should reflect water quality, stocking density and farm conditions.

The 100L corner water trough can be integrated into complete sheep farm and livestock housing projects together with sheep pens, galvanized gates, feeding barriers, lamb creep feeders, mineral feeders, water pipelines and steel structure livestock buildings. For commercial projects, trough quantity and placement can be planned according to flock size, pen arrangement, water pressure and drinking-water demand.

Q1: Why use a corner water trough in a sheep barn?

The angled reservoir makes efficient use of corner space and can help keep livestock drinking equipment away from central movement and feeding areas.

Q2: Does the trough refill automatically?

Yes. When connected to a suitable water supply, the mechanical float valve opens as the water level drops and closes when the preset level is restored.

Q3: Is the float valve protected from livestock?

Yes. The reference design positions the valve inside a dedicated protective compartment to reduce animal tampering and accidental damage.

Q4: Can this trough be used outdoors?

Yes. The reference polyethylene construction is UV protected and frost resistant, making the trough suitable for both livestock buildings and outdoor farm environments.

Q5: Is the trough easy to clean?

Yes. Smooth, non-porous molded surfaces facilitate routine cleaning and help support livestock biosecurity programs.

Q6: Can SHEWUYOU customize the trough for livestock projects?

Yes. Capacity, dimensions, valve configuration, water inlet, color, branding and packaging can be supplied according to project requirements and order quantity.
