Stainless Steel Freestanding Sheep Water Trough

The Stainless Steel Freestanding Sheep Water Trough is a robust livestock watering solution developed for commercial goat-farming-equipment/" target="_blank" class="keylink">sheep farms, livestock housing, feeding areas and agricultural projects requiring reliable access to clean drinking water. Its elongated open-trough configuration provides generous drinking access and allows several animals to use the waterer along the drinking edge.

The stainless steel trough body provides a smooth, corrosion-resistant drinking surface that is particularly suitable for applications where hygiene and convenient cleaning are priorities. A freestanding support structure eliminates the need for conventional wall mounting and allows flexible positioning within livestock buildings, pens and dedicated drinking areas.

The reference configuration is available in 2022 mm and 3102 mm lengths with nominal capacities of 159 L and 238 L respectively. A large 89 mm diameter drain provides rapid emptying for routine cleaning and water replacement. The overall configuration can also be adapted according to flock size, livestock building layout, water supply conditions and project requirements.

• Stainless Steel Trough Body: Provides a durable, corrosion-resistant and hygienic drinking surface for demanding livestock environments.
• Freestanding Configuration: Support legs allow installation without requiring the trough body to be mounted directly to a wall.
• Large Drinking Area: Long open drinking edge provides convenient access for multiple sheep and other compatible livestock.
• High-Capacity Options: Reference models provide approximately 159 L or 238 L capacity depending on trough length.

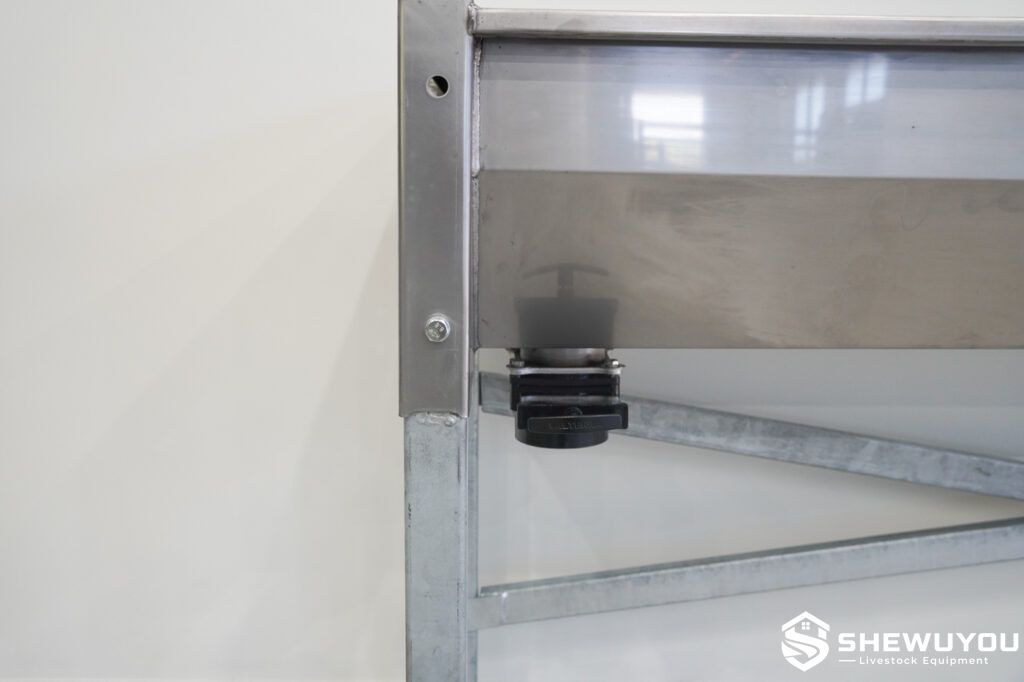

• Quick Emptying: A large 89 mm diameter drain on the reference design enables efficient emptying during routine cleaning.
• Hygienic Design: Smooth stainless steel surfaces facilitate washing and help maintain good drinking-water hygiene.

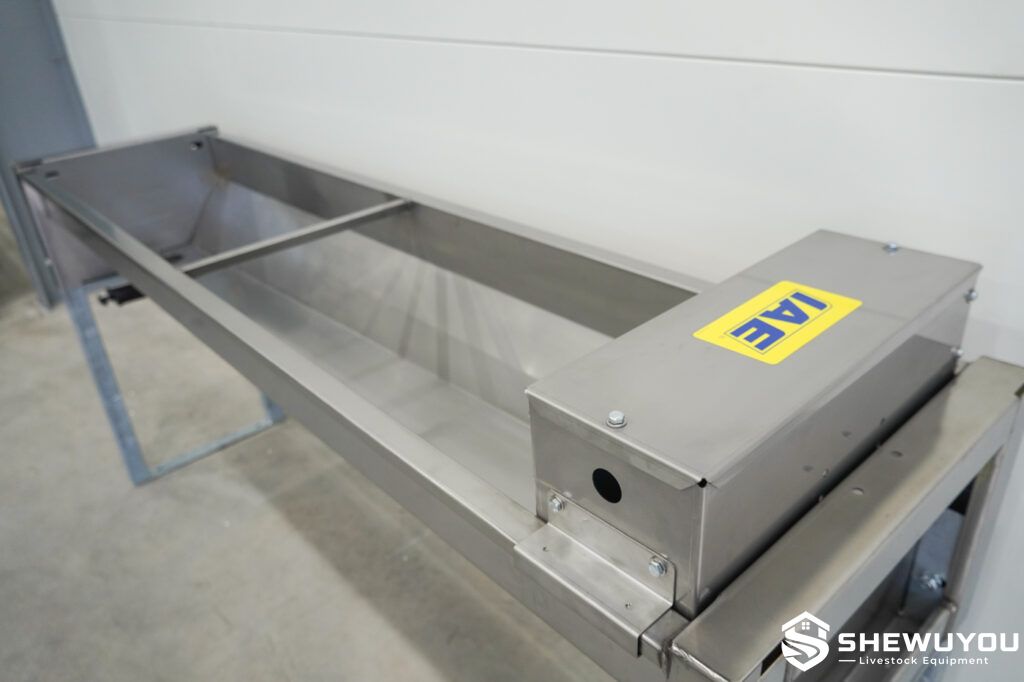

• Protected Water Supply Components: The inlet and water-level control area can be housed within a protective service box.
• Stable Support Structure: Reinforced legs and structural bracing provide support for the trough under normal farm operating conditions.
• Easy Farm Integration: Suitable for installation in sheep barns, steel structure livestock buildings, holding areas and commercial farm projects.
• Project Customization: Dimensions, water inlet configuration, support structure and other specifications can be adapted according to project requirements.

The water trough is connected to the farm's pressurized water supply. In an automatic configuration, a float or level-control valve regulates incoming water according to the water level inside the trough. As livestock drink and the level decreases, the valve opens to replenish the reservoir. When the preset level is restored, the valve closes to limit unnecessary overflow.

The elongated open trough provides an accessible drinking surface for multiple animals, making this configuration suitable for group housing and high-use livestock areas. The protected service area helps isolate sensitive water-control components from direct animal contact.

For cleaning, the water supply can be isolated and the large drain opened to empty the trough efficiently. The accessible stainless steel basin can then be washed before the drain is closed and normal water supply is restored.

Reference dimensions, capacities and drain size are based on the referenced product configuration. SHEWUYOU production specifications should be confirmed before ordering and may be customized according to livestock type, project layout and farm requirements.

• Commercial sheep farms and breeding operations
• Sheep barns and group housing pens
• Lamb and ewe production facilities
• Indoor livestock drinking areas
• High-traffic livestock housing
• Steel structure livestock buildings
• Farm renovation and expansion projects
• Cattle and mixed-livestock facilities where the selected configuration is suitable
• Agricultural engineering and livestock equipment projects
• Livestock equipment distributors, dealers and project contractors

For commercial livestock projects, the water trough can be configured according to farm layout, livestock type and local operating conditions. Customization options may include:

• Trough length and water capacity
• Stainless steel grade and material thickness according to project requirements
• Drinking height according to livestock type
• Freestanding frame dimensions
• Support leg and reinforcement configuration
• Water inlet position and connection specification
• Float valve or water-level control configuration
• Protective service box arrangement
• Drain diameter and drainage position
• OEM branding and product identification
• Export packaging according to transportation requirements

Final configuration can be designed according to local climate, water quality, flock size, livestock building layout and farm management conditions.

Positioning: Install the trough on a firm, level and well-drained floor. Locate it where sheep can approach the drinking edge conveniently without obstructing feed alleys, gates or livestock handling routes.

Water Connection: Connect the inlet to a suitable clean-water supply. Water pressure, pipe diameter and valve selection should match the farm's plumbing system and required refill rate.

Stability: Ensure the freestanding frame is correctly assembled and stable before livestock are given access. Where required by the project design, suitable floor fixing can provide additional security.

Cleaning: Isolate the incoming water supply, open the drain and remove accumulated sediment. Wash the internal drinking surfaces thoroughly before refilling.

Valve Inspection: Check the float valve or level-control mechanism periodically for free movement, leakage and correct shut-off operation.

Cold Climate Operation: In areas subject to freezing temperatures, water pipes, valves and trough installations should be protected according to local climate conditions and farm engineering requirements.

Freestanding stainless steel water troughs can be incorporated into complete sheep farm and livestock building projects together with sheep penning, galvanized livestock gates, feed barriers, lambing equipment, feeding systems and water distribution pipelines. For large-scale projects, trough quantity, capacity and positioning can be planned according to flock size, pen arrangement, water pressure, drinking demand and livestock management workflow.

Q1: Why choose stainless steel for a sheep water trough?

Stainless steel provides good corrosion resistance and a smooth, easily cleaned surface, making it particularly suitable for livestock watering applications where hygiene and long service life are important.

Q2: Is the trough freestanding?

Yes. The trough is supported by a freestanding frame, allowing it to be positioned in livestock housing without conventional wall mounting.

Q3: Can it refill automatically?

An automatic water-level control configuration can be supplied according to project requirements. The valve regulates incoming water as livestock consume water from the trough.

Q4: How is the trough cleaned?

The water supply is isolated and the drain opened to empty the trough. The accessible stainless steel basin can then be washed and inspected before refilling.

Q5: What capacities are available?

The referenced design includes 2022 mm and 3102 mm versions with nominal capacities of approximately 159 L and 238 L. Other specifications can be discussed according to project requirements.

Q6: Can the dimensions be customized for a commercial sheep farm?

Yes. Trough length, capacity, support structure, drinking height, water inlet and drainage configuration can be developed according to the farm layout and project requirements.

Q7: Can the trough be integrated into a complete livestock building project?

Yes. Water trough positioning can be coordinated with livestock penning, feed alleys, gates, water pipelines and steel structure building layouts for new-build or farm renovation projects.
