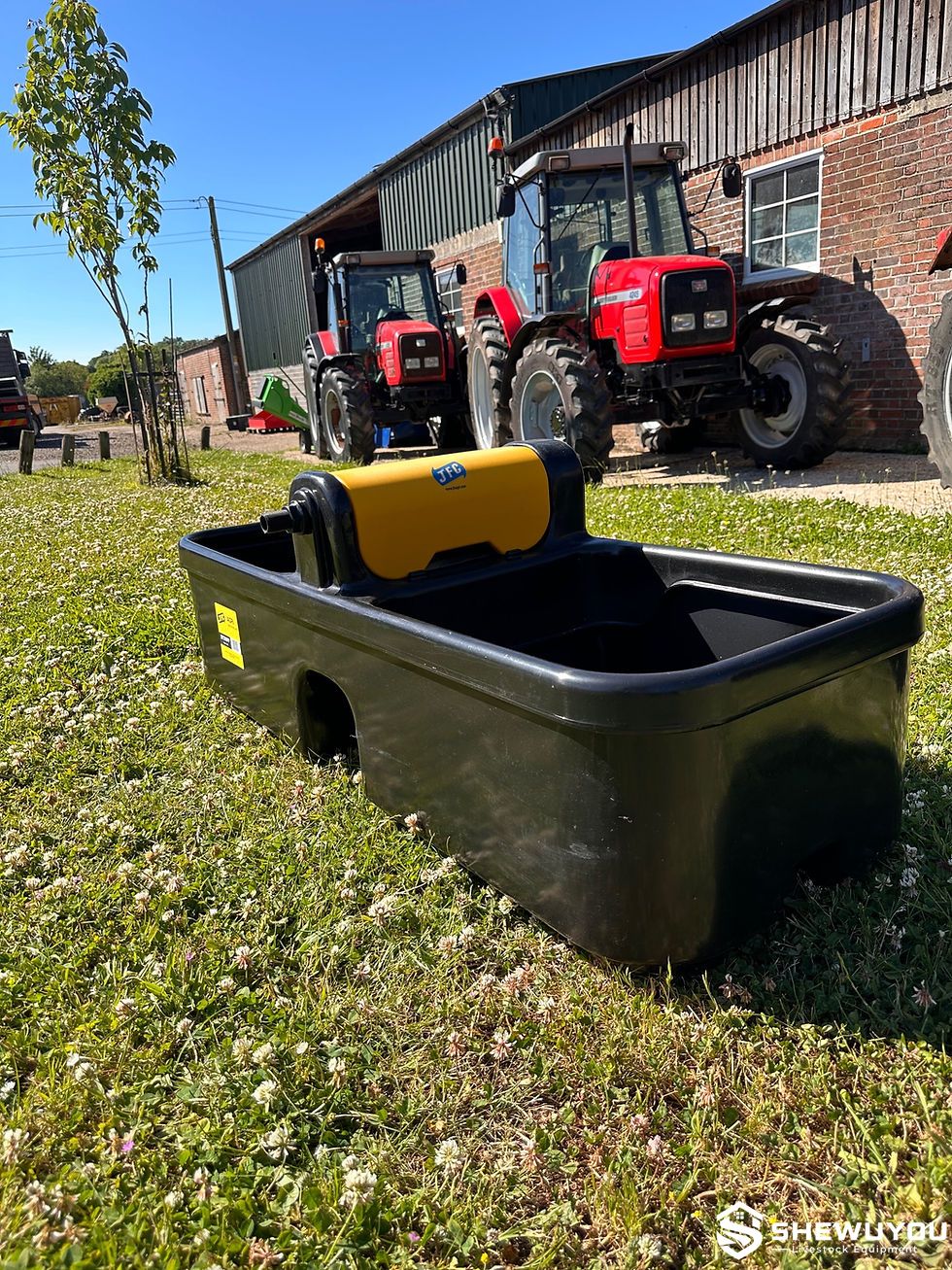

136L Fast-Fill Sheep Water Trough

The 136L Fast-Fill Sheep Water Trough is a compact, high-performance livestock drinking solution designed for goat-farming-equipment/" target="_blank" class="keylink">sheep farms, paddocks, grazing systems and commercial livestock facilities. Its double-reservoir configuration provides drinking access from both sides, making the trough particularly suitable for positioning between adjacent paddocks or livestock zones.

Manufactured from tough, impact-resistant polyethylene, the trough combines a smooth animal-friendly profile with resistance to frost, UV exposure and demanding agricultural conditions. The non-porous internal surfaces are easy to wash and support practical farm biosecurity management.

An automatic fast-fill float valve maintains the required water level as livestock drink. The valve is protected inside a dedicated service compartment, helping prevent accidental animal contact while allowing convenient access for inspection and maintenance. Twin drain points simplify complete emptying, routine washing and relocation.

• 136L Water Capacity: Practical capacity for sheep, lambs and other compatible livestock watering applications.
• Double-Reservoir Design: Provides drinking access from two sides and is particularly useful between adjacent paddocks or livestock areas.
• Fast-Fill Float Valve: Automatic valve replenishes water as animals drink, helping maintain a dependable supply during periods of high demand.
• Protected Valve Compartment: Float-valve components are housed in a dedicated enclosure with an accessible service lid.
• Impact-Resistant Polyethylene: Tough molded construction is designed for demanding agricultural and livestock environments.
• Frost and UV Resistant: Suitable for indoor livestock buildings and exposed outdoor farm applications.
• Smooth Animal-Safe Profile: Rounded, polished surfaces reduce exposed sharp edges around drinking areas.
• Two Drain Points: Twin drain-off bungs simplify emptying, cleaning and equipment handling.
• Easy-Clean Surfaces: Smooth, non-porous polyethylene helps reduce dirt accumulation and facilitates routine sanitation.
• Lightweight Construction: Easier to handle, transport and reposition than many conventional concrete drinking troughs.

The trough connects to a pressurized farm water supply through the float-valve assembly. As sheep drink and the water level falls, the float mechanism opens the inlet valve and allows fresh water to enter the reservoirs. When the preset level is restored, the float closes the valve automatically.

This automatic refill principle reduces the need for manual water replenishment and helps provide livestock with continuous access to drinking water. The fast-fill configuration is particularly useful where several animals may drink within a short period.

The double-reservoir layout enables the trough to serve animals from opposite sides. When installed between two paddocks or livestock zones, one watering point can therefore provide convenient access to both groups.

Capacity, dimensions, weight and valve performance are based on the referenced 136L configuration. Final specifications may be customized and should be confirmed before production.

• Commercial sheep farms and lamb production units
• Sheep paddocks and rotational grazing systems
• Pasture livestock watering points
• Sheep barns and steel structure livestock buildings
• Breeding and finishing operations
• Shared watering points between adjacent paddocks
• Livestock handling and holding areas
• Mixed livestock farm water-supply projects
• Agricultural equipment dealer and distributor programs
• Government and international livestock development projects

For commercial farms, livestock construction projects and distributor orders, SHEWUYOU can provide water trough configurations according to project requirements. Available options may include:

• Trough capacity and overall dimensions
• Single- or double-reservoir configuration
• Float valve and inlet connection configuration
• Water inlet orientation
• Drainage arrangement
• Polyethylene color
• Mounting or anchoring provisions
• OEM logo and identification
• Bulk and export packaging

Final equipment configuration can be designed according to local climate, livestock numbers, water pressure, farm layout and project conditions.

Site Preparation: Position the trough on a stable and level base. For outdoor paddocks, a concrete or compacted hardcore standing around the drinking point helps reduce excessive mud and ground damage caused by concentrated livestock traffic.

Water Connection: Connect the inlet to the farm water supply using compatible fittings. Water pressure and pipe capacity should be sufficient for the required float-valve flow rate.

Valve Adjustment: Set the float mechanism to maintain the required operating water level without overflow.

Routine Cleaning: Isolate the water supply, remove the drain bungs and empty the reservoirs. Wash sediment, algae and organic contamination from the smooth internal surfaces before refilling.

Valve Maintenance: Periodically inspect the float, inlet valve, connections and protective compartment. Remove debris that could restrict water flow or prevent complete valve closure.

Cold-Climate Management: Although the polyethylene body provides good freeze/thaw resistance, the water line and valve system should be protected according to local winter conditions.

The 136L fast-fill trough can be incorporated into complete sheep farm water-supply projects together with livestock drinkers, polyethylene pipelines, water tanks, pumps, pressure-control equipment, sheep pens, fencing systems and steel structure livestock buildings. For large farms, trough quantity and placement can be planned according to flock size, paddock arrangement, available water pressure and expected peak drinking demand.

Q1: What is the capacity of this sheep water trough?

The referenced fast-fill trough has a nominal water capacity of 136 liters, equivalent to approximately 30 imperial gallons.

Q2: Why use a double-reservoir design?

The double-reservoir configuration allows livestock to drink from opposite sides, making it particularly useful when one trough is positioned between adjacent paddocks or livestock zones.

Q3: Does the trough refill automatically?

Yes. A float-operated inlet valve automatically opens as the water level falls and closes when the preset level is restored.

Q4: Is the float valve protected from livestock?

Yes. The valve is positioned inside a dedicated protective compartment with an accessible service cover for routine adjustment and maintenance.

Q5: Is the trough suitable for outdoor sheep paddocks?

Yes. The polyethylene construction is designed for agricultural use and provides resistance to impact, UV exposure and freeze/thaw conditions. Site preparation should still provide stable, well-drained footing around the drinking point.

Q6: How is the trough cleaned?

The water supply can be isolated and the two drain bungs removed for rapid emptying. Smooth, non-porous internal surfaces simplify washing and routine livestock biosecurity procedures.

Q7: Can the product be customized for livestock projects?

Yes. Capacity, dimensions, inlet configuration, valve system, color, drainage and packaging can be supplied according to project requirements and order quantity.
