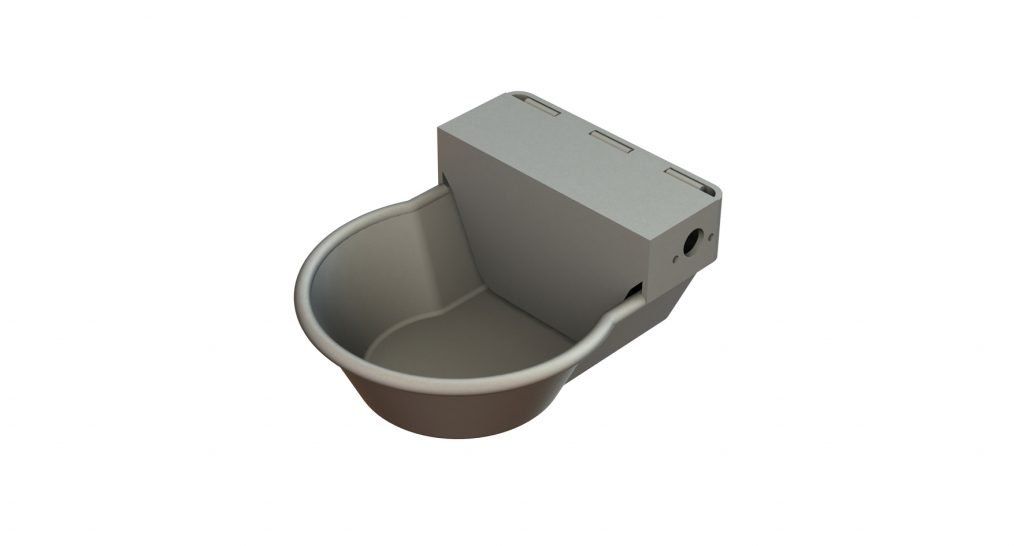

Self-Fill Sheep Water Trough

The Self-Fill Sheep Water Trough is a compact automatic livestock drinking solution designed to maintain an available supply of water without continuous manual refilling. It is suitable for goat-farming-equipment/" target="_blank" class="keylink">sheep housing, lambing areas, livestock pens, agricultural buildings and other locations where a small, robust drinking point is required.

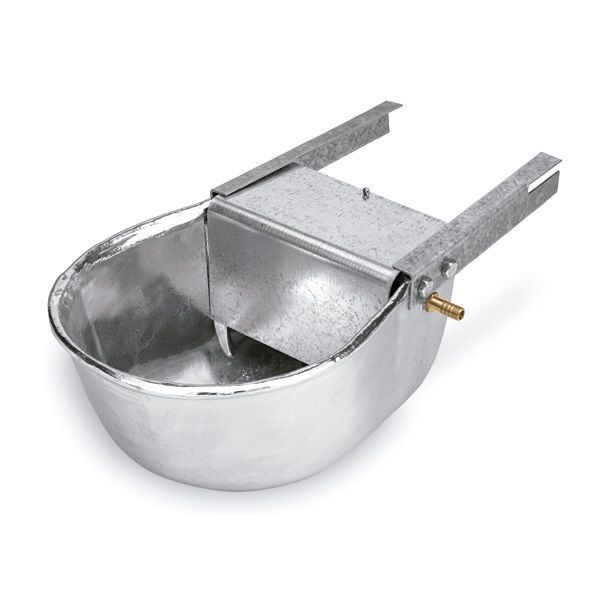

A float-controlled valve regulates the incoming water supply according to the water level inside the bowl. As animals drink and the level falls, the valve opens to replenish the bowl. When the preset level is restored, the valve closes automatically. This simple mechanical principle reduces daily watering labor and provides convenient access to drinking water.

Heavy-duty cast and pressed steel configurations can be supplied according to farm and project requirements. Galvanized protection, smooth animal-contact areas and a compact installation footprint make this type of drinker particularly suitable for commercial sheep farms and complete livestock housing projects.

• Automatic Self-Filling: Float-controlled water inlet automatically replenishes water as animals drink.
• Constant Water Level: Mechanical level control helps maintain a consistent drinking depth without continuous manual filling.
• Heavy-Duty Construction: Cast or pressed steel configurations are suitable for demanding livestock housing environments.
• Hot-Dip Galvanized Protection: Galvanized steel surfaces provide practical corrosion protection for agricultural applications.
• Compact Footprint: Suitable for lambing pens, sheep sheds, group pens and other areas where installation space is limited.
• Protected Valve Area: The water-control mechanism is positioned away from the main animal drinking area to reduce direct livestock interference.
• Smooth Drinking Edge: Rounded animal-contact surfaces improve safety during routine drinking.
• No Electrical Power Required: The mechanical float-valve principle can operate without electrical controls when connected to a suitable water supply.
• Low Routine Maintenance: Simple construction provides convenient inspection, cleaning and servicing.
• Project Integration: Suitable for integration with livestock penning, sheep housing and steel structure farm building systems.

The self-fill system operates through a mechanically controlled float valve. When sheep consume water, the water level inside the bowl decreases. The float mechanism follows the falling level and opens the inlet valve, allowing replacement water to enter.

As the bowl refills, the float rises. Once the designed operating level is reached, the valve progressively closes and stops the incoming flow. This cycle repeats automatically whenever animals drink.

The system therefore provides an individual or small-group drinking point without requiring the operator to manually refill open buckets or small troughs. Correct performance depends on matching the valve configuration to the available water pressure and maintaining a clean, unrestricted water supply.

Capacity figures refer to representative heavy-duty cast and standard pressed configurations. Final dimensions, valve type, water-pressure requirements and technical specifications should be confirmed before ordering.

• Commercial sheep farms and breeding operations
• Lambing pens and maternity areas
• Ewe and lamb group housing

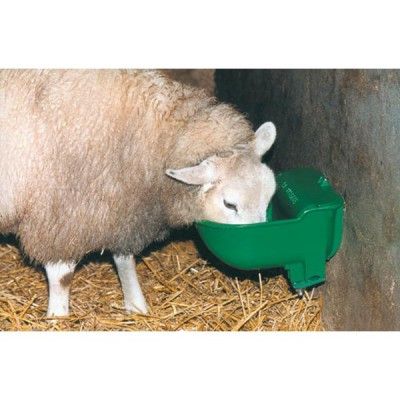

• Indoor sheep sheds and livestock barns
• Small-group livestock drinking points

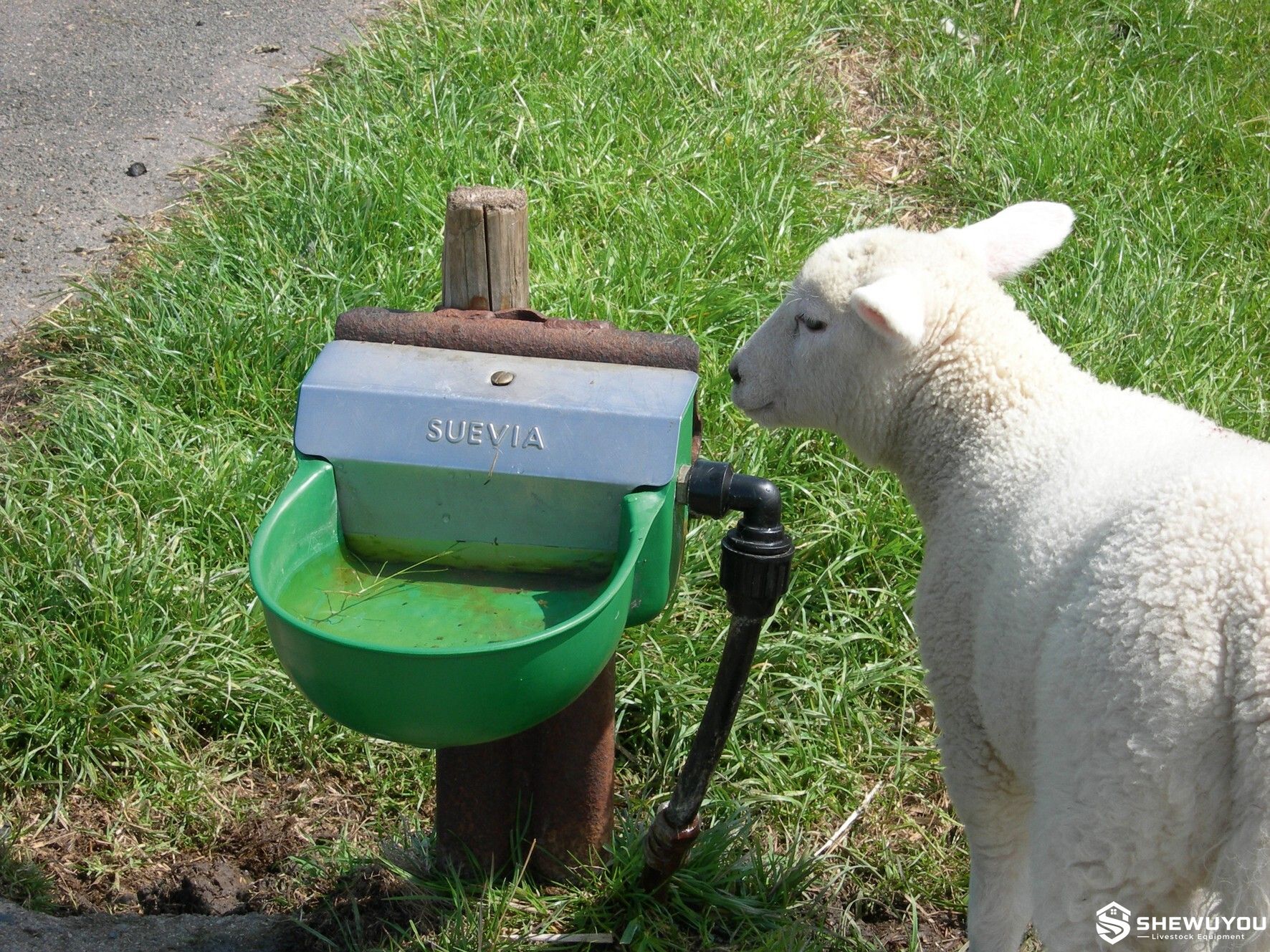

• Pasture shelters and covered livestock areas
• Steel structure livestock buildings
• Farm renovation and livestock housing projects
• Agricultural equipment dealer and distributor programs
• Integrated livestock watering and penning systems

SHEWUYOU can configure self-fill livestock drinking equipment according to farm layout, water supply conditions and project requirements. Available options may include:

• Cast or pressed steel bowl configuration
• Water inlet and valve configuration
• Low-pressure or suitable mains-pressure valve options according to project requirements
• Mounting arrangement for walls, posts or livestock pen structures
• Protective coating options for demanding livestock environments
• Dimensions and bowl configuration available upon request
• OEM identification and project labeling
• Bulk packaging for distributors and agricultural projects

Final configuration can be designed according to local climate, livestock type, available water pressure, housing system and farm conditions.

Installation Position: Mount the drinker at an appropriate height for the sheep or livestock group. Select a position that provides unrestricted drinking access without interfering with gates, feeding equipment or manure-cleaning operations.

Secure Fixing: Fasten the bowl to a structurally suitable wall, post or livestock pen member. The support must withstand repeated animal contact during normal farm operation.

Water Connection: Connect the inlet to a clean water supply using fittings appropriate for the selected valve. Confirm that supply pressure is within the operating requirements of the valve before commissioning.

Commissioning: Open the water supply gradually and check the float-valve operation. Confirm that the valve shuts off reliably at the intended water level and inspect all connections for leakage.

Routine Cleaning: Remove feed, bedding, sediment and organic contamination from the bowl regularly. Clean drinking equipment according to the farm's livestock hygiene program.

Valve Inspection: Periodically inspect the float, valve seat, water inlet and fittings. Remove mineral deposits or debris that could restrict flow or prevent complete shut-off.

Corrosion Protection: Where galvanized equipment is exposed for prolonged periods to silage or mineral-rich water, additional food-safe or non-toxic protective treatment may be appropriate for water-contact surfaces according to local operating conditions.

Self-fill sheep water troughs can be integrated into complete livestock housing projects together with sheep penning, lambing gates, feed barriers, hay racks, mineral feeders, water supply pipelines and steel structure farm buildings. For commercial projects, drinker quantity, mounting position and water-line layout can be planned according to pen dimensions, animal groups, livestock flow and farm management requirements.

Q1: How does a self-fill sheep water trough work?

A mechanical float valve responds to the water level. When animals drink and the level falls, the valve opens automatically. As the bowl refills to its operating level, the valve closes.

Q2: Does the water bowl require electricity?

The standard mechanical self-fill principle does not require electrical power. It requires a suitable pressurized or gravity-fed water source matched to the selected valve.

Q3: What is the difference between cast and pressed versions?

Both provide automatic drinking-water supply, while the heavy-duty cast configuration is intended for applications requiring a more substantial bowl structure. Selection should be based on livestock type, installation environment and project requirements.

Q4: Can it be used in lambing pens?

Yes. Its compact design makes this type of drinker suitable for sheep housing and lambing areas when installed at an appropriate height and location.

Q5: Can it be connected to a header tank?

Yes, when fitted with a valve designed for the available low-pressure supply. The valve specification should always be matched to the actual farm water system.

Q6: Can SHEWUYOU supply water systems for complete sheep farm projects?

Yes. Drinking equipment can be supplied together with livestock penning, feeding equipment and other components according to the layout and technical requirements of the sheep farm project.
