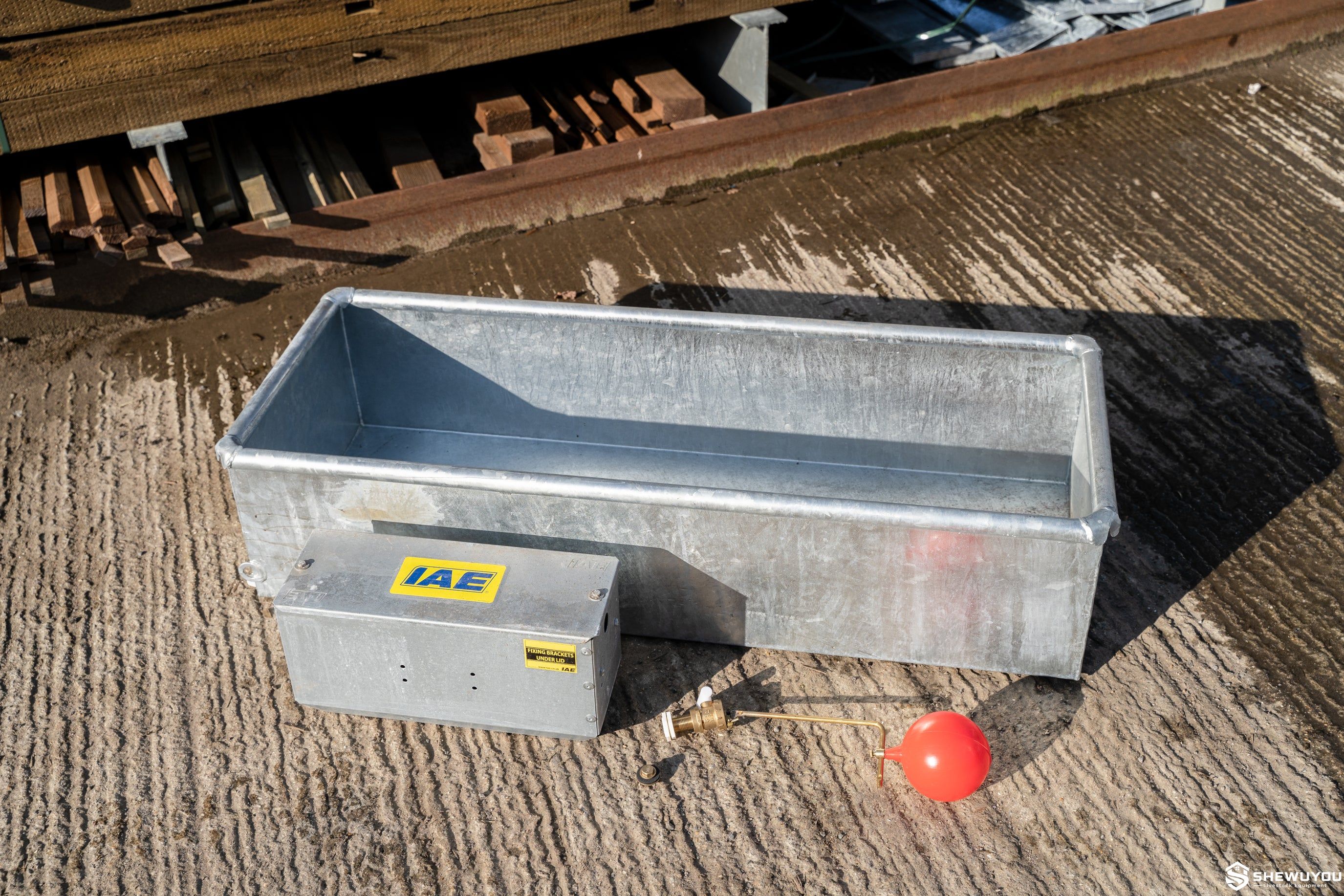

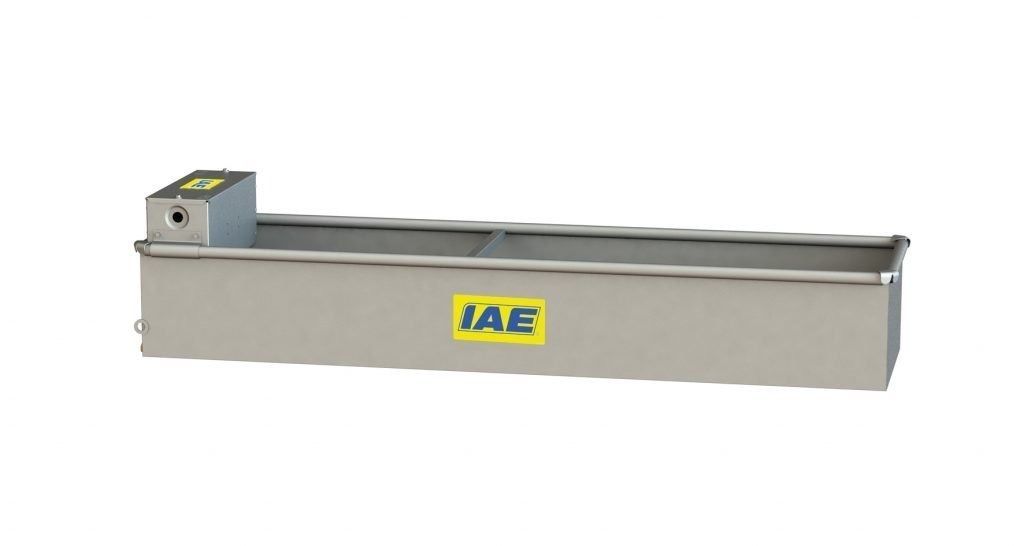

Galvanized Sheep Water Trough

The Galvanized Sheep Water Trough is a heavy-duty livestock drinking solution developed for goat-farming-equipment/" target="_blank" class="keylink">sheep farms, lambing facilities, pasture systems and commercial livestock projects. Its low-level rectangular configuration provides convenient drinking access for sheep while offering sufficient water storage for group housing and field applications.

The trough body is manufactured from steel with a hot-dip galvanized finish to provide long-term protection against normal agricultural weather exposure and demanding livestock environments. The open-top design allows animals to drink comfortably along the trough length and provides convenient access for inspection and cleaning.

Drainage components simplify routine emptying and maintenance, while optional service-box and float-valve configurations can be integrated where automatic water-level control is required. Multiple lengths and capacities can be supplied according to flock size, pen arrangement, available water supply and project requirements.

• Hot-Dip Galvanized Steel: Robust steel construction with a galvanized protective finish for demanding agricultural environments.
• Sheep-Friendly Low-Level Design: Practical trough depth and drinking height provide convenient access for sheep and suitable livestock groups.
• Long Drinking Edge: Linear trough construction provides multiple drinking positions and is suitable for group housing.
• Drain Plug and Bung: Facilitates rapid emptying for routine cleaning, maintenance and seasonal management.
• Automatic Filling Option: Compatible configurations can incorporate a service box, float and ball valve for automatic water-level management.

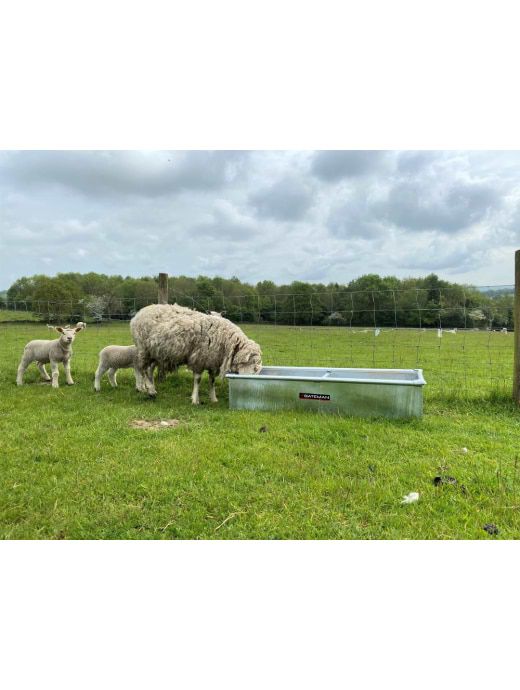

• Indoor and Outdoor Application: Suitable for sheep buildings, steel structure livestock sheds, paddocks and rotational grazing systems.
• Easy Cleaning: Open-top construction provides convenient access to the internal water-contact surfaces.
• Multiple Capacity Options: Length and holding capacity can be selected according to livestock numbers and project requirements.
• Commercial Farm Construction: Suitable for integration with sheep penning, handling systems, water pipelines and complete livestock housing projects.

The trough provides an open reservoir from which sheep can drink directly. In a manually filled installation, water is supplied to the trough according to farm management requirements. Where an automatic filling system is installed, the water inlet is controlled by a float-operated valve.

As livestock consume water, the internal water level decreases and the float moves downward, opening the inlet valve. Fresh water enters until the preset operating level is restored, after which the float closes the valve. This provides a simple mechanical method of maintaining drinking water availability without continuous manual refilling.

The drain plug allows the trough to be emptied when cleaning or servicing is required. Correct installation should provide a stable base, appropriate water pressure and convenient access for routine inspection.

The dimensions and capacities above are reference configurations based on the comparable 457 mm sheep water trough. SHEWUYOU production specifications can be customized and should be confirmed before ordering.

• Commercial sheep farms and breeding farms
• Ewe and lamb housing facilities
• Sheep finishing and growing units
• Pasture and rotational grazing systems
• Indoor livestock buildings and sheep sheds
• Steel structure livestock housing projects
• Outdoor paddocks and holding areas
• Mixed livestock farms where suitable drinking height is required
• Agricultural engineering and farm modernization projects
• Livestock equipment distributors and dealer networks

SHEWUYOU can configure galvanized livestock water troughs according to farm layout, flock size and project requirements. Available customization may include:

• Trough length and water capacity
• Steel thickness according to project requirements
• Hot-dip galvanized surface treatment
• Water inlet position
• Drain outlet position
• Float-valve configuration
• Loose or integrated service box
• Mounting and support configuration
• Connection arrangement for farm water pipelines
• OEM branding and identification plates
• Export packing according to transportation requirements

Final equipment configuration can be designed according to local climate, water quality, livestock numbers, water pressure and farm conditions.

Stable Foundation: Position the trough on a firm and level surface capable of supporting the equipment when filled with water. Concrete aprons or appropriately prepared livestock flooring can improve stability and drainage around heavily used drinking points.

Water Connection: Where automatic filling is required, connect the float-valve assembly to the farm water supply according to the specified inlet connection and operating pressure.

Drainage Planning: Maintain convenient access to the drain plug and provide suitable drainage for wastewater generated during cleaning.

Routine Cleaning: Empty and clean the trough periodically to remove sediment, feed contamination, algae and organic material. Cleaning frequency should reflect water quality, stocking density and environmental conditions.

Valve Inspection: Check the float, ball valve and water connections regularly for unrestricted movement, leakage and correct shut-off operation.

Galvanized Surface Care: In environments involving prolonged contact with aggressive mineral-rich water, silage residues or other corrosive materials, additional suitable protective treatment may be considered to extend service life.

Galvanized sheep water troughs can be incorporated into complete commercial sheep farm projects together with galvanized sheep pens, lambing pens, feeding troughs, hay racks, handling races, gates, water pipelines and steel structure livestock buildings. For new farm construction and modernization projects, trough quantity, capacity and positioning can be planned according to flock size, pen arrangement, water demand and management system.

Q1: What is the trough designed for?

It is primarily designed to provide drinking water for sheep in indoor livestock housing, outdoor paddocks and pasture-based farming systems.

Q2: Is the water trough galvanized?

Yes. The standard configuration uses a hot-dip galvanized steel structure for durability in agricultural environments.

Q3: Can an automatic float valve be installed?

Yes. A float-valve water-control system and protective service box can be supplied according to project requirements.

Q4: How is the trough cleaned?

The drain plug allows the water to be emptied before the internal surfaces are washed and inspected. Routine cleaning helps maintain drinking-water hygiene.

Q5: Is it suitable for outdoor pasture use?

Yes. Galvanized steel troughs are widely used in pasture and livestock yard applications. The installation area should be level and well drained.

Q6: Can the size and capacity be customized?

Yes. Trough dimensions, capacity, inlet arrangement and other construction details can be customized according to project requirements.

Q7: Can this product be supplied for complete sheep farm projects?

Yes. SHEWUYOU can integrate livestock drinking equipment with sheep penning, feeding systems, handling equipment and steel structure livestock buildings for complete farm projects.
