Product Name	Multi-Species Mechanical Probe Veterinary Ultrasound Scanner
Product Image
Product Overview	The Multi-Species Mechanical Probe Veterinary Ultrasound Scanner is a portable imaging system developed for livestock pregnancy examination, reproductive management, and routine animal ultrasound applications. Its compact handheld construction is particularly suitable for farm environments where mobility, durability, and rapid field examination are important. The reference configuration uses a waterproof mechanical sector probe and provides dedicated obstetric measurement functions for multiple animal species. Typical applications include cattle, pigs, goat-farming-equipment/" target="_blank" class="keylink">sheep, goats, horses, dogs, cats, and other compatible animals. The lightweight scanner can be used in breeding farms, livestock production groups, veterinary service operations, artificial insemination programs, and agricultural projects where portable ultrasound examination is required.
Key Features	Mechanical sector probe configuration designed for practical livestock ultrasound examination. Portable and lightweight construction supports mobile farm and field operation. High-resolution display provides real-time grayscale ultrasound imaging. Multiple display modes support different examination and measurement requirements. Built-in obstetric measurement functions support multi-species reproductive management. Waterproof probe construction is suitable for demanding livestock environments. Protective outer housing supports routine use in dusty and splash-prone farm conditions. Rechargeable battery operation supports examination away from fixed electrical outlets. Image storage and USB transfer functions support farm records and breeding management. Suitable for commercial farms, veterinary distributors, breeding companies, and agricultural project procurement.

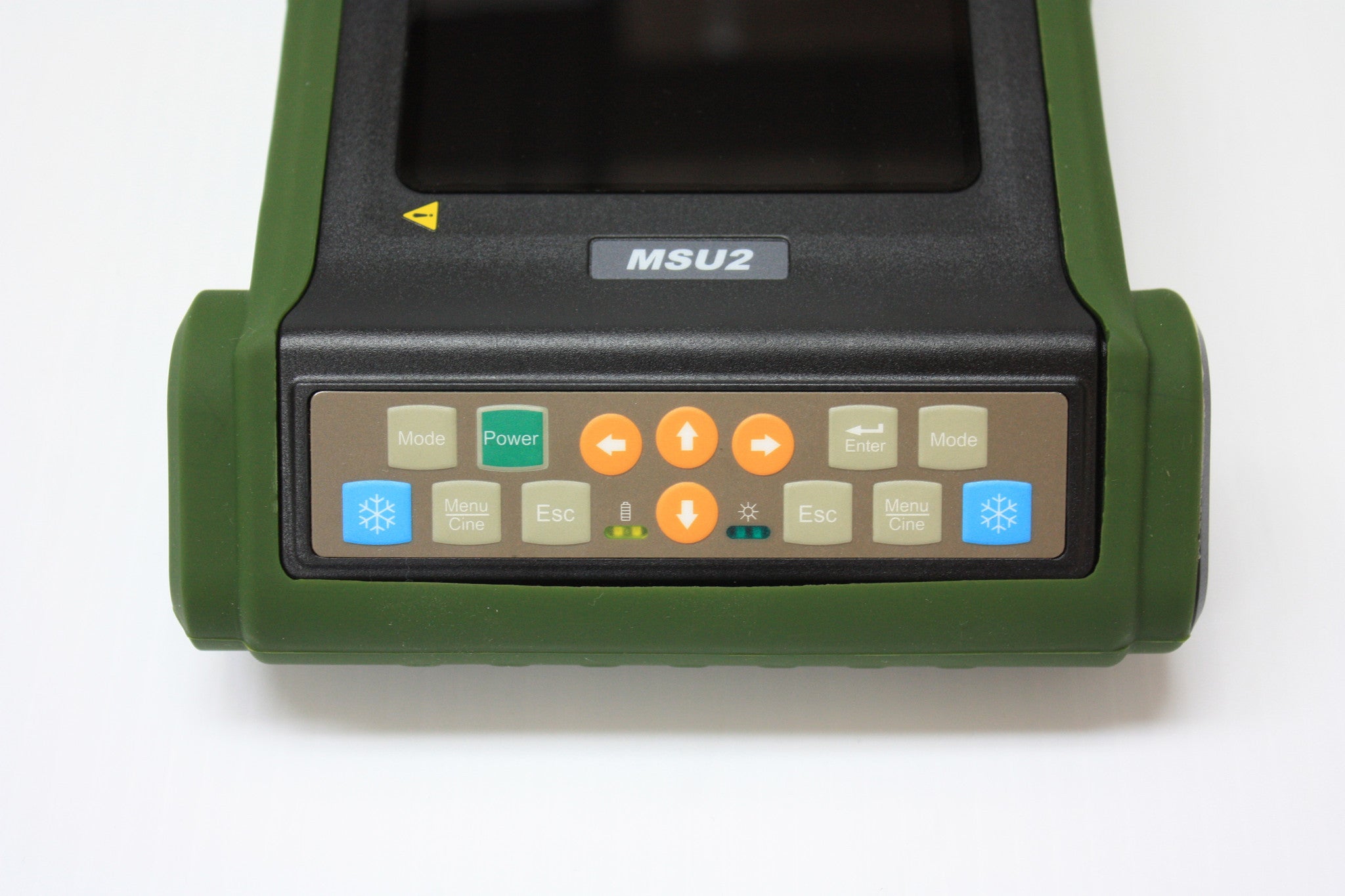

Structural Components	Main Ultrasound Unit: Integrates the imaging processor, control system, display, measurement software, and image storage functions. Mechanical Sector Probe: Provides sector-format ultrasound scanning for reproductive and general animal examination. Display Screen: Presents real-time B-mode and related ultrasound images for field diagnosis and pregnancy checking. Control Keyboard: Provides access to gain, depth, measurement, image adjustment, storage, and examination functions. Rechargeable Battery: Supports portable operation in barns, pens, breeding areas, and outdoor livestock facilities. Protective Housing: Helps protect the scanner during routine farm handling and transportation. Carrying Accessories: Handheld, hanging, belt, and transport configurations can be supplied according to project requirements.
Working Principle / Structural Principle	The mechanical sector probe contains an ultrasound transducer that is mechanically swept through a defined sector. Ultrasound pulses are transmitted into the animal body, and echoes returning from tissues and fluid interfaces are received by the probe. The scanner processes these echo signals into real-time grayscale images. Differences in tissue acoustic properties create variations in image brightness, allowing the operator to observe reproductive structures and other anatomical features within the effective scanning range. For reproductive examination, the probe is positioned at the appropriate external examination area using suitable ultrasound coupling gel. The operator can then adjust gain, depth, image orientation, and measurement functions according to animal species and examination requirements.
Technical Specifications	Product Type Portable veterinary ultrasound scanner Probe Type Waterproof mechanical sector probe Reference Probe Frequency 3.5 MHz mechanical sector probe Display 5.7-inch high-resolution display in the reference configuration Display Modes B, 2B, 4B, B/M, M Gray Scale 256 levels Maximum Display Depth Up to 200 mm in the reference configuration Image Storage Built-in image storage with USB transfer support Measurements Distance, perimeter, area, volume, obstetric measurements, and other supported calculations Obstetric Functions Gestational age and estimated delivery date functions for supported animal species Reference Weight Approximately 1.1 kg Power Supply Rechargeable battery and AC power supply Battery Operation More than 6 hours in the reference configuration Additional Configuration Customizable according to project requirements
Applications	Pregnancy examination in pigs and sows Sheep and goat reproductive management Cattle pregnancy and breeding management Equine reproductive examination Compatible canine and feline ultrasound examinations Livestock artificial insemination programs Breeding farms and genetics centers Commercial pig, cattle, sheep, and goat farms Mobile veterinary and livestock service teams Agricultural and animal husbandry development projects
Customization Options	The veterinary ultrasound scanner can be configured according to livestock species, farm management requirements, examination procedures, distributor programs, and commercial procurement specifications. Available options may include probe configuration, carrying accessories, protective case, power adapter, battery configuration, language interface, storage accessories, packaging, and project supply combinations. Specific probe frequencies, accessories, software functions, and commercial packaging are available upon request and should be confirmed according to project requirements.
Installation & Maintenance	No fixed installation is normally required. Charge the battery before mobile use, connect the mechanical sector probe securely, and select the appropriate examination and measurement settings before scanning. For effective imaging, prepare the examination area as required and use suitable veterinary ultrasound coupling gel. Avoid excessive pulling, twisting, or impact on the probe cable and mechanical probe assembly. After examination, clean the probe and scanner surfaces according to the manufacturer's maintenance instructions. Do not immerse components unless specifically rated for immersion. Store the scanner, probe, charger, and accessories in the protective case in a clean, dry environment.
Project Cases	The Multi-Species Mechanical Probe Veterinary Ultrasound Scanner is suitable for deployment in commercial pig farms, cattle ranches, sheep and goat breeding operations, genetics centers, artificial insemination programs, veterinary service organizations, and livestock equipment distribution projects. For complete breeding and reproduction projects, the scanner can be supplied together with carrying equipment, ultrasound gel, protective cases, reproductive instruments, semen handling equipment, pregnancy diagnosis supplies, and other livestock breeding tools according to project requirements.
Product FAQ	Q: What animals can this veterinary ultrasound scanner be used for? A: The reference system includes measurement functions for multiple species, including cattle, horses, sheep, goats, pigs, dogs, cats, and other supported animals. Q: What type of probe is supplied? A: The reference configuration includes a 3.5 MHz waterproof mechanical sector probe. Q: Is the scanner suitable for pregnancy checking? A: Yes. Pregnancy examination and reproductive management are among its primary livestock applications. Q: Can it be used directly on farms? A: Yes. The portable battery-powered construction, lightweight housing, and outdoor-oriented design make it suitable for field and livestock farm operation. Q: Can ultrasound images be saved? A: Yes. The reference configuration provides internal image storage and USB image transfer functions. Q: Can the configuration be customized for livestock projects? A: Yes. Probe options, accessories, carrying systems, packaging, and project configurations are available according to project requirements.
Product Gallery
