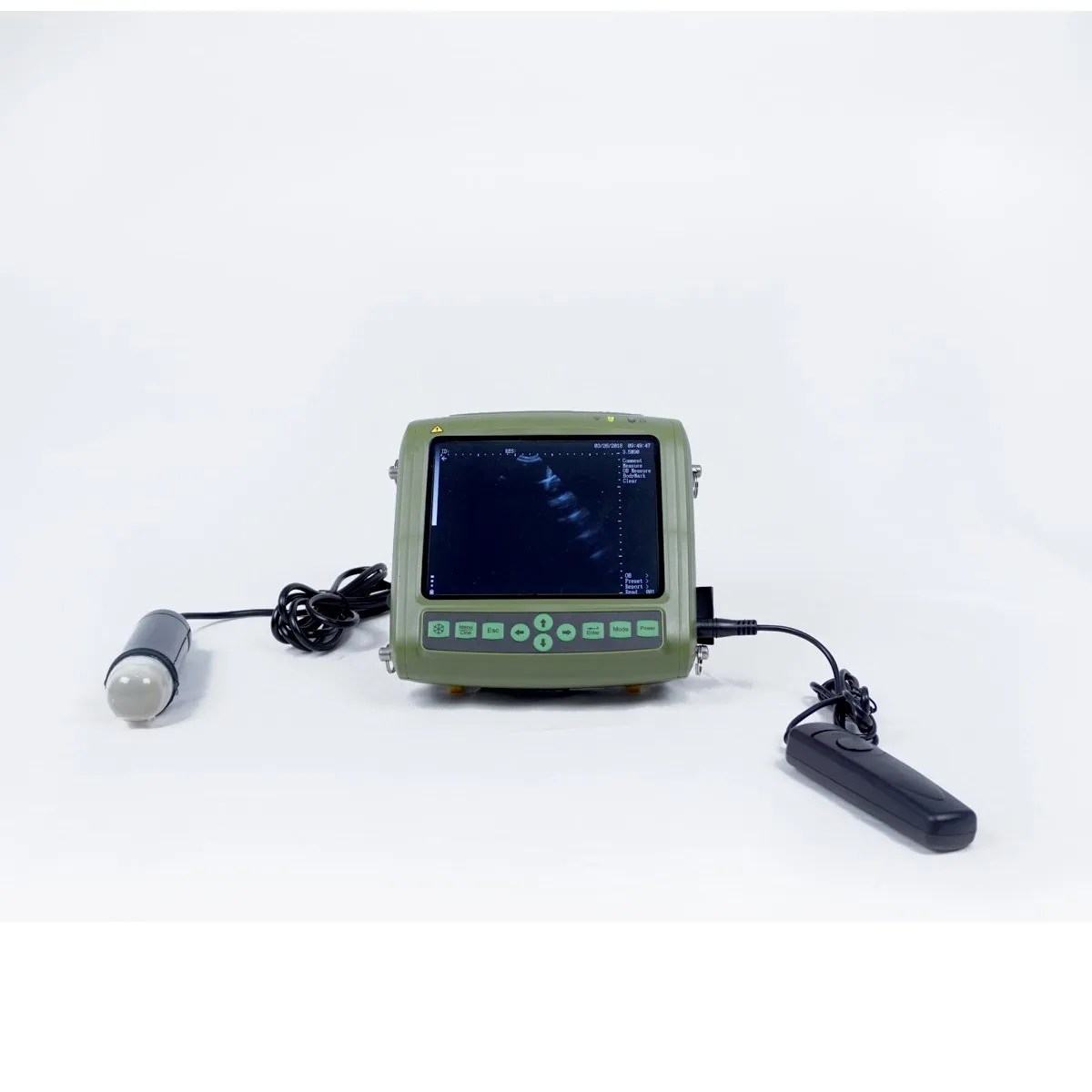

Sheep and Goat Mechanical Probe Ultrasound Scanner

• Mechanical sector imaging: fully digital mechanical sector scanning technology provides a practical solution for livestock ultrasound examinations.
• Sheep and goat reproductive focus: suitable for pregnancy monitoring and obstetric examinations in small ruminant breeding programs.
• Portable wrist-style design: compact housing supports handheld operation, wrist mounting, neck-hanging, desktop use and field deployment.
• 5.7-inch color LCD: high-resolution display with high brightness, high contrast and a wide viewing angle for field operation.
• Multiple display modes: supports B, 2B, 4B, B/M and M imaging modes.
• Adjustable magnification: five magnification levels support different examination and image-observation requirements.
• Up to 200 mm display depth: suitable for a range of routine livestock imaging applications according to probe and examination conditions.
• 256-level grayscale: supports detailed grayscale image presentation for veterinary examination.
• Pseudo-color imaging: eight pseudo-color options, including black-and-white presentation, support image interpretation preferences.
• Obstetric measurement: supports gestational age and expected delivery calculations for ovine, goat, swine and other supported animal types.
• Backfat measurement: supports measurement functions used in livestock production and breeding management.
• Image storage: permanent storage for up to 100 images in the referenced configuration, with additional cine-loop capability.
• USB data transfer: supports image and data export to compatible USB storage or computer equipment.
• PAL/NTSC video output: enables connection with compatible video recording and display equipment.
• Water-resistant and dust-resistant construction: designed for demanding livestock and farm environments when operated according to applicable instructions.
• Rechargeable battery operation: supports mobile scanning without continuous connection to mains power.
• Commercial livestock suitability: appropriate for sheep farms, goat farms, breeding companies, veterinary service providers and agricultural distributors.

• Portable main console: integrates the ultrasound processor, display, control interface, power management and image-processing functions.
• Mechanical sector probe: dedicated livestock probe for reproductive and selected diagnostic examinations.
• Probe connection: dedicated probe interface provides connection between the transducer and main unit.
• 5.7-inch color LCD: integrated display for real-time ultrasound image observation.
• Ergonomic control panel: physical controls provide access to scanning modes, image adjustment, freeze, measurement and system functions.
• Rechargeable lithium battery: provides mobile power for field and farm examinations.
• Protective housing: compact enclosure designed for regular handling and transportation in livestock environments.
• USB interface: supports transfer of stored images and examination data.
• PAL/NTSC video interface: supports compatible external video equipment.
• Carrying and mounting accessories: belt, bracket, carrying case and related accessories can support different field-use configurations.

• Sheep pregnancy diagnosis: supports routine pregnancy monitoring in commercial sheep breeding operations.
• Goat pregnancy diagnosis: suitable for reproductive screening and pregnancy management in commercial goat farms.
• Small-ruminant reproductive management: assists veterinary teams and breeders with routine reproductive assessment.
• Obstetric examination: supports selected pregnancy-related examinations and gestational assessment.
• Breeding flock management: useful for identifying reproductive status and supporting herd or flock management programs.
• Commercial sheep farms: portable design allows ultrasound scanning directly in handling areas and breeding facilities.
• Commercial goat farms: suitable for mobile reproductive diagnostic workflows in farm environments.
• Livestock breeding companies: supports standardized reproductive monitoring across multiple production units.
• Veterinary service providers: suitable for mobile veterinary and livestock reproductive service teams.
• Agricultural distributors: appropriate for professional livestock equipment distribution and veterinary project procurement.
• Farm equipment projects: can be incorporated into livestock breeding, veterinary service and agricultural equipment packages.

1. Charge the rechargeable battery using the supplied or approved charging equipment before field operation.
2. Inspect the main unit, probe, cable, connector and housing before each examination.
3. Connect the mechanical sector probe securely to the ultrasound main unit.
4. Switch on the system and select the appropriate scanning mode, depth, gain, magnification and image settings.
5. Apply suitable veterinary ultrasound gel to provide effective acoustic coupling between the probe and examination area.
6. Position and restrain the sheep or goat according to appropriate farm and veterinary procedures.
7. Perform the ultrasound examination while observing the real-time image on the LCD display.
8. Use freeze, measurement, obstetric calculation and image-storage functions when examination documentation is required.
9. Transfer stored images through the USB interface when records or reports need to be archived.
10. After examination, remove ultrasound gel from the probe using an appropriate cleaning procedure.
11. Clean and disinfect the probe and external surfaces with materials compatible with the equipment.
12. Prevent unnecessary moisture from entering connectors, controls or electronic components during cleaning.
13. Store the scanner and probe in the supplied or compatible protective case during transportation.
14. Recharge the battery after use and inspect the probe cable and housing periodically for wear or damage.

Q: What is the main application of this ultrasound scanner?
A: It is primarily designed for pregnancy diagnosis, reproductive monitoring and selected veterinary examinations in sheep and goats.

Q: What type of probe does the scanner use?
A: The referenced configuration uses a waterproof mechanical sector probe, with probe frequency and configuration customizable according to project requirements.

Q: Can the scanner be used for commercial sheep and goat farms?
A: Yes. Its portable design, rechargeable battery and livestock-oriented imaging functions make it suitable for on-farm reproductive diagnostic workflows.

Q: What display modes are available?
A: The referenced configuration supports B, 2B, 4B, B/M and M modes.

Q: What is the maximum display depth?
A: The referenced configuration provides a maximum display depth of 200 mm.

Q: Can the system perform obstetric measurements?
A: Yes. The referenced system includes obstetric measurement functions such as gestational age and expected delivery calculations for supported animal species.

Q: Can ultrasound images be saved?
A: Yes. The referenced configuration provides permanent image storage and USB data transfer for compatible external storage or computer equipment.

Q: Is the scanner suitable for outdoor farm use?
A: The referenced configuration features a high-brightness LCD, water-resistant and dust-resistant construction, and rechargeable battery operation for mobile livestock examinations.

Q: How is the scanner powered?
A: It supports AC/DC operation and includes a rechargeable lithium battery for mobile use. Battery specifications can vary according to configuration.

Q: Can OEM and private-label configurations be supplied?
A: Yes. Probe configurations, accessories, packaging, labels, language options and private-label branding can be customized according to project requirements.
