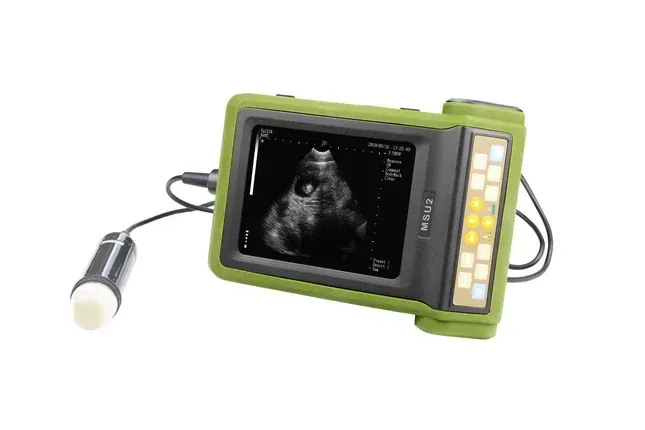

Swine Mechanical Probe Pregnancy Ultrasound Scanner

• Swine reproductive focus: designed for pregnancy monitoring, reproductive assessment and obstetrical examinations in sows.
• Mechanical sector probe: supplied with a 3.5 MHz mechanical sector probe for practical livestock ultrasound examinations.
• Moisture-protected probe design: suitable for demanding farm and field working environments when used according to applicable operating instructions.
• Multiple scanning modes: supports B, 2B, 4B, B/M and M modes for different examination requirements.
• 5.7-inch LCD display: provides a dedicated viewing area with high brightness, contrast and a wide viewing angle.
• Up to 6 hours of autonomous operation: the referenced 5200 mAh lithium battery supports mobile examinations without continuous mains connection.
• Compact field format: approximately 1.1 kg, allowing convenient transportation between pens, breeding units and treatment areas.
• Freeze control on probe: the probe incorporates a freeze button for convenient image capture during examination.
• Wear-resistant probe dome: designed to improve durability during repeated livestock scanning procedures.
• Image storage: permanent memory supports storage of up to 100 images in the referenced configuration.
• Cine loop: supports review of up to 256 images for examination documentation and image analysis.
• Obstetrical measurement functions: supports pregnancy-related measurements, gestational assessment and obstetrical reporting.
• USB connectivity: supports data storage and connection with compatible external devices.
• Video output: PAL-NTSC output and optional video-glasses connectivity support selected professional workflows.
• Farm-ready accessories: the referenced package includes a shock-resistant carrying case, strap, charger and power adapter.

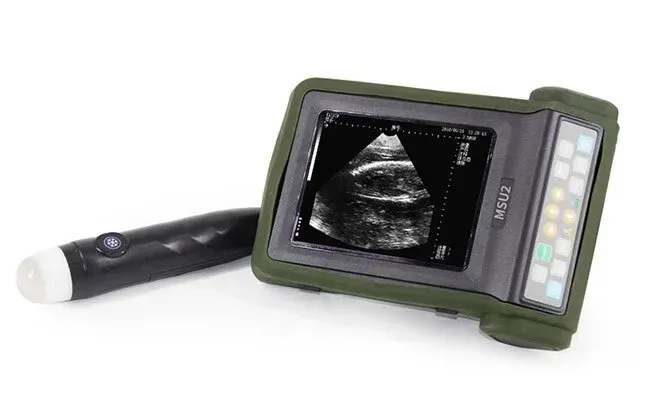

• Portable main console: compact ultrasound processing unit integrating the display, controls, power system and image-management functions.
• Mechanical sector probe: 3.5 MHz probe designed for livestock reproductive and internal-structure examinations.
• Probe connector: single probe interface with automatic probe detection in the referenced configuration.
• 5.7-inch LCD: integrated display for real-time ultrasound image observation.
• Control keypad: dedicated controls for scanning, image adjustment, measurement and system operation.
• Rechargeable lithium battery: 5200 mAh battery for mobile field operation.
• Protective housing: compact body designed for regular handling in livestock and veterinary environments.
• USB interface: supports image and data transfer with compatible devices.
• PAL-NTSC video interface: enables connection to compatible video equipment.
• Carrying accessories: shock-resistant case and strap support transportation and field deployment.

• Sow pregnancy diagnosis: supports routine pregnancy monitoring in commercial swine breeding programs.
• Early pregnancy monitoring: suitable for reproductive screening workflows where mobile ultrasound examination is required.
• Reproductive management: assists veterinary and breeding personnel with routine assessment of sow reproductive status.
• Obstetrical examinations: supports selected fetal and pregnancy-related examinations under veterinary supervision.
• Breeding farm operations: designed for repeated use in gestation houses, breeding units and commercial pig facilities.
• Livestock breeding groups: suitable for centralized procurement and standardized reproductive diagnostic equipment.
• Mobile veterinary services: portable construction supports examinations across multiple farm locations.
• Veterinary clinics: suitable as a compact ultrasound platform for selected reproductive and internal-organ examinations.
• Sheep and goat examination: the referenced probe can also be used for selected examinations in sheep and goats.
• Large-breed dog examination: suitable for selected diagnostic applications in large-breed dogs.
• Agricultural distributors: suitable for professional livestock equipment distribution and veterinary project supply.
• Farm engineering projects: can be incorporated into livestock breeding and veterinary equipment packages according to project requirements.

1. Charge the lithium battery using the supplied or approved charger before field operation.
2. Inspect the main unit, probe, cable, connector and housing before each examination.
3. Connect the mechanical sector probe and confirm that the system recognizes the probe correctly.
4. Switch on the scanner and select the appropriate scanning mode, gain, focus and frequency settings.
5. Apply suitable veterinary ultrasound gel to provide effective acoustic coupling.
6. Position and restrain the sow according to appropriate farm and veterinary procedures.
7. Perform the examination using the mechanical sector probe while observing the real-time image on the LCD display.
8. Use available measurement, image-freezing and image-storage functions when documentation is required.
9. After examination, remove ultrasound gel from the probe using an appropriate cleaning procedure.
10. Clean and disinfect the probe and external surfaces using products and procedures compatible with the equipment.
11. Protect the connector and electronic components from unnecessary moisture during cleaning.
12. Store the scanner and probe in the shock-resistant carrying case during transportation between farm areas.
13. Recharge the battery after use and inspect the probe and cable periodically for mechanical damage or wear.

Q: What type of probe is used with this swine ultrasound scanner?
A: The referenced configuration uses a 3.5 MHz mechanical sector probe designed for livestock reproductive and internal-structure examinations.

Q: What is the main application of the scanner?
A: Its primary application is pregnancy monitoring and reproductive diagnostics in commercial swine production.

Q: What animals can be examined?
A: The referenced configuration is designed for pigs and can also be used for selected examinations in sheep, goats, large-breed dogs and other medium-sized animals.

Q: What is the maximum scanning depth?
A: The referenced MSU2 configuration has a maximum scanning depth of 200 mm.

Q: Which scanning modes are available?
A: The scanner supports B, 2B, 4B, B/M and M modes.

Q: How long can the scanner operate on battery power?
A: The referenced 5200 mAh lithium battery provides up to approximately 6 hours of autonomous operation, depending on operating conditions.

Q: Is the probe suitable for farm environments?
A: The referenced mechanical sector probe features moisture protection and a wear-resistant polymer dome for livestock and field use.

Q: Can ultrasound images be stored?
A: Yes. The referenced system provides memory for up to 100 images and a cine loop of up to 256 images.

Q: Does the scanner support obstetrical measurements?
A: Yes. The referenced system includes obstetrical measurement and analysis functions for pregnancy-term assessment and related reporting.

Q: Can the product be customized for international B2B projects?
A: Packaging, labeling, accessories, language configuration and private-label requirements can be customized according to project requirements.
