Two-Hole Energy-Free Cattle Waterer

The Two-Hole Energy-Free Cattle Waterer is an insulated automatic livestock watering system designed for beef and dairy cattle in cold-weather environments. Instead of relying on electric trough heaters, the system uses thick insulation, protected plumbing, incoming ground-temperature water and livestock usage to help maintain an accessible drinking supply during winter.

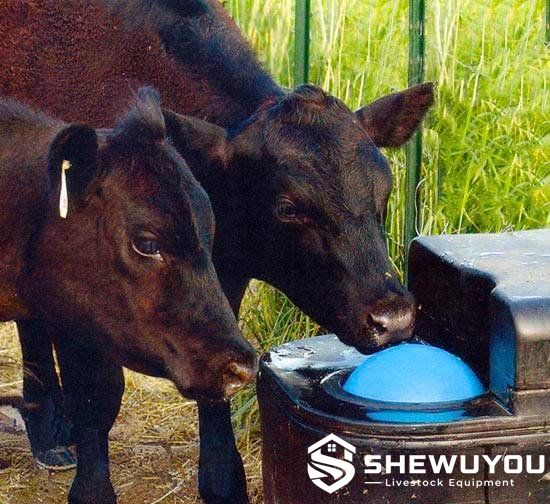

Two drinking openings with insulated roll-away ball closures reduce the exposed water surface and help limit heat loss. Cattle push the lightweight balls aside with the muzzle to reach the water, and the closures return over the openings when animals finish drinking.

The high-impact polyethylene body is corrosion resistant and designed for demanding pasture, feedlot and cattle-yard environments. Correct installation below local frost depth and adequate livestock usage are essential for reliable energy-free winter performance.

• Two drinking openings allow convenient access for beef and dairy cattle.
• Energy-free winter design can operate without a conventional electric trough heater when correctly installed and managed.
• Insulated roll-away ball closures reduce exposed water area and winter heat loss.
• High-impact polyethylene construction resists corrosion and normal livestock abuse.
• Thick urethane insulation helps retain heat supplied by ground-temperature incoming water.
• Additional insulation around the valve compartment protects critical plumbing components.
• Removable central dome provides convenient access to the valve area.
• Sloped internal surfaces simplify routine cleaning and debris removal.
• Rounded exterior surfaces help improve animal safety around the watering point.
• Suitable for pasture, fence-line, cattle-yard and commercial livestock installations.

• Polyethylene Tank Body: High-impact reservoir designed for outdoor livestock environments.
• Urethane Insulation: Insulated walls, base and cover help reduce heat transfer during cold weather.
• Two Drinking Openings: Provide separate access points for cattle.
• Ball Closures: Insulated floating balls cover the drinking openings when animals are not drinking.
• Automatic Water Valve: Restores the water level as cattle consume water.
• Float Assembly: Controls automatic refill according to reservoir water level.
• Central Valve Dome: Protects valve components while remaining removable for service.
• Insulated Heat Well: Protects the underground water riser and helps transfer ground heat upward.
• Sloped Interior Bottom: Assists drainage, cleaning and sediment removal.
• Anchor Points: Allow secure attachment to a prepared concrete installation pad.

The energy-free design relies on thermal conservation rather than continuous electric heating. Water is supplied through an underground line installed below local frost depth, where ground temperature helps keep incoming water warmer than freezing ambient air.

The heavily insulated body reduces heat loss, while the floating ball closures cover most of the exposed drinking surface. When cattle need water, they push a ball downward or sideways with the muzzle and drink through the opening.

As the water level falls, the internal automatic valve opens and replaces the consumed water with warmer ground-supplied water. After drinking, the ball returns over the opening and again limits exposure to cold air.

Reliable winter performance depends on livestock usage, buried water-line depth, incoming water temperature, correct heat-well installation and local climatic conditions.

• Beef cattle farms and ranches
• Dairy cattle facilities
• Cold-climate pasture watering
• Feedlots and cattle yards
• Fence-line watering points
• Remote livestock facilities
• Breeding and replacement-heifer areas
• Outdoor winter livestock watering stations
• Steel structure cattle farm projects
• Locations where minimizing winter electrical consumption is a priority

• Waterer capacity selectable according to herd size.
• Number of drinking openings available according to project requirements.
• Valve and water-inlet configuration available according to farm water pressure.
• Insulated heat-well depth selectable according to local frost conditions.
• Concrete pad and anchoring layout configurable according to installation conditions.
• Fence-line and stand-alone installation options available.
• Trainer-bolt configurations available to help cattle learn to use ball closures.
• Electric backup or heated alternatives available for sites that do not meet energy-free operating requirements.

Concrete Base: Install the waterer on a level concrete pad and secure the housing with suitable corrosion-resistant anchor bolts.

Water-Line Depth: Route the incoming water line well below the local frost line so ground temperature can help protect the supply from freezing.

Heat Well: Use an appropriately insulated heat well around the water riser, particularly in areas with significant frost penetration.

Winter Usage: Energy-free performance depends on adequate livestock usage. In prolonged subzero conditions, manufacturer guidance recommends sufficient daily animal traffic to replace water with warmer ground-supplied water.

Training: Animals unfamiliar with ball waterers can be trained by temporarily holding a ball partially away from the opening where the product configuration permits.

Cleaning: Remove the service cover and drain or wash the reservoir periodically. Sloped interior surfaces help move sediment toward the cleaning area.

Maintenance: Inspect the float valve, balls, insulation, anchors, water-line connection and central dome regularly. Replace worn valve seals or damaged components as required.

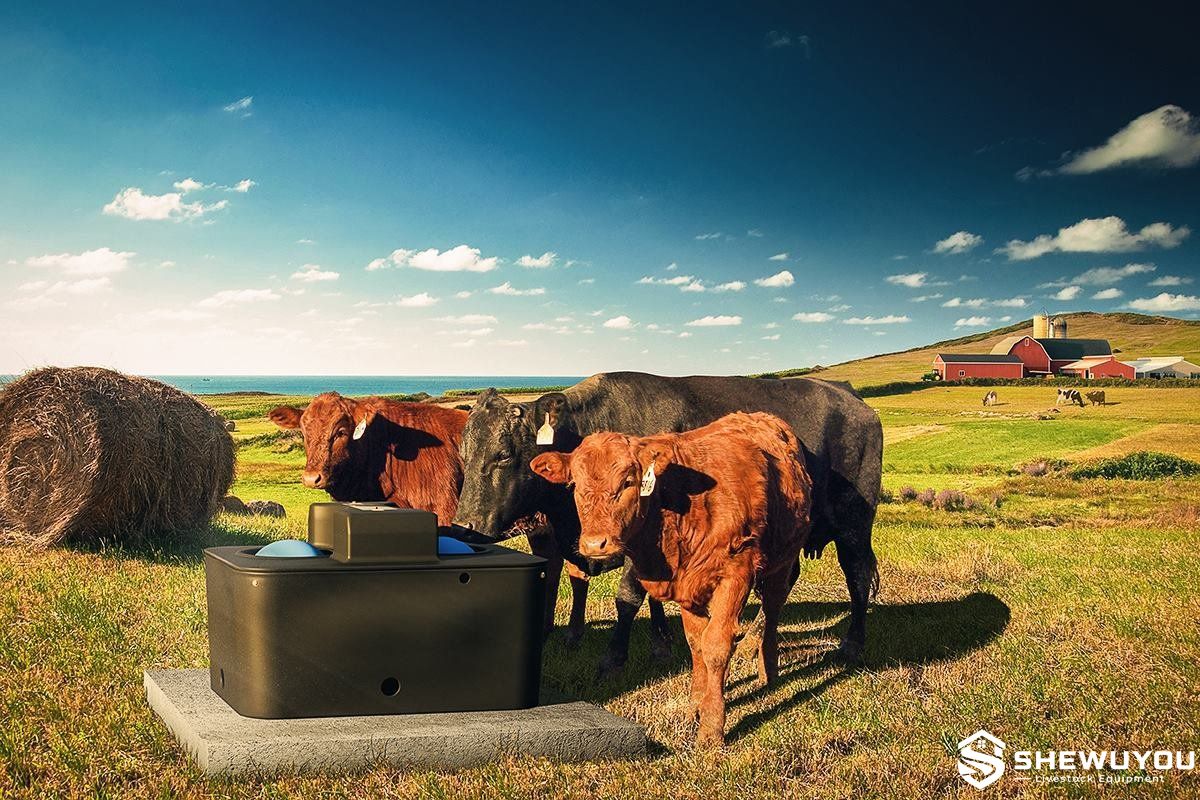

A typical cold-climate installation positions the waterer on a concrete pad above an insulated heat well. The water pipe rises through the protected underground opening from below frost depth, allowing relatively warm ground-supplied water to refill the insulated reservoir as cattle drink.

For integrated cattle projects, SHEWUYOU can configure energy-free waterers together with underground water pipelines, insulated risers, concrete foundations, cattle pen systems, drainage and steel structure farm buildings according to project requirements.

Q: Does an energy-free cattle waterer require electricity?
A: Under suitable installation and herd-use conditions, the standard energy-free configuration operates without a conventional electric trough heater. It relies on insulation, ground-temperature water and regular livestock usage.

Q: How do cattle drink through the ball closures?
A: Cattle push the insulated floating ball downward or sideways with the muzzle, drink through the opening and allow the ball to return after use.

Q: How many drinking openings does this model have?

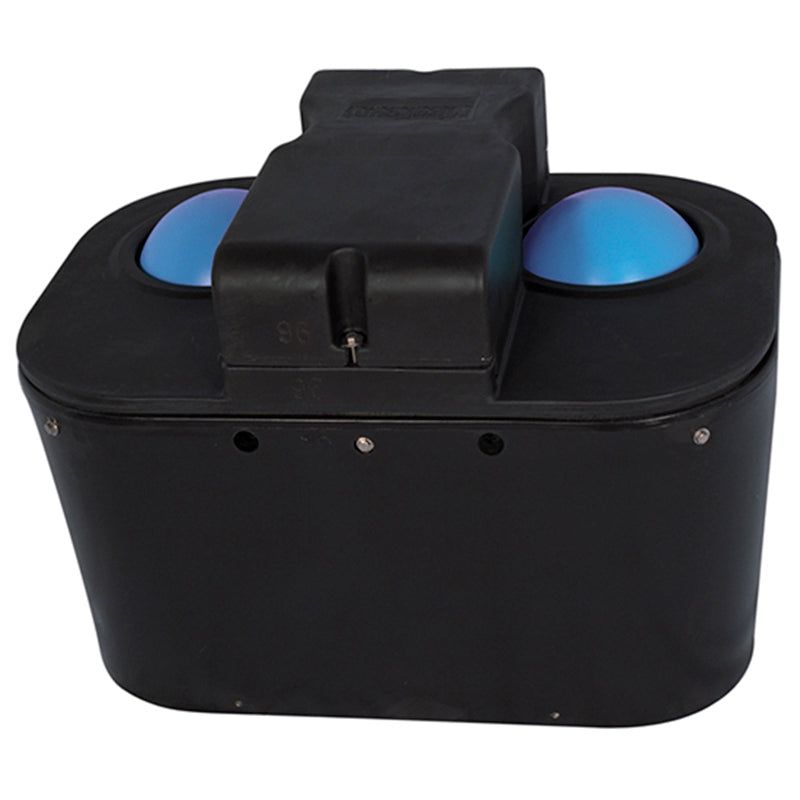

A: The reference MiraFount 3465 has two approximately 9.25-inch openings with 10-inch ball closures.

Q: How many cattle can the reference model serve?
A: Manufacturer guidance lists capacity for up to 100 beef cattle or 40 dairy cattle. Actual project sizing should consider water availability, climate, herd behavior and access conditions.

Q: Will it remain frost-free with only a few animals?
A: Energy-free winter performance requires sufficient livestock usage. Manufacturer guidance indicates that at least approximately 20 animals should use the waterer during prolonged subzero conditions; sites with lower usage may require a heated configuration.

Q: Why must the water line be below frost depth?
A: A deeply buried supply line remains in warmer ground and helps deliver water above freezing temperature while protecting the pipeline from severe ambient cold.

Q: Is the body corrosion resistant?
A: Yes. The primary housing is high-impact polyethylene, which is resistant to corrosion and suitable for outdoor livestock environments.

Q: Can SHEWUYOU customize a complete frost-free installation?
A: Yes. Waterer capacity, underground pipeline, insulated heat well, concrete pad, drainage and livestock housing integration can be configured according to local climate and project requirements.
