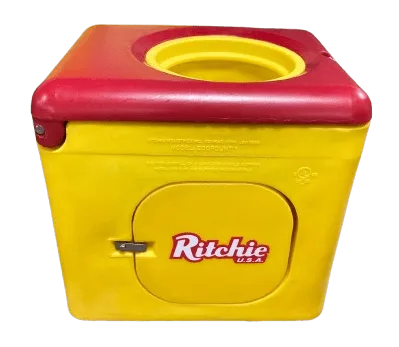

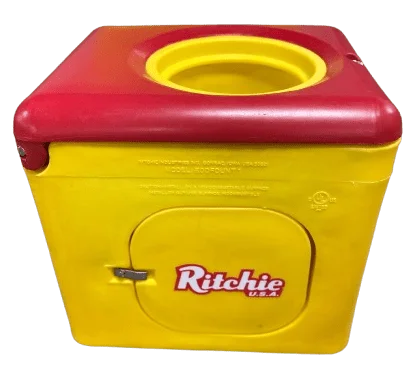

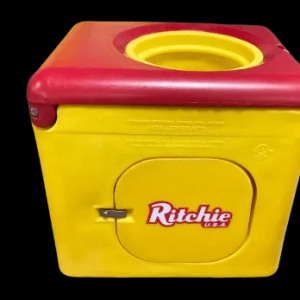

Single Heated Frost-Free Cattle Waterer

The Single Heated Frost-Free Cattle Waterer is a compact automatic livestock watering unit designed for cattle facilities, small pens, paddocks and cold-climate farm projects. It combines an insulated outer casing, stainless steel drinking trough, automatic float valve and thermostatically controlled electric heating system to help maintain access to drinking water during freezing conditions.

The single drinking opening is suitable for localized livestock watering points where a compact installation is preferred. A thermal cap and insulated body help reduce heat loss, while the internal heating system protects the trough, valve area and water supply components against freezing.

The unit can be installed in dairy barns, beef cattle facilities, steel structure livestock buildings and outdoor livestock areas. Electrical voltage, heating capacity, water connection and installation accessories can be configured according to project requirements.

• Single Drinking Opening: Compact design suitable for small cattle groups, pens and paddocks.
• Electric Frost Protection: Heating elements help maintain reliable water availability during severe winter conditions.
• Thermostatic Control: Adjustable thermostat activates heating according to temperature conditions.
• Fully Insulated Housing: Insulated casing reduces heat loss and improves winter energy efficiency.
• Stainless Steel Trough: Durable drinking surface provides corrosion resistance and convenient cleaning.
• Automatic Water Level: Float valve maintains the required drinking water level without manual filling.
• Thermal Drinking Cap: Helps retain heat in winter and can reduce warming and algae growth during summer.
• Valve and Supply-Line Protection: Additional cable heating can protect critical water components against freezing.
• Flip-Top Access: Hinged or removable upper structure simplifies inspection, cleaning and maintenance.
• Year-Round Operation: Suitable for winter frost protection and normal livestock watering throughout the year.

• Insulated polyethylene outer casing
• Single livestock drinking opening
• Stainless steel water trough
• Thermal drinking cap
• Automatic float valve
• Valve bracket and operating float
• Main electric heating element
• Supply-line cable heater
• Adjustable thermostat
• Water inlet connection
• Drain and overflow components
• Access panel
• Foundation anchoring points

The automatic float valve maintains the drinking water level. When cattle consume water, the float drops and opens the inlet valve. Fresh water enters the trough until the preset level is restored, after which the valve closes automatically.

During cold weather, the thermostat monitors temperature and controls the electrical heating components. The main heater protects the stainless steel trough, while a cable heater can provide additional protection around the valve and supply-line area.

The insulated housing and thermal cap reduce heat loss from the stored water. Correct installation over an insulated or frost-protected water riser further improves cold-weather reliability.

• Small dairy cattle pens
• Beef cattle paddocks
• Cow-calf operations
• Replacement heifer areas
• Breeding cattle facilities
• Winter cattle yards
• Outdoor livestock pens
• Small holding areas
• Steel structure cattle barns
• Cold-region livestock construction projects
• Farm renovation projects
• Automatic livestock watering systems

The single-drink configuration is particularly suitable for smaller animal groups or locations where several individual water stations are distributed throughout the livestock facility.

For commercial farm construction, the waterer can be coordinated with insulated pipelines, concrete foundations, electrical supply, cattle fencing and drainage systems.

• Housing dimensions
• Drinking capacity
• Stainless steel trough configuration
• Heating capacity
• 120 V / 240 V or project-specific electrical configuration
• Adjustable thermostat
• Valve pressure configuration
• Water inlet size
• Supply-line cable heater
• Thermal riser / frost tube configuration
• Drain and overflow arrangement
• Foundation anchoring hardware
• Cold-climate insulation package
• OEM packaging and labeling available upon request

Heating output, insulation, water connection and electrical configuration should be selected according to minimum winter temperature, frost depth, water pressure and local installation requirements.

Foundation Preparation: Install the unit on a level concrete pad with sufficient anchoring strength and drainage around the drinking area.

Frost-Protected Water Supply: Route the vertical supply line below the local frost depth and use an insulated thermal riser where required.

Secure Anchoring: Fasten the waterer to the foundation using suitable corrosion-resistant anchor bolts.

Water Connection: Connect the automatic valve to the farm water line and install an accessible shut-off valve for maintenance.

Electrical Connection: Heating components must be connected according to local electrical codes and the selected voltage configuration.

Thermostat Adjustment: Set the thermostat to provide adequate freeze protection without excessive energy consumption.

Valve Testing: Verify automatic refill, correct water level and leak-free valve operation before placing the unit into service.

Routine Cleaning: Open the top cover and use the drain system to remove sediment, feed residues and other contamination.

Winter Inspection: Before freezing weather, inspect the heater, thermostat, cable heater, insulation, valve and water-supply components.

Single heated waterers are suitable for small cattle pens and paddocks where dependable winter watering is required from one compact drinking point.

In cold-region cattle projects, the unit can be installed on a concrete pad with the water riser positioned below frost depth. An insulated thermal tube and cable heater can provide additional protection around the valve and underground supply connection.

For new livestock building projects, electrical supply, water pipeline routing, foundation dimensions and drainage can be planned together with the watering equipment during the construction design stage.

Q1: How does the heated cattle waterer prevent freezing?
The insulated housing reduces heat loss while thermostatically controlled electric heating protects the trough and critical water components during freezing conditions.

Q2: Does the waterer refill automatically?
Yes. An automatic float valve maintains the preset drinking water level.

Q3: Is it suitable for outdoor cattle pens?
Yes. The insulated heated design is suitable for small outdoor pens and paddocks when installed according to local winter conditions.

Q4: What is the reference heating power?
The comparable Ritchie EcoFount 1 uses a 173 W heating configuration at 120 V.

Q5: What is the reference water capacity?
The comparable EcoFount 1 has a capacity of approximately 3.5 gallons or 13 liters.

Q6: How many cattle can one unit serve?
A comparable manufacturer configuration is rated for up to 15 dairy cattle or 30 beef cattle. Actual requirements depend on animal size, climate, water demand and farm management.

Q7: Why is insulation important?
Insulation reduces heat loss, lowers heating demand and improves frost protection during cold weather.

Q8: Does the supply pipe also require frost protection?
Yes. The water riser should be protected below local frost depth, and thermal tubing or cable heating may be required according to climate conditions.

Q9: Is the unit easy to clean?
Yes. A flip-top access design and drain components allow convenient inspection, flushing and routine sanitation.

Q10: Can the electrical configuration be customized?
Yes. Voltage, heating capacity, insulation and installation accessories can be supplied according to project requirements.
