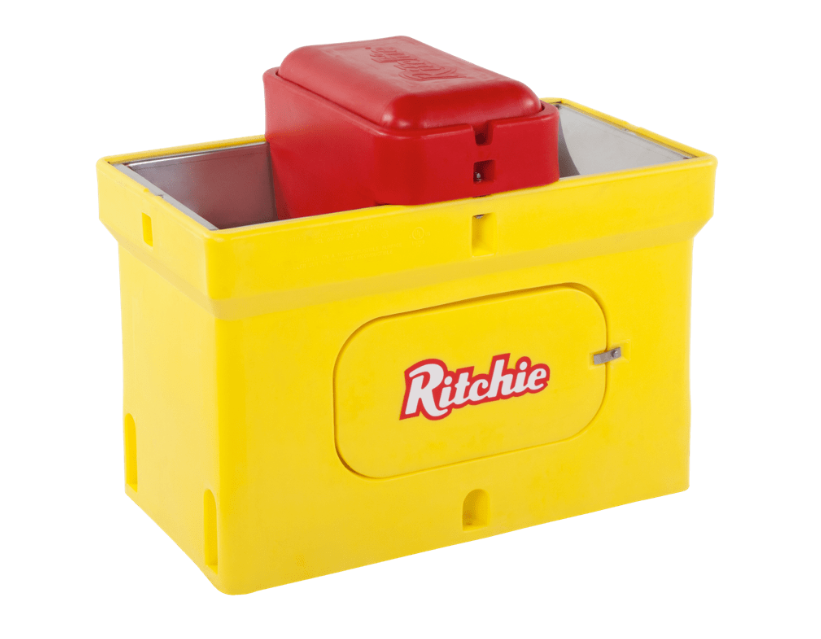

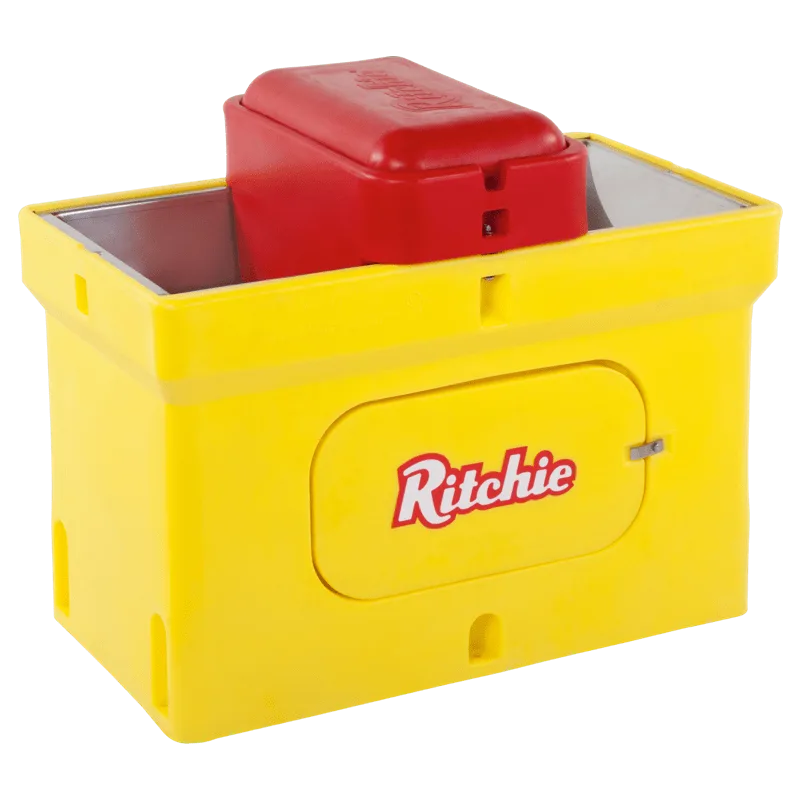

Stainless Steel Heated Cattle Waterer

The Stainless Steel Heated Cattle Waterer is a heavy-duty automatic livestock drinking system designed for dependable year-round operation in dairy farms, beef cattle operations, feedlots and cold-climate livestock facilities. The design combines a stainless-steel drinking trough with an insulated polyethylene body to provide both structural durability and improved thermal efficiency.

Thermostatically controlled heating elements are positioned directly beneath the stainless-steel trough to help prevent freezing during severe winter conditions. Additional freeze-protection components can be used around the valve and supply line according to the selected system configuration.

A quick-refill valve maintains a reliable supply of fresh water, while the large insulated housing, smooth rounded edges and service-access panel support safe operation and convenient maintenance in commercial cattle environments.

• Stainless-steel drinking trough provides corrosion resistance and long service life.
• Thermostatically controlled heating elements help maintain frost-free operation in winter.
• Fully insulated poly housing improves energy efficiency and reduces heat loss.
• Quick-refill automatic valve keeps fresh water available during high livestock demand.
• Large-capacity design is suitable for commercial dairy and beef cattle herds.
• Smooth rounded edges improve animal safety around the drinking area.
• Large service-access panel simplifies inspection of the valve, heater and water line.
• Double-sided drinking access supports installation along fence lines or between cattle pens.
• Suitable for connection to buried water lines below local frost depth.
• Electrical and water-supply configurations can be selected according to project requirements.

• Stainless-Steel Trough: Provides a durable, hygienic drinking surface and transfers heat efficiently from the heating elements below.
• Insulated Polyethylene Body: Protects internal plumbing and reduces heat loss during cold-weather operation.
• Thermostatically Controlled Heaters: Activate as required to protect the drinking trough from freezing.
• Automatic Refill Valve: Controls incoming water and restores the operating level after animals drink.
• Float Assembly: Regulates the automatic valve according to water level.
• Valve Cover: Protects the central water-control components from livestock contact.
• Supply-Line Freeze Protection: Compatible cable heater or thermal tube components can protect critical water-line areas.
• Service Access Panel: Provides convenient access to internal plumbing and electrical components.
• Drain System: Allows the trough to be emptied for routine cleaning and maintenance.
• Anchor Points: Allow secure installation on a prepared concrete base.

The waterer is connected to a pressurized livestock water line. As cattle drink and the water level falls, the float-operated valve opens and allows fresh water to refill the stainless-steel trough automatically.

During cold weather, thermostatically controlled heating elements mounted directly beneath the trough activate when required. Heat is transferred efficiently into the stainless-steel drinking basin while the insulated outer body reduces unnecessary heat loss.

For reliable winter operation, the incoming water line should be installed below the local frost depth and protected within a suitable thermal tube or equivalent insulated riser according to site conditions.

• Dairy cattle farms
• Beef cattle operations
• Feedlots and finishing units
• Cold-climate cattle barns
• Fence-line watering installations
• Shared cattle pen watering points
• Outdoor livestock yards
• Breeding and replacement-heifer facilities
• Steel structure cattle buildings
• Commercial livestock projects requiring frost-free water access

• Waterer capacity selectable according to herd size.
• Heating power and electrical configuration available according to local standards.
• Water inlet and valve configuration available according to project requirements.
• Thermal tube depth and extensions selectable according to local frost depth.
• Concrete pad and anchoring layout can be designed according to installation requirements.
• Fence-line or stand-alone installation configurations available.
• Additional supply-line freeze protection available upon request.
• Complete winter livestock watering systems can be configured according to farm conditions.

Concrete Base: Install the waterer on a stable, level concrete pad and secure it using suitable anchor bolts.

Water Supply: Route the livestock water line below the local frost depth and bring it vertically into the waterer through a suitable insulated thermal tube.

Electrical Connection: Heating components should be connected to a suitable protected electrical circuit by qualified personnel in accordance with local electrical regulations.

Valve Adjustment: Set the float and refill valve to maintain the required water depth without excessive overflow.

Winter Commissioning: Verify operation of the thermostat, trough heaters and supply-line freeze-protection components before freezing weather begins.

Cleaning: Drain and wash the stainless-steel trough regularly to remove feed particles, sediment and biological buildup.

Maintenance: Inspect the float valve, thermostat, heating elements, cable heater, electrical wiring, drain components and water connections periodically.

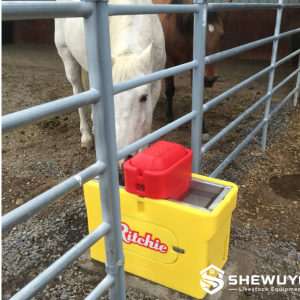

For commercial cattle operations in freezing climates, the heated waterer can be installed along a fence line so cattle from adjacent pens share the same drinking unit. The water supply is routed below frost depth and protected within an insulated thermal tube, while the thermostatically controlled trough heaters maintain winter drinking access.

For integrated livestock projects, SHEWUYOU can configure heated waterers together with underground water pipelines, thermal risers, electrical controls, cattle pen systems, drainage and steel structure livestock buildings according to project requirements.

Q: How does the waterer prevent freezing?
A: Thermostatically controlled heating elements are installed directly beneath the stainless-steel trough, while the insulated housing helps retain heat. Additional protection can be provided around the valve and incoming water line.

Q: Is the entire waterer made from stainless steel?
A: No. The reference design combines a stainless-steel drinking trough with a durable insulated polyethylene outer body to balance corrosion resistance, strength and thermal efficiency.

Q: Does it refill automatically?
A: Yes. A float-operated quick-refill valve restores the water level automatically as livestock drink.

Q: How many cattle can one unit serve?
A: The reference OmniFount 5 is rated by the manufacturer for up to 150 beef cattle or 75 dairy cows. Actual project sizing should consider climate, water availability, animal category and drinking-point access.

Q: Can it be installed between two cattle pens?
A: Yes. The reference unit is suitable for fence-line installation and can provide access from opposite sides.

Q: Is a buried water line required?
A: In freezing climates, the supply line should generally be routed below the local frost depth and protected with an appropriate insulated riser or thermal tube.

Q: Does the heater run continuously?
A: No. Thermostatic control allows the heating system to operate according to temperature conditions rather than remaining continuously energized.

Q: Can SHEWUYOU customize the complete frost-free watering system?
A: Yes. Waterer capacity, electrical configuration, underground pipe routing, thermal tube depth, drainage and installation layout can be configured according to local climate and project requirements.
