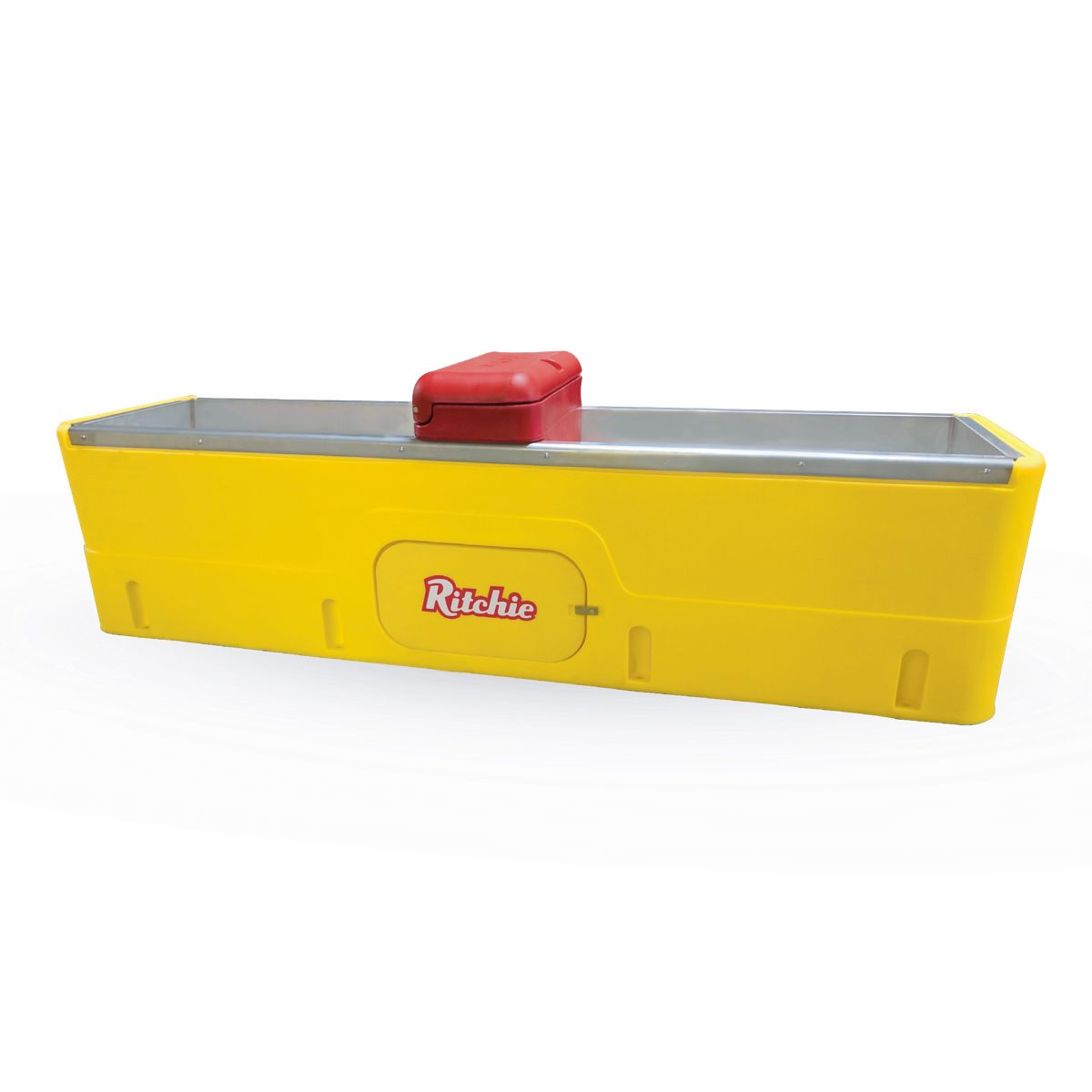

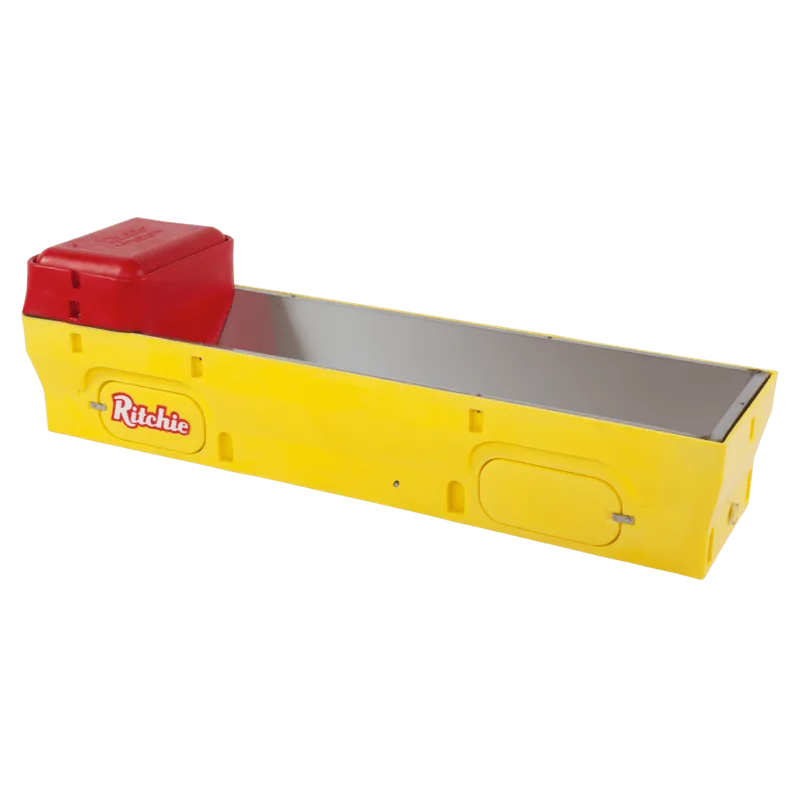

Large Heated Cattle Water Trough

The Large Heated Cattle Water Trough is a high-capacity automatic livestock watering system designed for commercial dairy farms, beef cattle operations, large pastures, feedlots and cold-climate livestock facilities. The reference design combines a long 304 stainless-steel drinking trough with a heavily insulated impact-resistant polyethylene casing.

Thermostatically controlled electric heating provides broad freeze protection across the trough, while an additional cable heater protects the valve and water-supply area. A quick-refill automatic valve restores the water level as cattle drink, helping maintain reliable access during periods of high herd demand.

With its long open drinking area and low drinking height, the waterer is particularly suitable for large groups of dairy and beef cattle. Installation configuration, heating system, water-line depth and electrical supply can be designed according to local climate and farm conditions.

• Large-capacity trough designed for high-volume commercial cattle watering.
• 304 stainless-steel trough and hardware provide durability and corrosion resistance.
• Heavy-duty roto-moulded polyethylene casing resists impact in livestock environments.
• Thick insulation helps reduce winter heat loss and improve energy efficiency.
• Thermostatically controlled electric heating supports frost-free operation.
• Cable heater provides additional protection around the valve and incoming water line.
• Quick-refill valve helps maintain water availability during peak drinking periods.
• UV inhibitors improve outdoor durability of the polyethylene housing.
• Large removable dome cover provides convenient access for inspection and servicing.
• Suitable for large cattle pens, pastures, feedlots and fence-line installations.

• 304 Stainless-Steel Trough: Long drinking basin designed for simultaneous access by multiple cattle.
• Insulated Polyethylene Casing: Impact-resistant outer housing with thermal insulation and UV protection.
• Thermostatically Controlled Heaters: Heating elements positioned to provide winter freeze protection.
• Cable Heater: Protects the valve and critical water-line section from freezing.
• Quick-Refill Valve: Automatically supplies fresh water as the trough level falls.
• Float Assembly: Controls valve operation according to the water level.
• Dome Cover: Protects internal valve and heating components while allowing convenient service access.
• Water Seal: Helps reduce cold-air movement toward the valve area.
• Drain Assembly: Allows the trough to be emptied during cleaning and service procedures.
• Anchoring Points: Allow secure installation on a suitable concrete base.

The waterer connects to a pressurized livestock water line. As cattle consume water, the float level drops and opens the quick-refill valve. Fresh water enters the trough until the preset level is restored.

During freezing weather, thermostatically controlled heaters activate automatically according to temperature conditions. Heat is transferred to the stainless-steel trough while the insulated polyethylene casing limits heat loss.

A separate cable heater protects the valve and supply-line zone. The incoming water pipe should be routed below local frost depth and protected through an appropriate thermal riser system.

This combination of insulation, electric heat, protected plumbing and automatic refill provides reliable drinking-water access during severe winter conditions.

• Large dairy cattle farms
• Beef cattle operations
• Feedlots and finishing facilities
• Large pasture watering points
• Cold-climate cattle housing
• Fence-line drinking installations
• Shared livestock pen watering stations
• Breeding and replacement-heifer facilities
• Steel structure cattle barns
• Commercial livestock projects requiring winter freeze protection

• Trough length and capacity available according to herd requirements.
• Electrical configuration available according to local standards.
• Heating capacity configurable according to climate conditions.
• Water inlet and valve configuration available according to project requirements.
• Thermal tube length selectable according to local frost depth.
• Concrete pad and anchoring layout available according to installation conditions.
• Fence-line and stand-alone installation configurations available.
• Complete frost-free livestock watering systems available upon request.

Concrete Base: Install the unit on a stable, level concrete pad capable of supporting the filled waterer and repeated cattle contact.

Anchoring: Secure the waterer with suitable stainless-steel or corrosion-resistant anchor bolts after confirming final unit position.

Water Supply: Route the incoming livestock water line below local frost depth and bring it vertically into the unit through an insulated thermal tube.

Electrical Connection: Connect heaters and thermostat to a protected electrical circuit in accordance with local electrical codes and project requirements.

Water Level: Adjust the float and quick-refill valve to maintain the required drinking depth without unnecessary overflow.

Winter Commissioning: Check thermostat operation, trough heaters, cable heater and supply-line protection before freezing temperatures occur.

Cleaning: Drain and wash the stainless-steel trough regularly to remove sediment, feed particles and biological buildup.

Maintenance: Inspect heaters, thermostat, valve, float, cable heater, drain components, access covers and electrical connections periodically.

For large commercial beef or dairy operations, the waterer can be installed along a pen division or in an open pasture access area where multiple cattle can drink simultaneously. The long stainless-steel trough and fast-refill valve are suited to locations with high peak drinking demand.

For integrated livestock projects, SHEWUYOU can configure heated cattle troughs together with underground water pipelines, thermal risers, electrical controls, concrete foundations, pen systems, drainage and steel structure cattle buildings according to project requirements.

Q: How does this large cattle trough remain frost-free?
A: Thermostatically controlled electric heaters provide heat directly to the trough, while a cable heater protects the valve and supply-line area. The insulated casing reduces heat loss.

Q: Is the complete waterer made from stainless steel?
A: No. The reference design uses a 304 stainless-steel trough and hardware combined with a heavy-duty insulated polyethylene outer casing.

Q: How much water does the reference trough hold?

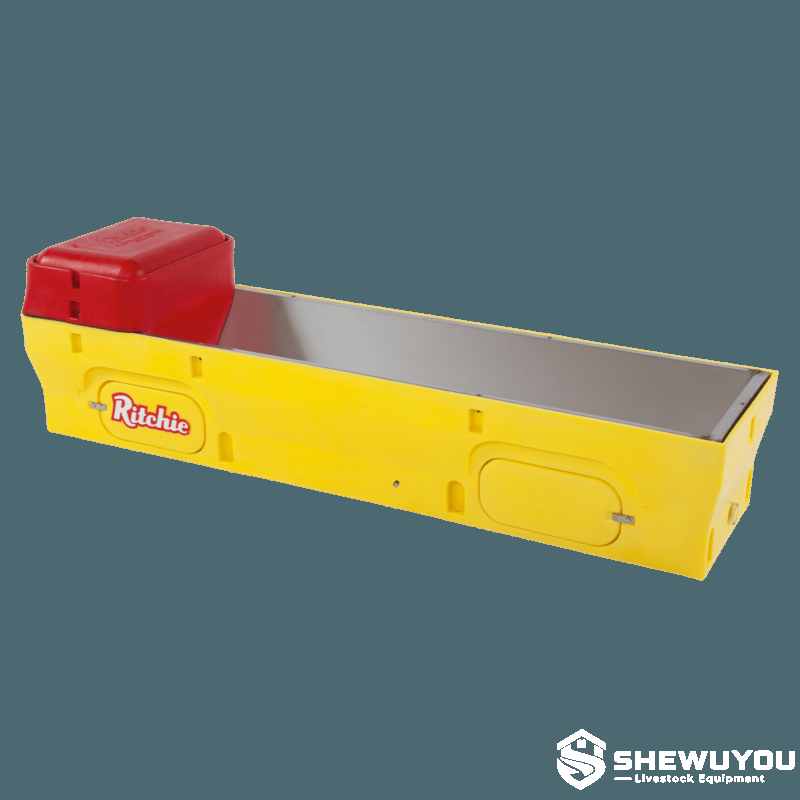

A: The reference CattleMaster 840 configuration holds approximately 35 US gallons, or about 133 litres.

Q: How many cattle can one unit serve?
A: Manufacturer guidance rates the reference unit for up to 300 beef cattle or 150 dairy cows. Actual project sizing should consider climate, water pressure, livestock density and access conditions.

Q: Does the unit refill automatically?
A: Yes. A float-controlled quick-refill valve restores the water level as cattle drink.

Q: Is a buried water line required in freezing climates?
A: The water line should generally be installed below local frost depth and protected through a suitable insulated thermal riser.

Q: Can it be installed outdoors?
A: Yes. The insulated UV-stabilized polyethylene housing and stainless-steel drinking components are designed for demanding outdoor livestock environments.

Q: Can SHEWUYOU customize the complete winter watering system?
A: Yes. Trough capacity, heating system, underground pipeline, electrical controls, thermal tube depth, drainage and installation layout can be configured according to project requirements.
