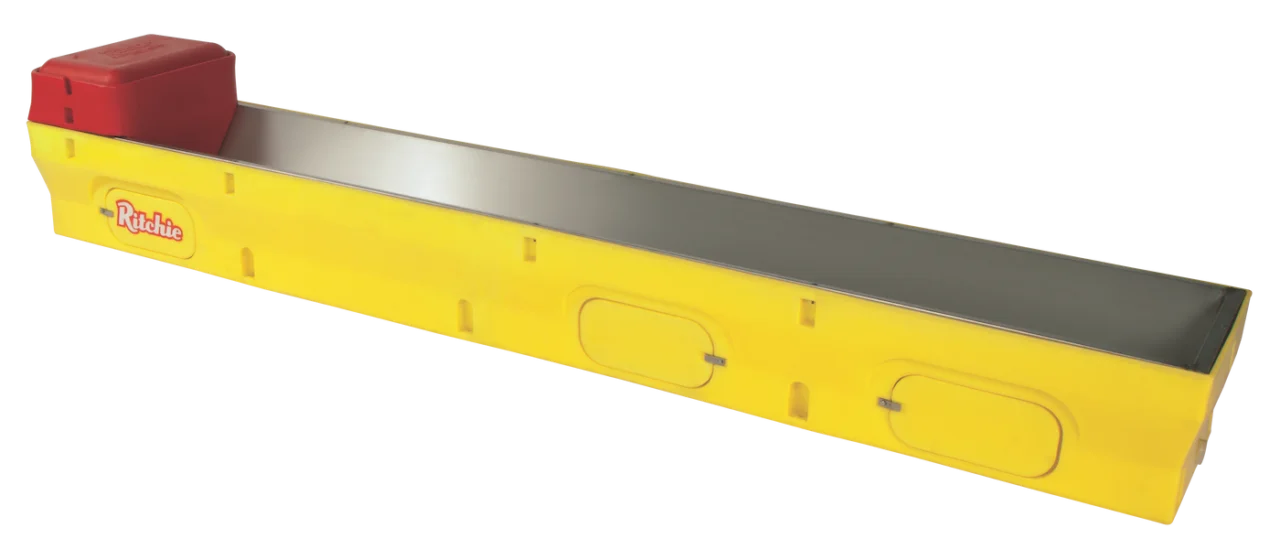

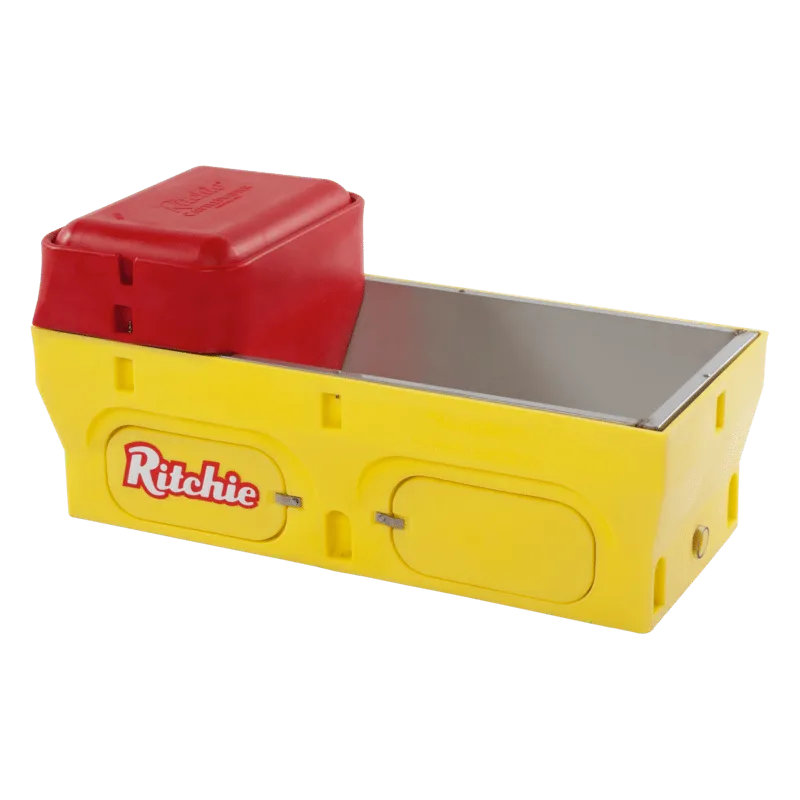

Large Capacity Heated Cattle Waterer

The Large Capacity Heated Cattle Waterer is an automatic livestock watering system designed for commercial dairy farms, beef cattle operations, feedlots and large outdoor pens where dependable water availability is required throughout the year.

The waterer combines a heavily insulated, impact-resistant polyethylene casing with a durable stainless steel drinking trough. Thermostatically controlled electric heating is positioned beneath the trough to help maintain ice-free operation during freezing weather, while an automatic quick-refill valve restores the drinking-water level as cattle consume water.

Large drinking access and high refill capacity make this type of waterer suitable for high-volume livestock applications. Heating capacity, electrical supply, water inlet arrangement and cold-weather protection can be configured according to herd size, local climate and farm construction requirements.

• Large Herd Capacity: Designed for high-volume livestock watering in commercial dairy and beef cattle operations.
• Thermostatically Controlled Heating: Electric heating activates according to temperature conditions to help maintain frost-free operation.
• Heavily Insulated Housing: Insulated roto-molded casing reduces heat loss and improves winter energy efficiency.
• Impact-Resistant Polyethylene: Heavy-duty outer casing withstands demanding livestock environments.
• 304 Stainless Steel Trough: Corrosion-resistant drinking surface provides durability and easy sanitation.
• Quick Automatic Refill: High-capacity float valve helps maintain adequate water availability during peak drinking periods.
• Water Seal Protection: Internal sealing design helps keep cold air away from the valve chamber.
• Supply-Line Heating: Cable heater provides additional freeze protection for the valve and incoming water line.
• Adjustable Thermostat: Heating performance can be set according to seasonal conditions.
• Sloped Trough Floor: Drain-oriented design simplifies washing, sediment removal and routine maintenance.
• UV-Resistant Construction: UV inhibitors improve durability in outdoor pasture and feedlot applications.
• Constant Flow Option: Alternative winter-management configurations are available according to project requirements.

• Heavy-duty insulated polyethylene casing
• 304 stainless steel drinking trough
• Stainless steel mounting hardware
• Thermostatically controlled electric heaters
• Adjustable thermostat
• Automatic high-capacity float valve
• Water-level control float
• Protected valve chamber
• Cold-air water seal system
• Supply-line cable heater
• Easy-access service cover
• Drain plug and drainage assembly
• Optional thermal supply tube
• Concrete-base anchoring hardware

The waterer is connected to a pressurized farm water supply. As cattle drink and the trough water level falls, the float mechanism opens the inlet valve and automatically introduces fresh water.

Once the preset water level is restored, the valve closes. The high refill capacity helps maintain drinking-water availability when several animals use the trough during the same period.

During cold weather, the thermostat activates the heating elements positioned beneath the stainless steel trough. The insulated casing reduces heat loss, while supplementary cable heating protects the valve and supply-line area.

Correct installation of the incoming water line below the local frost depth, together with suitable thermal protection around the riser, is important for dependable winter operation.

Reference specifications are based on a comparable professional large-capacity heated cattle waterer. Final capacity, heating power, voltage, dimensions, herd capacity and plumbing configuration should be confirmed according to project requirements.

• Large commercial dairy farms
• Beef cattle ranches
• Feedlots and finishing yards
• Large cattle pens and paddocks
• Free-stall dairy barns
• Replacement heifer facilities
• Cattle breeding centers
• Cold-climate livestock farms
• Outdoor winter watering stations
• Steel structure cattle barns
• Farm modernization projects
• Large agricultural livestock projects

SHEWUYOU can configure large-capacity heated cattle waterers according to herd size, winter temperature, water pressure, barn layout and livestock project requirements.

• Waterer length and drinking capacity
• Heating power according to local climate
• Electrical voltage and frequency
• Automatic valve capacity
• Water inlet size and position
• High-pressure or low-pressure valve options
• Constant-flow configuration
• Supply-line cable heater
• Thermal tube length according to frost depth
• Drain and clean-out configuration
• Concrete pad and anchoring layout
• OEM labeling and project-specific packaging

The waterer should be installed on a stable and level concrete pad with the incoming water line and electrical conduit prepared before the unit is anchored in position.

• Determine herd access and livestock traffic before selecting the installation point.
• Prepare a level concrete foundation with suitable drainage around the waterer.
• Install the incoming water pipe below the local frost depth where required.
• Use a thermal tube around the vertical supply riser in freezing climates.
• Anchor the waterer securely to the concrete pad.
• Connect the automatic refill valve to a water supply capable of meeting peak herd demand.
• Install electrical heating components according to local electrical regulations.
• Provide suitable grounding and circuit protection for wet livestock environments.
• Adjust the thermostat and water level before severe winter conditions.
• Clean the stainless steel trough and drain system regularly.
• Inspect heaters, cable heater, thermostat, float valve and seals before each winter season.
• Keep access panels and service covers securely closed during normal livestock operation.

Q1: What makes this waterer suitable for large cattle herds?

The combination of a large drinking trough, automatic quick-refill valve and high-capacity water supply makes it suitable for commercial herds with high peak drinking demand.

Q2: How does the waterer remain operational in freezing weather?

Thermostatically controlled heaters warm the stainless steel trough, while insulated casing, valve protection and optional supply-line heating help reduce freezing risk.

Q3: Does the trough refill automatically?

Yes. An automatic float valve opens as the water level falls and closes when the preset drinking level is restored.

Q4: How many cattle can the reference configuration serve?

The current referenced CattleMaster 480 configuration is rated for up to approximately 180 beef cattle or 90 dairy cattle under suitable water-supply conditions.

Q5: Is stainless steel used in the drinking area?

Yes. Comparable professional systems use a 304 stainless steel trough and stainless steel hardware for durability and corrosion resistance.

Q6: Can the system be installed outdoors?

Yes. Impact-resistant polyethylene housing with UV inhibitors is suitable for large pastures, outdoor pens and feedlot applications when installed according to local climate requirements.

Q7: Does the underground water line require frost protection?

Yes. The water supply should be installed according to local frost-depth requirements, with thermal tubing and supplementary heating where necessary.

Q8: Can SHEWUYOU configure larger waterers for bigger herds?

Yes. Longer troughs, higher heating capacity, larger herd configurations and project-specific plumbing systems can be supplied according to farm requirements.
