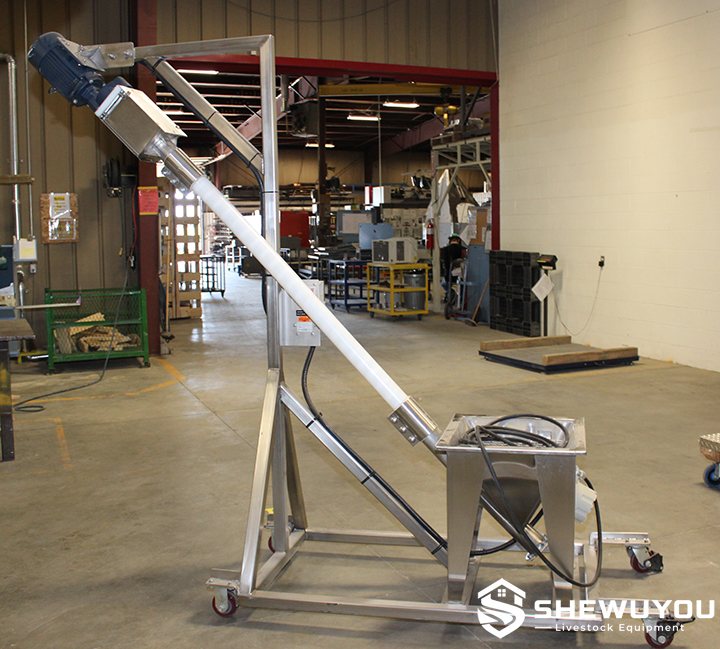

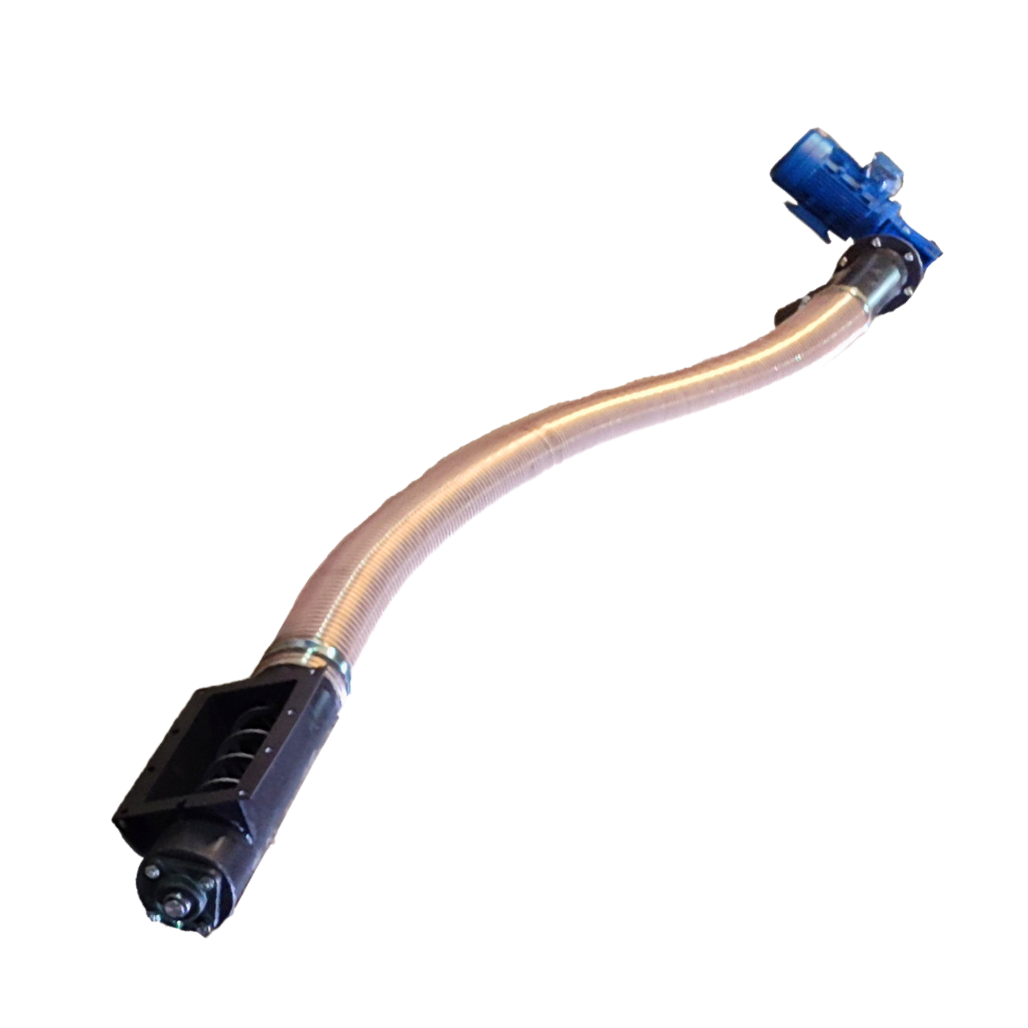

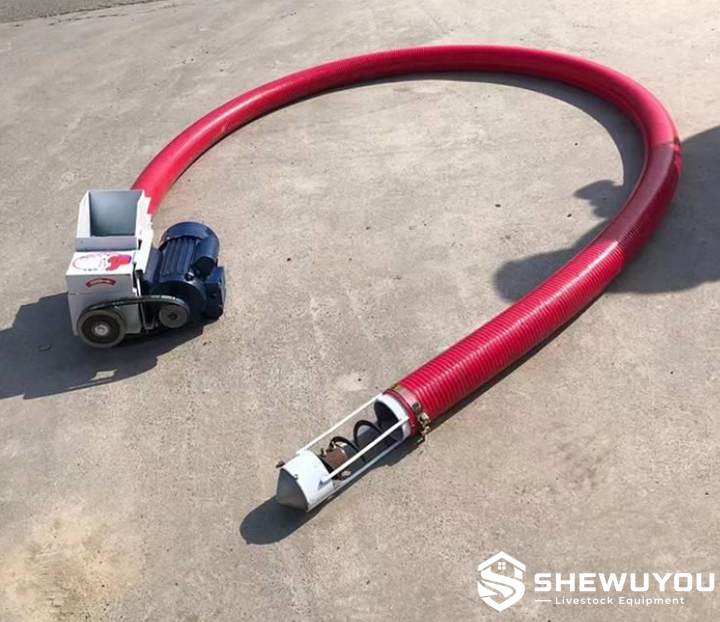

Flexible Screw Feed Conveyor

The Flexible Screw Feed Conveyor is an automatic material conveying system designed for transporting poultry feed, livestock feed, grain and other dry bulk materials between storage equipment and feeding points.

The system uses a rotating spiral screw inside a flexible tube to move feed efficiently through complex farm layouts. Compared with traditional rigid conveyors, the flexible design allows easier installation around walls, equipment and existing building structures.

It is suitable for poultry farms, pig farms, livestock production facilities, feed storage rooms and steel structure livestock buildings. The conveyor can be connected with feed silos, hoppers, day bins and automatic feeding systems according to project requirements.

• Flexible installation: The conveyor route can be adjusted around obstacles and existing farm structures.
• Automatic feed transportation: Provides continuous feed movement from silos or storage bins to feeding equipment.
• Space-saving design: Requires fewer support structures compared with conventional rigid conveying systems.
• Wide material compatibility: Suitable for dry poultry feed, livestock feed, pellets and granular materials.
• Labor reduction: Helps improve farm feeding efficiency by reducing manual material handling.
• Easy integration: Compatible with feed silos, automatic feeders and farm automation systems.
• Simple maintenance: Modular components simplify inspection and replacement.
• Farm project adaptability: Suitable for new installations and livestock building upgrades.

• Flexible conveyor tube
• Spiral screw auger
• Drive motor and gearbox
• Feed inlet hopper
• Feed outlet connection
• Mounting brackets
• Connection accessories
• Optional sensors and control components

Feed enters the conveyor through the inlet connected to a silo, hopper or storage container.

The motor rotates the spiral screw inside the flexible tube, pushing feed continuously toward the discharge point.

The flexible tube allows the conveying route to change direction, making the system suitable for complicated livestock building layouts.

• Product Type: Flexible screw conveyor
• Application: Poultry feed and livestock feed transportation
• Conveying Method: Spiral screw transport
• Conveyor Length: Customizable
• Capacity: Available upon request
• Drive Power: Selected according to conveying distance and material requirements
• Feed Materials: Powder, granules and pellets
• Installation: Indoor or protected outdoor installation
• Design: Designed according to local climate and farm conditions

• Commercial poultry farms
• Pig farm feeding systems
• Feed silo discharge systems
• Automatic poultry feeding lines
• Livestock feed storage facilities
• Steel structure livestock buildings
• Turnkey livestock equipment projects

• Conveyor length
• Tube diameter
• Motor power configuration
• Feed inlet and outlet design
• Feed silo connection
• Automatic feeder integration
• Complete feed conveying solution according to project requirements

Installation: Install the conveyor between the feed source and destination equipment while maintaining a suitable bending radius.

Commissioning: Check motor direction, screw rotation, feed flow and connection points before operation.

Maintenance: Inspect the motor, spiral screw, flexible tube and fittings regularly.

Cleaning: Clean according to feed type and farm hygiene requirements.

Q: What materials can this conveyor transport?
It is suitable for dry poultry feed, livestock feed, pellets and granular materials.

Q: Can the conveyor route include bends?
Yes. The flexible tube design allows installation around obstacles.

Q: Can it connect to feed silos?
Yes. It can connect silos, hoppers and automatic feeding systems.

Q: Is it suitable for farm renovation?
Yes. Flexible installation makes it suitable for upgrading existing livestock buildings.

Q: Can specifications be customized?
Yes. Length, capacity and drive configuration can be designed according to project requirements.
