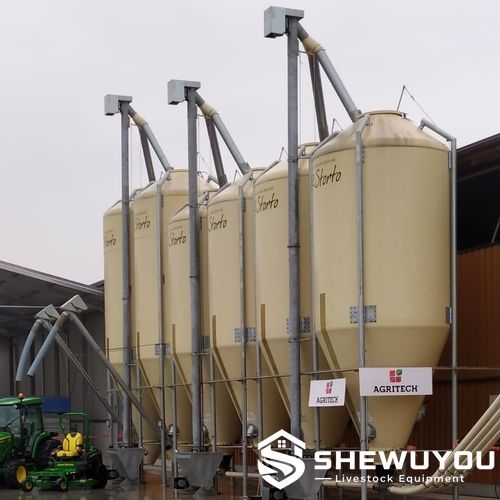

Vertical Screw Feed Conveyor

The Vertical Screw Feed Conveyor is designed for vertical elevation of dry animal feed, grain, pellets and suitable granular or powder materials in poultry farms, livestock facilities and feed handling projects. The compact tubular design transfers material from a low-level receiving hopper to an elevated discharge point while occupying limited floor space.

The system can be integrated with feed silos, day bins, mixers, weighing equipment and automatic feeding lines. Conveyor height, tube diameter, hopper configuration, drive power and discharge arrangement can be engineered according to feed characteristics, required capacity and project layout.

• Vertical Feed Elevation: Transfers bulk feed upward where floor space is limited or a high discharge point is required.
• Enclosed Tubular Design: Helps contain feed and dust during material transfer.
• Top-Mounted Drive: Motor and drive assembly can be positioned at the upper end of the conveyor.
• Covered Receiving Hopper: Provides controlled feed introduction at the conveyor base.
• Galvanized Construction: Hot-dip galvanized steel is suitable for demanding agricultural and livestock equipment environments.
• Flexible Configuration: Available in different lengths and diameters according to lifting height and conveying requirements.
• Automatic Integration: Can be connected with level sensors, timers, feed controllers and centralized feeding systems.
• Project-Oriented Installation: Suitable for feed silo projects, poultry houses, pig farm construction and steel structure building applications.

• Vertical Conveyor Tube: Enclosed tubular housing that guides feed during vertical transport.
• Screw Flight Assembly: Rotating screw mechanism that elevates material through the tube.
• Receiving Hopper: Base hopper for collecting dry feed, grain or other compatible bulk products.
• Top Drive Unit: Electric motor and transmission assembly powering the screw conveyor.
• Upper Discharge Head: Directs elevated feed into a silo, hopper, mixer or downstream conveyor.
• Support Structure: Brackets and structural supports maintain vertical alignment and installation stability.
• Control Components: Electrical controls, level sensors and safety devices available according to project requirements.

Dry feed enters the receiving hopper at the bottom of the conveyor. The electric drive rotates the internal screw, continuously moving the material upward through the enclosed vertical tube.

At the upper end, feed exits through the discharge outlet and can be transferred into a storage silo, day bin, feed mixer or secondary distribution system. Automatic controls can coordinate conveyor operation with upstream and downstream equipment.

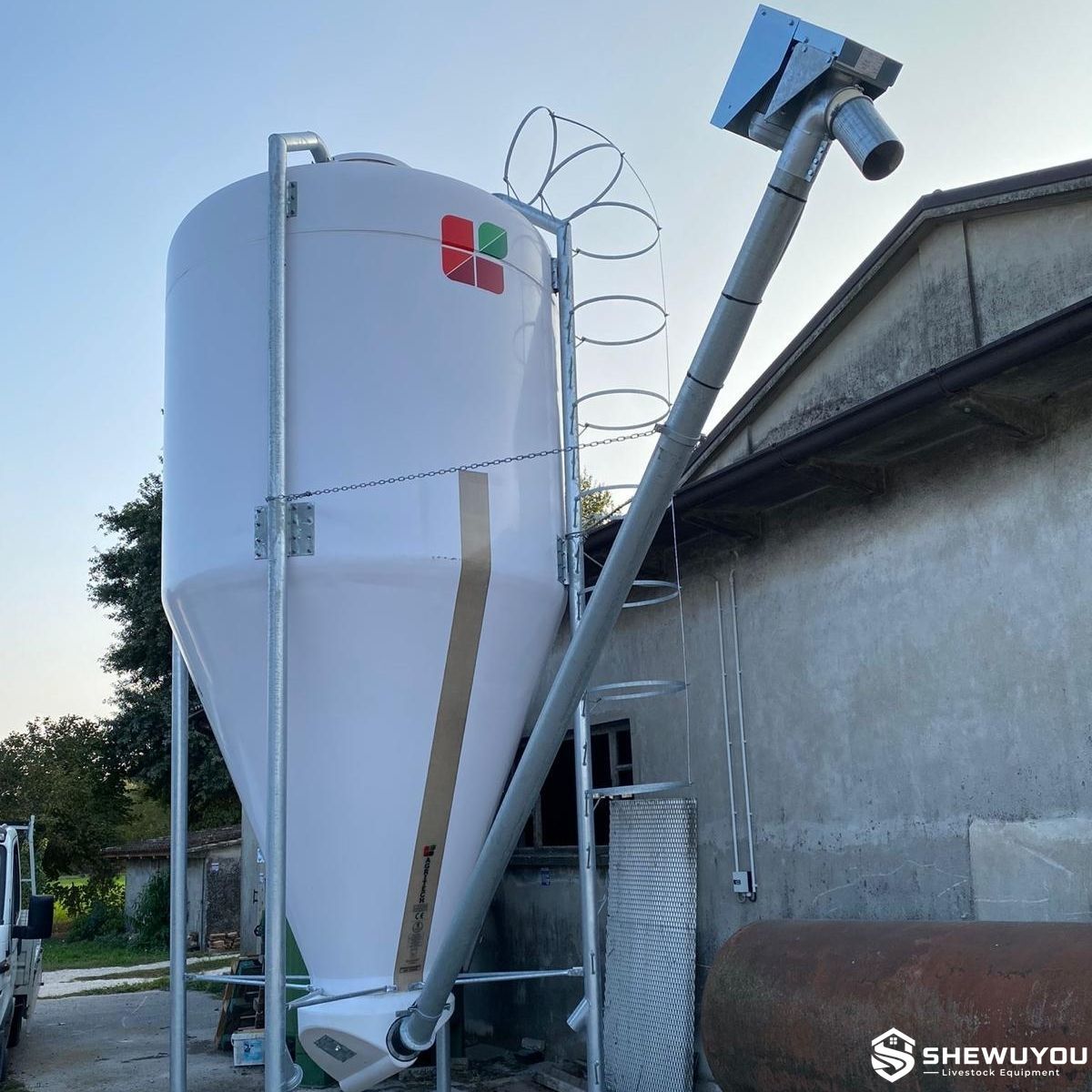

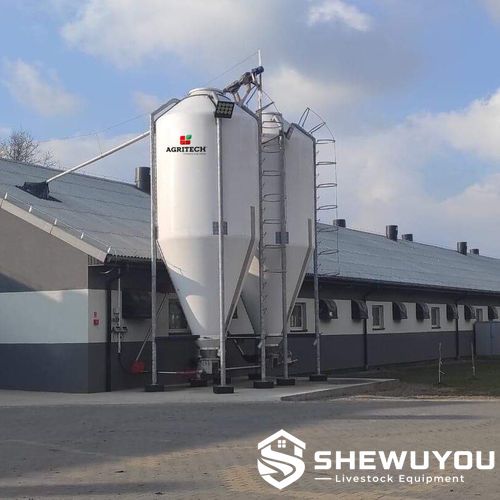

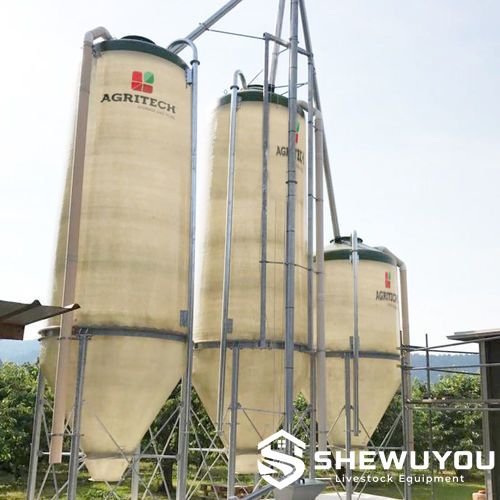

• Loading poultry and livestock feed silos
• Elevating grain and compound feed
• Commercial poultry feeding projects
• Pig farm feed handling systems
• Feed mills and on-farm feed preparation systems
• Day-bin and mixer filling
• Automatic silo and conveyor systems
• Livestock equipment and steel structure building projects

• Vertical lifting height
• Screw and tube diameter
• Hot-dip galvanized or stainless steel construction
• Receiving hopper dimensions
• Feed inlet and discharge orientation
• Motor and gearbox selection
• Support-frame configuration
• Level sensors and automatic controls
• Integration with silos, mixers and feed conveying lines
• Designed according to local climate, building layout and farm conditions

The conveyor should be installed vertically with suitable structural supports at the base and along the tube. Alignment between the receiving hopper, conveyor tube, screw assembly and upper drive unit is important for stable operation. Support requirements should be coordinated with the livestock building or steel structure design.

Routine maintenance includes inspecting the screw, bearings, drive motor, transmission components, hopper, discharge head and structural supports. Guards and electrical isolation procedures should be used before servicing moving components.

Q: What is a vertical screw feed conveyor used for?
A: It is used to elevate dry bulk materials such as animal feed, grain and pellets from a lower receiving point to an elevated silo, hopper, mixer or conveyor.

Q: Can the conveyor be used to fill a feed silo?
A: Yes. Vertical screw conveyors are suitable for lifting compatible dry feed materials to elevated storage silos and day bins.

Q: Are different conveyor heights available?
A: Yes. Conveyor height and diameter can be selected according to the required discharge elevation, conveying capacity and project layout.

Q: Can stainless steel construction be supplied?
A: Yes. Material configuration can be selected according to feed characteristics, corrosion conditions and project requirements.

Q: Can the conveyor operate automatically?
A: Yes. Sensors, control panels and farm-management systems can be integrated to coordinate automatic feed transfer.

Q: Can SHEWUYOU customize the complete conveying system?
A: Yes. Conveyor height, diameter, hopper, drive unit, discharge arrangement, structural supports and control equipment can be configured according to project requirements.
