Product Name	Compact Electric Feed Pusher
Product Image
Product Overview	The Compact Electric Feed Pusher is a battery-powered livestock feeding machine designed to move scattered TMR, silage and forage back toward the feed fence while cleaning loose material from the feed alley. Its compact self-propelled chassis, integrated pushing and sweeping mechanism and small turning radius make it suitable for dairy barns and cattle houses where larger tractors or loaders are inconvenient to operate. Electric propulsion provides low-noise, zero-exhaust operation at the point of use and helps reduce labor requirements for routine feed-bunk maintenance.
Key Features	Push & Sweep Integration: Combines feed repositioning and alley sweeping in one working pass. Compact Design: Suitable for narrow feed alleys, smaller cattle barns and restricted turning areas. Electric Drive: Battery-powered operation reduces exhaust emissions, fuel use and operating noise. Curved Pushing Mechanism: Helps guide loose forage and TMR toward the cattle feeding line. Rotating Auger: Assists with moving and turning feed instead of simply compressing the ration against the bunk. Single-Operator Control: Simple driving and attachment controls support efficient daily operation. Flexible Battery Options: Lead-acid or lithium battery configurations are available. Low Routine Maintenance: Electric propulsion reduces maintenance requirements compared with conventional combustion-engine equipment.

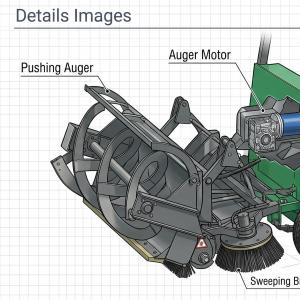

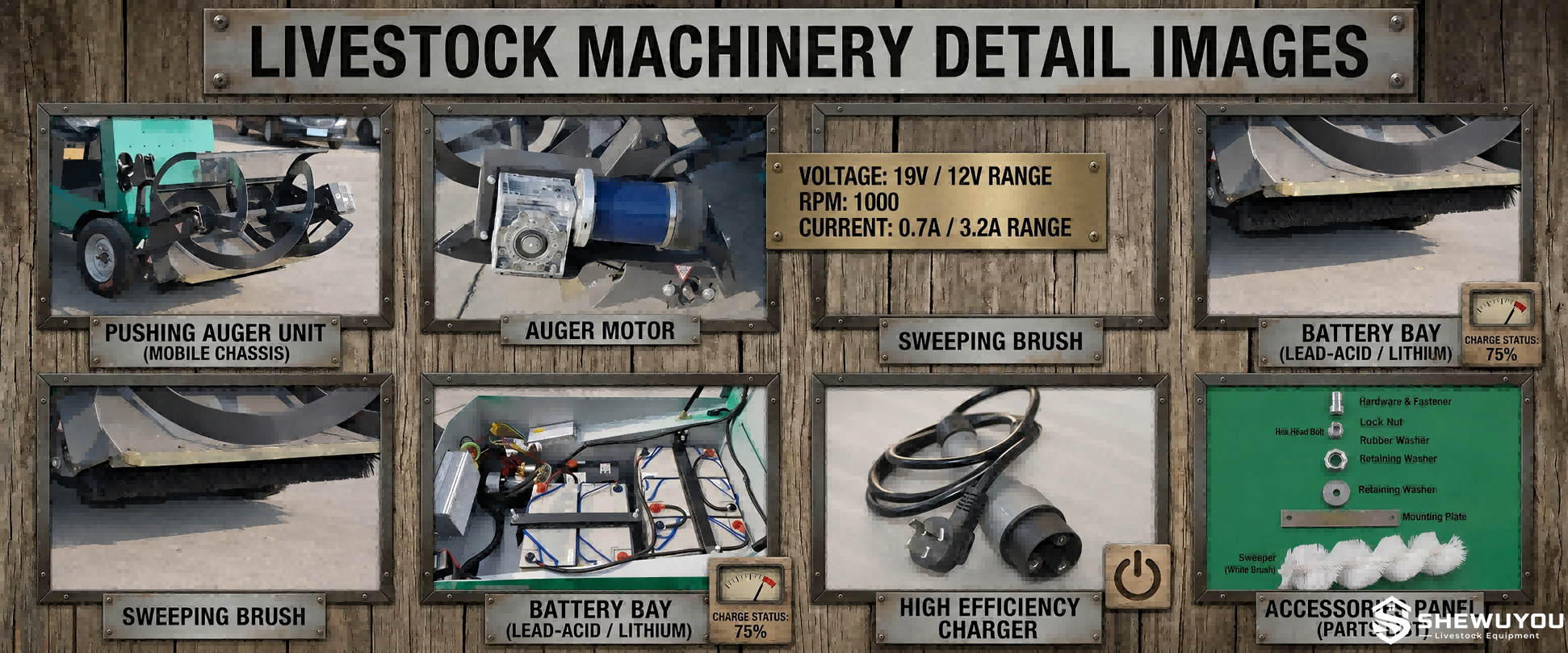

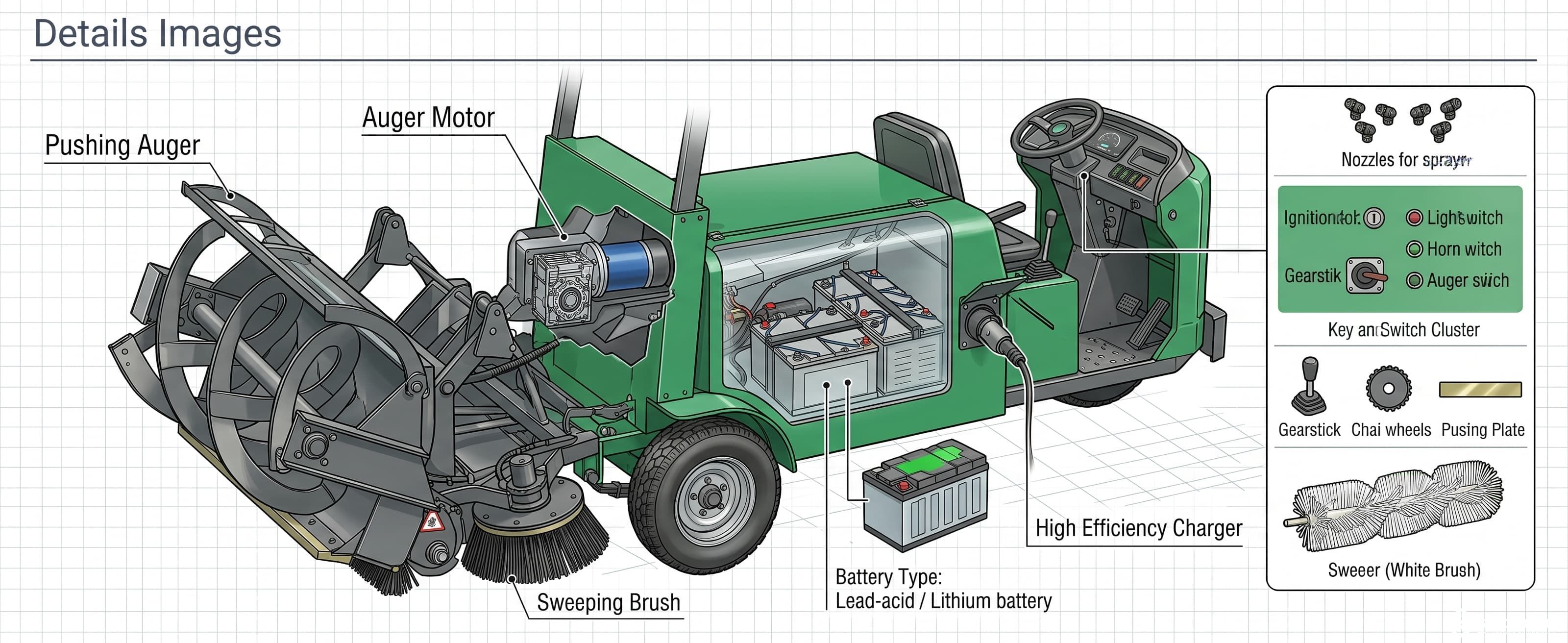

Structural Components	Compact self-propelled chassis Electric walking motor Battery pack and charger Front feed-pushing assembly Rotating pushing auger Auger drive motor Sweeping brush assembly Hydraulic or mechanical adjustment system Operator seat and steering system Control switches and instrument panel Heavy-duty wheels and tyres Protective guards and structural frame
Working Principle	Electric Travel: The battery-powered drive system moves the machine along the livestock feed alley. Feed Collection: The front pushing assembly gathers scattered TMR, silage and forage from the outer section of the feed passage. Auger Action: The rotating auger moves and turns the ration toward the feeding fence, helping maintain accessible feed for cattle. Sweeping: The brush assembly collects smaller loose particles and assists with maintaining a cleaner working surface. Repeated Feed Pushing: Regular operation keeps feed closer to the animals throughout the feeding cycle and reduces repetitive manual pushing.
Technical Specifications	Machine Type Compact electric feed pushing and sweeping machine Reference Model HM-48V-120AH reference configuration Reference Dimensions 2500 × 1350 × 2000 mm Drive Motor Power 3,000 W on referenced configuration Auger Motor Power 2,000 W on referenced configuration Battery Type Lead-acid or lithium battery Reference Travel Speed 0-25 km/h Reference Range Up to 100 km per charge under referenced operating conditions Reference Machine Weight 350 kg Pushing System Auger-assisted push and sweep configuration Configuration Customizable according to project requirements
Applications	Commercial dairy farms Beef cattle farms Sheep and goat farms Group-housed cattle barns Narrow feed alleys Steel-structure livestock buildings Farm modernization projects Daily TMR and silage feed-bunk management
Customization Options	Lead-acid or lithium battery configuration Battery capacity Feed-pushing attachment configuration Auger and sweeping-brush arrangement Machine dimensions Charging plug and electrical specification Cold-climate battery protection Color and surface finish Available according to project requirements
Installation & Maintenance	The machine requires no permanent track or structural installation. Before operation, confirm adequate feed-alley width, turning clearance and a level driving surface. Provide a dry, protected charging location with an electrical supply compatible with the selected battery charger. Routine maintenance includes checking battery condition, tyre pressure, auger components, sweeping brushes, drive motor, attachment fasteners and electrical connections. Feed residue should be removed after operation to reduce corrosion and material buildup.
Product FAQ	Q: What is the main function of the compact electric feed pusher? A: It moves scattered TMR, silage and forage back toward the feed fence while helping sweep loose feed from the alley. Q: Is it suitable for narrow cattle barns? A: Yes. Its compact chassis and small turning radius are designed for feed alleys where larger equipment may be difficult to maneuver. Q: Can lithium batteries be supplied? A: Yes. Lithium and lead-acid battery configurations are available according to project requirements. Q: Does it require a tractor? A: No. The machine is independently battery powered and self-propelled. Q: Can the machine push and sweep feed at the same time? A: Yes. The integrated pushing and sweeping design is intended to combine these operations in one working process. Q: Can the machine be customized for different farms? A: Yes. Battery configuration, attachments and selected structural details can be customized according to project requirements.
