Brooder Heating Plate Adjustable Legs

The Brooder Heating Plate Adjustable Legs are replacement and support components designed for electric chick brooder heating plates. Installed at the corners of the heating panel, the legs provide stable floor support while allowing the working clearance beneath the plate to be adjusted as chicks grow.

Height adjustment is an important part of heating-plate brooding. Newly hatched chicks normally require the warm panel to be positioned relatively close to their backs, while larger birds need progressively more clearance. Adjustable legs allow the brooder plate to follow these changing requirements without replacing the complete heating unit.

The legs can be supplied as replacement parts for damaged or worn supports or as components for OEM electric brooder assemblies. Dimensions, adjustment mechanism, material and mounting interface can be customized to match compatible poultry heating equipment.

• Adjustable Working Height: Allows the brooder heating plate to be raised as chicks increase in body size.
• Replacement Part Design: Suitable for restoring brooder plates with lost, damaged or worn support legs.
• Stable Four-Point Support: A complete four-leg configuration helps keep the heating panel stable above the brooder floor.
• Independent Adjustment: Compatible designs allow each corner to be positioned independently.
• Sloped Plate Setup: Different front and rear leg heights can create a graduated clearance for birds of different sizes.
• Quick Installation: Threaded, push-button or locking structures allow convenient fitting and adjustment according to model.
• Durable Molded Construction: Engineering plastic provides a lightweight, corrosion-resistant support structure.
• Easy Cleaning: Smooth molded surfaces simplify cleaning between poultry batches.
• No Electrical Components: Replacement legs can be serviced independently from the brooder heating circuit.
• Reusable Accessory: Suitable for repeated brooding cycles when properly cleaned and inspected.
• Multiple Configurations: Length, adjustment pitch and connection interface can be produced according to brooder design.
• OEM Supply: Suitable for poultry equipment manufacturers, distributors, spare-parts programs and agricultural projects.

• Adjustable leg body
• Height adjustment grooves or threaded section
• Upper mounting section
• Lower support foot
• Locking or positioning section according to model
• Optional push-button adjustment interface
• Compatible brooder plate corner socket

Each adjustable leg connects to a corner socket or mounting bracket on the brooder heating plate. The adjustment section allows the plate to be positioned at different distances above the bedding surface.

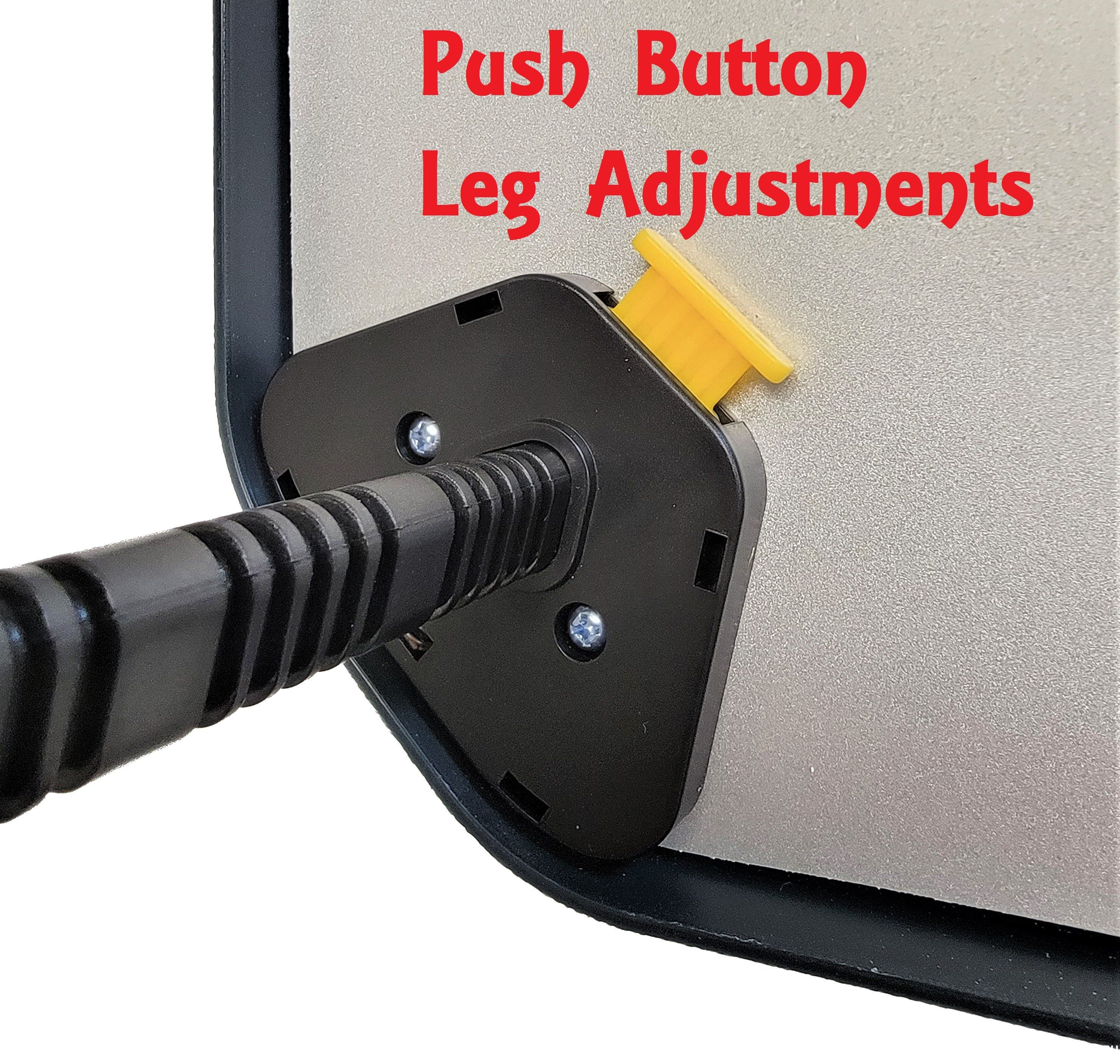

On threaded designs, the leg is inserted into the corner socket and rotated into position. On push-button or indexed designs, the locking mechanism is released so the support can slide to the required height and then lock securely.

When all four legs are set to the same position, the heating plate remains approximately level. Setting one pair lower than the other creates a sloped heating zone, allowing chicks of different sizes to select a suitable clearance beneath the same brooder.

This adjustable structure allows the heating plate to remain useful throughout several stages of chick development while maintaining stable support above the brooding floor.

Compatibility should be confirmed before ordering. Leg length, mounting diameter, adjustment structure and socket dimensions can vary between brooder heating plate designs.

• Electric chick heating plates
• Height adjustable chick brooders
• Low-voltage poultry brooder plates
• Broiler chick rearing equipment
• Layer chick brooding equipment
• Duckling and poult heating plates
• Hatchery brooding equipment
• Poultry equipment replacement parts
• Brooder maintenance programs
• Poultry farm spare-parts inventories
• Livestock equipment distributors
• OEM poultry heating equipment production

SHEWUYOU can configure adjustable brooder legs according to heating plate dimensions, socket structure, required adjustment range and OEM equipment specifications.

• Overall leg length
• Minimum and maximum working height
• Leg diameter
• Mounting-end dimensions
• Threaded adjustment structure
• Indexed height adjustment
• Push-button adjustment system
• Adjustment pitch
• Engineering plastic material
• Product color
• Single-leg replacement supply
• 2-piece or 4-piece sets
• Bulk spare-parts packaging
• OEM / ODM production

Before installation, confirm that the replacement leg dimensions and mounting structure match the brooder heating plate. The heating unit should be disconnected from electrical power before legs are installed, removed or adjusted.

• Disconnect the brooder from the electrical supply before installation.
• Check the corner sockets and replacement legs for damage.
• Insert or screw each leg into its corresponding mounting position.
• Confirm that all four legs are securely engaged before use.
• Set the initial plate clearance according to chick size.
• Adjust all four legs evenly when a level heating surface is required.
• Set one end lower where a graduated heating clearance is preferred.
• Raise the heating plate progressively as birds grow.
• Do not allow the legs to sink excessively into deep litter.
• Keep adjustment grooves or threads free from litter and dried manure.
• Wash and disinfect compatible plastic parts between production cycles.
• Inspect for cracks, deformation or worn locking sections before reuse.
• Replace damaged supports instead of operating an unstable heating plate.

Q1: What are brooder heating plate adjustable legs used for?

They support the electric heating plate and allow its working height above the chicks to be changed as the birds grow.

Q2: Are replacement legs normally supplied as a set?

A complete brooder commonly uses four legs. Single replacements or complete sets can be supplied according to requirements.

Q3: Can the four legs be adjusted independently?

Yes, on compatible designs. Independent adjustment allows the plate to remain level or to be positioned at an angle.

Q4: Why would the heating plate be installed at an angle?

A sloped plate provides different clearances underneath, allowing chicks of different sizes to select a comfortable position.

Q5: Are the legs universal?

Not necessarily. Socket dimensions, adjustment mechanisms and mounting interfaces differ between brooder models, so compatibility should be confirmed before ordering.

Q6: Can damaged legs be replaced without replacing the heater?

Yes. On brooders designed with removable supports, damaged or missing legs can be replaced independently from the electrical heating plate.

Q7: Can custom leg dimensions be supplied?

Yes. Length, mounting dimensions, adjustment range, color and locking structure can be customized according to project requirements.

Q8: What information is required for OEM replacement legs?

Heating plate model, existing leg dimensions, mounting interface, adjustment range, material requirement and expected order quantity are recommended for compatibility confirmation.
