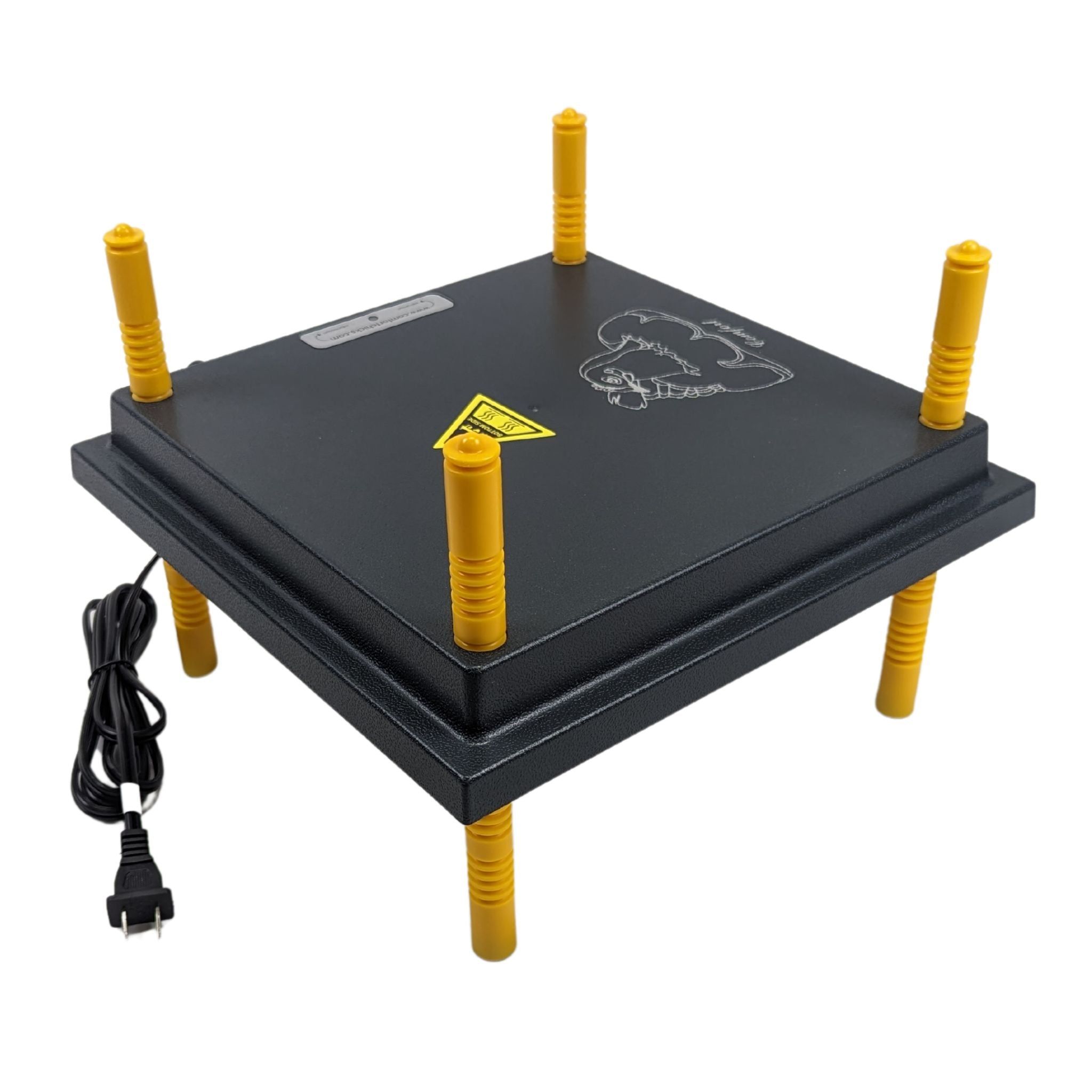

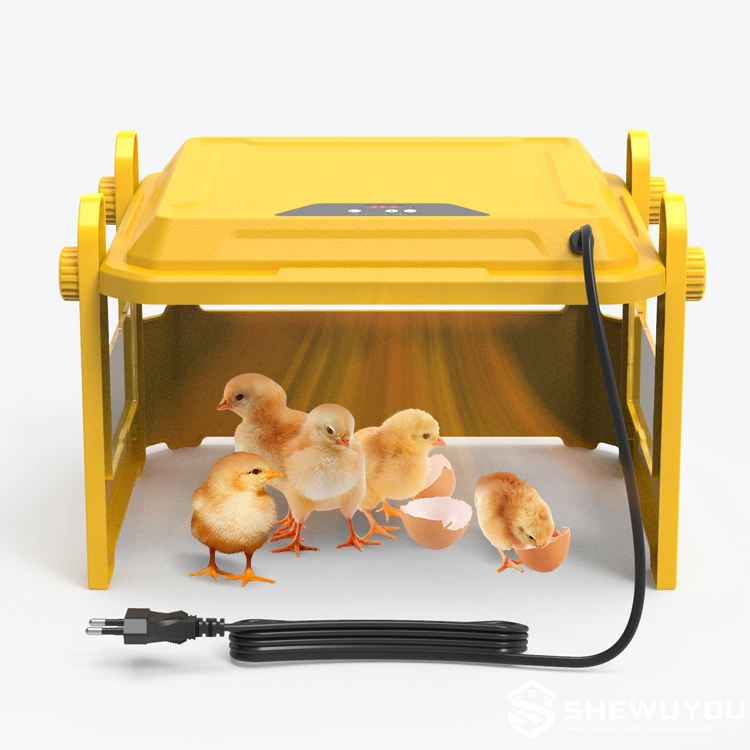

Mini Electric Chick Brooder for Small Poultry Flocks

The Mini Electric Chick Brooder is a compact low-energy heating unit designed for newly hatched chicks, ducklings, poults and other young poultry. The heated underside creates a protected warm zone that allows birds to gather beneath the brooder in a natural manner similar to sheltering under a mother hen.

Unlike conventional high-wattage heat lamps, the brooder concentrates warmth close to the birds rather than attempting to heat the entire brooding room. This localized heating concept can reduce electrical consumption while allowing chicks to move freely between warm and cooler areas according to their comfort.

Its compact footprint makes the unit suitable for small brooder pens, hatcheries, breeder facilities, research farms and poultry equipment projects requiring localized chick heating. Plate dimensions, voltage, power rating, leg structure and electrical plug can be configured according to project requirements.

• Compact Brooding Design: Suitable for small groups of newly hatched chicks and other young poultry.
• Radiant Heat from Above: Provides localized warmth directly beneath the brooder panel.
• Low-Voltage Configuration: Compatible designs can operate from a low-voltage transformer for improved electrical safety.
• Low Energy Consumption: Mini heating plates require substantially less power than conventional high-wattage brooder lamps.
• Adjustable Height: Four adjustable legs allow the heating panel to be raised as chicks grow.
• Sloped Installation Option: One side can be positioned lower than the other on compatible models to accommodate birds of different sizes.
• No Bright Brooding Light: Provides warmth without continuous illumination, supporting a natural light-dark cycle.
• Free Bird Movement: Chicks can move beneath or away from the heating area according to thermal comfort.
• Easy Cleaning: Smooth surfaces simplify routine cleaning and sanitation between batches.
• Portable Structure: Lightweight construction makes the brooder easy to relocate between pens.
• Optional Anti-Perching Cover: A top cover can help reduce manure accumulation on the heating panel.
• Multiple Electrical Standards: Voltage, transformer and plug configuration can be selected for destination markets.

• Upper insulated housing
• Metal or heat-conductive warming plate
• Internal electric heating element
• Four adjustable support legs
• Height adjustment mechanism
• Low-voltage power cable according to configuration
• Mains transformer / power adapter
• Power indicator according to model
• Internal temperature-limiting component according to design
• Optional clear anti-perching cover
• Optional replacement legs

Electrical energy powers the internal heating element, which transfers heat to the underside of the brooder panel. The warmed surface then provides gentle radiant and close-range thermal energy to chicks positioned beneath it.

The unit does not need to maintain the entire room at brooding temperature. Instead, it creates a localized warm shelter while leaving surrounding space cooler so chicks can regulate their own comfort by moving in or out of the heated zone.

As birds grow, the four support legs are raised to increase the clearance between the floor and warming panel. Different leg heights can also create a slight slope, allowing birds of different sizes to find a suitable position beneath the same heater.

Correct brooder adjustment is normally confirmed by bird behavior: comfortable chicks distribute themselves naturally beneath and around the heater without excessive crowding or persistent avoidance.

Reference capacity, power and dimensions are based on comparable compact professional brooders. Final specifications should be confirmed according to plate size, chick age, ambient temperature and project requirements.

• Day-old chick brooding
• Small broiler chick groups
• Layer chick rearing
• Broiler breeder chicks
• Duckling brooders
• Turkey poult rearing
• Quail and game-bird chicks
• Hatchery chick holding areas
• Small poultry brooder pens
• Breeding and research facilities
• Farm demonstration projects
• Poultry equipment distribution programs

SHEWUYOU can configure mini electric chick brooders according to poultry type, flock size, brooder dimensions and destination-market electrical requirements.

• Heating panel dimensions
• Rated power
• Low-voltage transformer specification
• Mains input voltage and frequency
• Power plug standard
• Adjustable leg height
• Plate-angle adjustment
• Power cable length
• Power indicator
• Anti-perching top cover
• Product color
• Replacement leg kit
• Bulk packaging
• OEM / ODM supply

Place the brooder on a dry, stable brooding floor and provide sufficient open space around the unit so chicks can move freely into and away from the heated area.

• Install all four support legs securely before connecting electrical power.
• Set the initial height according to chick size and the selected brooder instructions.
• Keep the warm underside close enough for birds to receive comfortable radiant heat.
• Raise the brooder progressively as birds grow.
• Use different leg heights where a sloped heating panel is required.
• Observe chick behavior after each height adjustment.
• Keep the transformer and mains connection dry and away from litter.
• Route electrical cables where birds cannot peck, trap or damage them.
• Disconnect the power supply before moving or cleaning the brooder.
• Do not immerse electrical heating components in water.
• Clean and disinfect surfaces between poultry batches.
• Inspect the power cable, transformer and legs before every new flock.
• Do not operate equipment with damaged electrical components.

Q1: What is a mini electric chick brooder?

It is a compact electric heating panel that creates a warm sheltered area for newly hatched chicks and other young poultry.

Q2: How many chicks can it accommodate?

Capacity depends on panel size, chick age and ambient temperature. Comparable compact brooders can accommodate approximately 20 newly hatched chicks.

Q3: Why use low-voltage heating?

A low-voltage heating panel can reduce electrical risk around chicks and bedding when used with the specified transformer and installation method.

Q4: Does it produce light?

The heating panel does not require continuous bright brooding light, allowing a more natural day and night lighting program.

Q5: Can the height be adjusted?

Yes. Four adjustable legs allow the working height to increase as chicks grow.

Q6: Can one side be lower than the other?

Yes. Compatible models allow different leg heights so smaller and larger chicks can select suitable clearance beneath the same panel.

Q7: Can it replace a heat lamp?

For suitable indoor brooding conditions, a correctly sized heating plate can provide localized chick warmth without a conventional high-wattage brooder lamp.

Q8: Can SHEWUYOU supply different electrical versions?

Yes. Power rating, voltage, transformer, plug standard, panel size and accessories can be configured according to project requirements.
