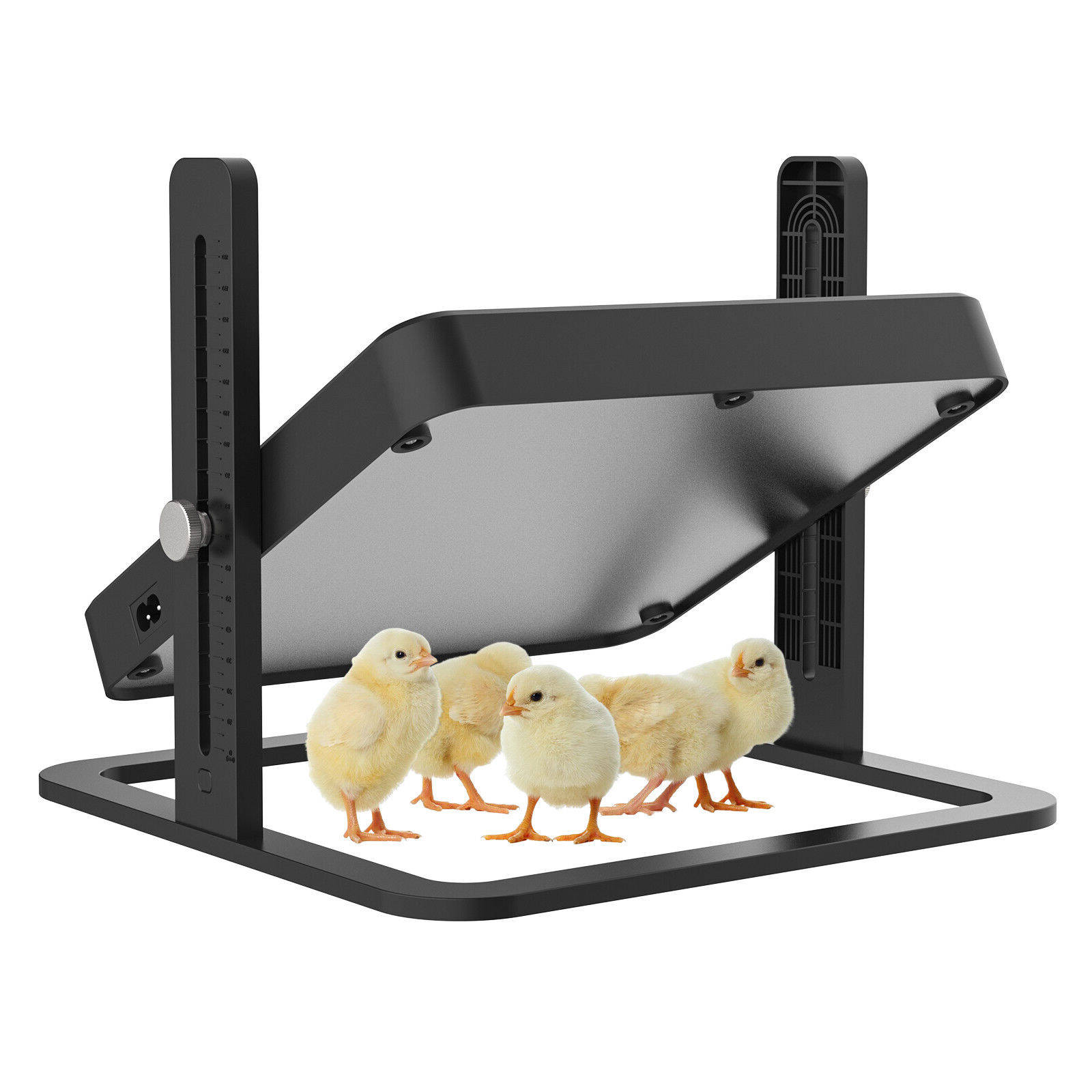

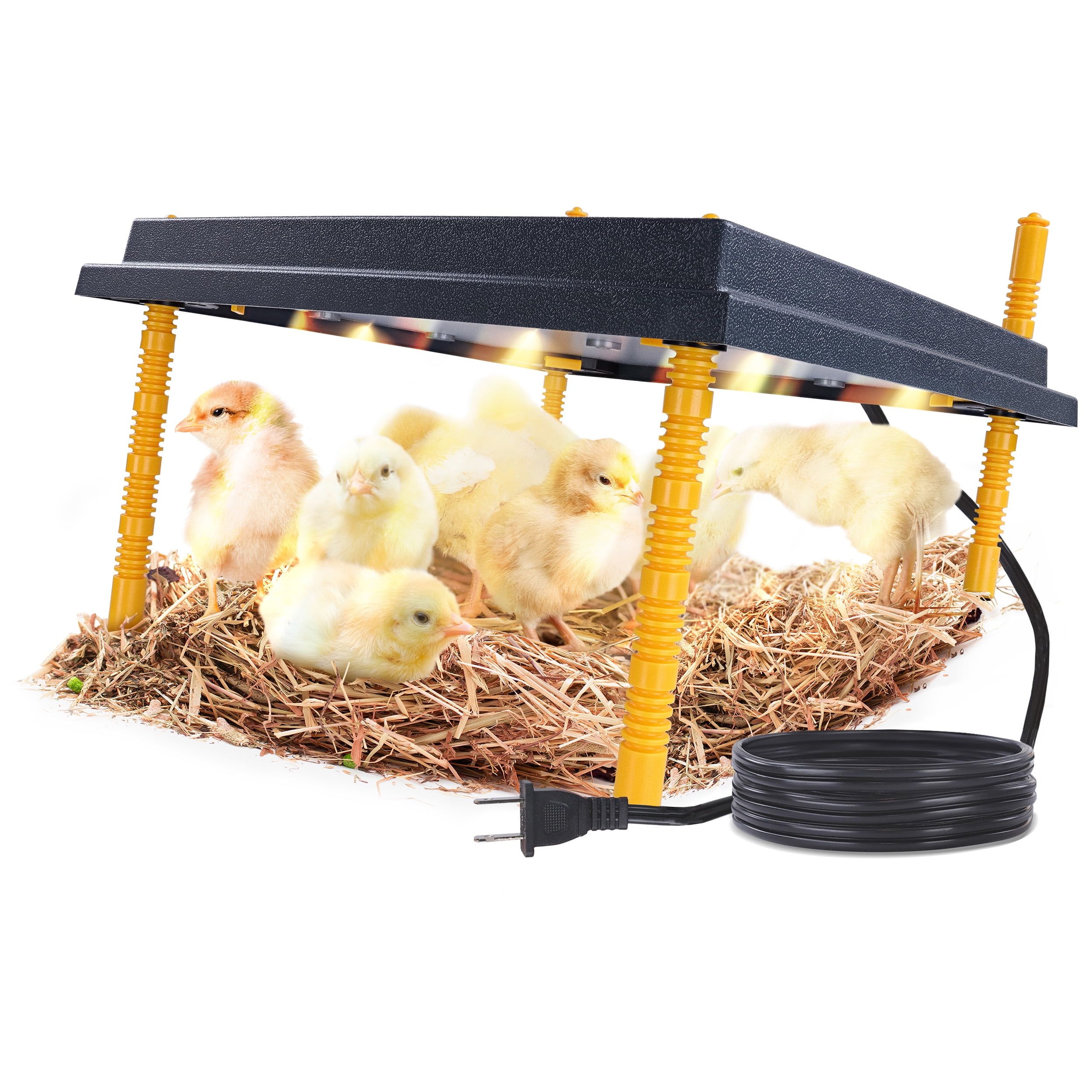

Height Adjustable Electric Brooder Plate

The Height Adjustable Electric Brooder Plate is a localized poultry heating unit designed for chicks, ducklings, poults and other young birds during the brooding stage. The heated panel provides gentle warmth from above while allowing birds to gather beneath the plate in a protected brooding zone.

Its adjustable support structure allows the working height to be increased as birds grow. Depending on the selected design, the plate can also be installed at a slight angle so smaller and larger chicks can select different clearances beneath the same heater.

Compared with traditional high-wattage brooder lamps, a heating plate concentrates energy close to the birds rather than heating the entire room. It is suitable for hatcheries, breeder farms, chick rearing rooms, poultry research facilities and commercial livestock equipment projects.

• Height Adjustable Structure: Allows the heating panel to be raised progressively as chicks increase in body size.
• Angle Adjustment: Compatible designs can be positioned with one side higher than the other to create different chick clearances.
• Localized Heating: Concentrates warmth directly around the chick brooding zone.
• Natural Brooding Behavior: Birds can move beneath the warm panel or leave the heated area according to their thermal comfort.
• Energy-Efficient Operation: Localized heat delivery can reduce electrical demand compared with heating the entire brooding room.
• No Open Flame: Electric heating eliminates fuel combustion inside the chick brooding area.
• No Continuous Bright Light: Allows normal poultry lighting programs without relying on a constantly illuminated heat lamp.
• Stable Support Frame: Adjustable legs or vertical rails provide secure positioning above bedding.
• Easy Cleaning: Smooth plate surfaces simplify routine sanitation between poultry batches.
• Multiple Sizes Available: Plate dimensions can be selected according to flock size and brooder layout.
• Electrical Options: Voltage, power rating and plug specification are available according to destination-market requirements.
• Commercial Supply: Suitable for poultry farms, hatcheries, distributors and agricultural equipment projects.

• Electric heating panel
• Heat-conductive underside
• Internal resistance heating element
• Insulated upper housing
• Adjustable support legs or vertical rails
• Height-locking mechanism
• Angle adjustment points according to model
• Power supply cable
• Electrical plug or transformer according to configuration
• Temperature-limiting component according to model
• Optional power controller
• Optional anti-perching cover

Electrical energy is converted into heat by an internal resistance element. The generated heat spreads through the lower surface of the brooder plate and creates a warm zone beneath the panel.

Young birds move beneath the plate when they require additional warmth and move outward when their thermal requirement is satisfied. This allows birds to regulate their position naturally instead of being exposed continuously to one uniform brooding temperature.

The support system allows the panel height to be adjusted as the birds grow. Lower settings provide closer heat exposure for smaller chicks, while higher settings increase clearance for older birds.

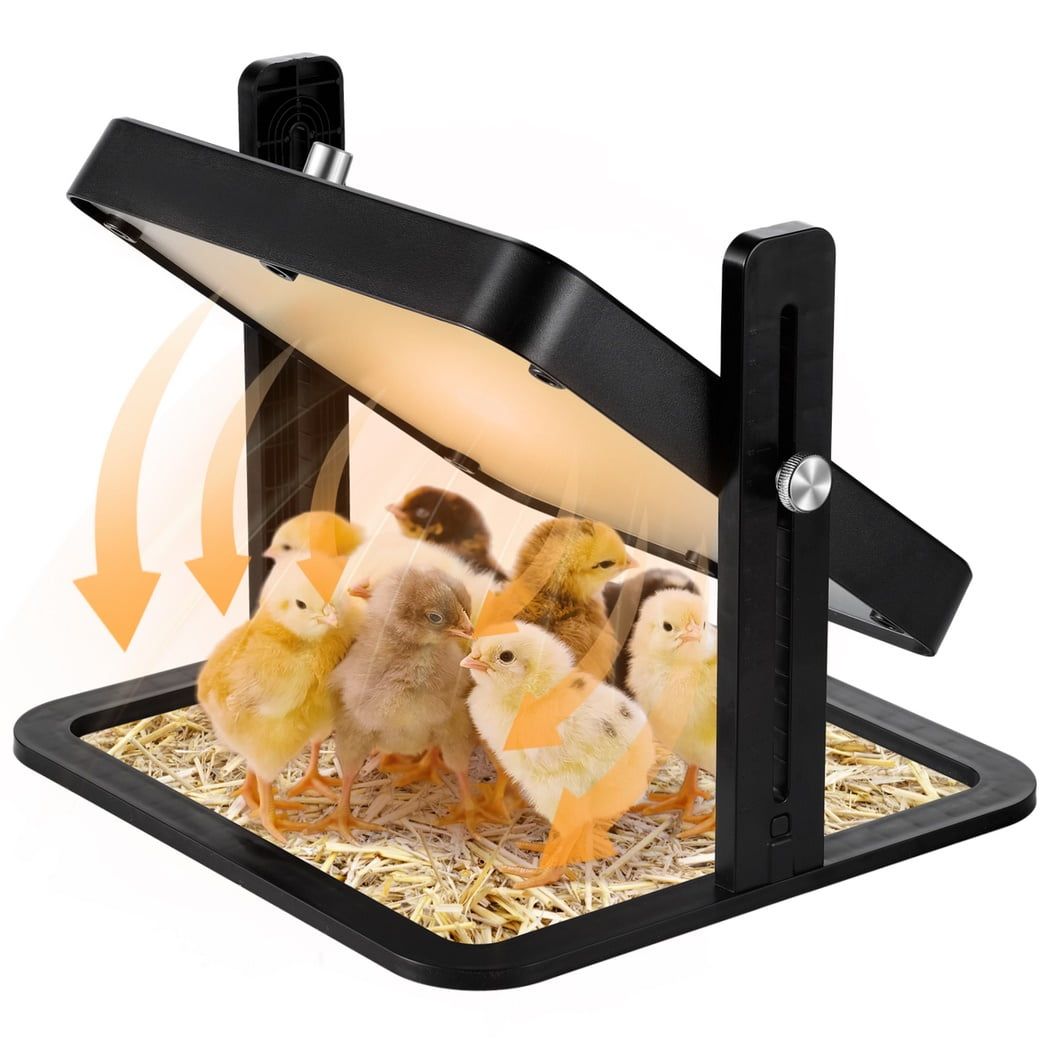

On independently adjustable designs, one end can be positioned higher than the other, creating a graduated clearance beneath the plate for mixed-size chicks.

Final plate dimensions, power rating, voltage, adjustment range and chick capacity should be confirmed according to brooder size, poultry type, ambient temperature and project requirements.

• Day-old chick brooding
• Broiler chick rearing
• Layer chick rearing
• Broiler breeder chick facilities
• Duckling and gosling brooders
• Turkey poult rearing
• Quail and game-bird brooders
• Hatchery chick holding areas
• Poultry breeder facilities
• Commercial rearing rooms
• Poultry research facilities
• Steel structure poultry buildings

SHEWUYOU can configure height adjustable electric brooder plates according to poultry species, flock size, brooder layout and destination-market electrical requirements.

• Heating plate dimensions
• Rated heating power
• Voltage and frequency
• Low-voltage transformer
• Power plug standard
• Minimum and maximum working height
• Independent leg adjustment
• Plate angle adjustment
• Temperature or power controller
• Power cable length
• Anti-perching cover
• Product color
• Bulk project packaging
• OEM / ODM supply

Place the brooder plate on a stable, dry floor and provide sufficient open space around the heater so birds can move freely between heated and unheated areas.

• Install all support components securely before connecting electrical power.
• Set the initial height according to chick body size and ambient temperature.
• Keep the underside close enough to provide comfortable warmth without restricting bird movement.
• Raise the panel progressively as chicks grow.
• Use different leg heights where a sloped heating surface is required.
• Observe chick distribution after each adjustment.
• Keep electrical plugs, adapters and transformers dry.
• Route the power cable away from feeders, drinkers and bird traffic.
• Disconnect electrical power before cleaning or adjustment.
• Do not immerse electrical components in water.
• Clean and disinfect accessible surfaces between poultry batches.
• Inspect the power cable, plug, support frame and adjustment mechanism regularly.
• Replace damaged electrical or structural components before operation.

Q1: Why is height adjustment important?

Young chicks require closer access to the warm plate, while older and larger birds require increased clearance. Height adjustment allows one brooder to accommodate different growth stages.

Q2: Can the brooder plate be tilted?

Compatible independently adjustable designs allow one side to be positioned higher than the other, creating different clearances beneath the panel.

Q3: How do chicks regulate their temperature?

Birds move beneath the warm plate when they need heat and move toward cooler surrounding areas when they become warm.

Q4: Does the plate need to heat the entire room?

No. The system is designed primarily to create localized brooding warmth around the birds.

Q5: Can it be used instead of a heat lamp?

In suitable indoor brooding conditions, a correctly sized electric brooder plate can provide localized chick warmth without relying on a conventional heat lamp.

Q6: Is a low-voltage version available?

Yes. Low-voltage transformer-powered configurations are available according to project requirements.

Q7: What poultry species can use the plate?

Suitable configurations can be used for chicks, ducklings, poults, keets, quail and other young poultry.

Q8: Can SHEWUYOU provide different sizes and electrical standards?

Yes. Plate size, heating power, voltage, transformer, plug standard, adjustment range and accessories can be configured according to project requirements.
