Compact Wheeled Self-Propelled Compost Turner

Published: 2026-09-28 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Compact Wheeled Self-Propelled Compost Turner
Product Image

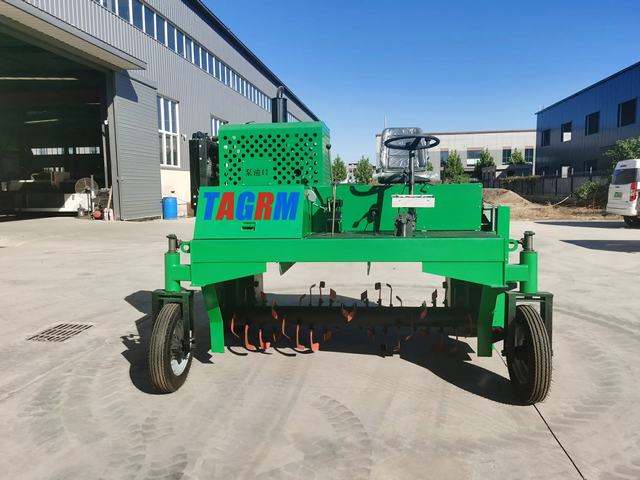

compact wheeled self-propelled compost turner
Product Overview This compact windrow turner is designed for on-site composting of pig manure, cattle manure, poultry litter and other organic materials blended with suitable bulking agents. The self-propelled wheeled chassis travels along a prepared windrow while the rotating drum lifts and mixes the material. It is a practical choice for commercial pig farms, livestock manure treatment areas and smaller organic fertilizer projects where working space and equipment access must be planned carefully.
Key Features
  • Compact wheeled layout for maneuvering between appropriately spaced windrows on a firm composting pad.
  • Self-propelled operation eliminates the need for a separate tractor during turning.
  • Rotating drum and turning tools break up and redistribute material to improve mixing and aeration.
  • Steel frame and serviceable mechanical components support routine use in manure handling environments.
  • Machine configuration and optional liquid application can be reviewed against the project's feedstock and composting process.
Structural Components The typical arrangement includes a steel chassis, wheeled travel system, operator controls, power unit, transmission, turning drum and replaceable turning tools. Guards, hydraulic functions and an optional liquid spray assembly are specified according to the selected machine configuration.
Working Principle The machine straddles or follows a windrow at a controlled travel speed. As the drum rotates, its tools lift, loosen and mix the manure and bulking material, then return it to a formed windrow. Repeated turning helps distribute moisture and expose more material to oxygen. Turning frequency depends on temperature, moisture, feedstock and the farm's composting plan.
Technical Specifications
  • Machine type: Wheeled, self-propelled windrow turner
  • Compatible windrow width and height: According to selected model and project requirements
  • Power unit and drive configuration: Available upon request
  • Turning drum and tool arrangement: Customizable for the intended feedstock
  • Optional liquid spray system: Subject to configuration
  • Working capacity and overall dimensions: Confirmed with the final technical proposal
Applications Suitable for manure composting at pig farms, cattle farms and poultry operations; treatment of manure mixed with straw, sawdust or other appropriate bulking agents; and windrow preparation at farm-based organic fertilizer facilities. It can be incorporated into a wider manure management project with material collection, solid-liquid separation, covered composting and finished-compost screening.
Customization Options Machine selection can be matched to windrow geometry, daily manure volume, bulking material, site layout and local climate. Drum tools, operator arrangement, guarding and optional spray equipment are reviewed according to project requirements. For a steel structure composting shed, the layout should also account for column spacing, clear height, ventilation and machine turning areas.
Installation & Maintenance As a mobile machine, the turner does not require a fixed production-line foundation. Prepare a firm, reasonably level operating surface with suitable drainage, windrow spacing and clearance at both ends for maneuvering. Before operation, check guards, tires, turning tools and fluid levels. Clean material buildup and inspect wear parts, bearings and hydraulic components as specified in the supplied manual.
Product FAQ

Can it process wet pig manure?
Wet manure should be blended with suitable dry bulking material before turning. The required mix depends on moisture content and the composting plan.

Is a concrete pad required?
A firm, level and well-drained operating area is needed. The pad design should follow local environmental requirements and expected equipment loads.

How is the right machine size selected?
Provide the proposed windrow dimensions, daily feedstock volume, material composition and site drawing so the working width, clearance and maneuvering space can be checked.
Product Gallery
wheeled self-propelled compost turner side view compact windrow compost turner equipment view self-propelled manure compost turner detail
