Rail-Mounted Trough Compost Turner

Published: 2026-09-28 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Rail-Mounted Trough Compost Turner
Product Image
rail-mounted trough compost turner for manure fermentation
Product Overview The Rail-Mounted Trough Compost Turner is designed for aerobic composting in fixed fermentation troughs. It travels along rails on both sides of a trough while its turning mechanism lifts, loosens and mixes the material. The layout is suited to commercial pig farms, centralized manure treatment facilities and organic fertilizer projects that require an organized composting area.
Key Features
  • Rail-guided travel provides a defined turning path through each fermentation trough.
  • Mechanical turning breaks up compacted material and improves its exposure to air.
  • Parallel troughs support a structured workflow for manure receiving, fermentation and discharge.
  • An optional transfer trolley can allow one turner to serve multiple troughs.
  • Turning width, working depth and control arrangement can be matched to the project layout.
Structural Components A typical system comprises a bridge frame, rail travel mechanism, motor-driven turning assembly and electrical control cabinet. The supporting works include parallel fermentation troughs and accurately aligned rails. A lifting mechanism or transfer trolley can be specified where required by the operating plan.
Working Principle Pig manure or other organic feedstock is placed in a fixed trough, typically after mixing with suitable bulking material. As the machine travels along the rails, the turning assembly agitates and redistributes the pile. Repeated turning helps maintain aerobic conditions and more even processing through the material. Turning frequency depends on moisture, temperature and the composting process.
Technical Specifications
  • Turning width and depth: According to project requirements
  • Trough length and number of lanes: Customizable
  • Power supply and control configuration: Available upon request
  • Transfer trolley and lifting arrangement: Optional, subject to layout
  • Structural protection and site layout: Designed according to local climate and farm conditions
Applications Suitable for pig manure composting, livestock and poultry manure treatment, and organic fertilizer production. It can be integrated into a dedicated manure processing building or a steel structure composting shed, subject to the project's ventilation, drainage and material-handling design.
Customization Options The machine and trough arrangement can be planned around available floor space, manure volume, feedstock characteristics and the desired number of composting lanes. Options may include a transfer trolley, selected control functions and a layout coordinated with upstream manure handling and downstream screening equipment.
Installation & Maintenance Before installation, confirm trough dimensions, rail alignment, structural support, electrical supply and safe access for operation and servicing. Routine maintenance should include inspection of the rails, travel wheels, drive components, turning elements and electrical connections, with cleaning and lubrication carried out according to the supplied equipment instructions.
Product FAQ

Can one machine operate across several troughs?
Yes. A compatible transfer trolley can be included in a multi-trough layout.

Can it process wet pig manure?
Pig manure is a common feedstock, but its moisture and structure should be assessed. Bulking material and drainage may be needed for an effective composting process.

What information is needed for equipment selection?
Provide the planned trough dimensions, daily feedstock volume, material composition, site layout and local power supply.
Product Gallery

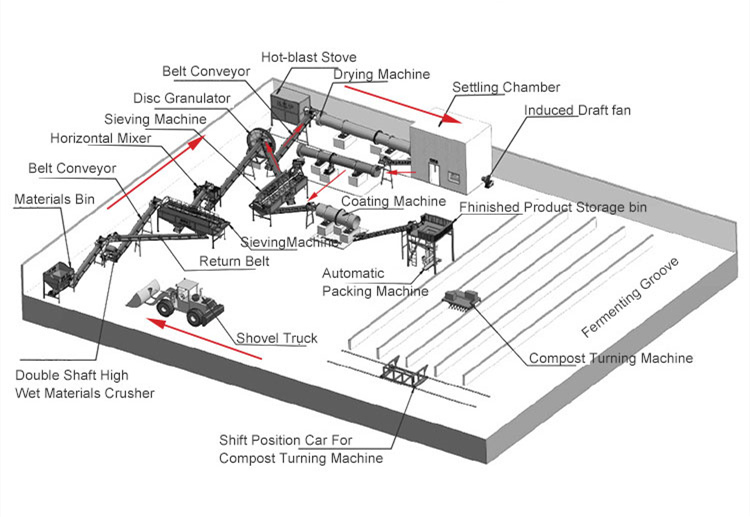

groove type compost turner equipment view rail-mounted compost turner structural view trough composting plant layout
