Product Name	Cattle Race Joining Arch with Gate
Product Image

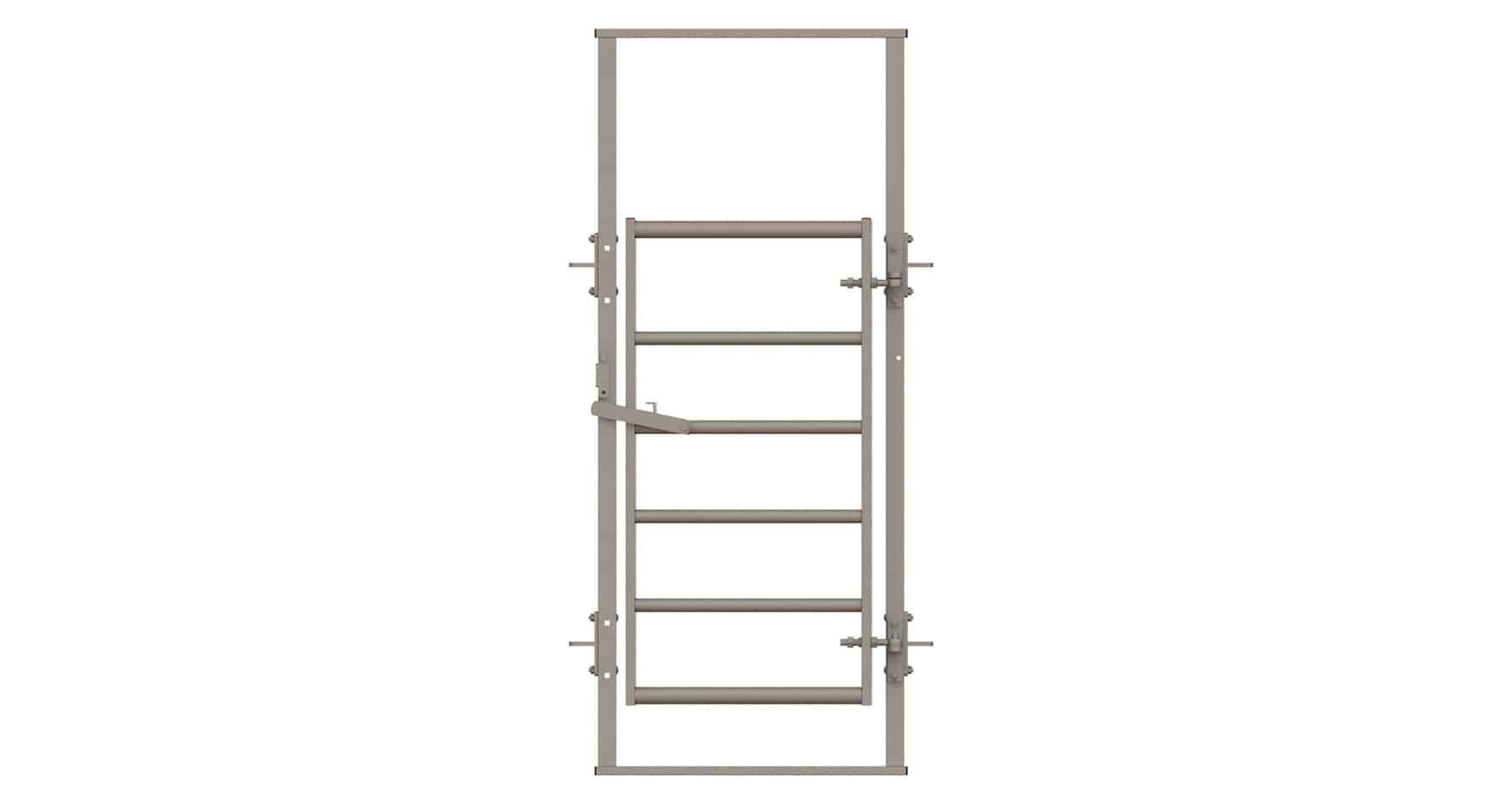

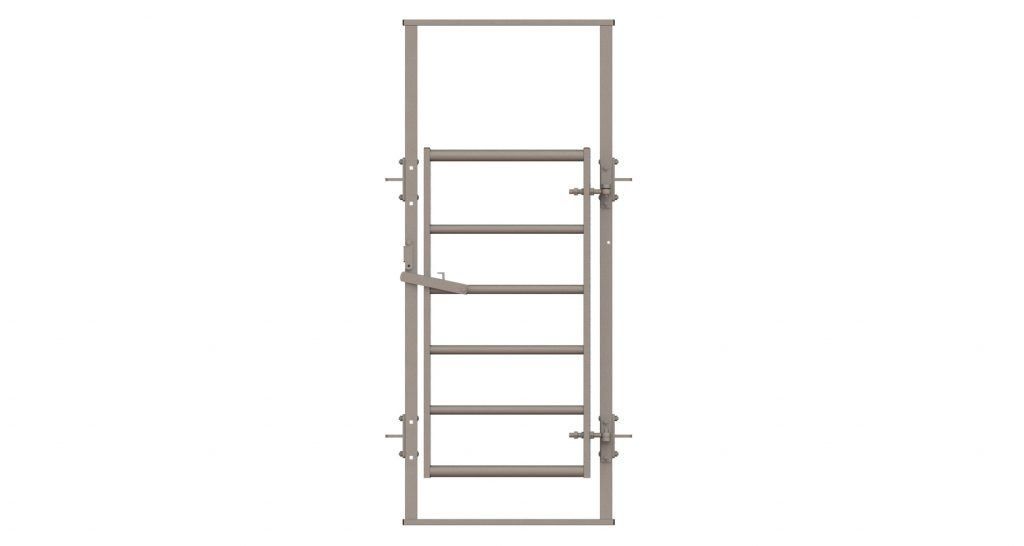

Product Overview	The Cattle Race Joining Arch with Gate is a structural and flow-control component for portable cattle handling systems where permanent support posts are impractical. The overhead arch connects the cattle hurdles on both sides of the race and helps prevent them from spreading apart under livestock pressure. An integrated swing gate provides an additional barrier for stopping cattle, controlling individual animal movement or dividing sections of the handling race. Its modular connection points allow rapid integration with portable cattle hurdles, forcing pens, temporary races and cattle crush approach systems.
Key Features	Race Stabilization: Bridges both sides of a portable cattle race to reduce outward movement and hurdle splaying. Integrated Swing Gate: Provides a convenient livestock barrier within the race without requiring a separate permanent post. Portable-System Compatible: Designed for cattle handling layouts that must be assembled, moved or reconfigured. Drilled Connection Lugs: Standard frame includes connection points on both sides for adjoining cattle hurdles. Drop-Over Bolt Latch: Mechanical gate latch provides straightforward and secure closure. Hinge Hook Arrangement: Gate units incorporate dedicated hinge hooks and fixing lugs for modular assembly. Two Width Options: Narrow and wide reference versions allow use within race sections or wider transition areas. Mechanical Operation: No electricity, hydraulics or compressed air is required. Galvanized Construction: Suitable for intensive outdoor livestock handling environments.
Structural Components	Galvanized steel joining arch frame Integrated livestock swing gate Drilled hurdle-connection lugs on both sides Two pairs of drilled gate fixing lugs One pair of gate hinge hooks Drop-over bolt latch assembly Bolt-on fittings according to configuration Compatible cattle hurdle coupling hardware
Working Principle	Race Connection: The arch is positioned across the cattle race and connected to the hurdles on both sides through the drilled mounting lugs. Structural Support: The rigid overhead frame holds the two sides of the race at the required spacing and helps resist outward movement when cattle apply pressure to the hurdles. Animal Flow Control: The internal gate can remain open during normal forward movement or swing across the race when livestock need to be stopped or separated. Gate Locking: The drop-over bolt latch engages with the corresponding receiver to secure the gate in the closed position. System Reconfiguration: Coupling hardware can be released when the portable cattle race needs to be dismantled or moved to another handling location.
Technical Specifications	Product Type Portable cattle race joining arch with integrated gate Reference Model 1 F040 2006 02 Reference Width 1 840 mm Reference Model 2 F040 2007 02 Reference Width 2 1575 mm Reference Overall Height 2050 mm Gate Type Manual swing gate Gate Latch Drop-over bolt latch Frame Connections Drilled lugs on both sides for cattle hurdles Gate Connections Two pairs of drilled lugs and one pair of hinge hooks Frame Material Heavy-duty steel Surface Treatment Galvanized / according to project requirements Installation Type Portable or semi-permanent cattle handling system Power Requirement None
Applications	Portable cattle handling races Temporary livestock processing yards Beef cattle farms and ranches Dairy cattle handling systems Cattle crush approach races Veterinary and vaccination handling areas Livestock weighing and identification lanes Temporary sorting and drafting systems Field-based cattle handling installations Farm layouts where permanent support posts are impractical
Customization Options	840mm narrow race configuration 1575mm wide race or transition configuration Gate swing direction Hurdle connection arrangement Latch and receiver configuration Connection to portable cattle hurdles Connection to cattle crush or race extension Portable holding-pen integration Galvanized finish Alternative dimensions available upon request Complete cattle handling layout according to project requirements
Installation & Maintenance	Position the joining arch at the required point in the cattle race and connect the drilled frame lugs securely to the adjoining hurdles using compatible coupling hardware. Check that both sides of the race remain parallel and that the arch is vertical before attaching or operating the internal gate. Install the hinge and latch fittings according to the selected gate direction. Some fittings may be supplied separately for bolt-on installation. Before cattle enter the race, operate the gate through its full swing and confirm that the drop-over bolt engages securely without creating dangerous projections into the animal passage. Regularly inspect hinge hooks, drilled lugs, bolts, latch components and hurdle connections. Replace distorted components and repair damaged galvanized surfaces where required.
Product FAQ	Q: What is the main purpose of a cattle race joining arch? A: It connects and stabilizes the two sides of a portable cattle race, helping prevent the hurdles from spreading outward. Q: Why use an arch instead of permanent posts? A: Joining arches are particularly useful in portable or temporary handling systems where permanent ground-mounted posts are impractical. Q: What widths are available? A: The reference range includes 840mm and 1575mm overall-width configurations. Q: What is the reference frame height? A: Both reference configurations are approximately 2050mm high. Q: Does the gate have a locking mechanism? A: Yes. The reference gate uses a drop-over bolt latch to secure it in position. Q: Can the arch connect directly to portable cattle hurdles? A: Yes. Drilled connection lugs are provided on both sides of the frame for compatible hurdles. Q: Does the system require power? A: No. The standard gate and joining-arch functions are completely mechanical. Q: Can the dimensions or connection arrangement be customized? A: Yes. Dimensions, gate orientation and connections can be configured according to project requirements.
