Product Name	Adjustable U-Curve Cattle Handling Alley
Product Image

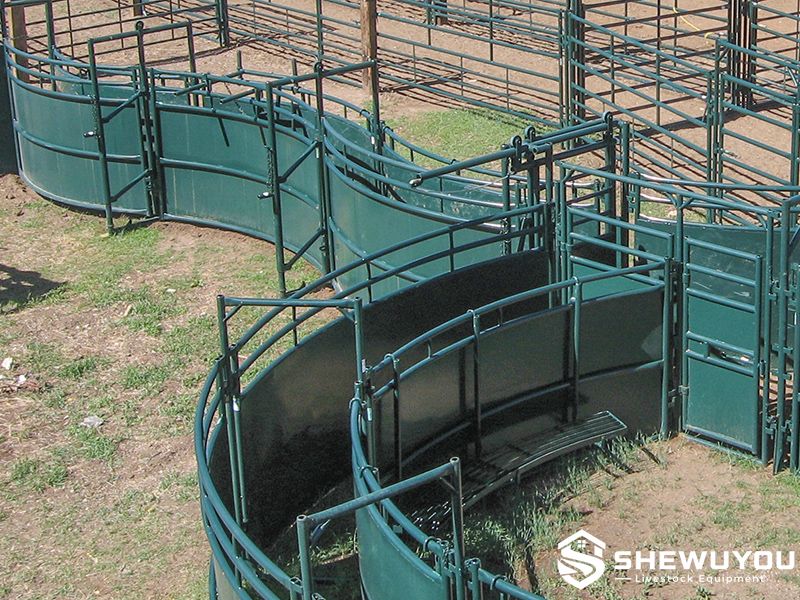

Product Overview	The Adjustable U-Curve Cattle Handling Alley is a modular single-file cattle race designed to use curved animal movement and clear forward sight lines to support smoother livestock flow. The internal working width can be adjusted for different cattle sizes, while curved sheeted panels help limit external visual distractions. Individual 45-degree sections can be combined to create different alley angles and overall lengths, including a compact 180-degree U-shaped layout. The system is suitable for cattle yards where space efficiency, flexible layout design and integration with cattle crushes, crowding pens, sorting areas and weighing equipment are important.
Key Features	Adjustable 18–32 Inch Width: Working width can be adapted for calves, growing cattle and mature animals. U-Curve Animal Flow: Curved geometry works with natural cattle movement and helps reduce hesitation. 45-Degree Modular Sections: Multiple sections can be combined for 45°, 90°, 135° or 180° layouts. Sheeted Side Panels: Solid lower surfaces reduce external visual distractions and improve containment. Good Forward Sight Lines: The large-radius curve allows the lead animal to see farther along the working alley. Track-Mounted Outer Panels: Outside curved panels move on contoured wheels as the alley width is adjusted. Chain-Locked Width Adjustment: Mechanical adjustment is simple and requires no electrical or hydraulic power. Optional Rolling Doors: Selected spreader frames can include rolling gates for controlling cattle movement. Optional Raised Walkway: An operator walkway can be installed along the inside curve. Modular System Integration: Can connect with straight, S-curve and other cattle alley configurations.
Structural Components	Curved outer sheeted alley panels Curved inner sheeted alley panels Adjustable U-alley spreader frames Chain-and-slot width locking system Outer-panel suspension track Contoured panel-support wheels Pin-type inner-panel connections Optional rolling alley doors Optional elevated walkway sections Optional walkway transition and access stairs Optional adjustable no-back alley stop

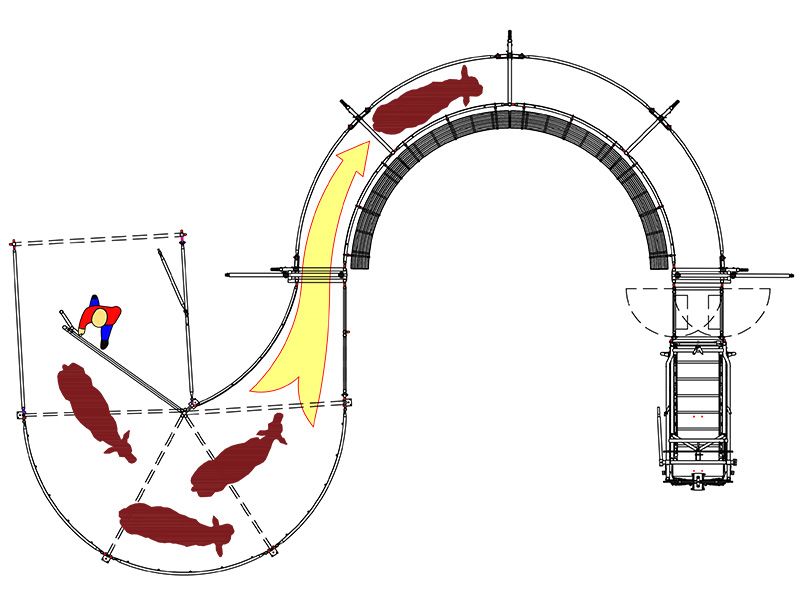

Working Principle	Width Adjustment: Release the locking chains, move the curved panel system inward or outward to the required width, and secure the chains in the selected latch position. Panel Movement: Inner panels remain pinned to the spreader frames, while the outer panels travel along their support tracks on contoured wheels. Curved Animal Flow: Cattle enter the single-file alley and naturally follow the broad curve. The lead animal maintains a view farther along the race, encouraging continued forward movement. Flow Regulation: Optional rolling doors and no-back devices can separate animals and control the number advancing toward the cattle crush. Operator Control: Optional raised walkways allow handlers to work alongside cattle while maintaining a safer position outside the alley.

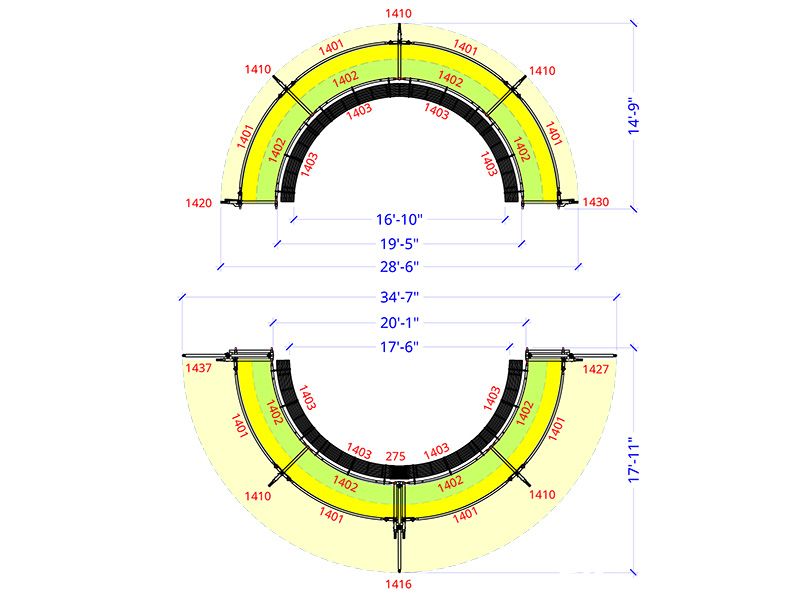

Technical Specifications	Product Type Adjustable U-curve cattle working alley / cattle race Reference Internal Width Adjustable from approximately 18" to 32" Section Angle 45° per modular section Four-Section Configuration 180° U-shaped alley Reference Inside Diameter Approx. 19'-5" Reference Inside Radius Approx. 9'-8.5" Reference Centerline Length per Section Approx. 9 ft Reference Outer Panel Height 66" Reference Inner Panel Height 60" Width Adjustment Mechanical chain-and-latch system Outer Panel Mounting Suspended track with contoured wheels Rolling Door Available on compatible spreader frames Elevated Walkway Optional 45° walkway sections Installation Surface Firm, level surface recommended Overall Layout Customizable by combining modular sections
Applications	Beef cattle farms and ranches Dairy cattle handling facilities Commercial feedlots Cattle crush approach races Crowding-tub and forcing-pen exits Livestock weighing systems Cattle sorting and drafting areas Veterinary handling facilities Compact cattle yards with limited installation space New-build and retrofit cattle handling projects
Customization Options	Number of 45° curved sections 45°, 90°, 135° or 180° alley layouts Adjustable working width Rolling-door spreaders Elevated operator walkways Walkway transition sections and stairs Adjustable no-back alley stop U-Alley to straight-alley transitions U-Alley to S-Alley transitions Cattle crush connection configuration Surface treatment available according to project requirements Complete cattle-yard design available upon request
Installation & Maintenance	Install the U-curve alley on a firm and level surface. Grooved concrete or another stable non-slip livestock-yard surface is recommended where appropriate. Position the spreaders according to the required curve and connect the inside panels directly to the frames. Hang the outside curved panels on the corresponding tracks and confirm that the contoured wheels move freely. Set the required alley width before operation and securely engage all locking chains. When rolling doors or elevated walkways are installed, confirm that gate travel and walkway transitions remain unobstructed. Regularly inspect chains, slotted latches, panel pins, support tracks, wheels, rolling-door mechanisms and walkway connections. Remove manure and mud from moving parts and walking surfaces.
Product FAQ	Q: What is the adjustable width range? A: The reference U-Alley adjusts from approximately 18 to 32 inches internally. Q: How much curve does each section provide? A: Each modular section changes the alley direction by approximately 45 degrees. Q: How many sections are required for a 180-degree U shape? A: Four 45-degree sections create the reference 180-degree configuration. Q: Why are the inside and outside panels different heights? A: The reference design uses approximately 60-inch inner panels and 66-inch outer panels to provide suitable containment throughout the curved race. Q: Can gates be installed between sections? A: Yes. Compatible spreader frames are available with rolling doors for controlling cattle movement. Q: Can an operator walkway be added? A: Yes. Modular elevated walkway sections can be installed along the inside curve. Q: Can the U-Alley connect to straight or S-shaped races? A: Yes. Transition spreaders allow the U-Alley to be incorporated into combination cattle handling systems. Q: Does the U-Alley require perfectly level ground? A: A firm, level installation surface is recommended for proper operation of the adjustable curved panel and track system.
