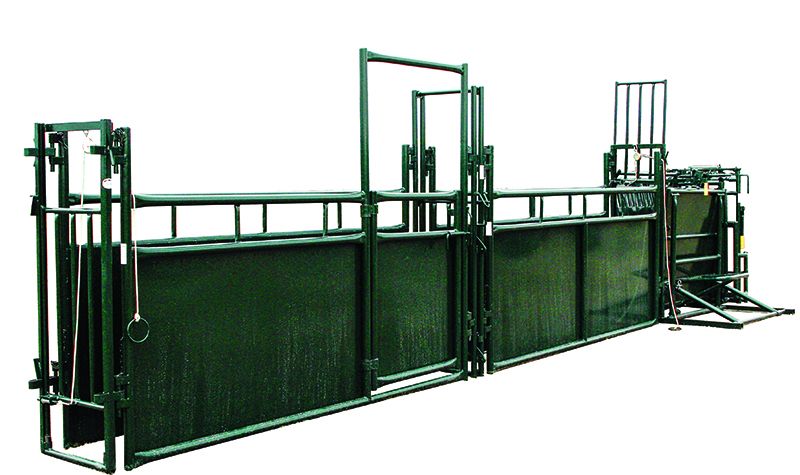

Calf Handling Alley

• Fixed 18-inch reference internal width designed for calves and small livestock.

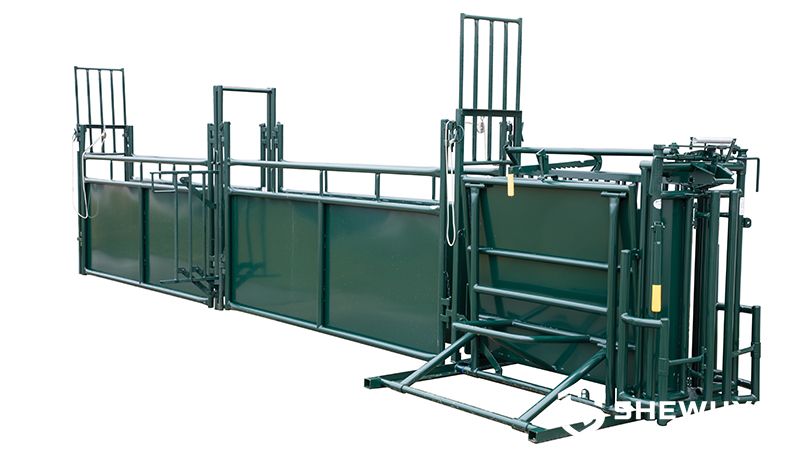

• Sheeted sides encourage forward movement by reducing external visual distractions.
• Lower closed panels help keep noses, legs and feet within the handling race.
• 48-inch reference sheeted panel height allows convenient handler access.
• Lift-up gate option can be operated remotely by rope.
• Side-tilt gate option provides increased overhead clearance for handlers working inside the alley.
• Plain interior spreader available for longer alley runs.
• Access-gate panel provides convenient entry and exit for personnel.
• Modular connector arrangement simplifies extension and system integration.
• Suitable for directing calves toward a tipping table, processing chute or loading chute.
• Can also be configured for goat-farming-equipment/" target="_blank" class="keylink">sheep, goats and other appropriately sized livestock.

• Calf Alley Panels: Heavy-duty framed side panels with solid internal sheeting.
• Sheet-Metal Lining: Reference panels use 16-gauge internal sheet metal for a closed lower working area.
• Lift-Up Gate Spreader: Controls animal flow and can be operated using a rope from a convenient handler position.
• Side-Tilt Gate Spreader: Opens sideways and provides additional overhead clearance inside the alley.
• Plain Alley Spreader: Maintains the fixed alley width without an integrated gate.
• Personnel Access Gate: Integrated into selected side panels for convenient operator movement.
• Gravity Latch: Provides simple and secure closure on the reference access gate.
• Common Connectors: Allow panels and spreaders to be linked with compatible handling-system components.

• Commercial beef calf processing facilities.
• Dairy calf and youngstock handling areas.
• Calf vaccination and medication workflows.
• Ear tagging and identification procedures.
• Dehorning and other controlled calf-management procedures.
• Branding and livestock identification operations where permitted.
• Calf sorting and grouping systems.
• Lead-up alleys for calf tipping tables and restraint chutes.
• Calf loading chute approaches.
• Small-livestock handling systems for sheep and goats.
• New livestock-yard projects and existing facility upgrades.

• Alley Length: Modular panel combinations according to project requirements.
• Gate Configuration: Lift-up gate, side-tilt gate or plain spreader available.
• Access Gate: Side panel with personnel access door available.
• Panel Arrangement: Customizable according to available yard space and animal flow.
• Surface Treatment: Available according to local climate and livestock-building requirements.
• Processing Integration: Can be configured with calf tipping tables, restraint chutes and weighing equipment.
• Loading Integration: Can be connected to compatible loading-chute systems.
• Complete Handling Layout: Holding pens, sorting gates and approach alleys can be designed according to project requirements.

• Install the alley on stable, well-drained ground or a suitable livestock-yard floor.
• Align the alley entrance and exit with the surrounding sorting, holding and processing equipment.
• Connect all modular panels and spreaders securely before introducing livestock.
• Allow sufficient overhead clearance when a lift-up gate is installed.
• Provide adequate side clearance for the side-tilt gate configuration.
• Check that lift-up and side-tilt gates lock securely in both operating positions.
• Keep rope, pulleys, hinges and gate latches free from excessive manure and debris.
• Inspect sheeted panels for sharp edges, deformation or loose connections.
• Check panel connectors, frame members and access-gate latches regularly.
• Replace damaged structural or gate components before returning the alley to service.

Q: What is the reference internal width of the calf alley?
A: The referenced system uses an 18-inch fixed internal width designed specifically for calves and other appropriately sized livestock.

Q: Why are the alley sides sheeted?
A: The closed lower panels reduce external visual distractions, encourage forward movement and help keep the animal's head and feet within the race.

Q: What gate options are available?
A: The reference system includes a rope-operated lift-up gate, a side-tilt gate and a plain spreader without a gate.

Q: Can handlers enter the calf alley?
A: Yes. A panel with an integrated personnel access gate is available, and the side-tilt or plain spreader provides additional overhead clearance for suitable workflows.

Q: Can the lift-up gate be operated without standing directly beside it?
A: Yes. The reference lift-up gate includes rope operation so the handler can control the gate from a more suitable position.

Q: Where is the calf alley normally installed?
A: It is commonly positioned ahead of a calf tipping table, processing chute or livestock loading chute.

Q: Can it be used for animals other than calves?
A: Yes. The reference manufacturer also identifies suitable applications for smaller livestock such as sheep and goats.

Q: Can the layout be customized?
A: Yes. Alley length, gate arrangement, access panels, processing equipment and connections to surrounding pens can be configured according to project requirements.
