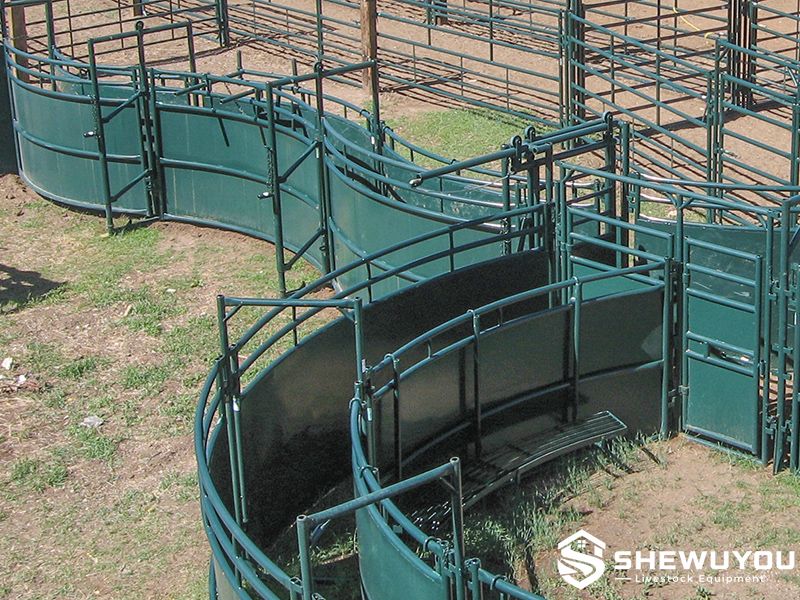

Low-Stress Adjustable S-Curve Cattle Alley

The Low-Stress Adjustable S-Curve Cattle Alley is a modular single-file handling race designed to guide cattle smoothly from a crowding tub or holding area toward a cattle crush, weighing station or veterinary handling point.

Its curved layout works with natural cattle movement while sheeted side panels limit outside visual distractions. Adjustable spreaders allow the internal width to be changed for calves, cows and larger cattle, making one handling system suitable for mixed-age commercial herds.

• S-curve layout encourages smoother forward cattle movement with less hesitation.
• Adjustable reference internal width from approximately 18 to 32 in.
• Suitable for calves, mature cows and large cattle according to width setting.
• Sheeted curved panels help keep animals focused on the open alley ahead.
• Smooth interior sheeting helps reduce climbing and unwanted leg exposure.
• Width can be adjusted independently at individual alley spreaders.
• Chain-and-keyhole adjustment system provides quick mechanical width selection.
• Modular pin-connected construction accommodates minor site irregularities.
• Optional rolling doors, elevated walkways and no-back alley stops are available.
• Additional curved sections can be added when greater cattle capacity is required.

• Curved Alley Panels: Form the alternating S-shaped cattle race and provide controlled animal sightlines.
• Adjustable Alley Spreaders: Maintain and regulate the internal working width.
• Adjustment Handles: Allow operators to narrow or widen the alley mechanically.
• Locking Chains: Secure each selected width through a keyhole-style latch.
• Pin Connectors: Join curved panels directly to the spreaders for modular installation.
• Sheeted Lower Sections: Reduce external distractions and help contain cattle safely.
• Rolling Door Options: Provide intermediate cattle-flow control where required.
• Raised Walkways: Optional handler platforms improve visibility and livestock access.
• No-Back Stop: Optional overhead device helps prevent cattle from reversing through the alley.

Cattle enter the S-curve alley from a crowding tub or holding area. The first curve allows the lead animal to continue seeing open space ahead, encouraging forward movement. As the lead animal moves around the curve, following cattle tend to move forward to maintain contact with the herd.

Sheeted sides reduce external visual distractions, while the adjustable internal width limits turning and excessive lateral movement. The alley can be narrowed for calves or widened for mature cattle before animals progress toward the cattle crush, scale or sorting area.

• Commercial beef cattle handling yards.
• Dairy cattle handling facilities.
• Cow-calf breeding operations.
• Feedlots and large livestock farms.
• Movement from crowding tubs into cattle crushes.
• Veterinary examination and vaccination areas.
• Cattle weighing and electronic identification stations.
• Pregnancy-checking and reproductive-management facilities.
• Livestock sorting and drafting systems.
• New cattle-yard construction and existing handling-system upgrades.

• Overall Length: Additional S-curve sections can be added according to cattle throughput requirements.
• Working Width: Adjustable or fixed-width configurations available.
• Panel Height: Configurable according to cattle size and handler-access requirements.
• Panel Layout: High/high, low/low or high/low side configurations available.
• Rolling Doors: Can be incorporated at selected spreader locations.
• Raised Walkway: Available along selected alley sides for improved handler access.
• No-Back Stop: Optional adjustable anti-backing device available.
• Combination Layout: S-curve sections can be integrated with straight, sorting or other cattle-alley sections.
• Surface Treatment: Available according to project requirements and local farm conditions.

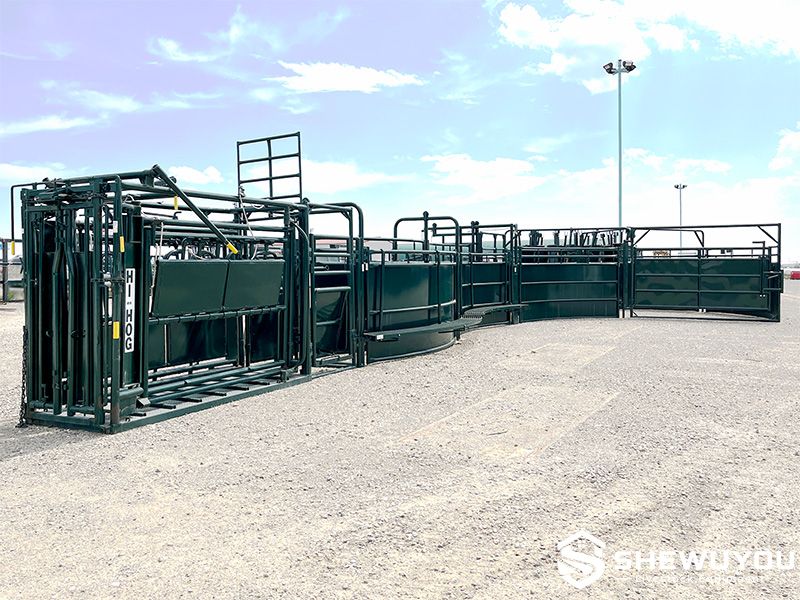

• Complete Handling System: Can be coordinated with crowding tubs, cattle crushes, weighing equipment and sorting gates.

• Plan the S-curve orientation according to cattle sightlines from the crowding tub toward the handling alley.
• Arrange the adjustable alley spreaders along a straight reference line during installation.
• Pin the curved panels securely to the corresponding spreaders.
• Set the internal width according to the cattle group before processing animals.
• Confirm all adjustment chains are correctly engaged in their locking latches.
• Test rolling doors, alley stops and other control equipment before livestock enters the system.
• Keep the first alley section clear to encourage smooth movement out of the crowding area.
• Remove manure, mud and debris from the working alley and walkways regularly.
• Inspect panel pins, chains, handles, gate mechanisms and structural connections periodically.
• Repair damaged surface protection and replace worn components as required.

Q: Why use an S-curve instead of a completely straight cattle alley?
A: The curved layout works with cattle sightlines and herd-following behavior to encourage smoother forward movement and reduce hesitation.

Q: What is the reference adjustable width range?
A: The reference system adjusts from approximately 18 to 32 inches, allowing it to handle calves through mature cattle.

Q: Can different parts of the alley be set to different widths?
A: Yes. Width can be adjusted at individual spreaders, allowing the entrance, center and exit areas to be configured differently when required.

Q: Can the alley be extended later?

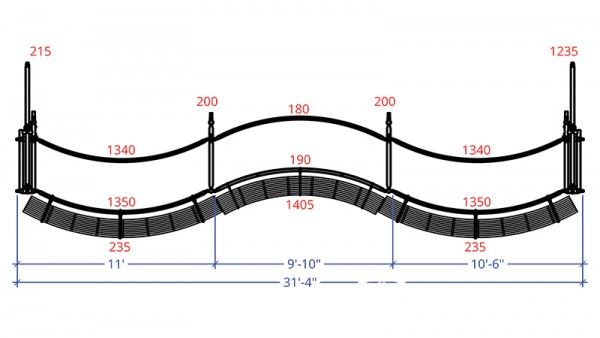

A: Yes. Additional modular S-curve sections can be added, with each standard additional section adding approximately 10 feet on the reference system.

Q: Are rolling doors available?

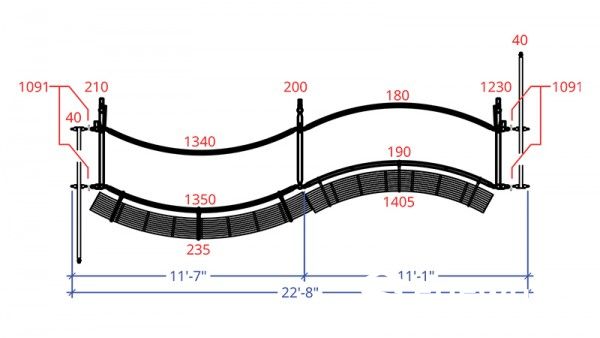

A: Yes. Selected adjustable spreaders can be supplied with integrated sheeted rolling doors for intermediate cattle-flow control.

Q: Can a no-back device be installed?
A: Yes. An adjustable overhead alley stop can be installed to help prevent cattle from reversing through the handling race.

Q: Can SHEWUYOU design the alley as part of a complete cattle handling project?
A: Yes. Alley length, width, panel height, walkways, control gates, crowding areas, cattle crushes and related handling equipment can be configured according to project requirements.
