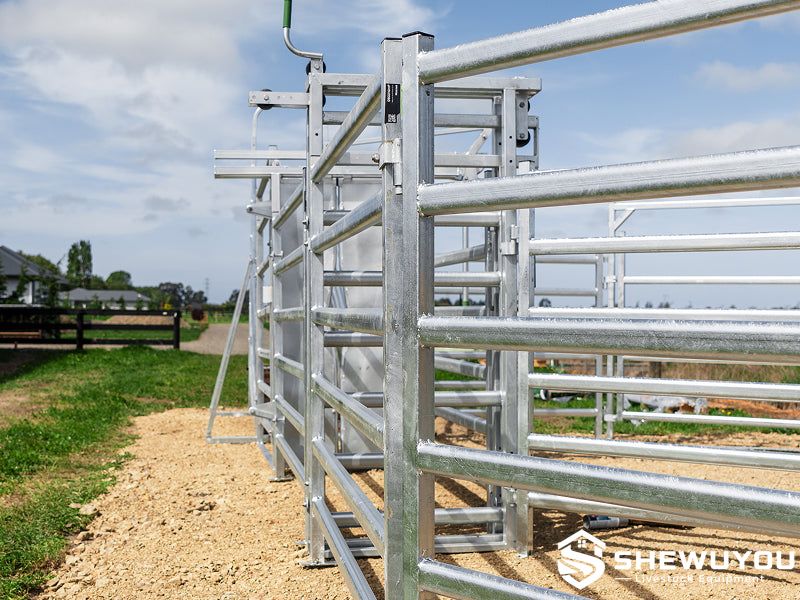

Fixed-Width Straight Cattle Handling Alley

The Fixed-Width Straight Cattle Handling Alley is a modular single-file livestock race designed to guide mature cattle efficiently between holding pens, forcing areas, cattle crushes, weighing stations and drafting systems.

A constant internal width simplifies construction and operation where one main cattle size is handled. Sheeted or partially sheeted side panels help control animal movement and reduce outside visual distractions, while modular spreaders and gate sections allow the alley layout to be configured for different cattle-yard and farm-building projects.

• Fixed reference internal width of approximately 32 in for mature cattle.
• Straight single-file layout supports predictable cattle movement.
• Modular spreaders and panels simplify system expansion or reconfiguration.
• Sheeted side panels help reduce distractions outside the working alley.
• Plain, swing-gate, rolling-door and bi-fold gate sections are available.
• Pin-connected construction supports straightforward field assembly.
• Compatible with cattle crushes, palpation sections, weighing equipment and drafting areas.
• Suitable for permanent outdoor yards and covered steel-structure cattle facilities.

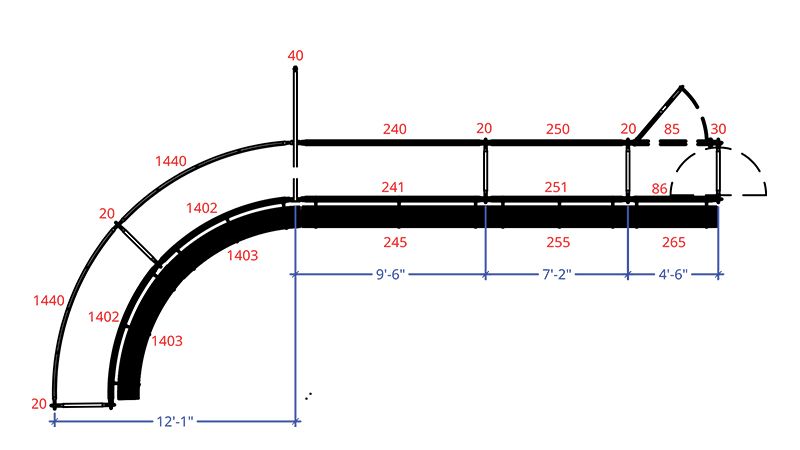

• Panel length, height and surface treatment can be configured according to project requirements.

• Fixed-Width Alley Spreaders: Maintain consistent spacing between both sides of the cattle race.
• Straight Side Panels: Form the main longitudinal livestock-guiding structure.
• Sheeted Lower Panels: Help control cattle sightlines and keep legs inside the alley.
• Pin Connectors: Join panels and spreaders for modular installation.
• Swing Gate: Provides intermediate cattle-flow control where required.
• Rolling Door: Allows remote or side-positioned control of animal movement.
• Bi-Fold Gate: Provides compact opening and closing where space is limited.
• Optional Walkway: Can provide elevated handler access beside the cattle race.

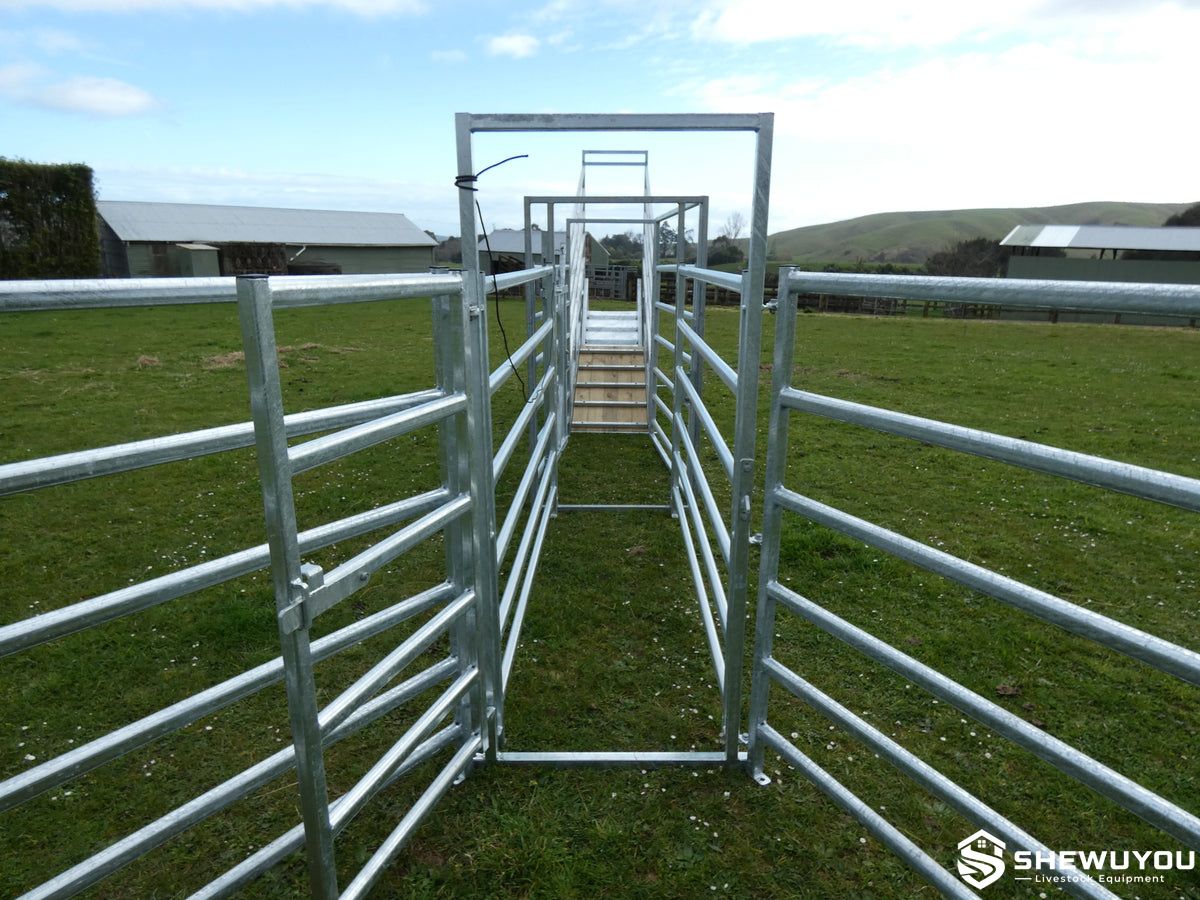

Cattle enter the straight alley from a holding or forcing area and move forward in single file toward the next handling station. The fixed internal width limits turning and side-to-side movement while allowing mature cattle to continue forward naturally.

Intermediate swing gates, rolling doors or alley stops can be used to divide groups and prevent backward movement. At the end of the race, cattle can enter a squeeze crush, veterinary section, livestock scale or sorting system according to the overall farm layout.

• Commercial beef cattle farms and feedlots.
• Dairy cattle handling facilities.
• Cattle breeding and veterinary stations.
• Single-file movement into cattle crushes.
• Livestock weighing and EID stations.
• Vaccination and herd-health handling areas.
• Pregnancy-checking and reproductive-management facilities.
• Cattle loading and sorting systems.
• Permanent outdoor yards and covered steel-structure cattle buildings.

• Alley Length: Customizable according to cattle throughput and site dimensions.
• Panel Height: Available according to cattle breed and project requirements.
• Side Panel Type: Open rail, partially sheeted or fully sheeted configurations available.
• Entry Gate: Swing, rolling or bi-fold gate options available.
• Intermediate Gates: Available for sectional livestock-flow control.
• No-Back System: Adjustable anti-backing devices available upon request.
• Raised Walkway: Available for improved handler access and visibility.
• Surface Treatment: Hot-dip galvanized or alternative finish available according to project requirements.
• Integration: Designed to connect with cattle crushes, weighing systems and sorting gates.

• Confirm the required alley length, cattle flow direction and connection points before installation.
• Install the alley on firm and adequately drained ground or a suitable concrete working surface.
• Position spreaders at the specified intervals to maintain consistent internal width.
• Keep both alley sides parallel throughout straight sections.
• Secure panels and gate sections using the specified pin or structural connection system.
• Check swing gates, rolling doors and latches before cattle enter the system.
• Remove manure, mud and accumulated feed from the working area regularly.
• Inspect pins, hinges, gate mechanisms, panel joints and structural members periodically.
• Repair damaged protective coatings where required to maintain corrosion resistance.

Q: What cattle is a fixed-width alley best suited for?
A: The reference 32-inch system is primarily intended for farms that routinely handle mature cattle of relatively consistent body size.

Q: What is the reference internal alley width?
A: The reference fixed-width configuration provides approximately 32 inches of internal clearance.

Q: Can the alley length be customized?
A: Yes. Multiple straight panel sections can be combined to achieve the required overall working length.

Q: Can control gates be installed inside the alley?
A: Yes. Swing gates, rolling doors and bi-fold gate sections can be incorporated according to cattle-flow requirements.

Q: Can sheeted panels be supplied?
A: Yes. Partially or fully sheeted side panels can be configured to reduce external visual distractions and improve controlled cattle movement.

Q: Can the alley connect directly to a cattle crush?
A: Yes. The system can be designed to feed directly into compatible cattle crushes, palpation cages, weighing stations or sorting systems.

Q: Can SHEWUYOU customize a complete cattle handling system?
A: Yes. Alley length, panel height, gate locations, surface treatment, cattle crushes and related handling equipment can be configured according to project requirements.
