Product Showcase	Content

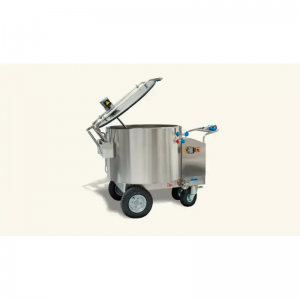

Product Name	100–500L Stainless Steel Pasteurizing Calf Milk Cart
Product Image
Product Overview	The 100–500L Stainless Steel Pasteurizing Calf Milk Cart is a mobile milk preparation and feeding system designed for commercial dairy farms, calf-rearing centers and replacement-heifer operations. The system combines milk pasteurization, milk-replacer mixing, thermal insulation, controlled agitation, mobile transport and measured dispensing in one compact unit. It can be used with fresh whole milk, properly managed non-saleable milk or prepared milk replacer according to the farm's calf-feeding protocol. A stainless steel insulated tank, touchscreen PLC control, multi-speed mixing system and battery-powered drive help reduce repetitive manual handling while supporting consistent milk preparation and feeding across individual calf pens, hutches and group housing.
Key Features	Reference capacities from 100 to 500 liters for different calf-rearing scales. AISI 304 stainless steel milk tank for hygienic liquid-feed handling. High-density polyurethane insulation helps maintain milk temperature and reduce energy loss. Integrated pasteurization system supports controlled preparation of calf milk. Special agitator for fresh milk and double-blade mixer configuration for milk powder. Multi-speed mixing motor with inverter control for different operating stages. 4.3-inch color touchscreen provides centralized operating control. PLC automation supports milk-temperature control, feeding quantity settings, automatic start/stop and scheduled preparation. Battery-powered electric drive assists movement along calf-feeding routes. Large wheels improve mobility over typical dairy-farm passages. Measured dispensing system supports consistent milk portions. Leak-resistant lid helps reduce milk loss during movement.
Structural Components	AISI 304 Stainless Steel Tank: Hygienic milk-contact vessel designed for heating, mixing, transport and feeding. Polyurethane Insulation: High-density insulation surrounds the tank to improve temperature retention. Side and Bottom Heat Exchange Surfaces: Support efficient heating and temperature management. Agitator / Double-Blade Mixer: Provides low-speed milk agitation and higher-speed milk-powder mixing according to configuration. Inverter-Controlled Motor: Allows operating speed to be adapted to pasteurization and powder-mixing requirements. Touchscreen PLC: Central interface for temperature, timing, feeding and automated operating functions. Electric Heater: Reference control configuration uses electric heating for milk-temperature management. Water Circuit: Includes valves and filtration components for cooling and cleaning-related functions. Feeding Hose: Transfers prepared milk from the tank to individual calf feeding points. Dosing System: Controls the quantity delivered during each feeding operation. Battery Drive System: Provides powered movement between calf housing areas. Wheel and Brake Assembly: Supports controlled movement and parking during operation.
Working Principle	Milk or prepared liquid ingredients are loaded into the stainless steel tank. When milk powder is used, the high-speed mixing function helps disperse the powder uniformly throughout the liquid. The PLC-controlled heating system raises the milk to the programmed process temperature and manages the pasteurization cycle according to the selected farm protocol. The agitator maintains uniform temperature and product consistency during processing. After pasteurization, the system can manage cooling through its water circuit until the milk reaches the required feeding temperature. The insulated tank helps minimize temperature change during the subsequent feeding round. The operator then moves the cart along the calf housing route using the battery-assisted drive. At each feeding location, milk is transferred through the feeding hose and the required quantity is dispensed into the calf bucket, teat feeder or other compatible feeding container.
Technical Specifications	Product Type Mobile Pasteurizing Calf Milk Cart Reference Capacity Range 100–500 L Milk-Contact Material AISI 304 Stainless Steel Tank Insulation High-Density Two-Component Polyurethane Foam Control Interface 4.3-Inch Color Touchscreen Control System PLC Automatic Control Mixing System Agitator / Double-Blade Milk Powder Mixer Mixing Speed Control Multi-Speed Inverter Control Reference Heating Power 12 kW on Reference Configuration Heat Exchange Tank Sidewall and Bottom Mobility Battery-Assisted Electric Drive Reference Drive Autonomy More than 3 Hours on Reference Configuration Feeding System Flexible Hose with Measured Dosing Volume Indication Internal Engraved Tank Graduation Tank Lid Leak-Resistant / Watertight Cover Cleaning System Semi-Automatic Washing Available Language / Software Configurable According to Project Requirements
Applications	Commercial dairy cattle farms. Centralized calf-rearing facilities. Individual calf hutches and calf pens. Group calf housing systems. Whole-milk calf feeding programs. Milk-replacer preparation and distribution. Controlled use of suitable non-saleable milk after pasteurization. Replacement-heifer development centers. Steel-structure dairy barns and dedicated calf buildings. Livestock engineering and turnkey dairy farm projects.
Customization Options	Capacity and operating configuration can be selected according to calf numbers, daily milk requirements, feeding frequency, barn layout and feeding-route distance. Available project options may include alternative tank capacities, fresh-milk agitation or milk-powder mixing systems, dosing configurations, cleaning functions, control-language packages, electrical specifications and charging arrangements. Feeding hose configuration, software settings, milk preparation programs and electrical interfaces are customizable according to project requirements.
Installation & Maintenance	The cart is a mobile feeding unit and normally requires no permanent installation in the calf barn. Provide compatible electrical power and water connections at the milk preparation and cleaning area. Confirm feed-alley width, doorway clearance, floor slope and turning space before selecting capacity. Commission the PLC temperature, mixing, feeding and scheduling settings according to the farm feeding protocol. Clean all milk-contact surfaces after each feeding cycle according to the farm hygiene program. Operate the semi-automatic washing function according to the selected configuration and cleaning procedure. Inspect the agitator, mixer, heating surfaces, hoses and dosing components regularly. Keep the water filter and polyphosphate filter maintained to reduce deposits in the water circuit. Inspect wheels, brakes and drive components as part of routine preventive maintenance. Check battery condition and charging connections regularly. Protect the touchscreen and electrical control enclosure during high-pressure cleaning. Periodically verify milk-temperature sensing and dosing accuracy.
Product FAQ	Q: What capacities are available? A: Reference configurations cover approximately 100 to 500 liters. Final capacity should be selected according to calf numbers and daily feeding volume. Q: Can the cart pasteurize whole milk? A: Yes. The system is designed to heat and manage milk through a controlled pasteurization process before feeding. Q: Can it mix milk replacer? A: Yes. A double-blade mixing configuration can be used to disperse milk powder uniformly. Q: Why does the mixer use different speeds? A: Lower-speed agitation is suitable for milk handling during pasteurization, while higher-speed mixing assists with milk-powder dispersion. Q: Is feeding quantity adjustable? A: Yes. The feeding hose and dosing system allow controlled delivery according to the required calf portion. Q: Can milk preparation be scheduled automatically? A: Yes. PLC scheduling allows milk preparation to be programmed according to the farm feeding timetable. Q: Is the tank insulated? A: Yes. The AISI 304 stainless steel tank uses high-density polyurethane insulation to help maintain temperature. Q: Does the cart move under its own power? A: The reference configuration includes a battery-powered electric drive to assist movement around the dairy farm. Q: Is an automatic cleaning function available? A: Semi-automatic washing is available, while the exact cleaning package can be configured according to project requirements. Q: Can the touchscreen language and electrical configuration be customized? A: Yes. Software language, electrical specifications and selected operating parameters can be configured for international projects.
Product Gallery
